Каталог

Япония

Модель

COASTER

VIN

Дата

2019/08

Двигатель

4 литра, дизель

Класс

GX SPECIFICATION

Фрейм

XZB80

КПП

автомат АКПП, 6 скоростей

Опции

высокая крыша 13-местный WITH COOLER система впрыска дизельного топлива высокой мощности COMPLETED VEHICLE 675W

Боковая форточка TOYOTA COASTER







Код

Описание

62021A

FRAME SUB-ASSY, FRONT SIDE WINDOW, OUTER LH

62029

FRAME SUB-ASSY, SIDE WINDOW, CENTER LH

62109A

GLASS SUB-ASSY, SIDE LOWER WINDOW, LH

62121

GLASS, FRONT SIDE WINDOW, FRONT LH

62179

DAM, SIDE LOWER WINDOW

62179

DAM, SIDE LOWER WINDOW

62179

DAM, SIDE LOWER WINDOW

62179

DAM, SIDE LOWER WINDOW

62179

DAM, SIDE LOWER WINDOW

62179

DAM, SIDE LOWER WINDOW

62211F

GLASS, SIDE WINDOW, REAR LH

62269F

FILM, SIDE WINDOW FRAME

62279

SPACER, SIDE WINDOW FRAME, UPPER

62279A

SPACER, SIDE WINDOW FRAME

62279A

SPACER, SIDE WINDOW FRAME

62279F

SPACER, SIDE WINDOW FRAME

62375B

CLIP, SIDE WINDOW, NO.1

62375B

CLIP, SIDE WINDOW, NO.1

62375B

CLIP, SIDE WINDOW, NO.1

62387B

SEAL, SIDE WINDOW, NO.3

62388

SEAL, SIDE WINDOW, NO.4

62391B

STOPPER, SIDE WINDOW, NO.1 FRONT LH

62720B

WINDOW ASSY, SIDE, FRONT LH

6274636010

Крепеж

62763N

RETAINER, SIDE WINDOW FRAME

62763Q

RETAINER, SIDE WINDOW FRAME

62763W

RETAINER, SIDE WINDOW FRAME

62777B

CAP, SIDE WINDOW CENTER SASH

62785W

SPACER, SIDE WINDOW GLASS

62785W

SPACER, SIDE WINDOW GLASS

62785W

SPACER, SIDE WINDOW GLASS

62785W

SPACER, SIDE WINDOW GLASS

62792C

PACKING, SIDE WINDOW LOCK, LH

62792C

PACKING, SIDE WINDOW LOCK, LH

62793C

RETAINER, SIDE WINDOW LOCK, LH

62793C

RETAINER, SIDE WINDOW LOCK, LH

62910E

LOCK ASSY, SIDE WINDOW

62910E

LOCK ASSY, SIDE WINDOW

68142D

RUN, SIDE FRONT WINDOW, LH

68217A

PIN, SIDE WINDOW , NO.1

68217A

PIN, SIDE WINDOW , NO.1

68217A

PIN, SIDE WINDOW , NO.1

9025403007

Крепеж

9025403007

Крепеж

9354024008

Крепеж

9354024010

Крепеж

9354024010

Крепеж

9354054014

Крепеж

9354054016

Крепеж

Код

Описание

62015

FRAME SUB-ASSY, SIDE WINDOW, RH

62019A

FRAME SUB-ASSY, SIDE WINDOW, CENTER RH

62211G

GLASS, SIDE WINDOW, REAR RH

62211H

GLASS, SIDE WINDOW, FRONT RH

62269G

FILM, SIDE WINDOW FRAME

62279E

SPACER, SIDE WINDOW FRAME

62279G

SPACER, SIDE WINDOW FRAME

62387A

SEAL, SIDE WINDOW, NO.3

62388A

SEAL, SIDE WINDOW, NO.4

62391C

STOPPER, SIDE WINDOW, NO.1 RH

62451F

RUN, REAR SIDE WINDOW, RH

6274636010

Крепеж

62763P

RETAINER, SIDE WINDOW FRAME

62763X

RETAINER, SIDE WINDOW FRAME

62777C

CAP, SIDE WINDOW CENTER SASH

62785R

SPACER, SIDE WINDOW GLASS

62785R

SPACER, SIDE WINDOW GLASS

62785R

SPACER, SIDE WINDOW GLASS

62792J

PACKING, SIDE WINDOW LOCK

62792J

PACKING, SIDE WINDOW LOCK

62793J

RETAINER, SIDE WINDOW LOCK

62793K

RETAINER, SIDE WINDOW LOCK

62910M

LOCK ASSY, SIDE WINDOW

62910M

LOCK ASSY, SIDE WINDOW

9025403007

Крепеж

9025403007

Крепеж

9354024008

Крепеж

9354024010

Крепеж

9354024010

Крепеж

9354054014

Крепеж

9354054014

Крепеж

9354054016

Крепеж

Код

Описание

62015A

FRAME SUB-ASSY, SIDE WINDOW, RH

62019B

FRAME SUB-ASSY, SIDE WINDOW, CENTER RH

62025B

FRAME SUB-ASSY, REAR SIDE WINDOW, LH

62029B

FRAME SUB-ASSY, SIDE WINDOW, CENTER LH

62211J

GLASS, SIDE WINDOW, FRONT RH

62211K

GLASS, SIDE WINDOW, REAR RH

62221K

GLASS, SIDE WINDOW, FRONT LH

62221L

GLASS, SIDE WINDOW, REAR LH

62269H

FILM, SIDE WINDOW FRAME

62269J

FILM, SIDE WINDOW FRAME

62279C

SPACER, SIDE WINDOW FRAME, RH

62279D

SPACER, SIDE WINDOW FRAME, LH

62279H

SPACER, SIDE WINDOW FRAME

62387A

SEAL, SIDE WINDOW, NO.3

62388A

SEAL, SIDE WINDOW, NO.4

62391E

STOPPER, SIDE WINDOW, NO.1

62391F

STOPPER, SIDE WINDOW, NO.1

62451G

RUN, REAR SIDE WINDOW, RH

62461R

RUN, REAR SIDE WINDOW, LH

6274636010

Крепеж

6276336010

Крепеж

62763R

RETAINER, SIDE WINDOW FRAME

62763S

RETAINER, SIDE WINDOW FRAME

62777D

CAP, SIDE WINDOW CENTER SASH

62777E

CAP, SIDE WINDOW CENTER SASH

62785S

SPACER, SIDE WINDOW GLASS

62785S

SPACER, SIDE WINDOW GLASS

62785S

SPACER, SIDE WINDOW GLASS

62785T

SPACER, SIDE WINDOW GLASS

62785T

SPACER, SIDE WINDOW GLASS

62785T

SPACER, SIDE WINDOW GLASS

62792K

PACKING, SIDE WINDOW LOCK

62792K

PACKING, SIDE WINDOW LOCK

62792L

PACKING, SIDE WINDOW LOCK

62792L

PACKING, SIDE WINDOW LOCK

62793L

RETAINER, SIDE WINDOW LOCK

62793M

RETAINER, SIDE WINDOW LOCK

62793N

RETAINER, SIDE WINDOW LOCK

62793P

RETAINER, SIDE WINDOW LOCK

62910P

LOCK ASSY, SIDE WINDOW

62910P

LOCK ASSY, SIDE WINDOW

62910Q

LOCK ASSY, SIDE WINDOW

62910Q

LOCK ASSY, SIDE WINDOW

9025403007

Крепеж

9025403007

Крепеж

9354024008

Крепеж

9354024010

Крепеж

9354024010

Крепеж

9354054014

Крепеж

9354054014

Крепеж

9354054016

Крепеж

Код

Описание

62015A

FRAME SUB-ASSY, SIDE WINDOW, RH

62019B

FRAME SUB-ASSY, SIDE WINDOW, CENTER RH

62025B

FRAME SUB-ASSY, REAR SIDE WINDOW, LH

62029B

FRAME SUB-ASSY, SIDE WINDOW, CENTER LH

62211J

GLASS, SIDE WINDOW, FRONT RH

62211K

GLASS, SIDE WINDOW, REAR RH

62221K

GLASS, SIDE WINDOW, FRONT LH

62221L

GLASS, SIDE WINDOW, REAR LH

62269H

FILM, SIDE WINDOW FRAME

62269J

FILM, SIDE WINDOW FRAME

62279C

SPACER, SIDE WINDOW FRAME, RH

62279D

SPACER, SIDE WINDOW FRAME, LH

62279H

SPACER, SIDE WINDOW FRAME

62387A

SEAL, SIDE WINDOW, NO.3

62388A

SEAL, SIDE WINDOW, NO.4

62391F

STOPPER, SIDE WINDOW, NO.1

62451G

RUN, REAR SIDE WINDOW, RH

62461R

RUN, REAR SIDE WINDOW, LH

6274636010

Крепеж

6276336010

Крепеж

62763R

RETAINER, SIDE WINDOW FRAME

62763S

RETAINER, SIDE WINDOW FRAME

62777D

CAP, SIDE WINDOW CENTER SASH

62777E

CAP, SIDE WINDOW CENTER SASH

62785S

SPACER, SIDE WINDOW GLASS

62785S

SPACER, SIDE WINDOW GLASS

62785S

SPACER, SIDE WINDOW GLASS

62785T

SPACER, SIDE WINDOW GLASS

62785T

SPACER, SIDE WINDOW GLASS

62785T

SPACER, SIDE WINDOW GLASS

62792K

PACKING, SIDE WINDOW LOCK

62792K

PACKING, SIDE WINDOW LOCK

62792L

PACKING, SIDE WINDOW LOCK

62793L

RETAINER, SIDE WINDOW LOCK

62793N

RETAINER, SIDE WINDOW LOCK

62793P

RETAINER, SIDE WINDOW LOCK

62910P

LOCK ASSY, SIDE WINDOW

62910P

LOCK ASSY, SIDE WINDOW

62910Q

LOCK ASSY, SIDE WINDOW

9025403007

Крепеж

9025403007

Крепеж

9354024008

Крепеж

9354024010

Крепеж

9354024010

Крепеж

9354054014

Крепеж

9354054016

Крепеж

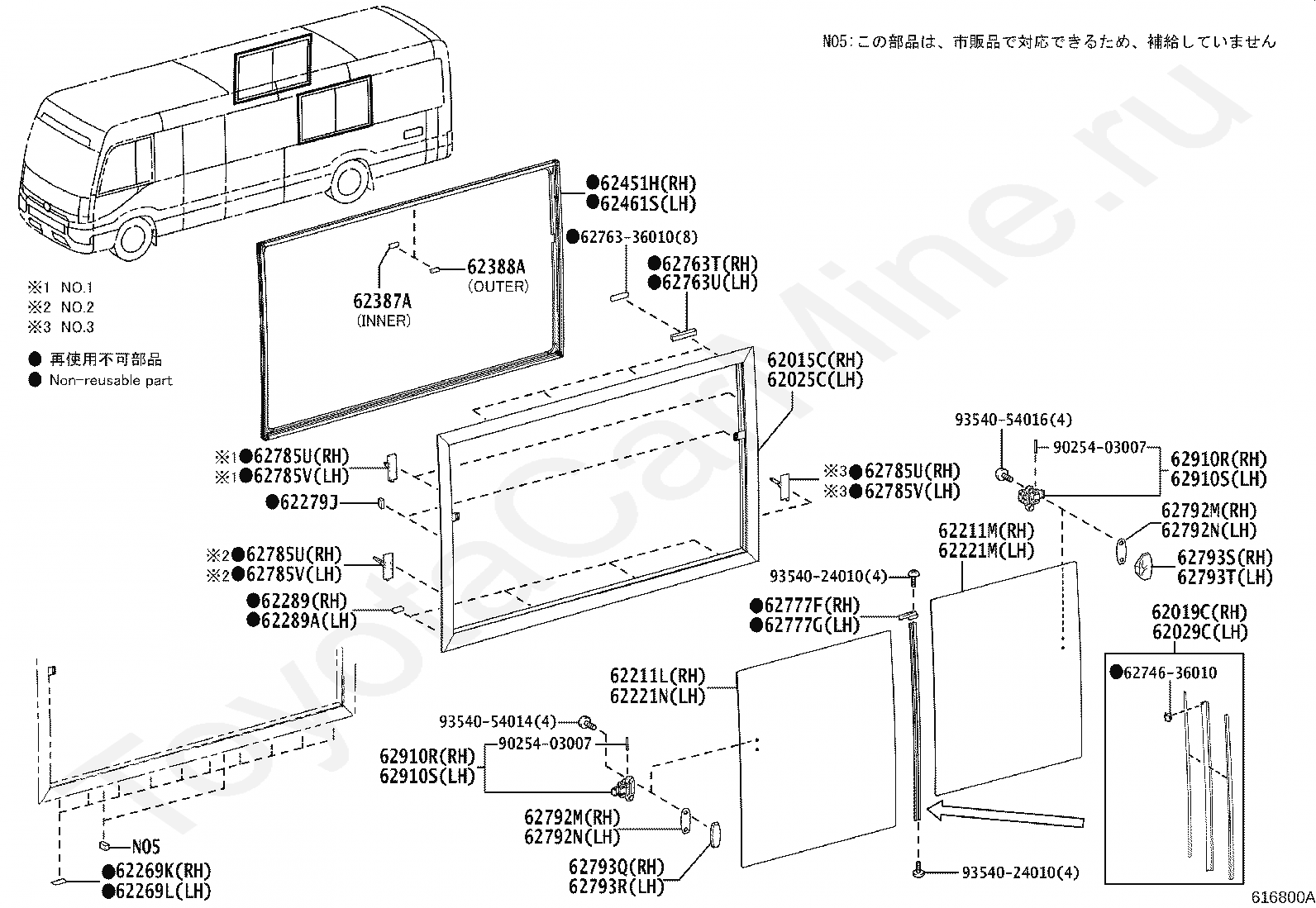

Код

Описание

62015C

FRAME SUB-ASSY, REAR SIDE WINDOW, RH

62019C

FRAME SUB-ASSY, SIDE WINDOW, CENTER RH

62025C

FRAME SUB-ASSY, REAR SIDE WINDOW, LH

62029C

FRAME SUB-ASSY, SIDE WINDOW, CENTER LH

62211L

GLASS, SIDE WINDOW, FRONT RH

62211M

GLASS, SIDE WINDOW, REAR RH

62221M

GLASS, SIDE WINDOW, REAR LH

62221N

GLASS, SIDE WINDOW, FRONT LH

62269K

FILM, SIDE WINDOW FRAME

62269L

FILM, SIDE WINDOW FRAME

62279J

SPACER, SIDE WINDOW FRAME

62289

SPACER, SIDE WINDOW FRAME, NO.2 RH

62289A

SPACER, SIDE WINDOW FRAME, NO.2 LH

62387A

SEAL, SIDE WINDOW, NO.3

62388A

SEAL, SIDE WINDOW, NO.4

62451H

RUN, REAR SIDE WINDOW, RH

62461S

RUN, REAR SIDE WINDOW, LH

6274636010

Крепеж

6276336010

Крепеж

62763T

RETAINER, SIDE WINDOW FRAME

62763U

RETAINER, SIDE WINDOW FRAME

62777F

CAP, SIDE WINDOW CENTER SASH

62777G

CAP, SIDE WINDOW CENTER SASH

62785U

SPACER, SIDE WINDOW GLASS

62785U

SPACER, SIDE WINDOW GLASS

62785U

SPACER, SIDE WINDOW GLASS

62785V

SPACER, SIDE WINDOW GLASS

62785V

SPACER, SIDE WINDOW GLASS

62785V

SPACER, SIDE WINDOW GLASS

62792M

PACKING, SIDE WINDOW LOCK

62792M

PACKING, SIDE WINDOW LOCK

62792N

PACKING, SIDE WINDOW LOCK

62792N

PACKING, SIDE WINDOW LOCK

62793Q

RETAINER, SIDE WINDOW LOCK

62793R

RETAINER, SIDE WINDOW LOCK

62793S

RETAINER, SIDE WINDOW LOCK

62793T

RETAINER, SIDE WINDOW LOCK

62910R

LOCK ASSY, SIDE WINDOW

62910R

LOCK ASSY, SIDE WINDOW

62910S

LOCK ASSY, SIDE WINDOW

62910S

LOCK ASSY, SIDE WINDOW

9025403007

Крепеж

9025403007

Крепеж

9354024010

Крепеж

9354024010

Крепеж

9354054014

Крепеж

9354054016

Крепеж

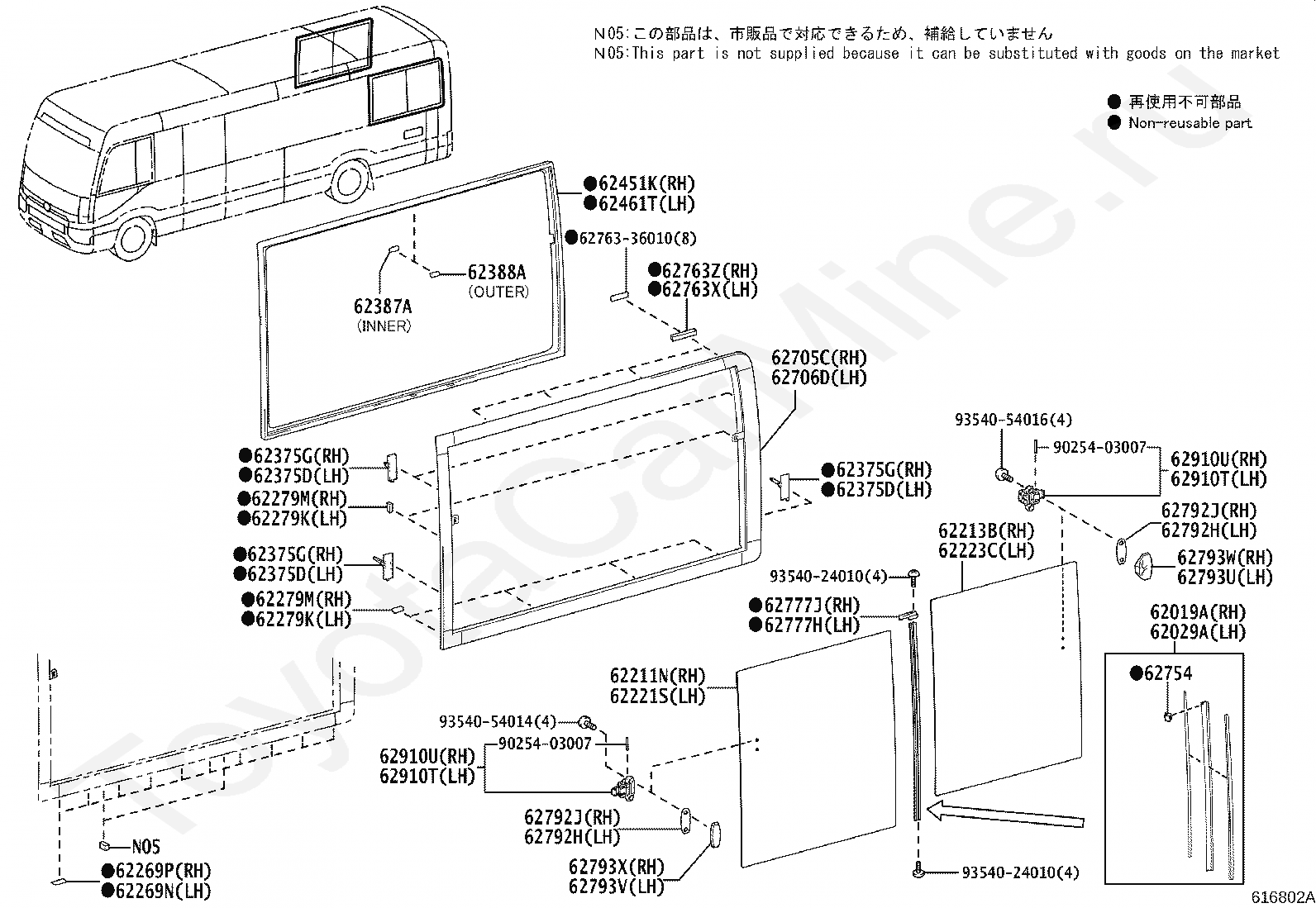

Код

Описание

62019A

FRAME SUB-ASSY, SIDE WINDOW, CENTER RH

62029A

FRAME SUB-ASSY, SIDE WINDOW, CENTER LH

62211N

GLASS, SIDE WINDOW, FRONT RH

62213B

GLASS, SIDE WINDOW, REAR RH

62221S

GLASS, SIDE WINDOW, FRONT LH

62223C

GLASS, SIDE WINDOW, REAR LH

62269N

FILM, SIDE WINDOW FRAME

62269P

FILM, SIDE WINDOW FRAME

62279K

SPACER, SIDE WINDOW FRAME

62279K

SPACER, SIDE WINDOW FRAME

62279M

SPACER, SIDE WINDOW FRAME

62279M

SPACER, SIDE WINDOW FRAME

62375D

CLIP, SIDE WINDOW, NO.1

62375D

CLIP, SIDE WINDOW, NO.1

62375D

CLIP, SIDE WINDOW, NO.1

62375G

CLIP, SIDE WINDOW, NO.1

62375G

CLIP, SIDE WINDOW, NO.1

62375G

CLIP, SIDE WINDOW, NO.1

62387A

SEAL, SIDE WINDOW, NO.3

62388A

SEAL, SIDE WINDOW, NO.4

62451K

RUN, REAR SIDE WINDOW, RH

62461T

RUN, REAR SIDE WINDOW, LH

62705C

FRAME SUB-ASSY, SIDE REAR WINDOW, RH

62706D

FRAME SUB-ASSY, SIDE REAR WINDOW, LH

62754

PACKING, QUARTER WINDOW

6276336010

Крепеж

62763X

RETAINER, SIDE WINDOW FRAME

62763Z

RETAINER, SIDE WINDOW FRAME

62777H

CAP, SIDE WINDOW CENTER SASH

62777J

CAP, SIDE WINDOW CENTER SASH

62792H

PACKING, SIDE WINDOW LOCK

62792H

PACKING, SIDE WINDOW LOCK

62792J

PACKING, SIDE WINDOW LOCK

62792J

PACKING, SIDE WINDOW LOCK

62793U

RETAINER, SIDE WINDOW LOCK

62793V

RETAINER, SIDE WINDOW LOCK

62793W

RETAINER, SIDE WINDOW LOCK

62793X

RETAINER, SIDE WINDOW LOCK

62910T

LOCK ASSY, SIDE WINDOW

62910T

LOCK ASSY, SIDE WINDOW

62910U

LOCK ASSY, SIDE WINDOW

62910U

LOCK ASSY, SIDE WINDOW

9025403007

Крепеж

9025403007

Крепеж

9354024010

Крепеж

9354024010

Крепеж

9354054014

Крепеж

9354054016

Крепеж
