Боковая панель кузова Тойота COASTER, Япония, 2019/08 - 2025/, 4 литра, дизель, GX SPECIFICATION, XZB80, автомат, АКПП, 6 скоростей, высокая крыша, 13-местный, WITH COOLER, система впрыска дизельного топлива высокой мощности, COMPLETED VEHICLE, 675W

Код

Описание

5752

переход к группе запчастей

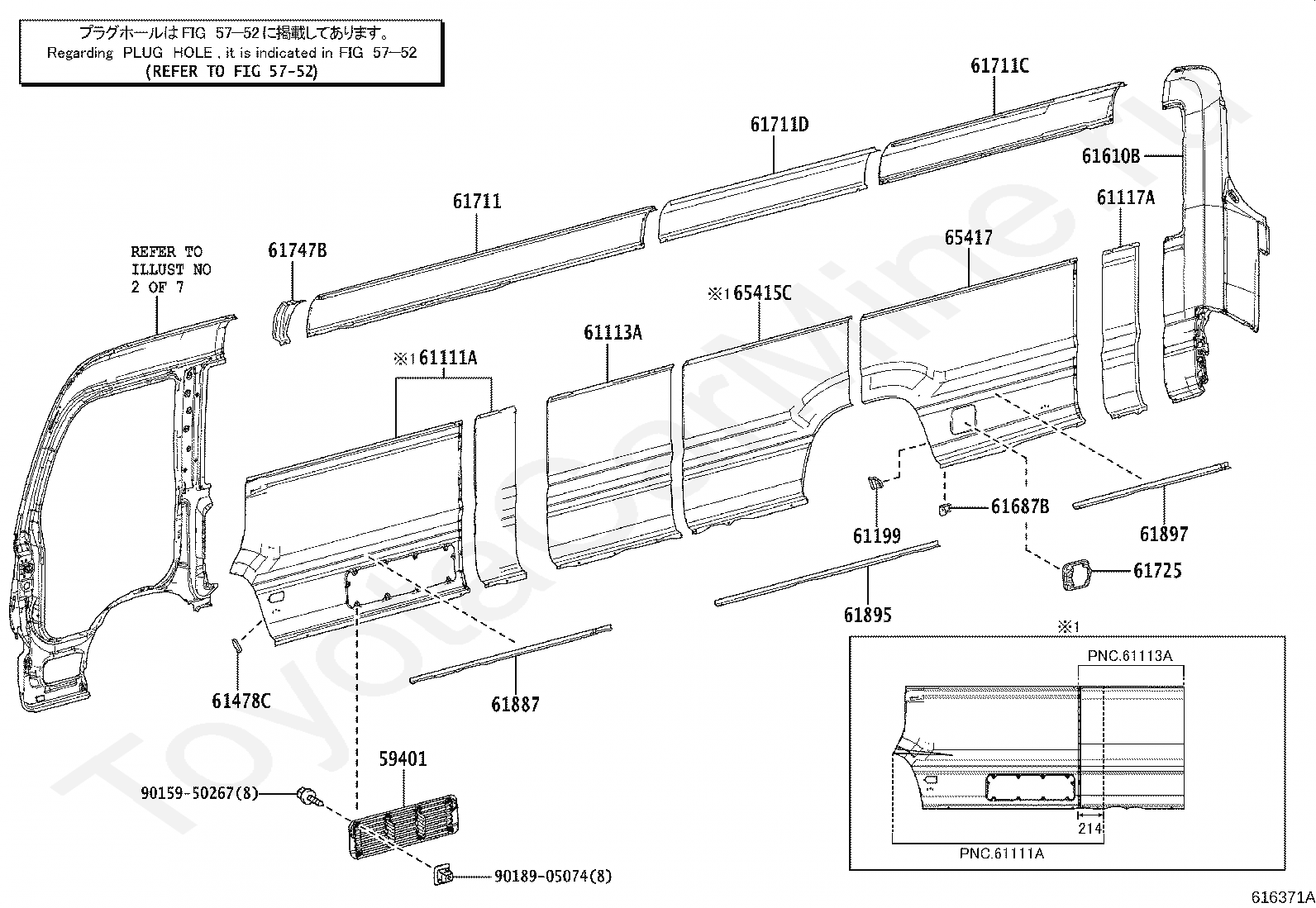

59401

COVER SUB-ASSY, COOLER CONDENSER

61111A

PANEL, FRONT SIDE, OUTER RH

61113A

PANEL, SIDE, OUTER NO.2 RH

61117A

GUSSET, SIDE PANEL RELIEF, NO.1

61199

BRACKET, SIDE PANEL TO REAR MUDGUARD

61478C

BRACKET, MUDGUARD, FRONT RH

61610B

PANEL SUB-ASSY, REAR BODY CORNER, RH

61687B

BRACKET, MUDGUARD, REAR RH

61711

PANEL, ROOF SIDE, OUTER RH

61711C

PANEL, ROOF SIDE, OUTER RH, NO.2

61711D

PANEL, ROOF SIDE, OUTER RH, NO.3

61725

BOX, FUEL INLET

61747B

REINFORCEMENT, ROOF SIDE, INNER REAR, RH

61887

RAIL, SIDE PANEL DUST PROOF, NO.1 RH

61895

RAIL, SIDE PANEL DUST PROOF, NO.2 RH

61897

RAIL, SIDE PANEL DUST PROOF, NO.3 RH

65415C

PANEL, REAR BODY, FRONT RH

65417

PANEL, REAR BODY, REAR RH

9015950267

Крепеж

9018905074

Крепеж

Код

Описание

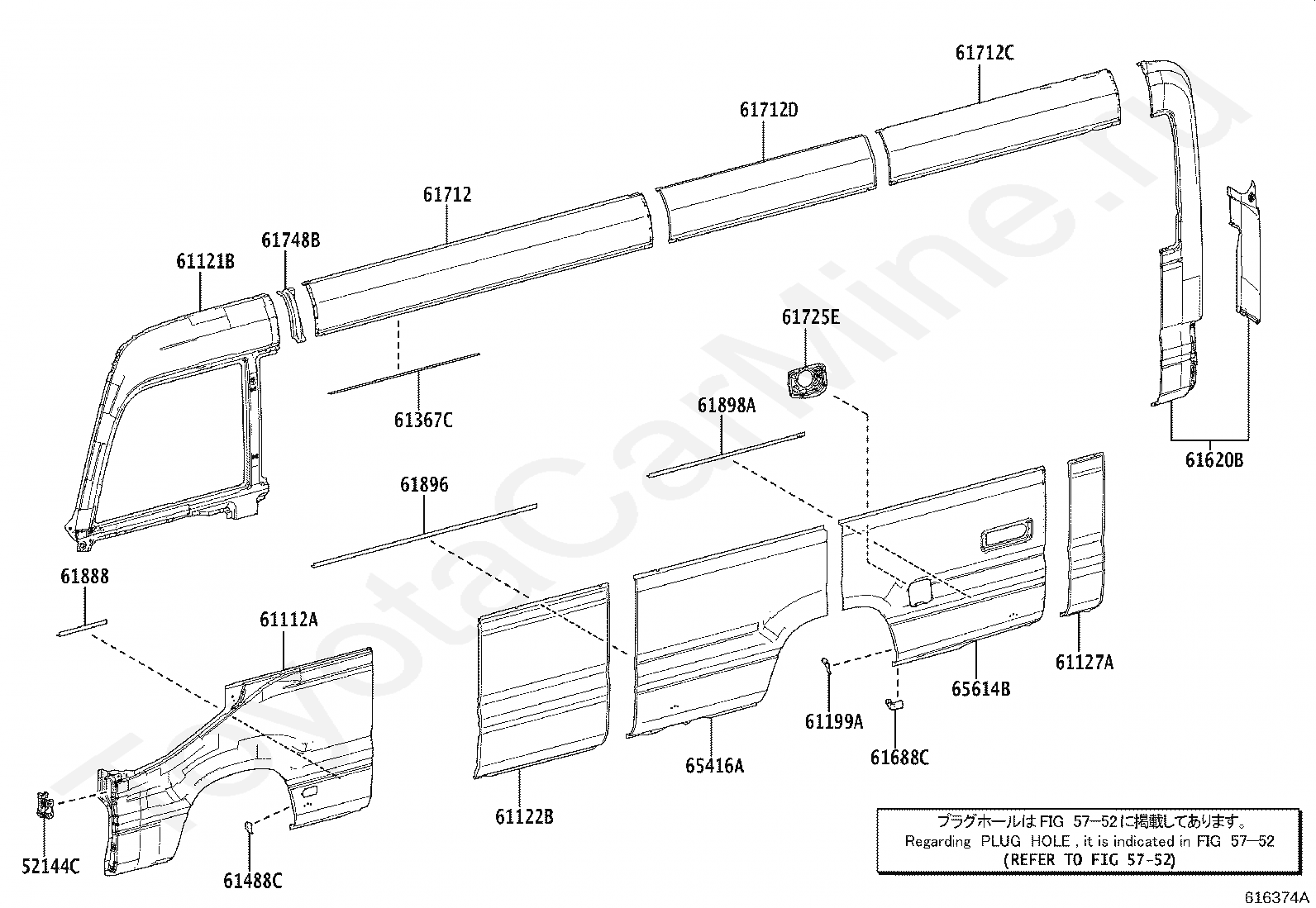

52144C

BRACKET, FRONT BUMPER SIDE, LH

5752

переход к группе запчастей

61112A

PANEL, FRONT SIDE, OUTER LH

61121B

PANEL, NO.1 SIDE, LH

61122B

PANEL, NO.2 SIDE, LH

61127A

GUSSET, SIDE PANEL RELIEF, NO.4

61199A

BRACKET, SIDE PANEL TO REAR MUDGUARD, LH

61367C

CHANNEL, ROOF DRIP SIDE, CENTER NO.1

61488C

BRACKET, MUDGUARD, FRONT LH

61620B

PANEL SUB-ASSY, REAR BODY CORNER, LH

61688C

BRACKET, MUDGUARD, REAR LH

61712

PANEL, ROOF SIDE, OUTER LH

61712C

PANEL, ROOF SIDE, OUTER LH, NO.2

61712D

PANEL, ROOF SIDE, OUTER LH, NO.3

61725E

BOX, FUEL INLET

61748B

REINFORCEMENT, ROOF SIDE, INNER REAR, LH

61888

RAIL, SIDE PANEL DUST PROOF, NO.1 LH

61896

RAIL, SIDE PANEL DUST PROOF, NO.2 LH

61898A

RAIL, SIDE PANEL DUST PROOF, NO.3 LH

65416A

PANEL, REAR BODY, FRONT LH

65614B

PANEL, REAR BODY, REAR LH

Код

Описание

52133H

BRACKET, FRONT BUMPER, RH

52143C

BRACKET, FRONT BUMPER SIDE, RH

53257A

BRACKET, FRONT END PANEL MOUNTING, RH

53354

GUSSET, HOOD REINFORCEMENT, LH

53797A

PROTECTOR, SIDE TURN SIGNAL LAMP

53797A

PROTECTOR, SIDE TURN SIGNAL LAMP

53797A

PROTECTOR, SIDE TURN SIGNAL LAMP

53827G

PROTECTOR, FRONT FENDER SIDE PANEL, RH

53837C

BRACKET, FRONT SIDE PANEL, NO.2 RH

53838B

EXTENSION, FRONT FENDER REAR, RH

5752

переход к группе запчастей

61027A

PILLAR SUB-ASSY, FRONT BODY, OUTER RH

61032A

PILLAR SUB-ASSY, NO.1 INNER, RH

61042A

PILLAR SUB-ASSY, NO.1 INNER, LH

61051

PANEL, ROOF SIDE OUTER FRONT, RH

61052

PANEL, ROOF SIDE OUTER FRONT, LH

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61131C

PILLAR, FRONT BODY, OUTER RH

61133C

PILLAR, FRONT BODY, LOWER OUTER RH

61135A

REINFORCEMENT, FRONT BODY PILLAR, OUTER

61136B

REINFORCEMENT, FRONT BODY PILLAR, OUTER

61145B

GUSSET, FRONT BODY PILLAR, LOWER RH

61167D

BRACE, FRONT BODY PILLAR, INNER RH

61168B

BRACE, FRONT BODY PILLAR, INNER LH

61176C

REINFORCEMENT, NO.1 PILLAR, UPPER RH

61177B

BRACKET, DOOR CHECK ARM

61178A

REINFORCEMENT, NO.1 PILLAR, LOWER RH

61222

PILLAR, NO.1 OUTER, LOWER LH

61311A

RAIL, NO.1 UPPER OUTER, RH

61321A

RAIL, NO.1 UPPER OUTER, LH

61422A

PANEL, FENDER, INNER LH

61476

PATCH, FRONT DOOR PILLAR, RH

61651A

GUSSET, PILLAR SHEAR, NO.1 RH

61713B

REINFORCE, ROOF SIDE, OUTER RH

61714B

REINFORCE, ROOF SIDE, OUTER LH

61859

COVER, FRONT DOOR STEP, RH

61938A

RETAINER, OUTER SIDE MIRROR, LH

65104E

BRACKET SUB-ASSY, MOUNTING, LH

6786830030

Крепеж

9010506344

Крепеж

9017904026

Крепеж

9017908184

Крепеж

9017908184

Крепеж

9167380820

Крепеж

Код

Описание

61119A

PANEL, CENTER DOOR ORENING, LOWER INNER FRONT

61129C

PANEL, CENTER DOOR OPENING, LOWER INNER REAR

61216B

PILLAR, NO.3

61217C

PILLAR, NO.4

61265D

PILLAR, NO.3 INNER, UPPER LH

61266C

PILLAR, NO.3 INNER, LOWER LH

61267C

PILLAR, NO.4 INNER, UPPER LH

61268B

PILLAR, NO.4 INNER, LOWER LH

61288

PILLAR, NO.3 CORNER, LH

61289A

PILLAR, NO.4 CORNER, LH

61319B

PLATE, CENTER BODY PILLAR, OUTER RH

61329

PLATE, CENTER BODY PILLAR, OUTER LH

61335E

RETAINER, SEAT BELT ANCHOR

61337

PATCH, CENTER BODY PILLAR

61406

RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH

61471

RAIL, CENTER DOOR, OUTER

61481A

RAIL, CENTER DOOR, LOWER OUTER

61561A

GUSSET, REAR SEAT

61566A

GUSSET, PILLAR TO RAIL, NO.1 LH

61587

GUSSET, CENTER DOOR PILLAR, FRONT LH

61588

GUSSET, CENTER DOOR PILLAR, REAR LH

61598

BRACKET, STIFFENER, NO.5

61598

BRACKET, STIFFENER, NO.5

61671F

PLATE, QUARTER PANEL, UPPER NO.1

61823B

PLATE, DUST PROOF, NO.1 LH

61824B

PLATE, DUST PLOOF, NO.2 LH

61973

REINFORCEMENT, CENTER PILLAR, NO.3

61974

REINFORCEMENT, CENTER PILLAR, NO.4

67128

PLATE, CENTER DOOR PANEL

Код

Описание

61216B

PILLAR, NO.3

61217C

PILLAR, NO.4

61265D

PILLAR, NO.3 INNER, UPPER LH

61266C

PILLAR, NO.3 INNER, LOWER LH

61267C

PILLAR, NO.4 INNER, UPPER LH

61268B

PILLAR, NO.4 INNER, LOWER LH

61288

PILLAR, NO.3 CORNER, LH

61289A

PILLAR, NO.4 CORNER, LH

61305B

REINFORCE SUB-ASSY, CENTER BODY PILLER, LOWER FRONT

61306B

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER REAR

61324A

REINFORCEMENT, CENTER BODY PILLAR, LOWER LH

61406

RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH

61471

RAIL, CENTER DOOR, OUTER

61481A

RAIL, CENTER DOOR, LOWER OUTER

61561A

GUSSET, REAR SEAT

61566A

GUSSET, PILLAR TO RAIL, NO.1 LH

61587

GUSSET, CENTER DOOR PILLAR, FRONT LH

61588

GUSSET, CENTER DOOR PILLAR, REAR LH

61598

BRACKET, STIFFENER, NO.5

61598

BRACKET, STIFFENER, NO.5

61624F

PLATE, CENTER DOOR PILLER DUST PROOF, REAR LH

61671C

PALTE, QUARTER PANEL, UPPER NO.1

61787B

RETAINER, SLIDE DOOR ARM, UPPER REAR

61823B

PLATE, DUST PROOF, NO.1 LH

61824B

PLATE, DUST PLOOF, NO.2 LH

61913A

PLATE, LOWER RAIL, INNER NO.3

61914

PLATE, LOWER RAIL, INNER NO.4

61973

REINFORCEMENT, CENTER PILLAR, NO.3

61974

REINFORCEMENT, CENTER PILLAR, NO.4

Код

Описание

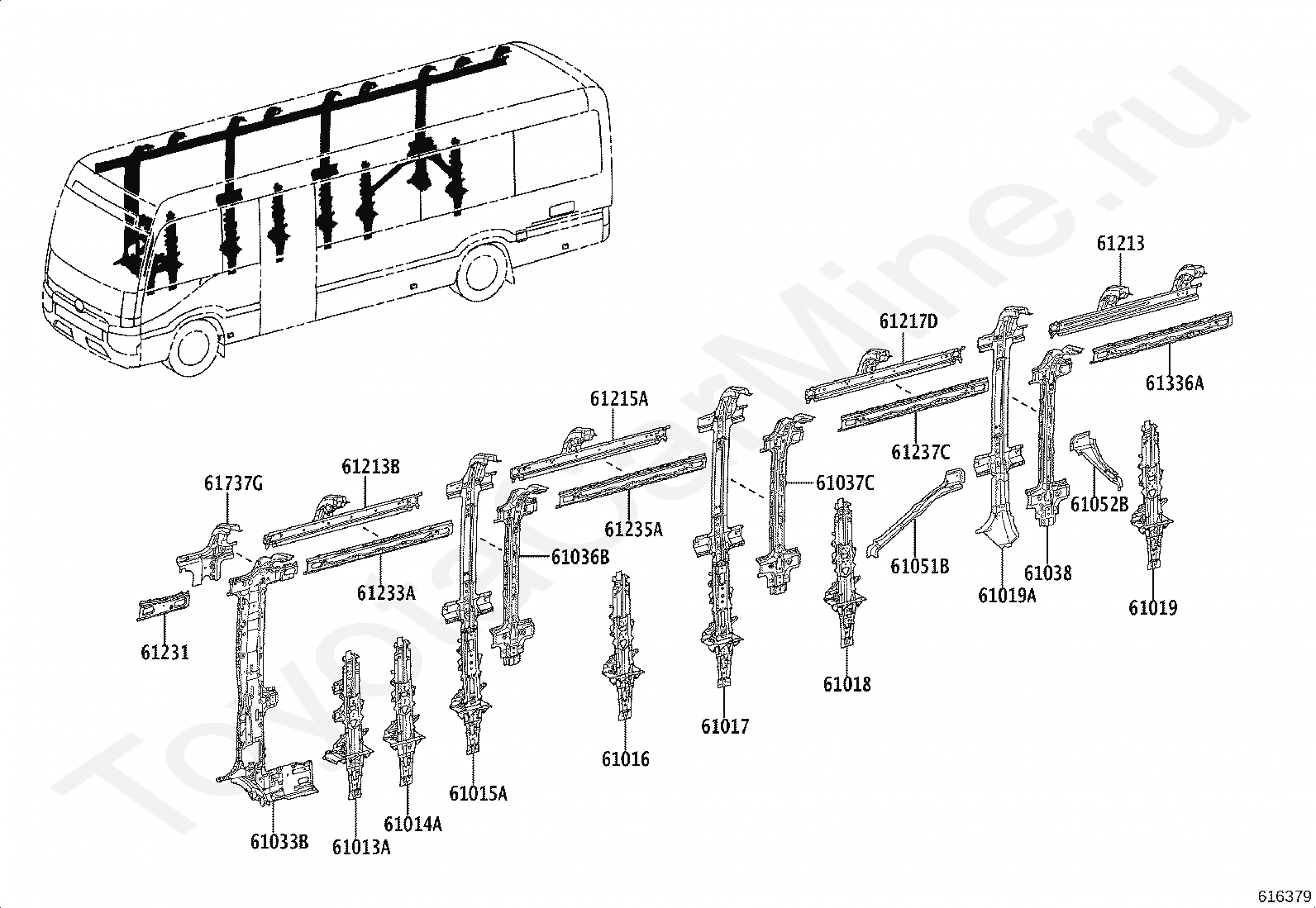

61013A

PILLAR SUB-ASSY, NO.3 RH

61014A

PILLAR SUB-ASSY, NO.4 RH

61015A

PILLAR SUB-ASSY, NO.5 RH

61016

PILLAR SUB-ASSY, NO.6 RH

61017

PILLAR SUB-ASSY, NO.7 RH

61018

PILLAR SUB-ASSY, NO.8 RH

61019

PILLAR SUB-ASSY, NO.10 RH

61019A

PILLAR SUB-ASSY, NO.9 RH

61033B

PILLAR SUB-ASSY, NO.2 INNER, RH

61036B

PILLAR SUB-ASSY, NO.5 INNER, RH

61037C

PILLAR SUB-ASSY, NO.7 INNER, RH

61038

PILLAR SUB-ASSY, NO.9 INNER, RH

61051B

BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT RH

61052B

BRACE SUB-ASSY, REAR WHEEL, UPPER REAR RH

61213

RAIL, ROOF SIDE, OUTER REAR RH

61213B

RAIL, ROOF SIDE, OUTER NO.2 RH

61215A

RAIL, ROOF SIDE, OUTER NO.3 RH

61217D

RAIL, ROOF SIDE, OUTER NO.4 RH

61231

RAIL, ROOF SIDE, INNER RH

61233A

RAIL, ROOF SIDE, INNER NO.2 RH

61235A

RAIL, ROOF SIDE, INNER NO.3 RH

61237C

RAIL, ROOF SIDE, INNER NO.4 RH

61336A

RAIL, NO.5 UPPER INNER, RH

61737G

REINFORCEMENT, ROOF SIDE, INNER RH

Код

Описание

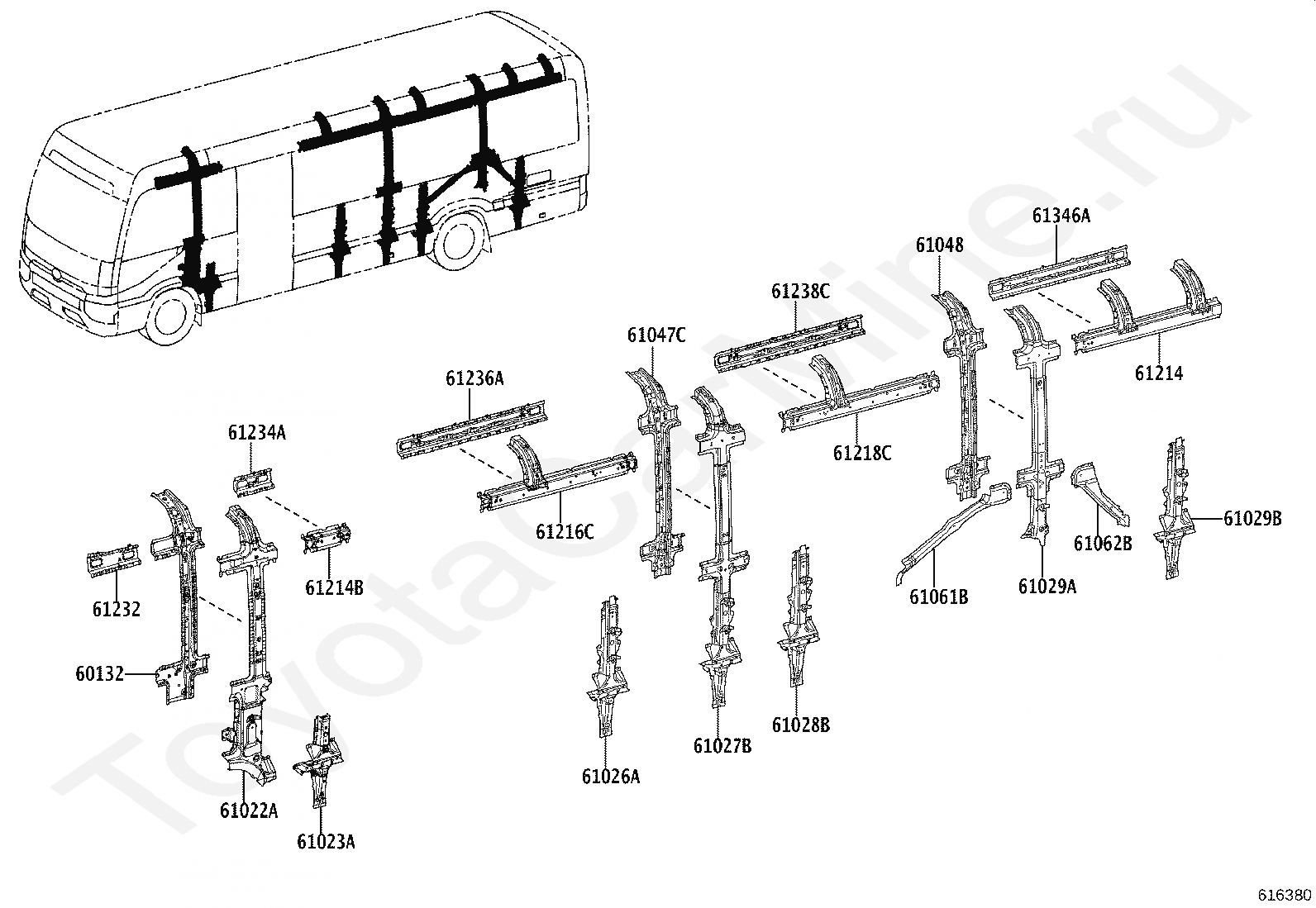

60132

PILLAR SUB-ASSY, CENTER BODY, NO.2 LH

61022A

PILLAR SUB-ASSY, NO.2 LH

61023A

PILLAR SUB-ASSY, NO.3 LH

61026A

PILLAR SUB-ASSY, NO.6 LH

61027B

PILLAR SUB-ASSY, NO.7, LH

61028B

PILLAR SUB-ASSY, NO.8 LH

61029A

PILLAR SUB-ASSY, NO.9 LH

61029B

PILLAR SUB-ASSY, NO.10 LH

61047C

PILLAR SUB-ASSY, NO.7 INNER, LH

61048

PILLAR SUB-ASSY, NO.9 INNER, LH

61061B

BRACE SUB-ASSY, REAR WHEEL, UPPER FRONT LH

61062B

BRACE SUB-ASSY, REAR WHEEL, UPPER REAR LH

61214

RAIL, ROOF SIDE, OUTER REAR LH

61214B

RAIL, ROOF SIDE, OUTER NO.2 LH

61216C

RAIL, ROOF SIDE, OUTER NO.3 LH

61218C

RAIL, ROOF SIDE, OUTER NO.4 LH

61232

RAIL, ROOF SIDE, INNER LH

61234A

RAIL, ROOF SIDE, INNER NO.2 LH

61236A

RAIL, ROOF SIDE, INNER NO.3 LH

61238C

RAIL, ROOF SIDE, INNER NO.4 LH

61346A

RAIL, NO.5 UPPER INNER, LH

Код

Описание

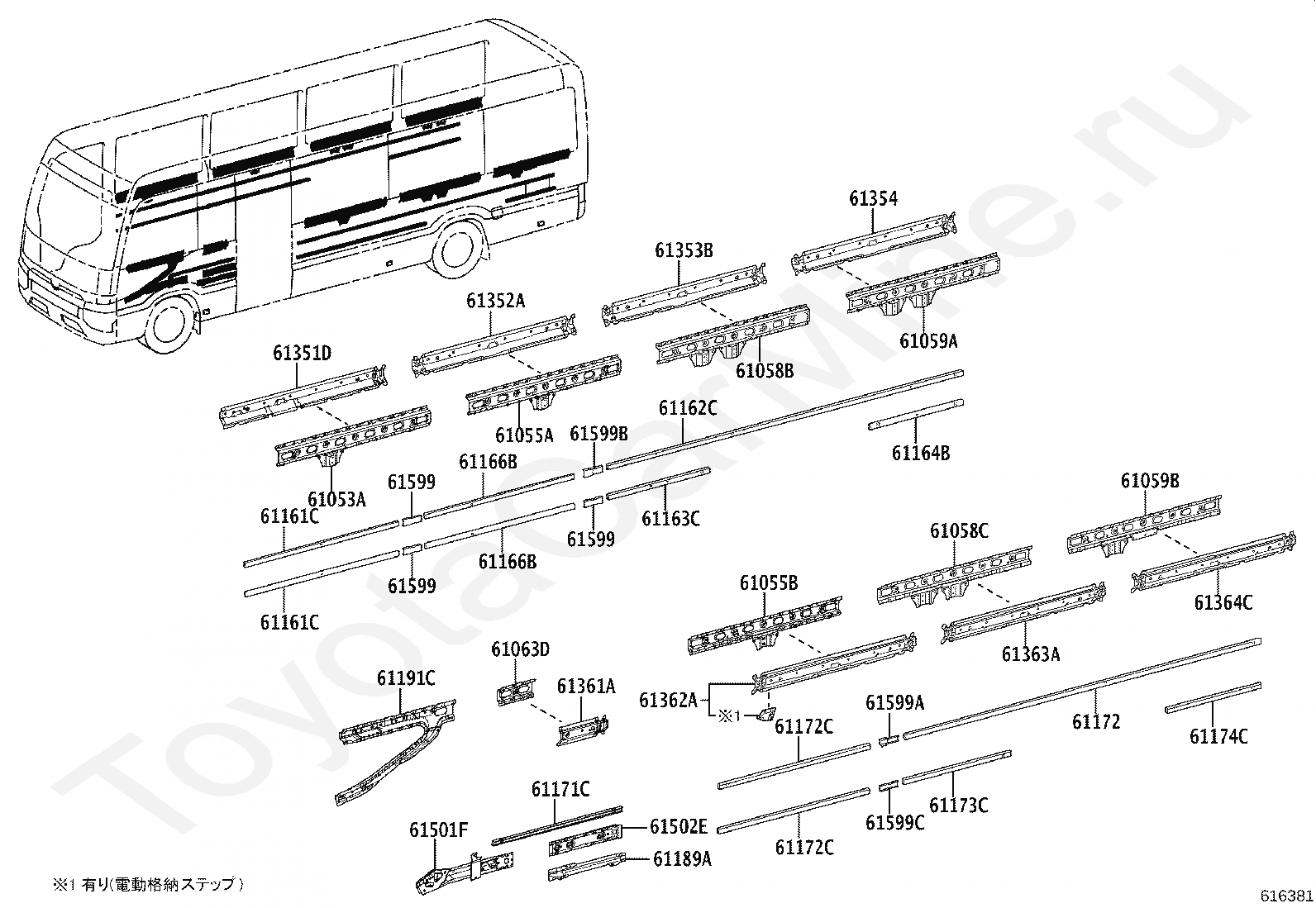

61053A

RAIL SUB-ASSY, NO.1 CENTER, INNER

61055A

RAIL, SUB-AASY, NO.2 CENTER, INNER, RH

61055B

RAIL SUB-ASSY, NO.2 CENTER, INNER, LH

61058B

RAIL SUB-ASSY, NO.3 CENTER, INNER, RH

61058C

RAIL SUB-ASSY, NO.3 CENTER, INNER, LH

61059A

RAIL SUB-ASSY, NO.4 CENTER, INNER, RH

61059B

RAIL SUB-ASSY, NO.4 CENTER, INNER, LH

61063D

RAIL SUB-ASSY, NO.1 CENTER, INNER LH

61161C

STIFFENER, SIDE PANEL, NO.1 RH

61161C

STIFFENER, SIDE PANEL, NO.1 RH

61162C

STIFFENER, SIDE PANEL, NO.2 RH

61163C

STIFFENER, SIDE PANEL, NO.3 RH

61164B

STIFFENER, SIDE PANEL, NO.4 RH

61166B

STIFFENER, SIDE PANEL, UPPER NO.6

61166B

STIFFENER, SIDE PANEL, UPPER NO.6

61171C

STIFFENER, SIDE PANEL, NO.1

61172

STIFFENER, SIDE PANEL, NO.2

61172C

STIFFENER, SIDE PANEL, NO.2

61172C

STIFFENER, SIDE PANEL, NO.2

61173C

STIFFENER, SIDE PANEL, NO.3 LH

61174C

STIFFENER, SIDE PANEL, NO.4 LH

61189A

REINFORCEMENT, NO.2 PILLAR, CENTER LH

61191C

REINFORCEMENT, SIDE LOWER WINDOW, LH

61351D

RAIL, NO.1 CENTER OUTER, RH

61352A

RAIL, NO.2 CENTER OUTER, RH

61353B

RAIL, NO.3 CENTER OUTER, RH

61354

RAIL, NO.4 CENTER OUTER, RH

61361A

RAIL, NO.1 CENTER OUTER, LH

61362A

RAIL, NO.2 CENTER OUTER, LH

61363A

RAIL, NO.3 CENTER OUTER, LH

61364C

RAIL, NO.4 CENTER OUTER, LH

61501F

RAIL SUB-ASSY, SEAT ANCHOR, LH

61502E

RAIL SUB-ASSY, NO.2 SEAT ANCHOR, LH

61599

BRACKET, STIFFENER, NO.6, RH

61599

BRACKET, STIFFENER, NO.6, RH

61599

BRACKET, STIFFENER, NO.6, RH

61599A

BRACKET, STIFFENER, NO.6, LH

61599B

BRACKET, STIFFENER, NO.6, RH

61599C

BRACKET, STIFFENER, NO.6, LH

Код

Описание

61091

RAIL SUB-ASSY, NO.2 LOWER INNER, RH

61092

RAIL SUB-ASSY, NO.3 LOWER INNER, RH

61093

RAIL SUB-ASSY, NO.2 LOWER INNER, LH

61094

RAIL SUB-ASSY, NO.3 LOWER INNER, LH

61411E

RAIL, NO.1 LOWER OUTER, RH

61412E

RAIL, NO.2 LOWER OUTER, RH

61412F

RAIL, NO.2 LOWER OUTER, RH

61412G

RAIL, NO.2 LOWER OUTER, RH

61413D

RAIL, NO.3 LOWER OUTER, RH

61414A

RAIL,NO.4 LOWER OUTER, RH

61414A

RAIL,NO.4 LOWER OUTER, RH

61415C

RAIL, NO.5 LOWER OUTER, RH

61417A

RAIL, NO.7 LOWER OUTER, RH

61417B

RAIL, NO.7 LOWER OUTER, LH

61422

RAIL, NO.2 LOWER OUTER, LH

61422B

RAIL, NO.2 LOWER OUTER, LH

61422B

RAIL, NO.2 LOWER OUTER, LH

61423D

RAIL, NO.3 LOWER OUTER, LH

61424C

RAIL, NO.4 LOWER OUTER, LH

61425A

RAIL, NO.5 LOWER OUTER, LH

61441B

RAIL, NO.1 LOWER INNER, LH

61479C

BRACKET, FRONT MUDGUARD

61631L

PANEL, REAR WHEEL HOUSE, OUTER RH

61632K

PANEL, REAR WHEEL HOUSE, OUTER LH

61633B

PANEL, WHEEL HOUSE

77689

BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.3

Код

Описание

61028

PILLAR SUB-ASSY, REAR INNER, RH

61029

PILLAR SUB-ASSY, REAR INNER, LH

61031A

PILLAR SUB-ASSY, NO.10 RH

61041A

PILLAR SUB-ASSY, NO.10, LH

61057B

RAIL SUB-ASSY, REAR SIDE, RH

61067D

RAIL SUB-ASSY, REAR SIDE, LH

61098A

STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH

61099

STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH

61274

PILLAR, NO.10 INNER, RH

61284B

PILLAR, NO.10 INNER, LH

61311

PILLAR, REAR RH

61312

PILLAR, REAR LH

61320

PANEL, REAR BODY FRONT SIDE, RH

61330

PANEL, REAR BODY FRONT SIDE, LH

61386

PANEL, REAR SIDE, UPPER RH

61396

PANEL, REAR SIDE, UPPER LH

61491A

BRACKET, SIDE PANEL STRENGTH, NO.1

61491B

BRACKET, SIDE PANEL STRENGTH, NO.1 LH

61492A

BRACKET, SIDE PANEL STRENGTH, NO.2 RH

61492B

BRACKET, SIDE PANEL STRENGTH, NO.2 LH

61513A

PILLAR, REAR UPPER SIDE PANEL, RH

61514A

PILLAR, REAR UPPER SIDE PANEL, LH

61539B

GUSSET, SEAT ANCHOR, NO.9

61549A

GUSSET, SEAT ANCHOR, LH

61557B

GUSSET, PILLAR TO RAIL, NO.2

61567A

GUSSET, PILLAR TO RAIL, NO.2 LH

61637B

REINFORCEMENT, REAR PILLAR, INNER UPPER RH

61638B

REINFORCEMENT, REAR PILLAR, INNER UPPER LH

61697D

HOUSING, QUARTER PANEL END, RH

61698D

HOUSING, QUARTER PANEL END, LH

61741A

REINFORCEMENT, BACK DOOR OPENING, UPPER RH

61741B

REINFORCEMENT, BACK WINDOW OPENING, RH

61742A

REINFORCEMENT, BACK DOOR OPENING, UPPER LH

61742B

REINFORCEMENT, BACK WINDOW OPENING, LH

61755D

RETAINER, DECK SIDE TRIM, UPPER

61756A

RETAINER, DECK SIDE TRIM, UPPER LH

66243C

PROTECTOR, REAR BODY, NO.1

66243C

PROTECTOR, REAR BODY, NO.1

91553A0816

Крепеж

91553A0816

Крепеж

Код

Описание

61028

PILLAR SUB-ASSY, REAR INNER, RH

61029

PILLAR SUB-ASSY, REAR INNER, LH

61031A

PILLAR SUB-ASSY, NO.10 RH

61041A

PILLAR SUB-ASSY, NO.10, LH

61057B

RAIL SUB-ASSY, REAR SIDE, RH

61067D

RAIL SUB-ASSY, REAR SIDE, LH

61098A

STIFFENER SUB-ASSY, PILLAR NO.10, INNER RH

61099

STIFFENER SUB-ASSY, PILLAR NO.10, INNER LH

61274

PILLAR, NO.10 INNER, RH

61284B

PILLAR, NO.10 INNER, LH

61311

PILLAR, REAR RH

61312

PILLAR, REAR LH

61320

PANEL, REAR BODY FRONT SIDE, RH

61330

PANEL, REAR BODY FRONT SIDE, LH

61491A

BRACKET, SIDE PANEL STRENGTH, NO.1

61491B

BRACKET, SIDE PANEL STRENGTH, NO.1 LH

61492A

BRACKET, SIDE PANEL STRENGTH, NO.2 RH

61492B

BRACKET, SIDE PANEL STRENGTH, NO.2 LH

61513A

PILLAR, REAR UPPER SIDE PANEL, RH

61514A

PILLAR, REAR UPPER SIDE PANEL, LH

61539B

GUSSET, SEAT ANCHOR, NO.9

61549A

GUSSET, SEAT ANCHOR, LH

61557B

GUSSET, PILLAR TO RAIL, NO.2

61567A

GUSSET, PILLAR TO RAIL, NO.2 LH

61637B

REINFORCEMENT, REAR PILLAR, INNER UPPER RH

61638B

REINFORCEMENT, REAR PILLAR, INNER UPPER LH

61697D

HOUSING, QUARTER PANEL END, RH

61698D

HOUSING, QUARTER PANEL END, LH

61741B

REINFORCEMENT, BACK WINDOW OPENING, RH

61742B

REINFORCEMENT, BACK WINDOW OPENING, LH

66243C

PROTECTOR, REAR BODY, NO.1

66243C

PROTECTOR, REAR BODY, NO.1

91553A0816

Крепеж

91553A0816

Крепеж

Боковая панель кузова TOYOTA COASTER

Купить

Поиск
