Каталог

Ближний Восток

Модель

COASTER

VIN

Дата

2017/01

Двигатель

4,1 литра, сжиженный газ

Класс

STANDARD TYPE

Фрейм

BZB70

КПП

механика МКПП, 5 скоростей

Опции

правый руль высокая крыша WITH COOLER LPG GEN IV5 675W

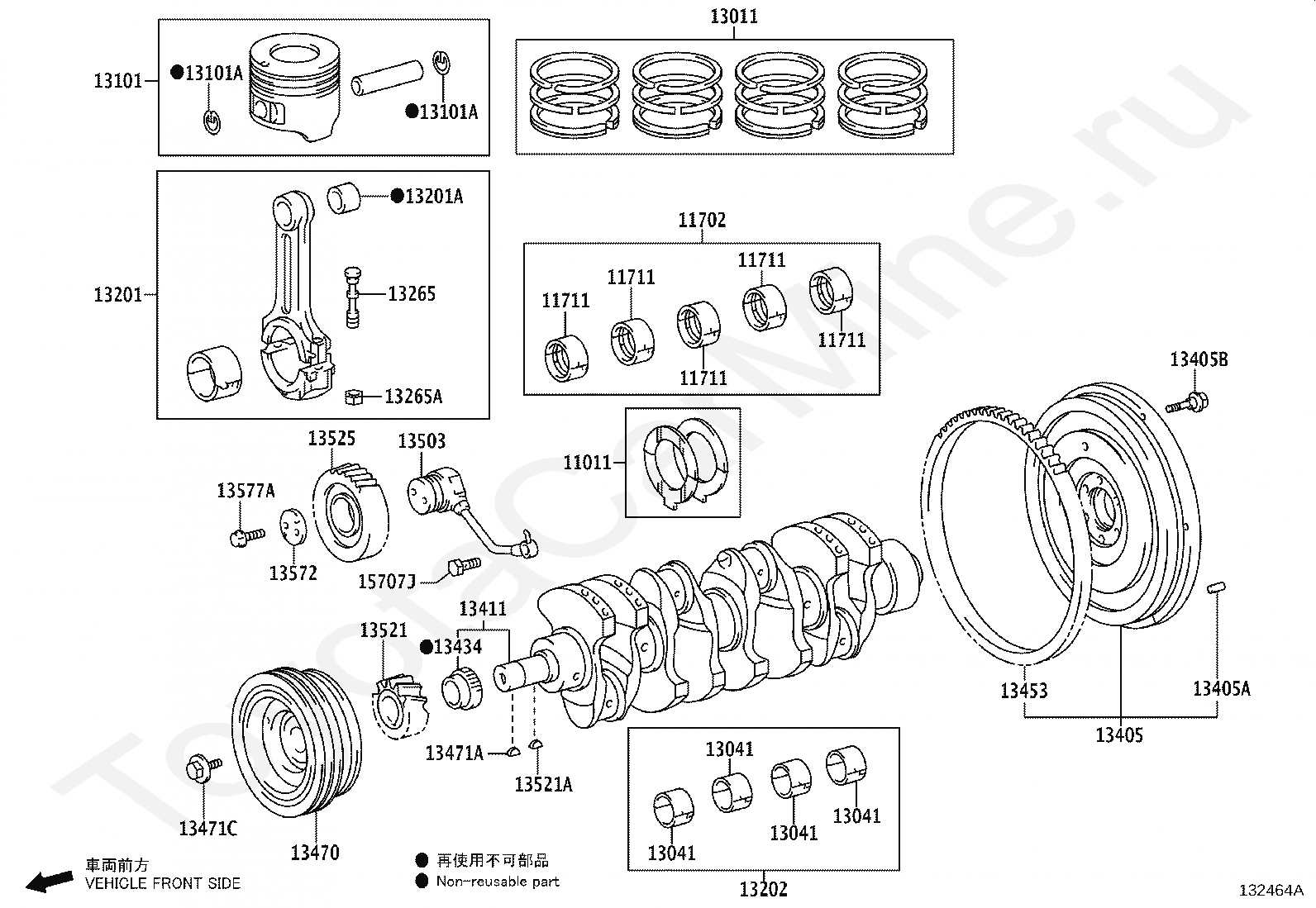

Коленвал и поршни TOYOTA COASTER

Код

Описание

11011

WASHER SET, CRANKSHAFT THRUST

11702

BEARING SET, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

13011

RING SET, PISTON

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13101

PISTON SUB-ASSY, W/PIN

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13101A

RING, HOLE SNAP(FOR PISTON PIN)

13201

ROD SUB-ASSY, CONNECTING

13201A

BUSH(FOR CONNECTING ROD SMALL END)

13202

BEARING SET, CONNECTING ROD

13265

BOLT, CONNECTING ROD

13265A

NUT, HEXAGON(FOR CONNECTING ROD BOLT)

13405

FLYWHEEL SUB-ASSY

13405A

PIN, STRAIGHT(FOR FLYWHEEL)

13405B

BOLT, FLYWHEEL SETTING

13411

CRANKSHAFT

13434

SPLINE, OIL PUMP DRIVE

13453

GEAR, FLYWHEEL RING

13470

PULLEY ASSY, CRANKSHAFT

13471A

KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

13471C

BOLT(FOR CRANKSHAFT PULLEY SET)

13503

SHAFT SUB-ASSY, IDLE GEAR

13521

GEAR OR SPROCKET, CRANKSHAFT TIMING

13521A

KEY(FOR CRANKSHAFT TIMING GEAR)

13525

GEAR, IDLE, NO.1

13572

PLATE, IDLE GEAR THRUST

13577A

BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

15707J

BOLT, UNION(FOR OIL PIPE)
