Каталог

Япония

Модель

COASTER

VIN

Дата

1982/05

Двигатель

2,4 литра

Класс

DELUX SPECIFICATION

Фрейм

RB20

КПП

МКПП, 5 скоростей

Опции

высокая крыша 26-местный WITHOUT COOLER COMPLETED VEHICLE

Вакуумный тормозной цилиндр TOYOTA COASTER

Код

Описание

04443

BOOSTER KIT, BRAKE

44601

BAND SUB-ASSY, BOOSTER BODY

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662A

RETAINER, REACTION, NO.2

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44662E

ROLLER(FOR REACTION LEVER)

44662F

WASHER(FOR REACTION LEVER)

44662G

RING, SNAP(FOR REACTION RETAINER)

44696

GROMMET, CHECK VALVE

44697

SCREW, BOOSTER BAND SET

44697A

NUT(FOR BOOSTER BAND SET)

44730Q

VALVE ASSY, VACUUM CHECK, NO.2

4702

переход к группе запчастей

9017908146

Крепеж

9331914008

Крепеж

9411070600

Крепеж

9412041000

Крепеж

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44618

SEAL, BOOSTER BODY

44629

RING, CIRCULAR INTERNAL

44635

RETAINER, HYDRAULIC VALVE

44642

PISTON, BRAKE BOOSTER

44730Q

VALVE ASSY, VACUUM CHECK, NO.2

9017908146

Крепеж

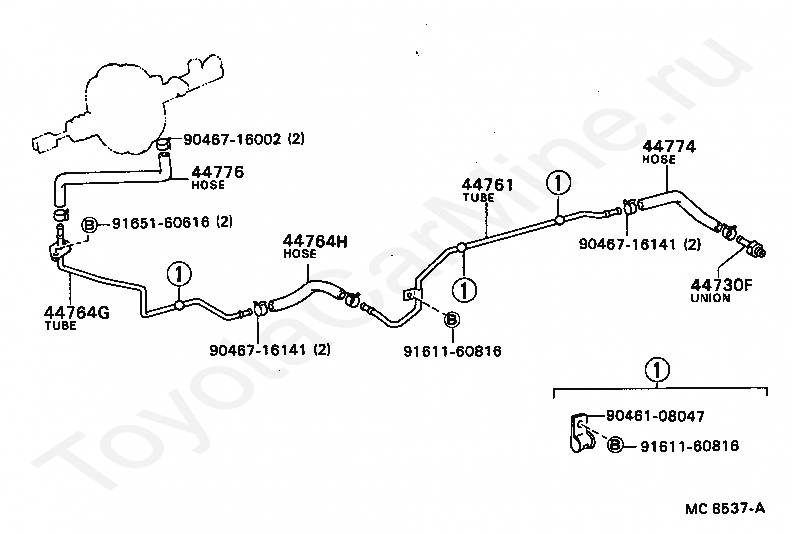

Код

Описание

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44764G

TUBE, CONNECTOR TO BRAKE BOOSTER

44764H

HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE)

44774

HOSE, UNION TO CONNECTOR TUBE

44776

HOSE, BRAKE BOOSTER

9046108047

Крепеж

9046716002

Крепеж

9046716141

Крепеж

9046716141

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9165160616

Крепеж
