Каталог

Европа

Модель

COASTER

VIN

Дата

1986/10

Двигатель

3,4 литра, дизель

Класс

DELUX SPECIFICATION

Фрейм

BB21

КПП

МКПП, 5 скоростей

Опции

левый руль высокая крыша 26-местный WITH COOLER GENERAL COUNTRIES

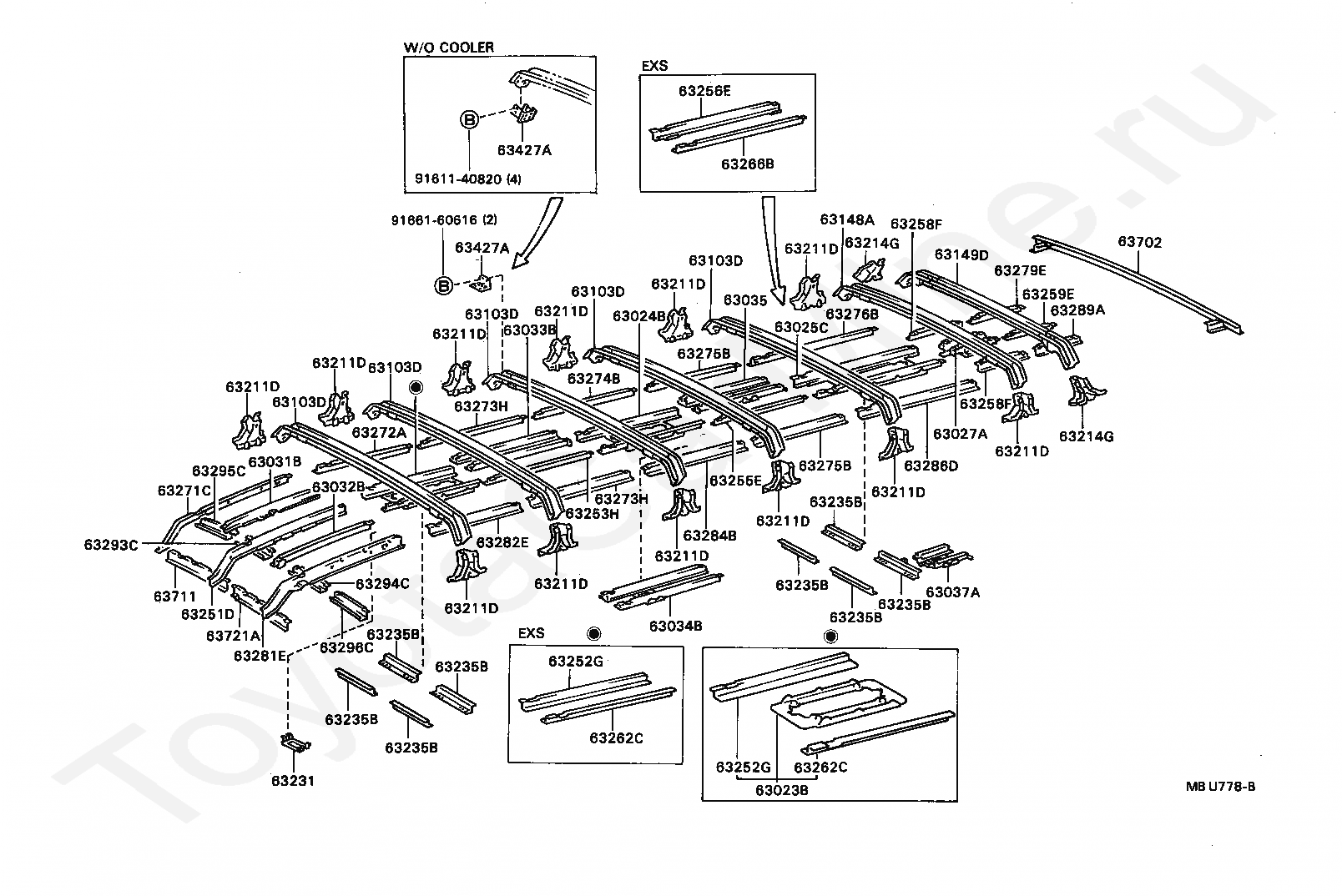

ROOF PANEL & BACK PANEL TOYOTA COASTER







Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63109A

PANEL SUB-ASSY, BACK WINDOW, UPPER

63109A

PANEL SUB-ASSY, BACK WINDOW, UPPER

63111B

PANEL, ROOF, NO.1

63111B

PANEL, ROOF, NO.1

63111B

PANEL, ROOF, NO.1

63111B

PANEL, ROOF, NO.1

63112A

PANEL, ROOF, NO.2

63112A

PANEL, ROOF, NO.2

63113A

PANEL, ROOF, NO.3

63113A

PANEL, ROOF, NO.3

63114B

PANEL, ROOF, NO.4

63114B

PANEL, ROOF, NO.4

63115A

PANEL, ROOF, NO.5

63115A

PANEL, ROOF, NO.5

63191

RETAINER, ROOF PANEL

63191

RETAINER, ROOF PANEL

63507

FRAME SUB-ASSY, GUIDE INDICATION TRIM

63507

FRAME SUB-ASSY, GUIDE INDICATION TRIM

63508

BOARD ASSY, GUIDE INDICATION TRIM A

63961

COVER, ROOF GUIDE INDICATION

63965

GLASS, ROOF GUIDE INDICATION

63965

GLASS, ROOF GUIDE INDICATION

68163D

WEATHERSTRIP, CENTER DOOR GLASS, OUTER

68163D

WEATHERSTRIP, CENTER DOOR GLASS, OUTER

68173A

WEATHERSTRIP, CENTER DOOR GLASS, INNER

68173A

WEATHERSTRIP, CENTER DOOR GLASS, INNER

9026905022

Крепеж

9165160616

Крепеж

9166160616

Крепеж

9356015016

Крепеж

Код

Описание

64013A

RAIL SUB-ASSY, BACK

64105A

RAIL SUB-ASSY, LOWER BACK, OUTER

64106A

RAIL SUB-ASSY, LOWER BACK, INNER

64811

GLASS, BACK WINDOW

64811

GLASS, BACK WINDOW

64831

WEATHERSTRIP, BACK WINDOW GLASS

64831

WEATHERSTRIP, BACK WINDOW GLASS

64834B

WEATHERSTRIP, BACK WINDOW GLASS, INNER

64855

HANDLE, BACK WINDOW GLASS

9017906064

Крепеж

9020106554

Крепеж

9020909017

Крепеж

9056005008

Крепеж

9056010025

Крепеж

9324066012

Крепеж

Код

Описание

64014A

RAIL SUB-ASSY, UPPER BACK

64105A

RAIL SUB-ASSY, LOWER BACK, OUTER

64106A

RAIL SUB-ASSY, LOWER BACK, INNER

64811

GLASS, BACK WINDOW

64811

GLASS, BACK WINDOW

64831

WEATHERSTRIP, BACK WINDOW GLASS

64831

WEATHERSTRIP, BACK WINDOW GLASS

Код

Описание

61838A

COVER, RAIL LOWER BACK INNER SERVICE HOLE

63109A

PANEL SUB-ASSY, BACK WINDOW, UPPER

64001

PANEL SUB-ASSY, BACK

64101D

RAIL SUB-ASSY, UPPER BACK, OUTER

64105A

RAIL SUB-ASSY, LOWER BACK, OUTER

64106A

RAIL SUB-ASSY, LOWER BACK, INNER

64111A

PANEL, BACK

64147A

PILLAR, LOWER BACK, INNER RH

64811

GLASS, BACK WINDOW

64811

GLASS, BACK WINDOW

64831

WEATHERSTRIP, BACK WINDOW GLASS

64831

WEATHERSTRIP, BACK WINDOW GLASS

9095006003

Крепеж

9354014014

Крепеж

Код

Описание

5877590B00

Крепеж

63401A

FRAME SUB-ASSY, ROOF RACK

63403

DECK SUB-ASSY, ROOF RACK

63486

CUSHION, ROOF RACK LEG

63705

LADDER SUB-ASSY, RACK

63768

RETAINER, ROOF PANEL, NO.2

63770

STEP ASSY, RACK

9011908277

Крепеж

9011908277

Крепеж

9011908277

Крепеж

9011908277

Крепеж

9011908673

Крепеж

9165140614

Крепеж

9165140614

Крепеж

9165160650

Крепеж

9322016025

Крепеж

9354013510

Крепеж

Код

Описание

63023B

STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2

63024B

STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.4

63025C

STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.6

63027A

STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.8

63031B

STRENGTH SUB-ASSY, ROOF PANEL, CENTER RH NO.1

63032B

STRENGTH SUB-ASSY, ROOF PANEL, CENTER LH, NO.1

63033B

BRACKET SUB-ASSY, ROOM LAMP, NO.1

63034B

BRACKET SUB-ASSY, ROOM LAMP, NO.2

63035

BRACKET, ROOM LAMP, NO.3

63037A

BRACKET SUB-ASSY, ROOM LAMP, NO.5

63103D

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

63103D

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

63103D

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

63103D

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

63103D

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

63148A

REINFORCEMENT, ROOF PANEL, NO.7

63149D

REINFORCEMENT, ROOF PANEL, NO.8

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63211D

BRACKET, ROOF REINFORCEMENT, INNER, NO.1

63214G

BRACKET, ROOF REINFORCEMENT, INNER, NO.4

63214G

BRACKET, ROOF REINFORCEMENT, INNER, NO.4

63231

BRACKET, ROOM LAMP

63235B

BRACKET, ROOM SPEAKER

63235B

BRACKET, ROOM SPEAKER

63235B

BRACKET, ROOM SPEAKER

63235B

BRACKET, ROOM SPEAKER

63235B

BRACKET, ROOM SPEAKER

63235B

BRACKET, ROOM SPEAKER

63235B

BRACKET, ROOM SPEAKER

63235B

BRACKET, ROOM SPEAKER

63251D

STRENGTH, ROOF PANEL, CENTER NO.1

63252G

STRENGTH, ROOF PANEL, CENTER NO.2

63252G

STRENGTH, ROOF PANEL, CENTER NO.2

63253H

STRENGTH, ROOF PANEL, CENTER NO.3

63255E

STRENGTH, ROOF PANEL, CENTER NO.5

63256E

STRENGTH, ROOF PANEL, CENTER NO.6

63258F

STRENGTH, ROOF PANEL, CENTER NO.8

63258F

STRENGTH, ROOF PANEL, CENTER NO.8

63259E

STRENGTH, ROOF PANEL, CENTER NO.9

63262C

STRENGTH, ROOF PANEL, CENTER NO.2 LH

63262C

STRENGTH, ROOF PANEL, CENTER NO.2 LH

63266B

STRENGTH, ROOF PANEL, CENTER NO.6 LH

63271C

STRENGTH, ROOF PANEL, NO.1 RH

63272A

STRENGTH, ROOF PANEL, NO.2 RH

63273H

STRENGTH, ROOF PANEL, NO.3

63273H

STRENGTH, ROOF PANEL, NO.3

63274B

STRENGTH, ROOF PANEL, NO.4 RH

63275B

STRENGTH, ROOF PANEL, NO.5

63275B

STRENGTH, ROOF PANEL, NO.5

63276B

STRENGTH, ROOF PANEL, NO.6 RH

63279E

STRENGTH, ROOF PANEL, NO.9 RH

63281E

STRENGTH, ROOF PANEL, NO.1 LH

63282E

STRENGTH, ROOF PANEL, NO.2 LH

63284B

STRENGTH, ROOF PANEL, NO.4 LH

63286D

STRENGTH, ROOF PANEL, NO.6 LH

63289A

STRENGTH, ROOF PANEL, NO.9 LH

63293C

STRENGTH, ROOF PANEL, NO.11 RH

63294C

STRENGTH, ROOF PANEL, NO.11 LH

63295C

STRENGTH, ROOF PANEL, NO.12 RH

63296C

STRENGTH, ROOF PANEL, NO.12 LH

63427A

BRACKET, ROOM RACK FLAME

63427A

BRACKET, ROOM RACK FLAME

63702

BRACKET SUB-ASSY, ROOF LINING REAR

63711

BRACKET, ROOF LINING, FRONT RH

63721A

BRACKET, ROOF LINING, FRONT LH

9161140820

Крепеж

9166160616

Крепеж
