Каталог

Европа

Модель

COASTER

VIN

Дата

1986/10

Двигатель

3,4 литра, дизель

Класс

DELUX SPECIFICATION

Фрейм

BB21

КПП

МКПП, 5 скоростей

Опции

левый руль высокая крыша 26-местный WITH COOLER GENERAL COUNTRIES

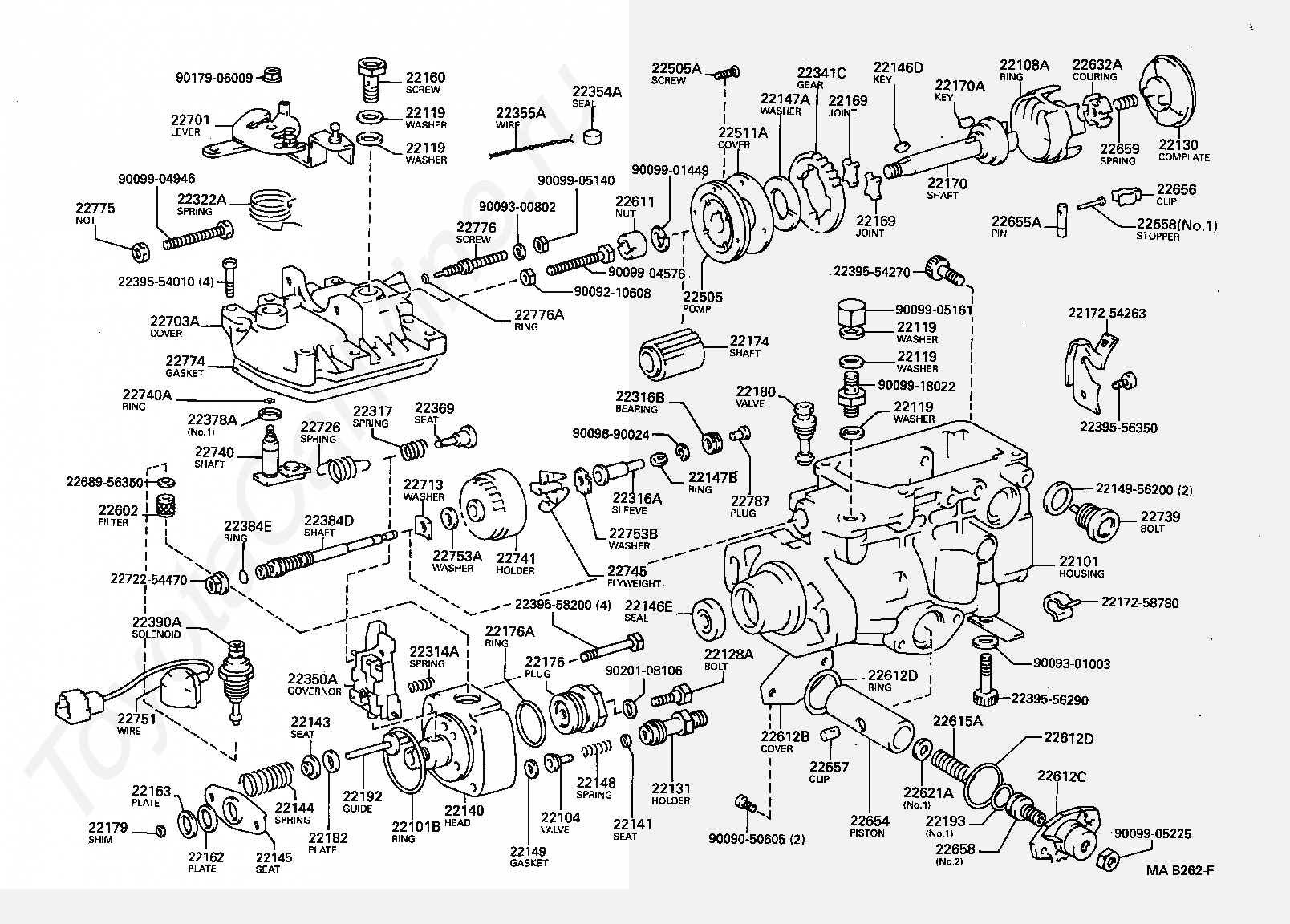

INJECTION PUMP BODY TOYOTA COASTER







Код

Описание

2206

переход к группе запчастей

2206

переход к группе запчастей

2206

переход к группе запчастей

22102

PLATE SET, VALVE HOLDER LOCK

22103

COVER SUB-ASSY, INJECTION PUMP

22104

VALVE SUB-ASSY, INJECTION PUMP DELIVERY

22105

ELEMENT SUB-ASSY, INJECTION PUMP

22106

TAPPET SUB-ASSY, INJECTION PUMP

22107

BLEEDER SUB-ASSY, AIR

22114

RACK, CONTROL

22115

SCREW, RACK GUIDE

22116

COVER, CONTROL RACK

22131

HOLDER, DELIVERY VALVE

22131A

RING, O(FOR DELIVERY VALVE HOLDER)

22142

SLEEVE, PLUNGER CONTROL

22143

SEAT, SPRING UPPER

22144

SPRING, PUMP PLUNGER

22145

SEAT, SPRING, LOWER

22146

CAMSHAFT, INJECTION PUMP

22146A

BEARING(FOR INJECTION CAMSHAFT)

22146A

BEARING(FOR INJECTION CAMSHAFT)

22147

RING, CAMSHAFT ADJUST

22147

RING, CAMSHAFT ADJUST

22148

SPRING, DELIVERY VALVE

22149

GASKET, DELIVERY VALVE

22155

PINION, PLUNGER CONTROL

22156

SCREW, PLUNGER CONTROL PINION CLAMP

22157

PLUG, INJECTION PUMP FELT PLATE

22160

SCREW SUB-ASSY, OVERFLOW

22161

PLATE, CAMSHAFT SHIM

22161

PLATE, CAMSHAFT SHIM

22173

WASHER, SPRING

22174

SHAFT, SPLINE

22174A

KEY(FOR SPLINE SHAFT)

22177

STAY, INJECTION PUMP BODY

22181

FLANGE, INJECTION PUMP

22181A

SEAL, OIL(FOR INJECTION PUMP FLANGE)

22182

PLATE, TAPPET ADJUSTING SHIM

22194

STOPPER, DELIVERY VALVE

22195

GASKET, BEARING COVER

22611

NUT, TIMER ROUND

2261877020

Крепеж

9009900894

Крепеж

9009900928

Крепеж

9009901451

Крепеж

9009901451

Крепеж

9009918010

Крепеж

9040110006

Крепеж

9161140814

Крепеж

9471277121

Крепеж

9471277121

Крепеж

Код

Описание

22101

HOUSING SUB-ASSY, INJECTION PUMP

22101B

RING, O(FOR INJECTION PUMP HOUSING)

22104

VALVE SUB-ASSY, INJECTION PUMP DELIVERY

22108A

RING SUB-ASSY, ROLLER

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22128A

BOLT, DISTRIBUTIVE HEAD

22130

CAMPLATE SUB-ASSY, FACE

22131

HOLDER, DELIVERY VALVE

22140

HEAD SUB-ASSY, DISTRIBUTIVE PUMP

22141

SEAT, DELIVERY VALVE SPRING

22143

SEAT, SPRING UPPER

22144

SPRING, PUMP PLUNGER

22145

SEAT, SPRING, LOWER

22146D

KEY(FOR DRIVE GEAR)

22146E

SEAL(FOR DRIVE SHAFT)

22147A

WASHER, DRIVE SHAFT

22147B

RING, GOVERNOR SLEEVE

22148

SPRING, DELIVERY VALVE

22149

GASKET, DELIVERY VALVE

2214956200

Крепеж

22160

SCREW SUB-ASSY, OVERFLOW

22162

PLATE, PLUNGER UPPER

22163

PLATE, PLUNGER LOWER

22169

JOINT, RUBBER

22169

JOINT, RUBBER

22170

SHAFT SUB-ASSY, DRIVE

22170A

KEY(FOR DRIVE SHAFT)

2217254263

Крепеж

2217258780

Крепеж

22174

SHAFT, SPLINE

22176

PLUG, DISTRIBUTIVE HEAD

22176A

RING, O(FOR DISTRIBUTIVE HEAD PLUG)

22179

SHIM, PLUNGER ADJUSTING

22180

VALVE SUB-ASSY, REGULATOR

22182

PLATE, TAPPET ADJUSTING SHIM

22192

GUIDE SUB-ASSY, PLUNGER SPRING

22193

RING, O(FOR LEVER CONNECTING PIN)

22314A

SPRING, LEVER SUPPORT

22316A

SLEEVE, GOVERNOR

22316B

BEARING, BALL(FOR GOVERNOR SLEEVE)

22317

SPRING, GOVERNOR DOMPER

22322A

SPRING, RETURN

22341C

GEAR, GOVERNOR DRIVE

22350A

GOVERNOR ASSY, TORQUE CONTROL

22354A

SEAL, ROD

22355A

WIRE, GOVERNOR HOUSING SEAL

22369

SEAT, GOVERNOR SPRING

22378A

WASHER, GOVERNOR THRUST

22384D

SHAFT, GOVERNOR

22384E

RING, O(FOR GOVERNOR MAIN SHAFT)

22390A

SOLENOID ASSY, FUEL CUT

2239554010

Крепеж

2239554270

Крепеж

2239556290

Крепеж

2239556350

Крепеж

2239558200

Крепеж

22505

PUMP SUB-ASSY, FUEL FEED

22505A

SCREW(FOR FUEL FEED PUMP)

22511A

COVER, FEED PUMP

22602

FILTER SUB-ASSY, FUEL INJECTION PUMP

22611

NUT, TIMER ROUND

22612B

COVER, TIMER

22612C

COVER, TIMER

22612D

RING, O(FOR TIMER COVER)

22612D

RING, O(FOR TIMER COVER)

22615A

SPRING, TIMER OUTER

22621A

WASHER, TIMER ADJUSTING

22632A

COUPLING, INJECTION PUMP

22654

PISTON, TIMER

22655A

PIN, TIMER SLIDE

22656

CLIP, TIMER

22657

CLIP, TIMER

22658

STOPPER, TIMER

22658

STOPPER, TIMER

22659

SPRING, COUPLING

2268956350

Крепеж

22701

LEVER SUB-ASSY, ADJUSTING

22703A

COVER SUB-ASSY, GOVERNOR

22713

WASHER, GOVERNOR GEAR ADJUSTING

2272254470

Крепеж

22726

SPRING, SPEED CONTROL

22739

BOLT, GOVERNOR LINK SUPPORT

22740

SHAFT SUB-ASSY, GOVERNOR ADJUSTING

22740A

RING, O(FOR GOVERNOR ADJUSTING SHAFT)

22741

HOLDER SUB-ASSY, FLYWEIGHT

22745

FLYWEIGHT, DISTRIBUTIVE PUMP

22751

WIRE SUB-ASSY, FUEL CUT SOLENOID

22753A

WASHER, FLYWEIGHT, NO.1

22753B

WASHER, FLYWEIGHT, NO.2

22774

GASKET, GOVERNOR COVER

22775

NUT, LOCK(FOR INJECTION PUMP)

22776

SCREW, SMOKE SET ADJUSTING

22776A

RING, O(FOR SMOKE SET SCREW)

22787

PLUG, GOVERNOR SLEEVE

9009050605

Крепеж

9009210608

Крепеж

9009300802

Крепеж

9009301003

Крепеж

9009690024

Крепеж

9009901449

Крепеж

9009904576

Крепеж

9009904946

Крепеж

9009905140

Крепеж

9009905161

Крепеж

9009905225

Крепеж

9009918022

Крепеж

9017906009

Крепеж

9020108106

Крепеж

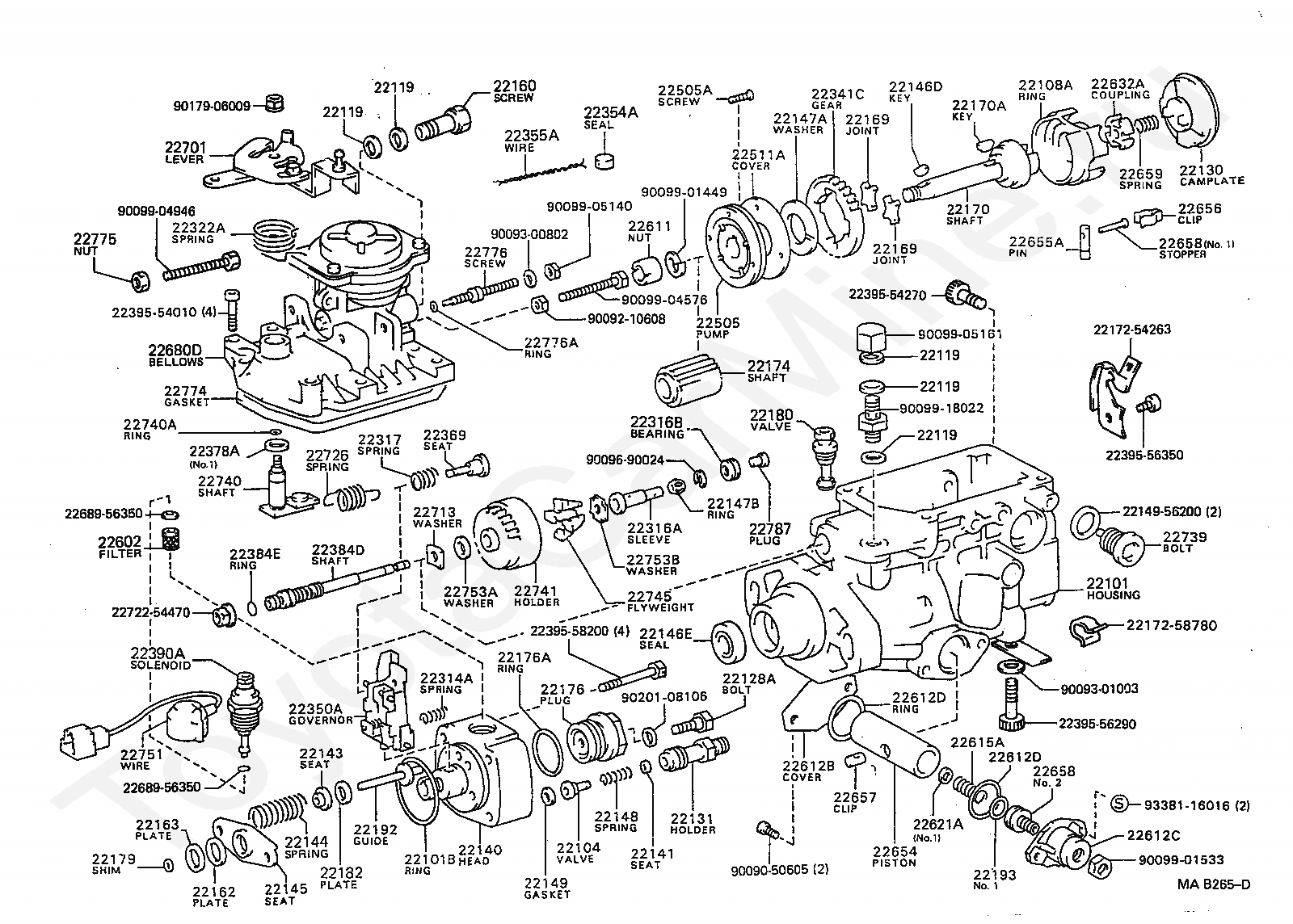

Код

Описание

22101

HOUSING SUB-ASSY, INJECTION PUMP

22101B

RING, O(FOR INJECTION PUMP HOUSING)

22104

VALVE SUB-ASSY, INJECTION PUMP DELIVERY

22108A

RING SUB-ASSY, ROLLER

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22119

WASHER, AIR BLEEDER NIPPLE

22128A

BOLT, DISTRIBUTIVE HEAD

22130

CAMPLATE SUB-ASSY, FACE

22131

HOLDER, DELIVERY VALVE

22140

HEAD SUB-ASSY, DISTRIBUTIVE PUMP

22141

SEAT, DELIVERY VALVE SPRING

22143

SEAT, SPRING UPPER

22144

SPRING, PUMP PLUNGER

22145

SEAT, SPRING, LOWER

22146D

KEY(FOR DRIVE GEAR)

22146E

SEAL(FOR DRIVE SHAFT)

22147A

WASHER, DRIVE SHAFT

22147B

RING, GOVERNOR SLEEVE

22148

SPRING, DELIVERY VALVE

22149

GASKET, DELIVERY VALVE

2214956200

Крепеж

22160

SCREW SUB-ASSY, OVERFLOW

22162

PLATE, PLUNGER UPPER

22163

PLATE, PLUNGER LOWER

22169

JOINT, RUBBER

22169

JOINT, RUBBER

22170

SHAFT SUB-ASSY, DRIVE

22170A

KEY(FOR DRIVE SHAFT)

2217254263

Крепеж

2217258780

Крепеж

22174

SHAFT, SPLINE

22176

PLUG, DISTRIBUTIVE HEAD

22176A

RING, O(FOR DISTRIBUTIVE HEAD PLUG)

22179

SHIM, PLUNGER ADJUSTING

22180

VALVE SUB-ASSY, REGULATOR

22182

PLATE, TAPPET ADJUSTING SHIM

22192

GUIDE SUB-ASSY, PLUNGER SPRING

22193

RING, O(FOR LEVER CONNECTING PIN)

22314A

SPRING, LEVER SUPPORT

22316A

SLEEVE, GOVERNOR

22316B

BEARING, BALL(FOR GOVERNOR SLEEVE)

22317

SPRING, GOVERNOR DOMPER

22322A

SPRING, RETURN

22341C

GEAR, GOVERNOR DRIVE

22350A

GOVERNOR ASSY, TORQUE CONTROL

22354A

SEAL, ROD

22355A

WIRE, GOVERNOR HOUSING SEAL

22369

SEAT, GOVERNOR SPRING

22378A

WASHER, GOVERNOR THRUST

22384D

SHAFT, GOVERNOR

22384E

RING, O(FOR GOVERNOR MAIN SHAFT)

22390A

SOLENOID ASSY, FUEL CUT

2239554010

Крепеж

2239554270

Крепеж

2239556290

Крепеж

2239556350

Крепеж

2239558200

Крепеж

22505

PUMP SUB-ASSY, FUEL FEED

22505A

SCREW(FOR FUEL FEED PUMP)

22511A

COVER, FEED PUMP

22602

FILTER SUB-ASSY, FUEL INJECTION PUMP

22611

NUT, TIMER ROUND

22612B

COVER, TIMER

22612C

COVER, TIMER

22612D

RING, O(FOR TIMER COVER)

22612D

RING, O(FOR TIMER COVER)

22615A

SPRING, TIMER OUTER

22621A

WASHER, TIMER ADJUSTING

22632A

COUPLING, INJECTION PUMP

22654

PISTON, TIMER

22655A

PIN, TIMER SLIDE

22656

CLIP, TIMER

22657

CLIP, TIMER

22658

STOPPER, TIMER

22658

STOPPER, TIMER

22659

SPRING, COUPLING

22680D

BELLOWS ASSY, PNEUMATIC

2268956350

Крепеж

2268956350

Крепеж

22701

LEVER SUB-ASSY, ADJUSTING

22713

WASHER, GOVERNOR GEAR ADJUSTING

2272254470

Крепеж

22726

SPRING, SPEED CONTROL

22739

BOLT, GOVERNOR LINK SUPPORT

22740

SHAFT SUB-ASSY, GOVERNOR ADJUSTING

22740A

RING, O(FOR GOVERNOR ADJUSTING SHAFT)

22741

HOLDER SUB-ASSY, FLYWEIGHT

22745

FLYWEIGHT, DISTRIBUTIVE PUMP

22751

WIRE SUB-ASSY, FUEL CUT SOLENOID

22753A

WASHER, FLYWEIGHT, NO.1

22753B

WASHER, FLYWEIGHT, NO.2

22774

GASKET, GOVERNOR COVER

22775

NUT, LOCK(FOR INJECTION PUMP)

22776

SCREW, SMOKE SET ADJUSTING

22776A

RING, O(FOR SMOKE SET SCREW)

22787

PLUG, GOVERNOR SLEEVE

9009050605

Крепеж

9009210608

Крепеж

9009300802

Крепеж

9009301003

Крепеж

9009690024

Крепеж

9009901449

Крепеж

9009901533

Крепеж

9009904576

Крепеж

9009904946

Крепеж

9009905140

Крепеж

9009905161

Крепеж

9009918022

Крепеж

9017906009

Крепеж

9020108106

Крепеж

9338116016

Крепеж

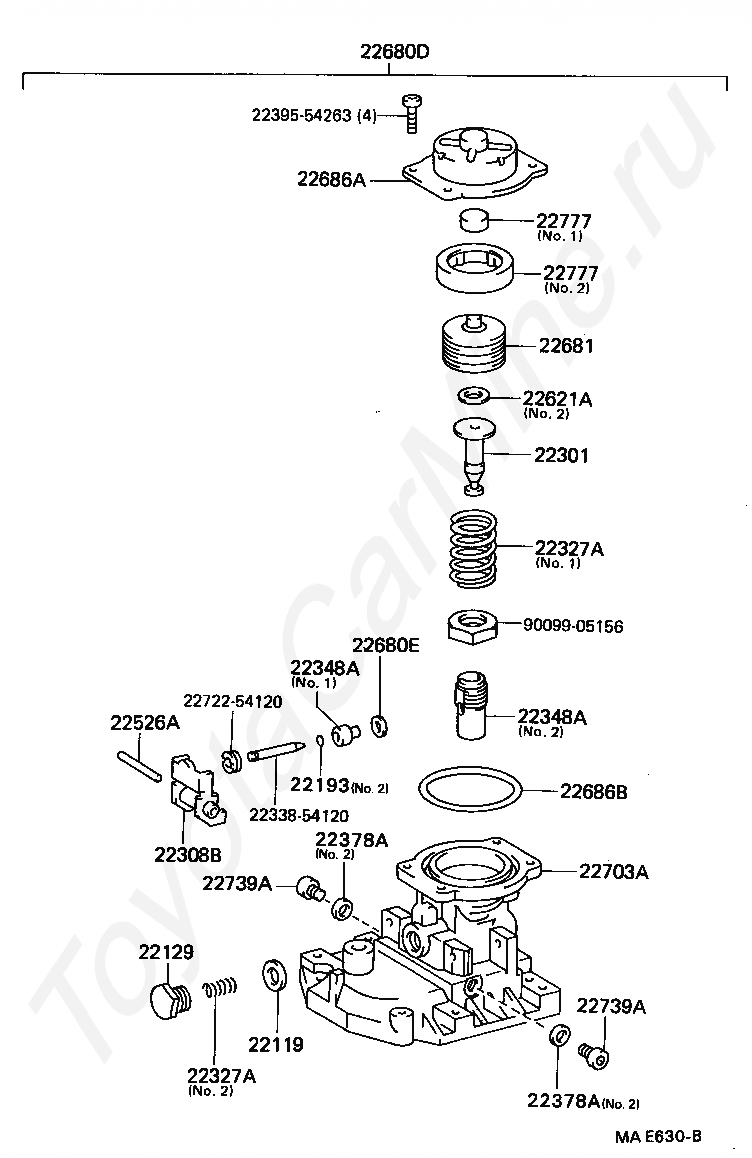

Код

Описание

22119

WASHER, AIR BLEEDER NIPPLE

22129

PLUG, SCREW

22193

RING, O(FOR LEVER CONNECTING PIN)

22301

ROD SUB-ASSY, PUSH

22308B

LEVER SUB-ASSY, CONTROL

22327A

SPRING(FOR BELLOWS)

22327A

SPRING(FOR BELLOWS)

2233854120

Крепеж

22348A

BUSHING, GUIDE

22348A

BUSHING, GUIDE

22378A

WASHER, GOVERNOR THRUST

22378A

WASHER, GOVERNOR THRUST

2239554263

Крепеж

22526A

PIN, LEVER SUPPORT

22621A

WASHER, TIMER ADJUSTING

22680D

BELLOWS ASSY, PNEUMATIC

22680E

WASHER, COPPER PLATE

22681

BELLOWS SUB-ASSY, PNEUMATIC

22686A

COVER, PNEUMATIC BELLOWS

22686B

RING, O(FOR BELLOWS COVER)

22703A

COVER SUB-ASSY, GOVERNOR

2272254120

Крепеж

22739A

BOLT, GOVERNOR LINK SUPPORT NO.2

22739A

BOLT, GOVERNOR LINK SUPPORT NO.2

22777

CAP, RUBBER(FOR BELLOWS)

22777

CAP, RUBBER(FOR BELLOWS)

9009905156

Крепеж
