Каталог

Европа

Модель

COASTER

VIN

Дата

1982/05

Двигатель

3,4 литра, дизель

Класс

DELUX SPECIFICATION

Фрейм

BB20

КПП

МКПП, 5 скоростей

Опции

левый руль высокая крыша 26-местный WITHOUT COOLER GENERAL COUNTRIES

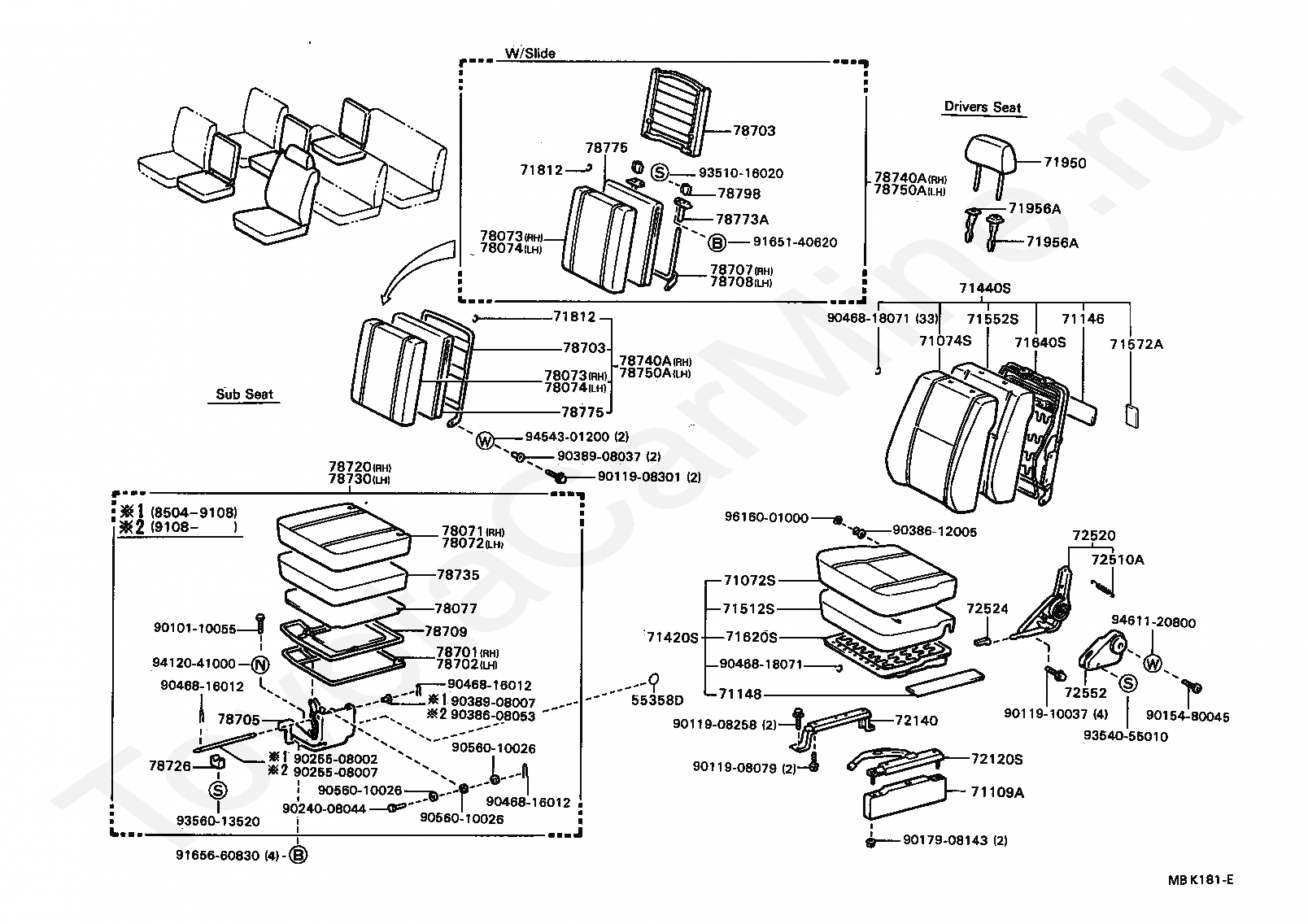

Кресла TOYOTA COASTER







Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

71956A

SUPPORT, FRONT SEAT HEADREST

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72140

TRACK ASSY, LH SEAT, INNER

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72524

HANDLE, RECLINING ADJUSTER RELEASE

72552

COVER, RECLINING HINGE, NO.2

78071

COVER SUB-ASSY, SUB SEAT CUSHION, RH

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78720

CUSHION ASSY, SUB SEAT, RH

78726

CUSHION, SUB SEAT CUSHION FRAME

78730

CUSHION ASSY, SUB SEAT, LH

78740A

BACK ASSY, SUB SEAT, RH

78740A

BACK ASSY, SUB SEAT, RH

78750A

BACK ASSY, SUB SEAT, LH

78750A

BACK ASSY, SUB SEAT, LH

78773A

HOOP, SUB SEAT BACK GUIDE

78798

SPACER, SUB SEAT BACK FRAME

78798

SPACER, SUB SEAT BACK FRAME

9010110055

Крепеж

9011908079

Крепеж

9011908258

Крепеж

9011908301

Крепеж

9011910037

Крепеж

9015480045

Крепеж

9017908143

Крепеж

9024008044

Крепеж

9025508002

Крепеж

9038612005

Крепеж

9038908007

Крепеж

9038908037

Крепеж

9046816012

Крепеж

9046816012

Крепеж

9046816012

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9165140620

Крепеж

9165660830

Крепеж

9351016020

Крепеж

9354055010

Крепеж

9356013520

Крепеж

9412041000

Крепеж

9454301200

Крепеж

9461120800

Крепеж

9616001000

Крепеж

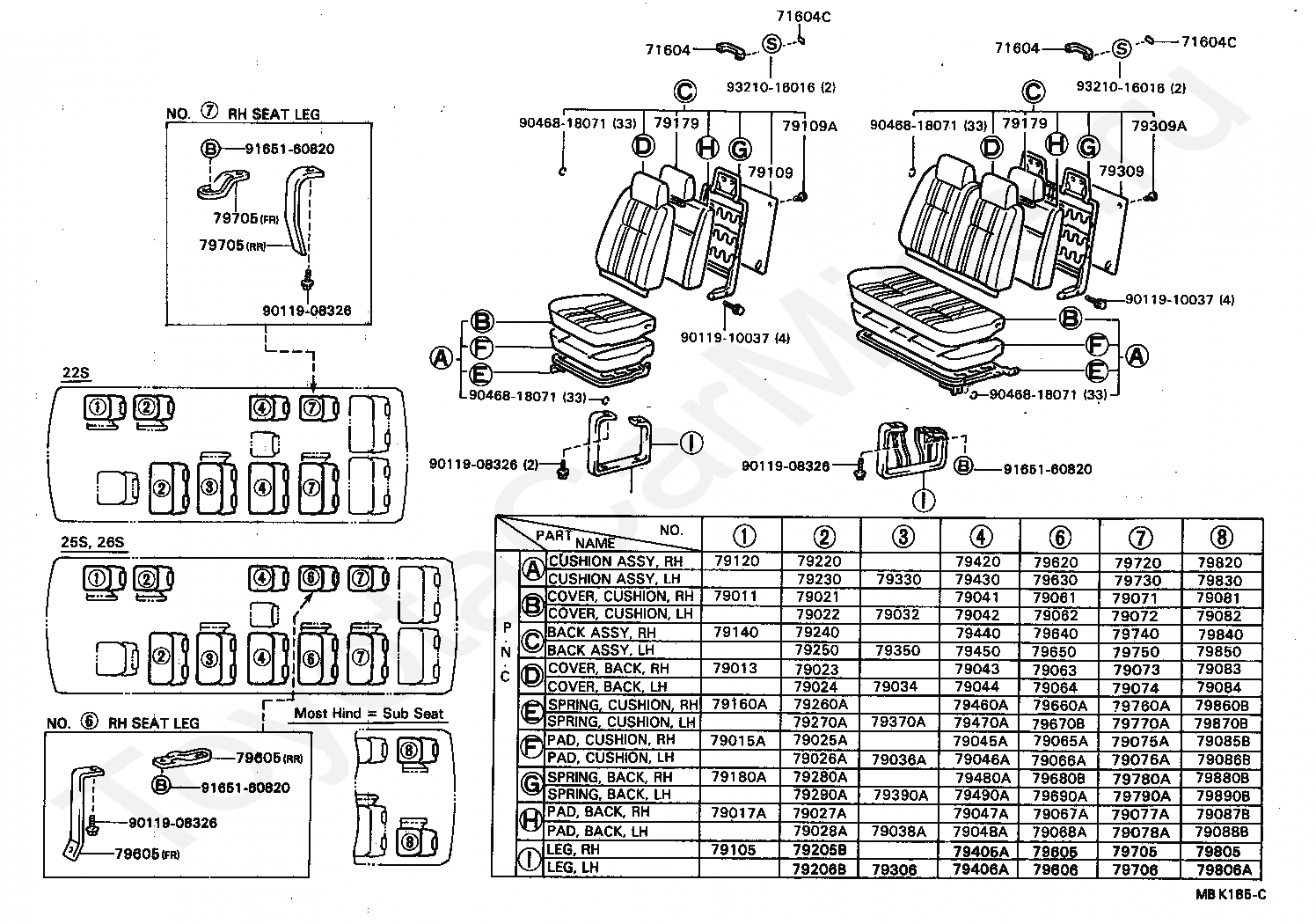

Код

Описание

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79120

CUSHION ASSY, NO.1 SEAT, RH

79140

BACK ASSY, NO.1 SEAT, RH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79309A

CLIP (FOR NO.3 SEAT BACK BOARD)

79330

CUSHION ASSY, NO.3 SEAT, LH

79350

BACK ASSY, NO.3 SEAT, LH

79420

CUSHION ASSY, NO.4 SEAT, RH

79430

CUSHION ASSY, NO.4 SEAT, LH

79440

BACK ASSY, NO.4 SEAT, RH

79450

BACK ASSY, NO.4 SEAT, LH

79620

CUSHION ASSY, NO.6 SEAT, RH

79630

CUSHION ASSY, NO.6 SEAT, LH

79640

BACK ASSY, NO.6 SEAT, RH

79650

BACK ASSY, NO.6 SEAT, LH

79720

CUSHION ASSY, NO.7 SEAT, RH

79730

CUSHION ASSY, NO.7 SEAT, LH

79740

BACK ASSY, NO.7 SEAT, RH

79750

BACK ASSY, NO.7 SEAT, LH

9011908326

Крепеж

9011908326

Крепеж

9011910037

Крепеж

9011910037

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9165160830

Крепеж

9321016016

Крепеж

9321016016

Крепеж

Код

Описание

71956B

SUPPORT, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

7554

переход к группе запчастей

7554

переход к группе запчастей

78901

LOCK SUB-ASSY, FOLD SEAT LEG

78903

STRIKER SUB-ASSY, FOLD SEAT LEG LOCK

78905

LOCK SUB-ASSY, FOLD RH SEAT BACK, RH

78905A

KNOB, FOLDING SEAT BACK LOCK

78905A

KNOB, FOLDING SEAT BACK LOCK

78906

LOCK SUB-ASSY, FOLD RH SEAT BACK, LH

78907

LOCK SUB-ASSY, FOLD LH SEAT BACK, RH

78908

LOCK SUB-ASSY, FOLD LH SEAT BACK, LH

78910

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78958

SEAL, REAR FLOOR FOLD STRIKER BASE

78959

PLATE, REAR FLOOR FOLD STRIKER BASE

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79081B

COVER SUB-ASSY, FOLD SEAT CUSHION, RH

79082B

COVER SUB-ASSY, FOLD SEAT CUSHION, LH

79083A

COVER SUB-ASSY, NO.8 SEAT BACK

79083B

COVER SUB-ASSY, FOLD SEAT BACK, RH

79084B

COVER SUB-ASSY, FOLD SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79809

BOARD SUB-ASSY, NO.8 SEAT BACK

79809

BOARD SUB-ASSY, NO.8 SEAT BACK

79809

BOARD SUB-ASSY, NO.8 SEAT BACK

79809A

CLIP (FOR NO.8 SEAT BACK BOARD)

79809A

CLIP (FOR NO.8 SEAT BACK BOARD)

79809A

CLIP (FOR NO.8 SEAT BACK BOARD)

79820A

CUSHION ASSY, NO.8 SEAT

79820B

CUSHION ASSY, FOLD SEAT, RH

79830B

CUSHION ASSY, FOLD SEAT, LH

79840A

BACK ASSY, NO.8 SEAT

79840B

BACK ASSY, FOLD SEAT, RH

79850B

BACK ASSY, FOLD SEAT, LH

79981

SILENCER, LUGGAGE COMPARTMENT WALL

79981

SILENCER, LUGGAGE COMPARTMENT WALL

9011908258

Крепеж

9011908258

Крепеж

9011908258

Крепеж

9011908258

Крепеж

9011908259

Крепеж

9011908300

Крепеж

9011910017

Крепеж

9011910101

Крепеж

9011910101

Крепеж

9017908026

Крепеж

9038611006

Крепеж

9038611006

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9161160816

Крепеж

9166160820

Крепеж

9338615010

Крепеж

9363014014

Крепеж

9363014014

Крепеж

9363014014

Крепеж

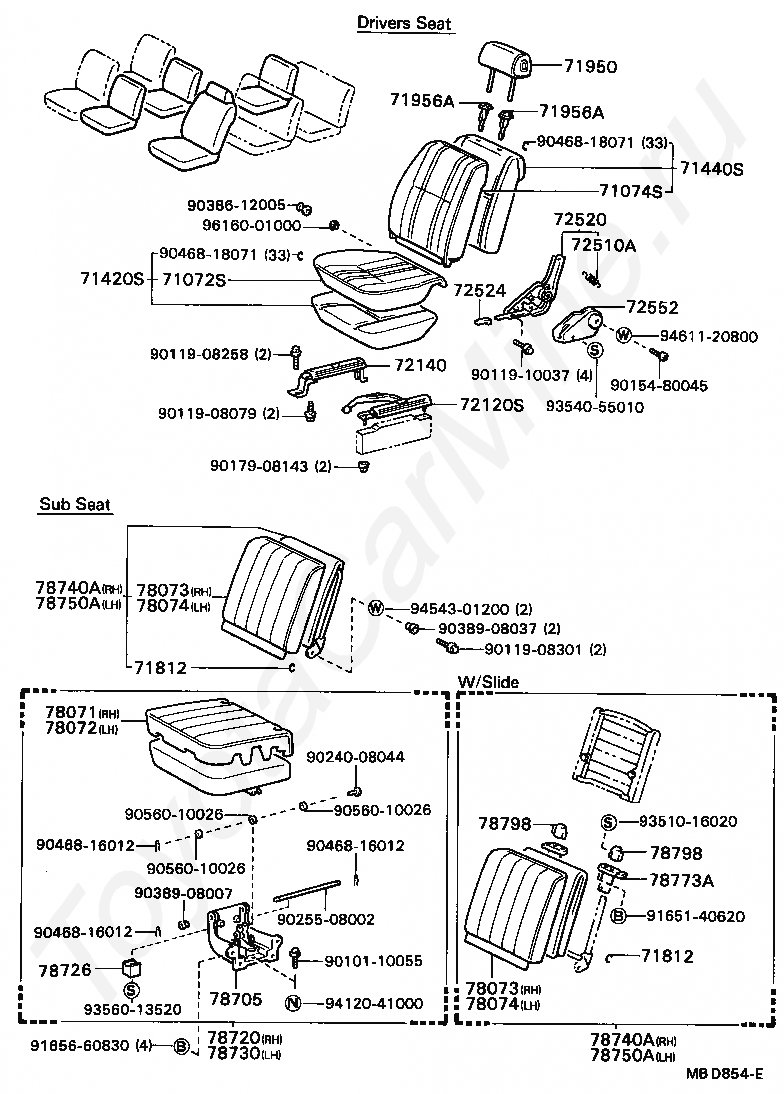

Код

Описание

55358D

PROTECTOR, EDGE

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71109A

LEG SUB-ASSY, FRONT SEAT

71146

SILENCER, FRONT SEAT BACK

71148

SILENCER, FRONT SEAT CUSHION

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71572A

PAD, FRONT SEAT BACK SILENCER, B

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71812

CLIP (FOR FRONT SEAT CUSHION COVER)

71950

HEADREST ASSY, FRONT SEAT

71956A

SUPPORT, FRONT SEAT HEADREST

71956A

SUPPORT, FRONT SEAT HEADREST

72120S

TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)

72140

TRACK ASSY, LH SEAT, INNER

72510A

SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER)

72520

ADJUSTER ASSY, RECLINING SEAT BACK, LH

72524

HANDLE, RECLINING ADJUSTER RELEASE

72552

COVER, RECLINING HINGE, NO.2

78071

COVER SUB-ASSY, SUB SEAT CUSHION, RH

78072

COVER SUB-ASSY, SUB SEAT CUSHION, LH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78073

COVER SUB-ASSY, SUB SEAT BACK, RH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78074

COVER SUB-ASSY, SUB SEAT BACK, LH

78077

BOARD SUB-ASSY, SUB SEAT CUSHION

78701

FRAME SUB-ASSY, SUB SEAT CUSHION, RH

78702

FRAME SUB-ASSY, SUB SEAT CUSHION, LH

78703

FRAME SUB-ASSY, SUB SEAT BACK

78703

FRAME SUB-ASSY, SUB SEAT BACK

78705

BRACKET SUB-ASSY, SUB SEAT CUSHION

78707

FRAME SUB-ASSY, SUB SEAT BACK, LOWER RH

78708

FRAME SUB-ASSY, SUB SEAT BACK, LOWER LH

78709

PANEL SUB-ASSY, SUB SEAT CUSHION

78720

CUSHION ASSY, SUB SEAT, RH

78726

CUSHION, SUB SEAT CUSHION FRAME

78730

CUSHION ASSY, SUB SEAT, LH

78735

PAD, SUB SEAT CUSHION

78740A

BACK ASSY, SUB SEAT, RH

78740A

BACK ASSY, SUB SEAT, RH

78750A

BACK ASSY, SUB SEAT, LH

78750A

BACK ASSY, SUB SEAT, LH

78773A

HOOP, SUB SEAT BACK GUIDE

78775

PAD, SUB SEAT BACK

78775

PAD, SUB SEAT BACK

78798

SPACER, SUB SEAT BACK FRAME

9010110055

Крепеж

9011908079

Крепеж

9011908258

Крепеж

9011908301

Крепеж

9011910037

Крепеж

9015480045

Крепеж

9017908143

Крепеж

9024008044

Крепеж

9025508002

Крепеж

9025508007

Крепеж

9038608053

Крепеж

9038612005

Крепеж

9038908007

Крепеж

9038908037

Крепеж

9046816012

Крепеж

9046816012

Крепеж

9046816012

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9056010026

Крепеж

9165140620

Крепеж

9165660830

Крепеж

9351016020

Крепеж

9354055010

Крепеж

9356013520

Крепеж

9412041000

Крепеж

9454301200

Крепеж

9461120800

Крепеж

9616001000

Крепеж

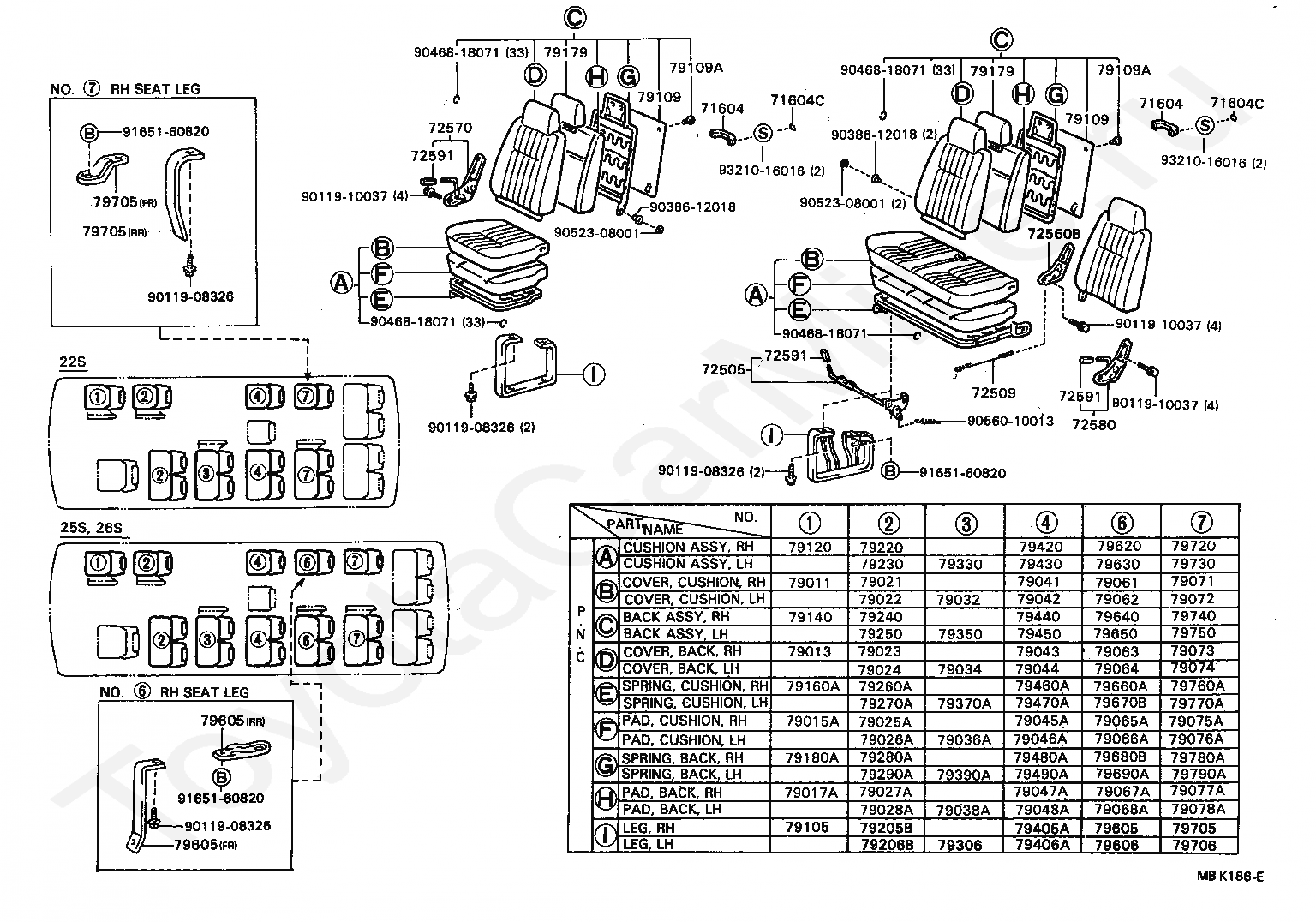

Код

Описание

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79015A

PAD SUB-ASSY, NO.1 SEAT CUSHION, RH

79017A

PAD SUB-ASSY, NO.1 SEAT BACK, RH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026A

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79036A

PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH

79038A

PAD SUB-ASSY, NO.3 SEAT BACK, LH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076A

PAD SUB-ASSY, NO.7 SEAT CUSHION

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79081

COVER SUB-ASSY, NO.8 SEAT CUSHION, RH

79082

COVER SUB-ASSY, NO.8 SEAT CUSHION, LH

79083

COVER SUB-ASSY, NO.8 SEAT BACK, RH

79084

COVER SUB-ASSY, NO.8 SEAT BACK, LH

79085B

PAD SUB-ASSY, NO.8 SEAT CUSHION, RH

79086B

PAD SUB-ASSY, NO.8 SEAT CUSHION, LH

79087B

PAD SUB-ASSY, NO.8 SEAT BACK, RH

79088B

PAD SUB-ASSY, NO.8 SEAT BACK, LH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79120

CUSHION ASSY, NO.1 SEAT, RH

79140

BACK ASSY, NO.1 SEAT, RH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79179

PAD, NO.1 SEAT BACK HEADREST

79179

PAD, NO.1 SEAT BACK HEADREST

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79260A

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270A

SPRING ASSY, NO.2 SEAT CUSHION, LH

79280A

SPRING ASSY, NO.2 SEAT BACK, RH

79290A

SPRING ASSY, NO.2 SEAT BACK, LH

79306

LEG SUB ASSY, NO.3 SEAT, LH

79309

BOARD SUB-ASSY, NO.3 SEAT BACK

79309A

CLIP (FOR NO.3 SEAT BACK BOARD)

79330

CUSHION ASSY, NO.3 SEAT, LH

79350

BACK ASSY, NO.3 SEAT, LH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79420

CUSHION ASSY, NO.4 SEAT, RH

79430

CUSHION ASSY, NO.4 SEAT, LH

79440

BACK ASSY, NO.4 SEAT, RH

79450

BACK ASSY, NO.4 SEAT, LH

79460A

SPRING ASSY, NO.4 SEAT CUSHION, RH

79470A

SPRING ASSY, NO.4 SEAT CUSHION, LH

79480A

SPRING ASSY, NO.4 SEAT BACK, RH

79490A

SPRING ASSY, NO.4 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79620

CUSHION ASSY, NO.6 SEAT, RH

79630

CUSHION ASSY, NO.6 SEAT, LH

79640

BACK ASSY, NO.6 SEAT, RH

79650

BACK ASSY, NO.6 SEAT, LH

79660A

SPRING ASSY, NO.6 SEAT CUSHION, RH

79670B

SPRING ASSY, NO.6 SEAT CUSHION, LH

79680B

SPRING ASSY, NO.6 SEAT BACK, RH

79690A

SPRING ASSY, NO.6 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79720

CUSHION ASSY, NO.7 SEAT, RH

79730

CUSHION ASSY, NO.7 SEAT, LH

79740

BACK ASSY, NO.7 SEAT, RH

79750

BACK ASSY, NO.7 SEAT, LH

79760A

SPRING ASSY, NO.7 SEAT CUSHION, RH

79770A

SPRING ASSY, NO.7 SEAT CUSHION, LH

79780A

SPRING ASSY, NO.7 SEAT BACK, RH

79790A

SPRING ASSY, NO.7 SEAT BACK, LH

79805

LEG SUB-ASSY, NO.8 SEAT, RH

79806A

LEG SUB-ASSY, NO.8 SEAT, LH

79820

CUSHION ASSY, NO.8 SEAT, RH

79830

CUSHION ASSY, NO.8 SEAT, LH

79840

BACK ASSY, NO.8 SEAT, RH

79850

BACK ASSY, NO.8 SEAT, LH

79860B

SPRING ASSY, NO.8 SEAT CUSHION, RH

79870B

SPRING ASSY, NO.8 SEAT CUSHION, LH

79880B

SPRING ASSY, NO.8 SEAT BACK, RH

79890B

SPRING ASSY, NO.8 SEAT BACK, LH

9011908326

Крепеж

9011908326

Крепеж

9011908326

Крепеж

9011908326

Крепеж

9011910037

Крепеж

9011910037

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9321016016

Крепеж

9321016016

Крепеж

Код

Описание

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604

GRIP SUB-ASSY, ASSIST(FOR SEAT BACK)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

71604C

PLUG, HOLE(FOR ASSIST GRIP)

72505

ARM SUB-ASSY, RECLINING ADJUSTER, CENTER RH

72509

WIRE SUB-ASSY, ADJUSTER EQULIZING

72560B

ADJUSTER ASSY, RECLINING SEAT, CENTER LH

72570

ADJUSTER ASSY, REAR RECLINING SEAT, RH

72580

ADJUSTER ASSY, REAR RECLINING SEAT, LH

72591

KNOB, RECLINING REMOTE CONTROL LEVER

72591

KNOB, RECLINING REMOTE CONTROL LEVER

72591

KNOB, RECLINING REMOTE CONTROL LEVER

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79015A

PAD SUB-ASSY, NO.1 SEAT CUSHION, RH

79017A

PAD SUB-ASSY, NO.1 SEAT BACK, RH

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79025A

PAD SUB-ASSY, NO.2 SEAT CUSHION, RH

79026A

PAD SUB-ASSY, NO.2 SEAT CUSHION, LH

79027A

PAD SUB-ASSY, NO.2 SEAT BACK, RH

79028A

PAD SUB-ASSY, NO.2 SEAT BACK, LH

79032

COVER SUB-ASSY, NO.3 SEAT CUSHION, LH

79034

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79036A

PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH

79038A

PAD SUB-ASSY, NO.3 SEAT BACK, LH

79041

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043

COVER SUB-ASSY, NO.4 SEAT BACK, RH

79044

COVER SUB-ASSY, NO.4 SEAT BACK, LH

79045A

PAD SUB-ASSY, NO.4 SEAT CUSHION, RH

79046A

PAD SUB-ASSY, NO.4 SEAT CUSHION, LH

79047A

PAD SUB-ASSY, NO.4 SEAT BACK, RH

79048A

PAD SUB-ASSY, NO.4 SEAT BACK, LH

79061

COVER SUB-ASSY, NO.6 SEAT CUSHION, RH

79062

COVER SUB-ASSY, NO.6 SEAT CUSHION, LH

79063

COVER SUB-ASSY, NO.6 SEAT BACK, RH

79064

COVER SUB-ASSY, NO.6 SEAT BACK, LH

79065A

PAD SUB-ASSY, NO.6 SEAT CUSHION, RH

79066A

PAD SUB-ASSY, NO.6 SEAT CUSHION, LH

79067A

PAD SUB-ASSY, NO.6 SEAT BACK, RH

79068A

PAD SUB-ASSY, NO.6 SEAT BACK, LH

79071

COVER SUB-ASSY, NO.7 SEAT CUSHION, RH

79072

COVER SUB-ASSY, NO.7 SEAT CUSHION, LH

79073

COVER SUB-ASSY, NO.7 SEAT BACK, RH

79074

COVER SUB-ASSY, NO.7 SEAT BACK, LH

79075A

PAD SUB-ASSY, NO.7 SEAT CUSHION, RH

79076A

PAD SUB-ASSY, NO.7 SEAT CUSHION

79077A

PAD SUB-ASSY, NO.7 SEAT BACK, RH

79078A

PAD SUB-ASSY, NO.7 SEAT BACK, LH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79109A

CLIP (FOR NO.1 SEAT BACK BOARD)

79120

CUSHION ASSY, NO.1 SEAT, RH

79140

BACK ASSY, NO.1 SEAT, RH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79179

PAD, NO.1 SEAT BACK HEADREST

79179

PAD, NO.1 SEAT BACK HEADREST

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79205B

LEG SUB-ASSY, NO.2 SEAT, RH

79206B

LEG SUB-ASSY, NO.2 SEAT, LH

79220

CUSHION ASSY, NO.2 SEAT, RH

79230

CUSHION ASSY, NO.2 SEAT, LH

79240

BACK ASSY, NO.2 SEAT, RH

79250

BACK ASSY, NO.2 SEAT, LH

79260A

SPRING ASSY, NO.2 SEAT CUSHION, RH

79270A

SPRING ASSY, NO.2 SEAT CUSHION, LH

79280A

SPRING ASSY, NO.2 SEAT BACK, RH

79290A

SPRING ASSY, NO.2 SEAT BACK, LH

79306

LEG SUB ASSY, NO.3 SEAT, LH

79330

CUSHION ASSY, NO.3 SEAT, LH

79350

BACK ASSY, NO.3 SEAT, LH

79370A

SPRING ASSY, NO.3 SEAT CUSHION, LH

79390A

SPRING ASSY, NO.3 SEAT BACK, LH

79405A

LEG SUB-ASSY, NO.4 SEAT, RH

79406A

LEG SUB-ASSY, NO.4 SEAT, LH

79420

CUSHION ASSY, NO.4 SEAT, RH

79430

CUSHION ASSY, NO.4 SEAT, LH

79440

BACK ASSY, NO.4 SEAT, RH

79450

BACK ASSY, NO.4 SEAT, LH

79460A

SPRING ASSY, NO.4 SEAT CUSHION, RH

79470A

SPRING ASSY, NO.4 SEAT CUSHION, LH

79480A

SPRING ASSY, NO.4 SEAT BACK, RH

79490A

SPRING ASSY, NO.4 SEAT BACK, LH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79605

LEG SUB-ASSY, NO.6 SEAT, RH

79606

LEG SUB-ASSY, NO.6 SEAT, LH

79620

CUSHION ASSY, NO.6 SEAT, RH

79630

CUSHION ASSY, NO.6 SEAT, LH

79640

BACK ASSY, NO.6 SEAT, RH

79650

BACK ASSY, NO.6 SEAT, LH

79660A

SPRING ASSY, NO.6 SEAT CUSHION, RH

79670B

SPRING ASSY, NO.6 SEAT CUSHION, LH

79680B

SPRING ASSY, NO.6 SEAT BACK, RH

79690A

SPRING ASSY, NO.6 SEAT BACK, LH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79705

LEG SUB-ASSY, NO.7 SEAT, RH

79706

LEG SUB-ASSY, NO.7 SEAT, LH

79720

CUSHION ASSY, NO.7 SEAT, RH

79730

CUSHION ASSY, NO.7 SEAT, LH

79740

BACK ASSY, NO.7 SEAT, RH

79750

BACK ASSY, NO.7 SEAT, LH

79760A

SPRING ASSY, NO.7 SEAT CUSHION, RH

79770A

SPRING ASSY, NO.7 SEAT CUSHION, LH

79780A

SPRING ASSY, NO.7 SEAT BACK, RH

79790A

SPRING ASSY, NO.7 SEAT BACK, LH

9011908326

Крепеж

9011908326

Крепеж

9011908326

Крепеж

9011908326

Крепеж

9011910037

Крепеж

9011910037

Крепеж

9011910037

Крепеж

9038612018

Крепеж

9038612018

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9052308001

Крепеж

9052308001

Крепеж

9056010013

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9165160820

Крепеж

9321016016

Крепеж

9321016016

Крепеж

Код

Описание

71956B

SUPPORT, REAR SEAT HEADREST

71956B

SUPPORT, REAR SEAT HEADREST

71970

HEADREST ASSY, REAR SEAT

72853

PAD, JUNIOR SEAT ARMREST

7554

переход к группе запчастей

7554

переход к группе запчастей

78901

LOCK SUB-ASSY, FOLD SEAT LEG

78903

STRIKER SUB-ASSY, FOLD SEAT LEG LOCK

78905

LOCK SUB-ASSY, FOLD RH SEAT BACK, RH

78905A

KNOB, FOLDING SEAT BACK LOCK

78905A

KNOB, FOLDING SEAT BACK LOCK

78906

LOCK SUB-ASSY, FOLD RH SEAT BACK, LH

78907

LOCK SUB-ASSY, FOLD LH SEAT BACK, RH

78908

LOCK SUB-ASSY, FOLD LH SEAT BACK, LH

78910

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

78950

BAND ASSY, FOLD SEAT STOPPER, NO.1

78958

SEAL, REAR FLOOR FOLD STRIKER BASE

78959

PLATE, REAR FLOOR FOLD STRIKER BASE

78960

BAND ASSY, FOLD SEAT STOPPER, NO.2

79081A

COVER SUB-ASSY, NO.8 SEAT CUSHION

79081B

COVER SUB-ASSY, FOLD SEAT CUSHION, RH

79082B

COVER SUB-ASSY, FOLD SEAT CUSHION, LH

79083A

COVER SUB-ASSY, NO.8 SEAT BACK

79083B

COVER SUB-ASSY, FOLD SEAT BACK, RH

79084B

COVER SUB-ASSY, FOLD SEAT BACK, LH

79085

PAD SUB-ASSY, NO.8 SEAT CUSHION

79085A

PAD SUB-ASSY, FOLD SEAT CUSHION, RH

79086A

PAD SUB-ASSY, FOLD SEAT CUSHION, LH

79087A

PAD SUB-ASSY, FOLD SEAT BACK, RH

79088A

PAD SUB-ASSY, FOLD SEAT BACK, LH

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79097

PARTITION SUB-ASSY, LUGGAGE COMPARTMENT WALL

79179

PAD, NO.1 SEAT BACK HEADREST

79179

PAD, NO.1 SEAT BACK HEADREST

79806

LEG SUB-ASSY, FOLD SEAT, REAR RH

79807

LEG SUB-ASSY, FOLD SEAT, REAR LH

79809

BOARD SUB-ASSY, NO.8 SEAT BACK

79809

BOARD SUB-ASSY, NO.8 SEAT BACK

79809

BOARD SUB-ASSY, NO.8 SEAT BACK

79809A

CLIP (FOR NO.8 SEAT BACK BOARD)

79809A

CLIP (FOR NO.8 SEAT BACK BOARD)

79809A

CLIP (FOR NO.8 SEAT BACK BOARD)

79820A

CUSHION ASSY, NO.8 SEAT

79820B

CUSHION ASSY, FOLD SEAT, RH

79830B

CUSHION ASSY, FOLD SEAT, LH

79831

LEG, NO.8 SEAT, FR

79832

LEG, NO.8 SEAT, RR

79840A

BACK ASSY, NO.8 SEAT

79840B

BACK ASSY, FOLD SEAT, RH

79850B

BACK ASSY, FOLD SEAT, LH

79860

SPRING ASSY, NO.8 SEAT CUSHION

79860A

SPRING ASSY, FOLD SEAT CUSHION, RH

79870A

SPRING ASSY, FOLD SEAT CUSHION, LH

79874

BRACKET, NO.8 SEAT BACK SET

79875

PAD, NO.8 SEAT BACK

79876

PAD, NO.8 SEAT BACK, A

79877

PAD, NO.8 SEAT BACK, B

79878

PAD, NO.8 SEAT BACK, C

79878

PAD, NO.8 SEAT BACK, C

79880

SPRING ASSY, NO.8 SEAT BACK

79880A

SPRING ASSY, FOLD SEAT BACK, RH

79890A

SPRING ASSY, FOLD SEAT BACK, LH

79929

FRAME, FOLD SEAT LEG STOPPER

79981

SILENCER, LUGGAGE COMPARTMENT WALL

79981

SILENCER, LUGGAGE COMPARTMENT WALL

9011908258

Крепеж

9011908258

Крепеж

9011908258

Крепеж

9011908259

Крепеж

9011908259

Крепеж

9011908300

Крепеж

9011910017

Крепеж

9011910101

Крепеж

9011910101

Крепеж

9017908026

Крепеж

9017908026

Крепеж

9018306043

Крепеж

9020207100

Крепеж

9024908067

Крепеж

9038611006

Крепеж

9038611006

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9046818071

Крепеж

9161160816

Крепеж

9166160820

Крепеж

9338615010

Крепеж

9363014014

Крепеж

9363014014

Крепеж

9363014014

Крепеж

9616000600

Крепеж

> Запчасти COASTER > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
