2211
переход к группе запчастей

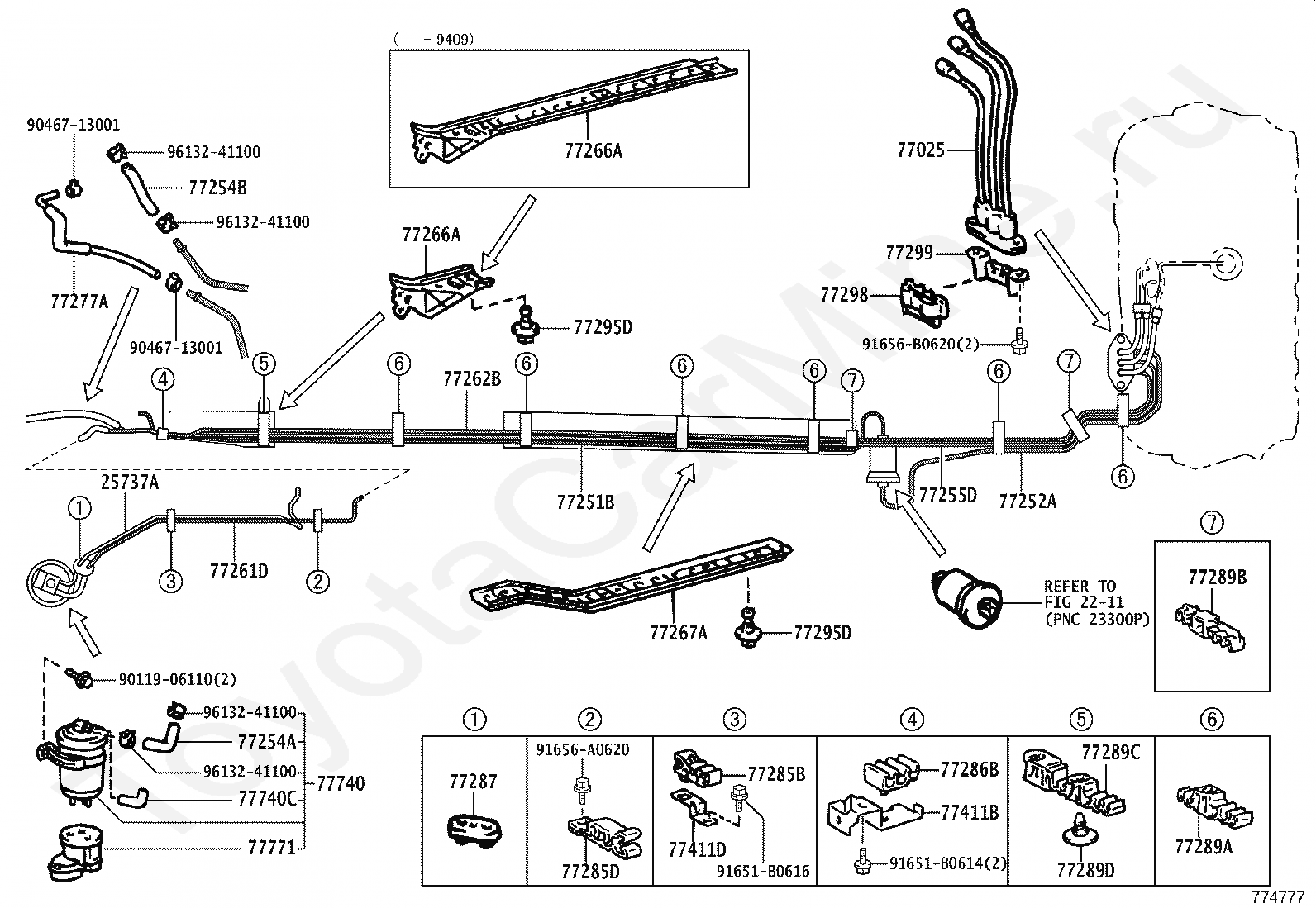

77025
TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR
77252A
TUBE, FUEL MAIN, NO.2
77254A
HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
77254B
HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
77261D
TUBE, FUEL TANK TO CANISTER
77262B
TUBE, FUEL TANK TO CANISTER, NO.2
77266A
PROTECTOR, FUEL TUBE, NO.1
77266A
PROTECTOR, FUEL TUBE, NO.1
77267A
PROTECTOR, FUEL TUBE, NO.2
77277A
HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77285B
CLAMP, FUEL TUBE W/GROMMET, NO.1
77285D
CLAMP, FUEL TUBE, NO.1
77286B
CLAMP, FUEL TUBE W/GROMMET, NO.2
77287
SUPPORT, TANK TO CANISTER TUBE, NO.1
77289A
CLAMP, FUEL TUBE W/GROMMET, NO.3
77289B
CLAMP, FUEL TUBE, NO.3
77289C
CLAMP, FUEL TUBE, NO.4
77289D
CLAMP, FUEL TUBE, NO.5
77295D
GROMMET, FUEL TUBE
77295D
GROMMET, FUEL TUBE
77298
CLAMP, FUEL TUBE W/GROMMET, NO.4
77299
CLAMP, FUEL TUBE W/GROMMET, NO.5
77411B
SUPPORT, FUEL TUBE GROMMET, NO.1
77411D
SUPPORT, FUEL TUBE GROMMET, NO.2
77740
CANISTER ASSY, CHARCOAL
77740C
HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
77771
TANK, CHARCOAL CANISTER
