Ходовые запчасти

Каталог

Япония

Модель

CELSIOR

VIN

Дата

2000/08

Двигатель

4,3 литра, 32 клапана, DOHC, EFI

Класс

амперы

Фрейм

UCF30

КПП

АКПП, 5 скоростей

Опции

Кондиционер: управление и воздуховод TOYOTA CELSIOR

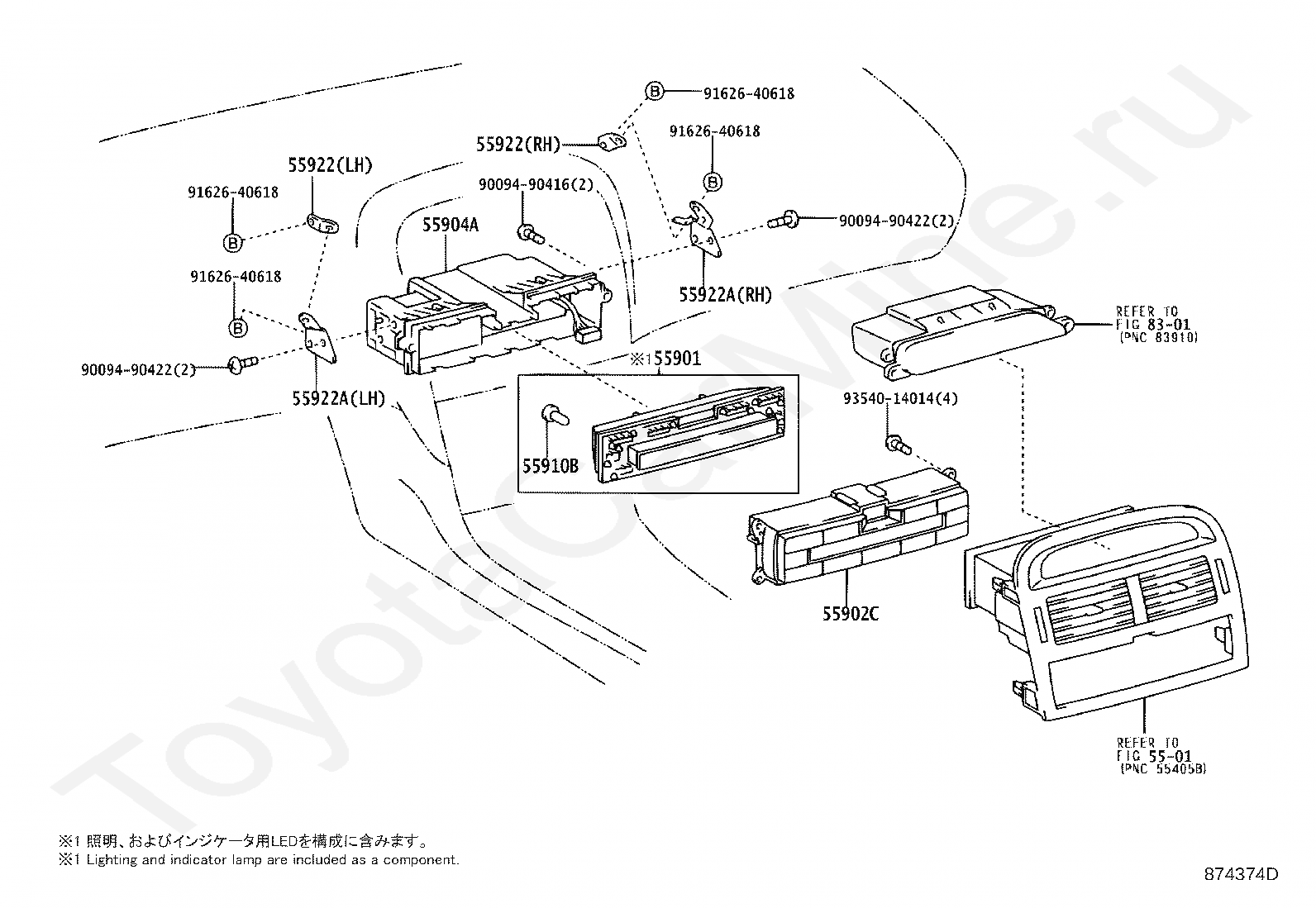

Код

Описание

5501

переход к группе запчастей

55901

BASE SUB-ASSY, HEATER CONTROL

55902C

PANEL SUB-ASSY, AIR CONDITIONER

55904A

HOUSING SUB-ASSY, HEATER CONTROL

55910B

BULB, HEATER CONTROL

55922

BRACKET, HEATER CONTROL BASE

55922

BRACKET, HEATER CONTROL BASE

55922A

BRACKET, HEATER CONTROL BASE, NO.1

55922A

BRACKET, HEATER CONTROL BASE, NO.1

8301

переход к группе запчастей

9009490416

Крепеж

9009490422

Крепеж

9009490422

Крепеж

9162640618

Крепеж

9162640618

Крепеж

9162640618

Крепеж

9162640618

Крепеж

9354014014

Крепеж

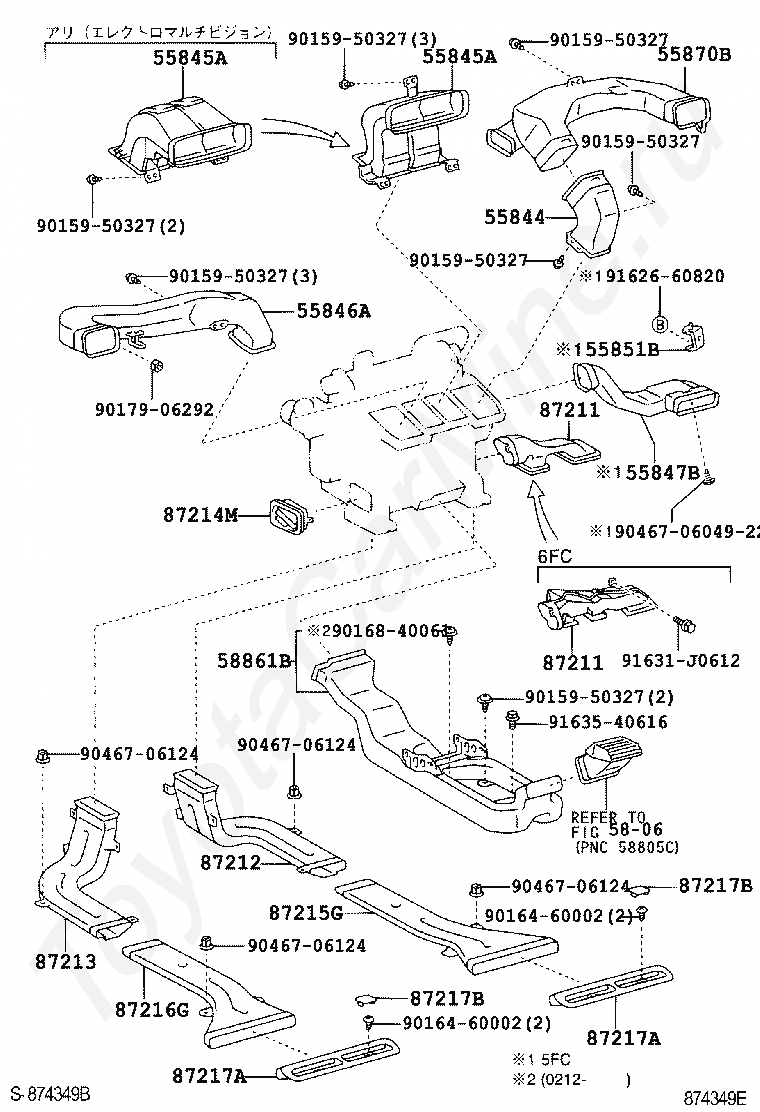

Код

Описание

55844

DUCT, HEATER TO REGISTER, NO.2

55845A

DUCT, HEATER TO REGISTER, NO.3

55845A

DUCT, HEATER TO REGISTER, NO.3

55846A

DUCT, HEATER TO REGISTER, NO.4

55847B

DUCT, HEATER TO REGISTER, NO.5

55851B

BRACKET, FRONT SIDE VENTILATOR DUCT, NO.1

55870B

DUCT ASSY, HEATER TO REGISTER

5806

переход к группе запчастей

58861B

DUCT, CONSOLE BOX, NO.1

87211

DUCT, AIR, NO.1

87211

DUCT, AIR, NO.1

87212

DUCT, AIR, REAR NO.1

87213

DUCT, AIR, REAR NO.2

87214M

DUCT, HEATER TO FOOT, NO.3

87215G

GUIDE, AIR DUCT, REAR RH

87216G

GUIDE, AIR DUCT, REAR LH

87217A

DUCT, AIR, REAR NO.6

87217A

DUCT, AIR, REAR NO.6

87217B

PLUG, AIR DUCT

87217B

PLUG, AIR DUCT

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9015950327

Крепеж

9016460002

Крепеж

9016460002

Крепеж

9016840061

Крепеж

9017906292

Крепеж

904670604922

Крепеж

9046706124

Крепеж

9046706124

Крепеж

9046706124

Крепеж

9046706124

Крепеж

9162660820

Крепеж

91631J0612

Крепеж

9163540616

Крепеж

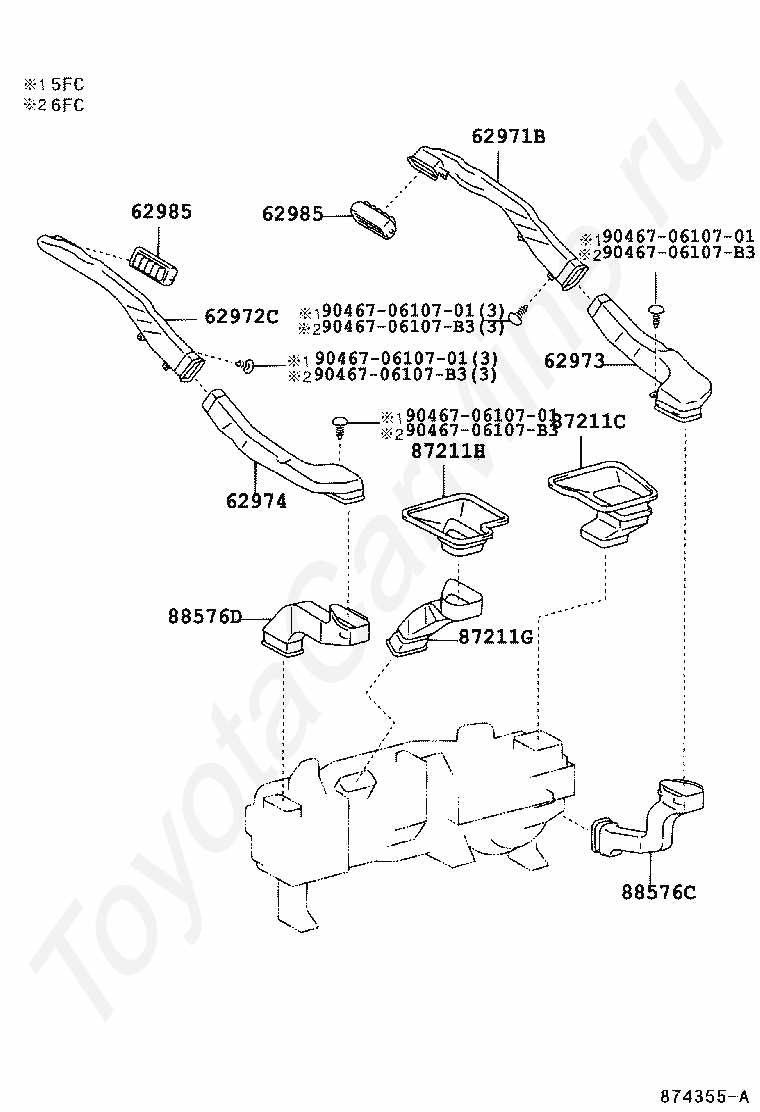

Код

Описание

62971B

DUCT, ROOF SIDE AIR, NO.1 RH

62972C

DUCT, ROOF SIDE AIR, NO.1 LH

62973

DUCT, ROOF SIDE AIR, NO.2 RH

62974

DUCT, ROOF SIDE AIR, NO.2 LH

62985

REGISTER, ROOF SIDE AIR OUTLET

62985

REGISTER, ROOF SIDE AIR OUTLET

87211C

DUCT, AIR, NO.4

87211G

DUCT, AIR, NO.5

87211H

DUCT, AIR, NO.6

88576C

DUCT, COOLER AIR, NO.1

88576D

DUCT, COOLER AIR, NO.2

904670610701

Крепеж

904670610701

Крепеж

904670610701

Крепеж

904670610701

Крепеж

9046706107B3

Крепеж

9046706107B3

Крепеж

9046706107B3

Крепеж

9046706107B3

Крепеж

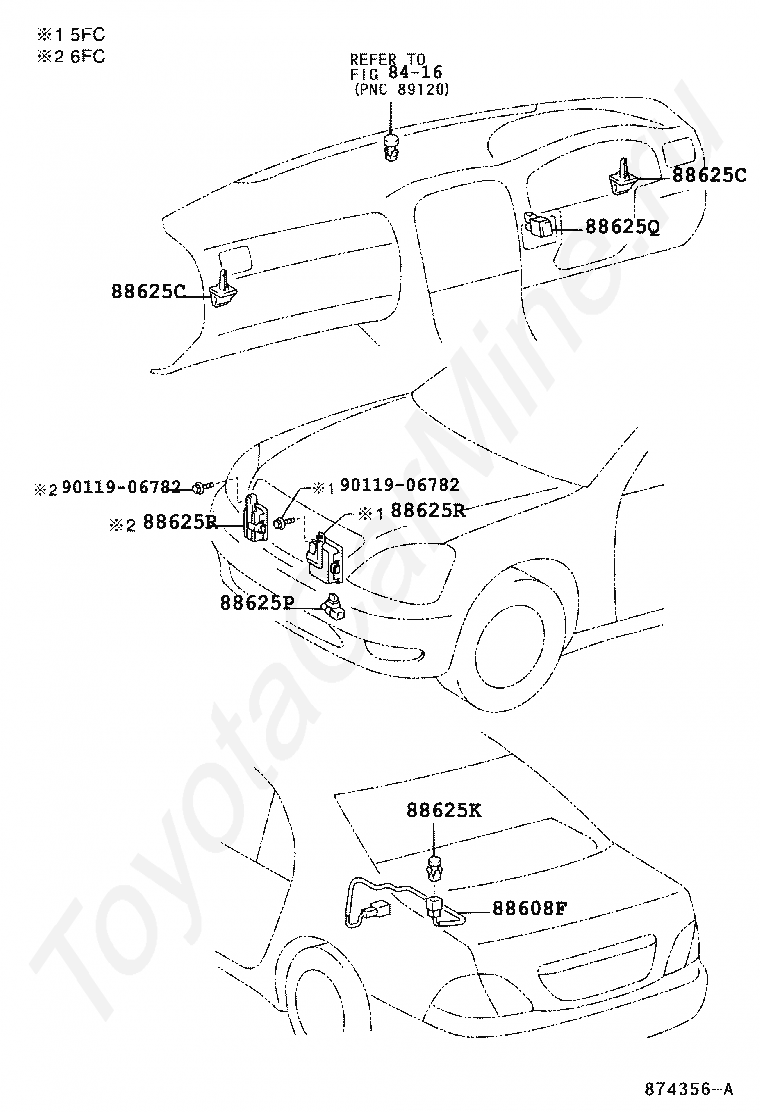

Код

Описание

8416

переход к группе запчастей

88608F

HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

88625C

THERMISTOR, COOLER

88625C

THERMISTOR, COOLER

88625K

THERMISTOR, COOLER

88625P

THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)

88625Q

THERMISTOR, COOLER (ROOM TEMP. SENSOR)

88625R

THERMISTOR, COOLER (SENSOR, SMOG VENTILATION)

88625R

THERMISTOR, COOLER (SENSOR, SMOG VENTILATION)

9011906782

Крепеж

9011906782

Крепеж
