Япония

Модель

CELSIOR

VIN

Дата

2000/08

Двигатель

4,3 литра, 32 клапана, DOHC, EFI

Класс

амперы

Фрейм

UCF30

КПП

АКПП, 5 скоростей

Опции

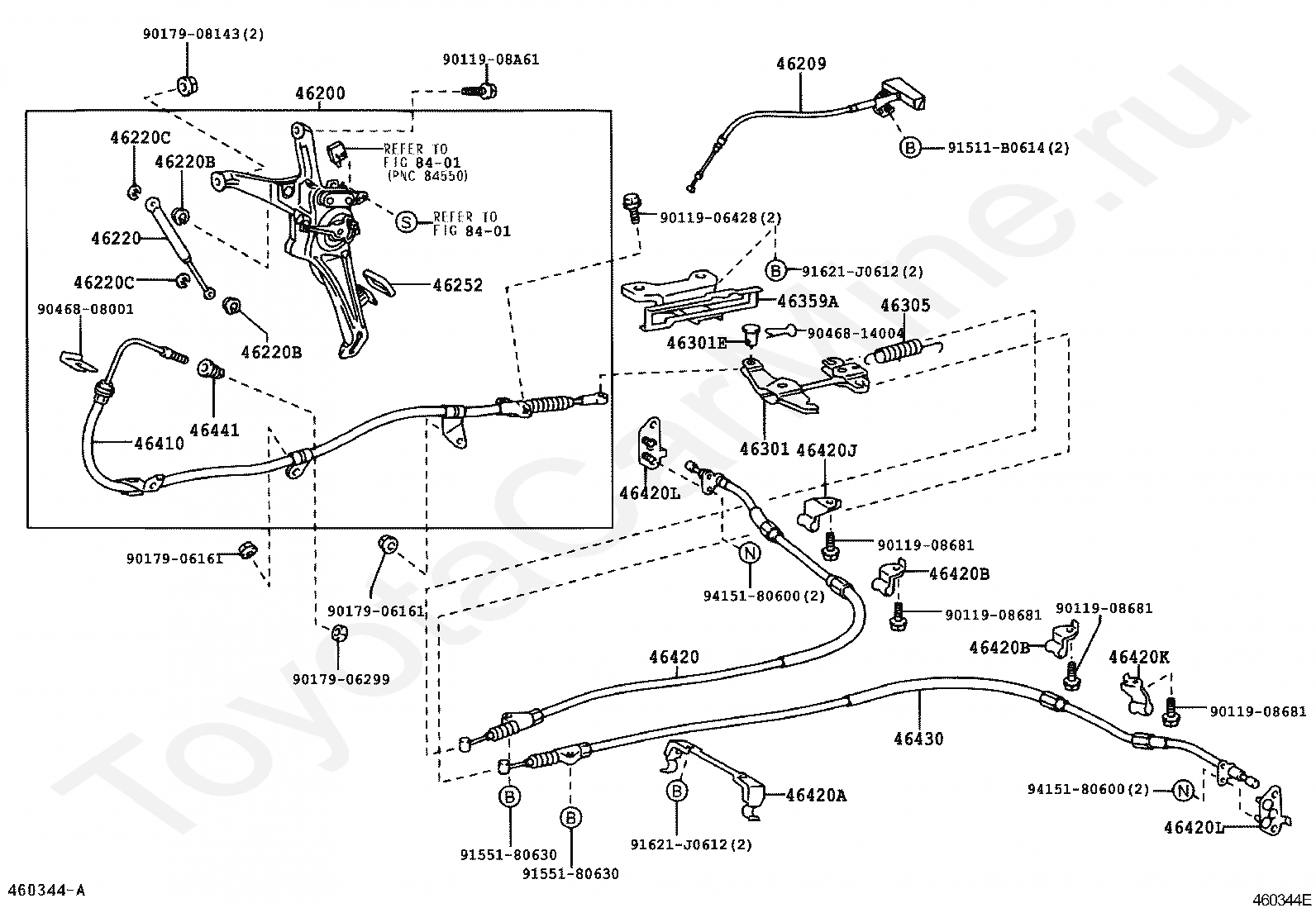

Ручной тормоз TOYOTA CELSIOR

Код

Описание

46200

PEDAL ASSY, PARKING BRAKE CONTROL

46209

CABLE SUB-ASSY, PARKING BRAKE RELEASE

46220

ABSORBER ASSY, PARKING BRAKE PEDAL RETURN

46220B

BUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

46220B

BUSH(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

46220C

RING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

46220C

RING, E(FOR PARKING BRAKE PEDAL RETURN ABSORBER)

46252

PAD, PARKING PEDAL

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301E

PIN, W/HOLE(FOR INTERMEDIATE LEVER)

46305

SPRING, PARKING BRAKE RETURN W/DAMPER

46359A

BRACKET, PARKING BRAKE INTERMEDIATE LEVER SUPPORT

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420A

CLAMP, NO.1(FOR PARKING BRAKE CABLE)

46420B

CLAMP, NO.2(FOR PARKING BRAKE CABLE)

46420B

CLAMP, NO.2(FOR PARKING BRAKE CABLE)

46420J

CLAMP, NO.3(FOR PARKING BRAKE CABLE)

46420K

CLAMP, NO.4(FOR PARKING BRAKE CABLE)

46420L

CLAMP, NO.5(FOR PARKING BRAKE CABLE)

46420L

CLAMP, NO.5(FOR PARKING BRAKE CABLE)

46430

CABLE ASSY, PARKING BRAKE, NO.3

46441

NUT, WIRE ADJUSTING, NO.1

8401

переход к группе запчастей

8401

переход к группе запчастей

9011906428

Крепеж

9011908681

Крепеж

9011908681

Крепеж

9011908681

Крепеж

9011908681

Крепеж

9011908A61

Крепеж

9017906161

Крепеж

9017906161

Крепеж

9017906299

Крепеж

9017908143

Крепеж

9046808001

Крепеж

9046814004

Крепеж

91511B0614

Крепеж

9155180630

Крепеж

9155180630

Крепеж

91621J0612

Крепеж

91621J0612

Крепеж

9415180600

Крепеж

9415180600

Крепеж

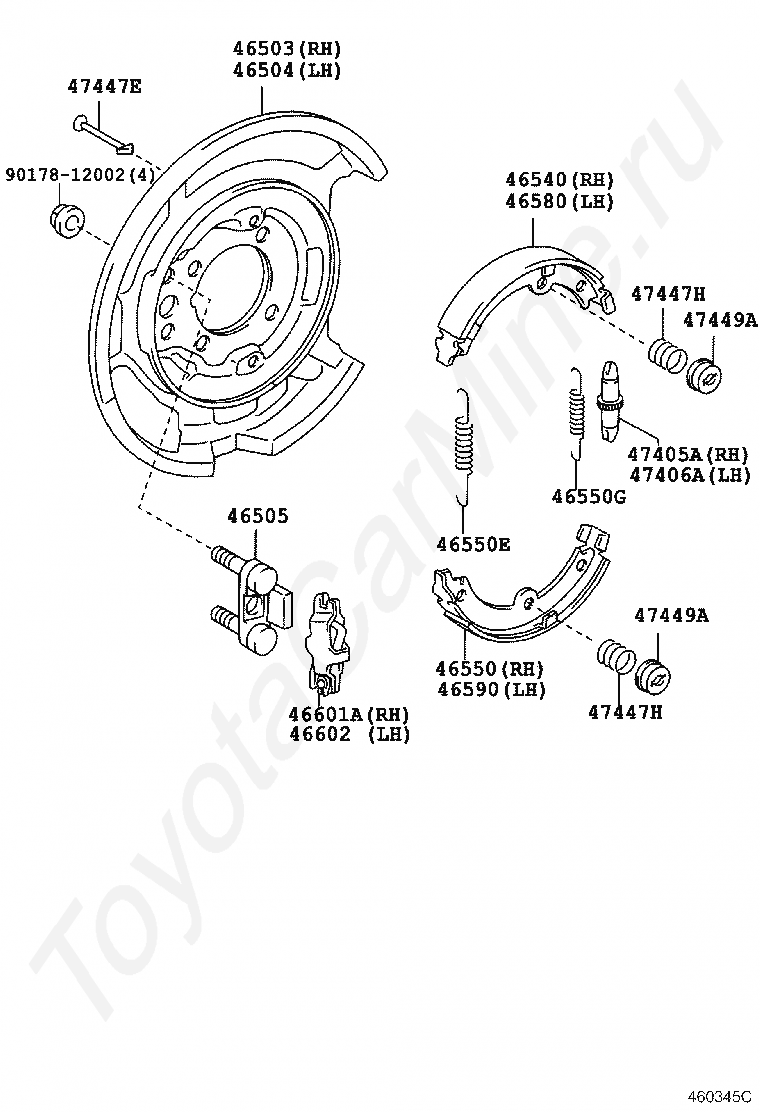

Код

Описание

46503

PLATE SUB-ASSY, PARKING BRAKE, RH

46504

PLATE SUB-ASSY, PARKING BRAKE, LH

46505

BLOCK SUB-ASSY, PARKING BRAKE ANCHOR

46540

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46550G

SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)

46580

SHOE ASSY, PARKING BRAKE, LH NO.1

46590

SHOE ASSY, PARKING BRAKE, LH NO.2

46601A

LEVER SUB-ASSY, PARKING BRAKE SHOE, RH

46602

LEVER SUB-ASSY, PARKING BRAKE SHOE, LH

47405A

SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)

47406A

SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)

47447E

PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)

47447H

SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)

47447H

SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD DOWN)

47449A

CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)

47449A

CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)

9017812002

Крепеж

Ручной тормоз TOYOTA CELSIOR
