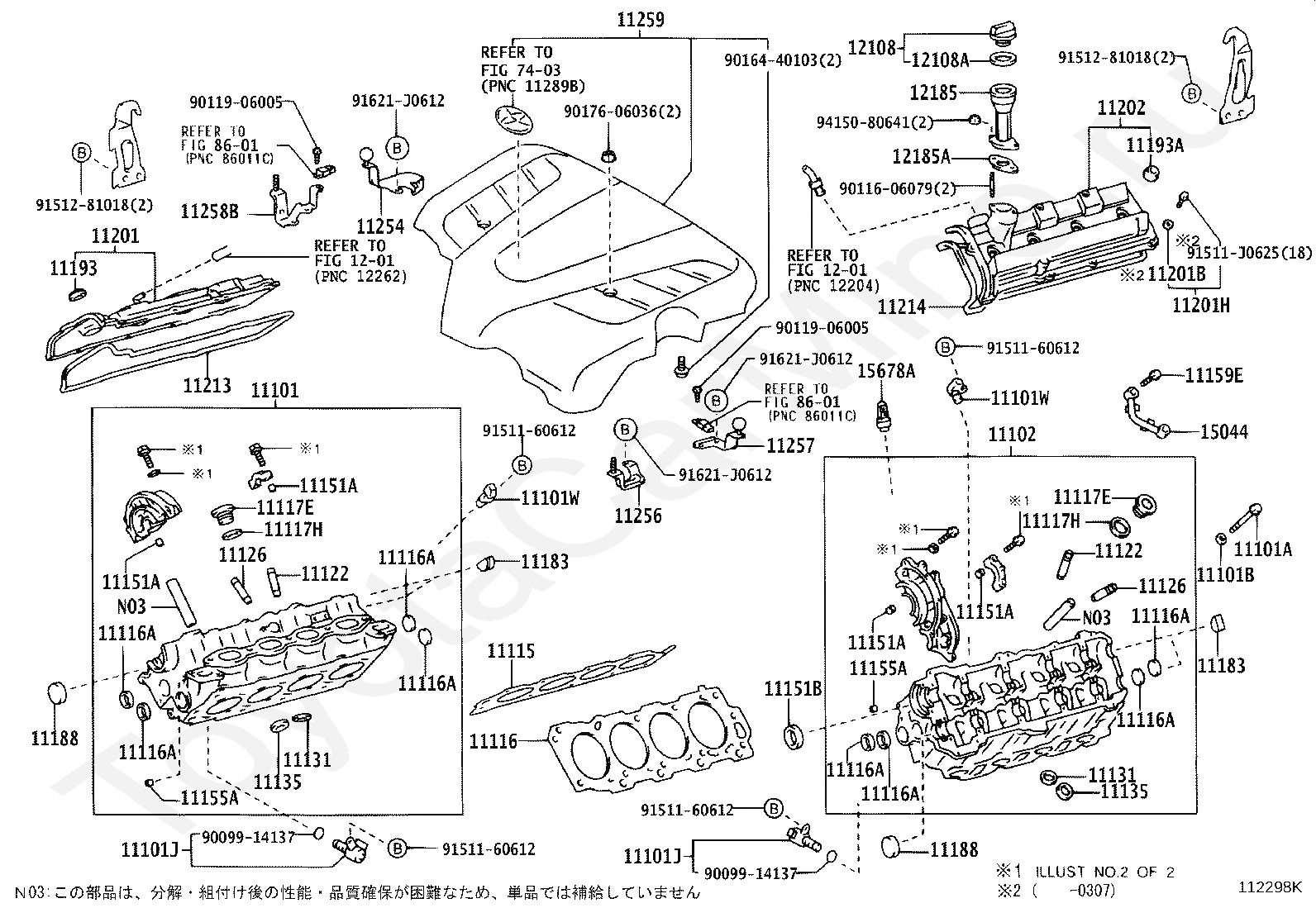

11101
HEAD SUB-ASSY, CYLINDER
11101A
BOLT(FOR CYLINDER HEAD SET)
11101B
WASHER, PLATE(FOR CYLINDER HEAD SET)
11101J
VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11101J
VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11101W
SENSOR, CRANK POSITION, NO.1
11101W
SENSOR, CRANK POSITION, NO.1
11115
GASKET, CYLINDER HEAD
11116
GASKET, CYLINDER HEAD, NO.2
11117E
PLUG, W/HEAD STRAIGHT SCREW, NO.1
11117E
PLUG, W/HEAD STRAIGHT SCREW, NO.1
11117H
GASKET(FOR WATER HOLE)
11117H
GASKET(FOR WATER HOLE)
11122
BUSH, INTAKE VALVE GUIDE
11122
BUSH, INTAKE VALVE GUIDE
11126
BUSH, EXHAUST VALVE GUIDE
11126
BUSH, EXHAUST VALVE GUIDE
11135
SEAT, EXHAUST VALVE
11135
SEAT, EXHAUST VALVE
11151A
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151A
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151A
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151A
PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11151B
SEAL, OIL(FOR CAMSHAFT SETTING)
11159E
BOLT(FOR CAMSHAFT OIL FEED PIPE)
11188
PLUG, CAMSHAFT HOUSING
11188
PLUG, CAMSHAFT HOUSING
11193
GASKET, SPARK PLUG TUBE
11193A
GASKET, SPARK PLUG TUBE, LH
11201
COVER SUB-ASSY, CYLINDER HEAD
11201B
WASHER, SEAL(FOR CYLINDER HEAD COVER)

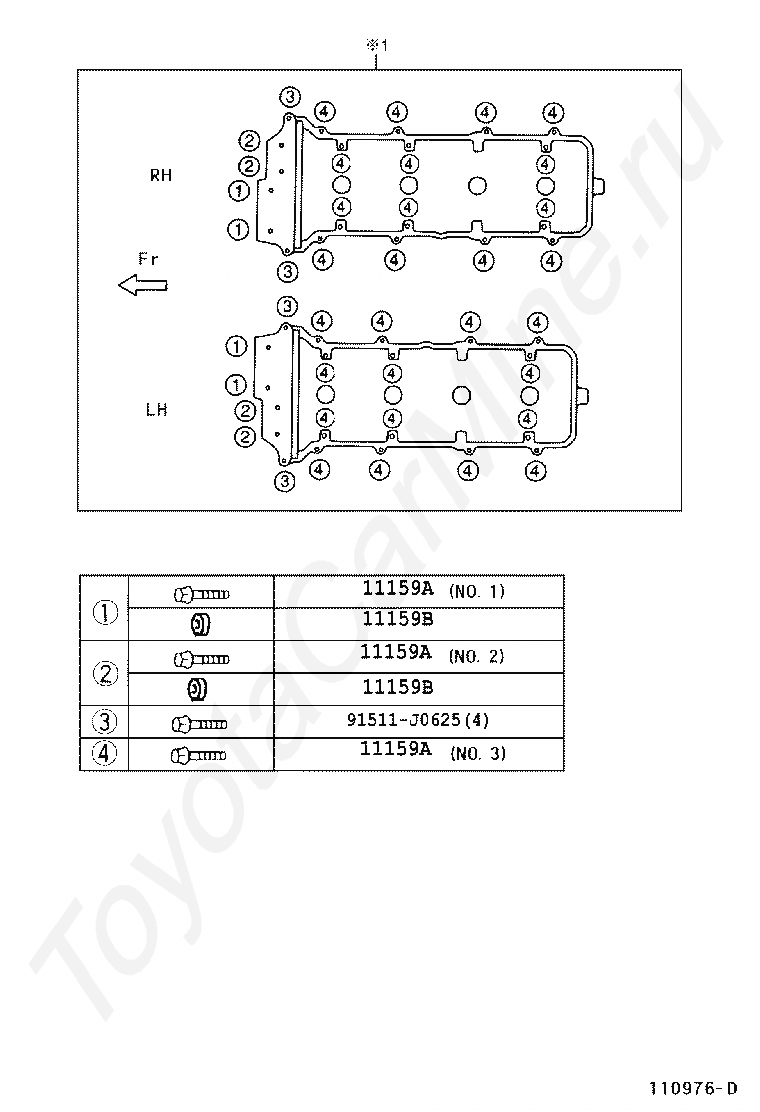

11201H
BOLT(FOR CYLINDER HEAD COVER)
11202
COVER SUB-ASSY, CYLINDER HEAD, LH
11213
GASKET, CYLINDER HEAD COVER
11214
GASKET, CYLINDER HEAD COVER, NO.2
11254
BRACKET, V-BANK COVER, NO.1
11256
BRACKET, V-BANK COVER, NO.2
11257
BRACKET, V-BANK COVER, NO.3
11258B
BRACKET, V-BANK COVER, NO.4
1201
переход к группе запчастей
1201
переход к группе запчастей
12108
CAP SUB-ASSY, OIL FILLER
12108A
GASKET(FOR OIL FILLER CAP)
12185
HOUSING, OIL FILLER CAP
12185A
GASKET, OIL FILLER CAP HOUSING
15044
PIPE SUB-ASSY, CAMSHAFT OIL FEED
15678A
FILTER, OIL CONTROL VALVE
7403
переход к группе запчастей
8601
переход к группе запчастей
8601
переход к группе запчастей
