Ходовые запчасти

Каталог

Европа

Модель

CELICA

VIN

Дата

1988/01

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

купе

Класс

SINGAPORE TAXI

Фрейм

ST162

КПП

механика МКПП, 5 скоростей

Опции

Канада

Вакуумный тормозной цилиндр TOYOTA CELICA

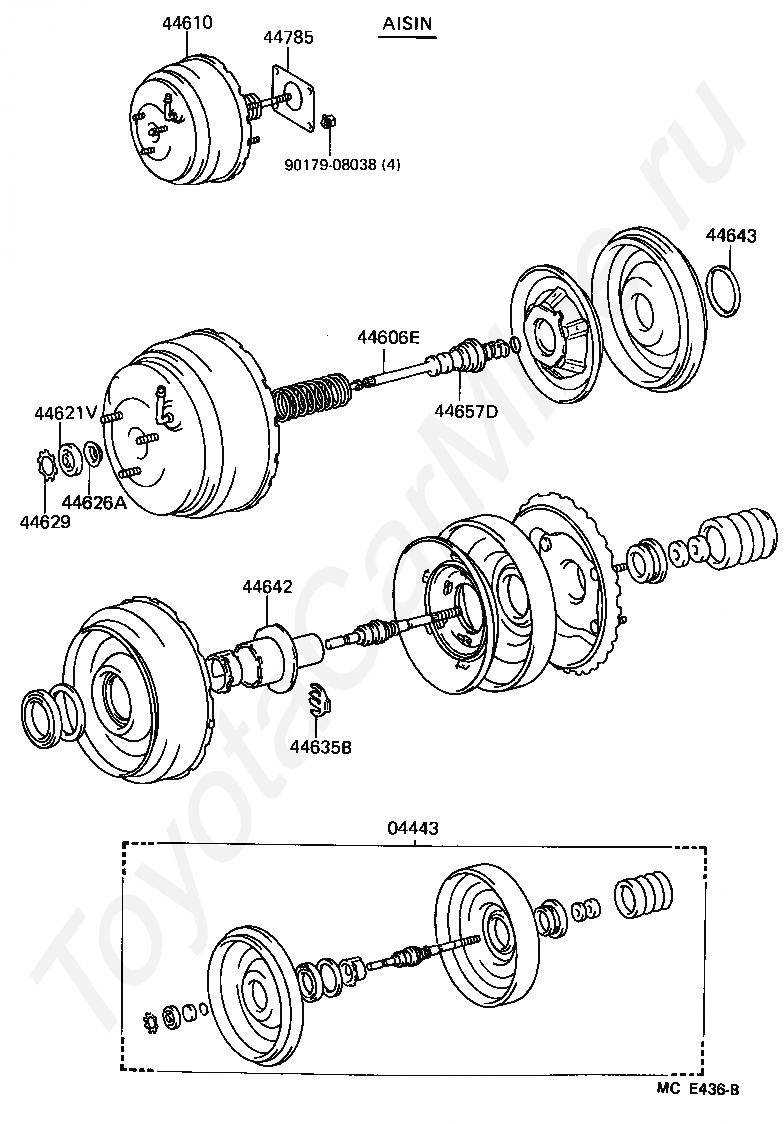

Код

Описание

04443

BOOSTER KIT, BRAKE

44606E

ROD SUB-ASSY, BRAKE BOOSTER PISTON

44610

BOOSTER ASSY, BRAKE

44621V

SEAL, BOOSTER BODY

44626A

RETAINER, BOOSTER BODY SEAL

44629

RING, CIRCULAR INTERNAL

44635B

KEY, VALVE STOPPER

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44657D

CASE, REACTION DISC

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

Код

Описание

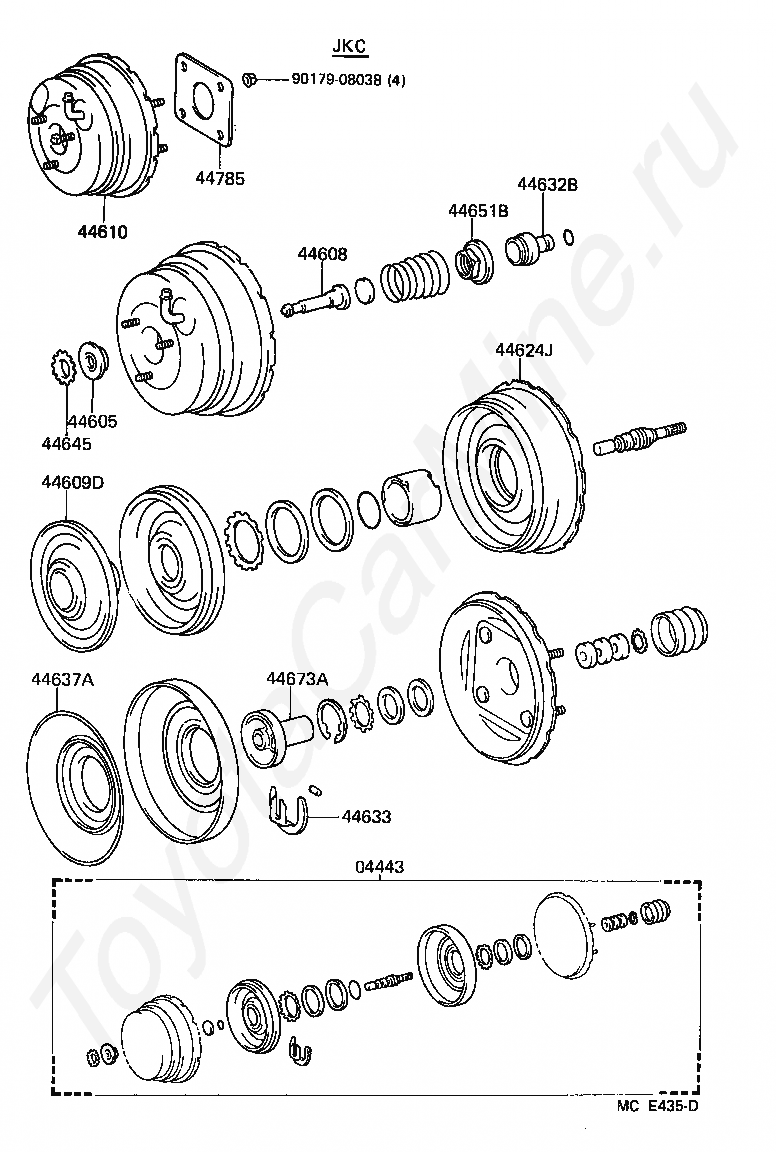

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44609D

PLATE & RETAINER SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44624J

PLATE, BOOSTER CENTER

44632B

HUB, BOOSTER REACTION DISK

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44651B

NUT, BOOSTER

44673A

BODY, BOOSTER VALVE

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

Код

Описание

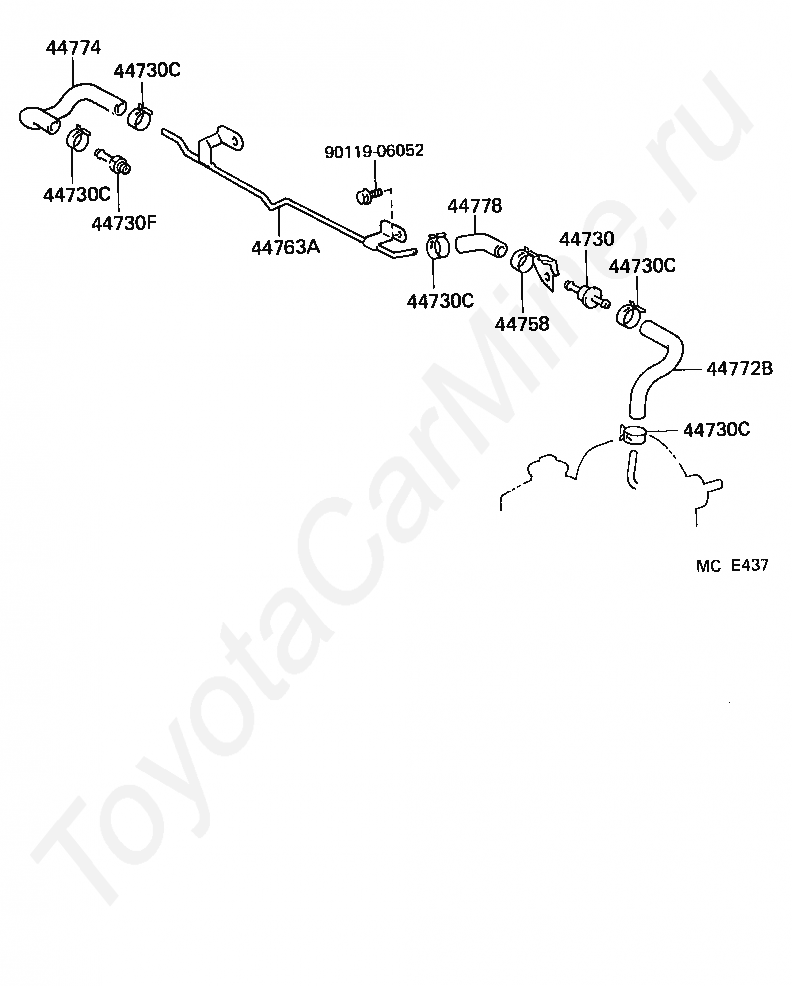

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44758

BRACKET, VACUUM CHECK VALVE

44763A

TUBE, HOSE TO HOSE, NO.1

44772B

HOSE, CHECK VALVE TO BRAKE BOOSTER

44774

HOSE, UNION TO CONNECTOR TUBE

44778

HOSE, CONNECTOR TO CHECK VALVE

9011906052

Крепеж
