Ходовые запчасти

Каталог

Европа

Модель

CELICA

VIN

Дата

1983/08

Двигатель

2 литра

Кузов

купе

Класс

SINGAPORE TAXI

Фрейм

SA63

КПП

механика МКПП, 5 скоростей

Опции

правый руль Австралия

Задняя ступица и тормозной диск TOYOTA CELICA

Код

Описание

42185

GASKET, REAR AXLE HOUSING END

42303

FLANGE SUB-ASSY, REAR AXLE

42303A

BOLT, SERRATION (FOR REAR AXLE FLANGE)

42311

SHAFT, REAR AXLE

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42311E

SEAL, OIL (FOR REAR AXLE SHAFT OUTER)

42311F

WASHER, PLATE (FOR REAR AXLE SHAFT)

42311G

NUT (FOR REAR AXLE SHAFT)

42311Q

BEARING (FOR REAR AXLE SHAFT OUTER)

42311R

BEARING (FOR REAR AXLE SHAFT INNER)

42329

SPACER, REAR AXLE SHAFT

42403

DRUM SUB-ASSY, REAR BRAKE

42403A

PIECE, BALANCE (FOR REAR BRAKE DRUM)

42413

SPACER, REAR WHEEL BEARING

42431

DISC, REAR

42451

DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

42452

DEFLECTOR, REAR WHEEL BEARING DUST, NO.2

42491

PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

42491

PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

42611E

BOLT, HUB (FOR REAR AXLE)

9017010191

Крепеж

9451101000

Крепеж

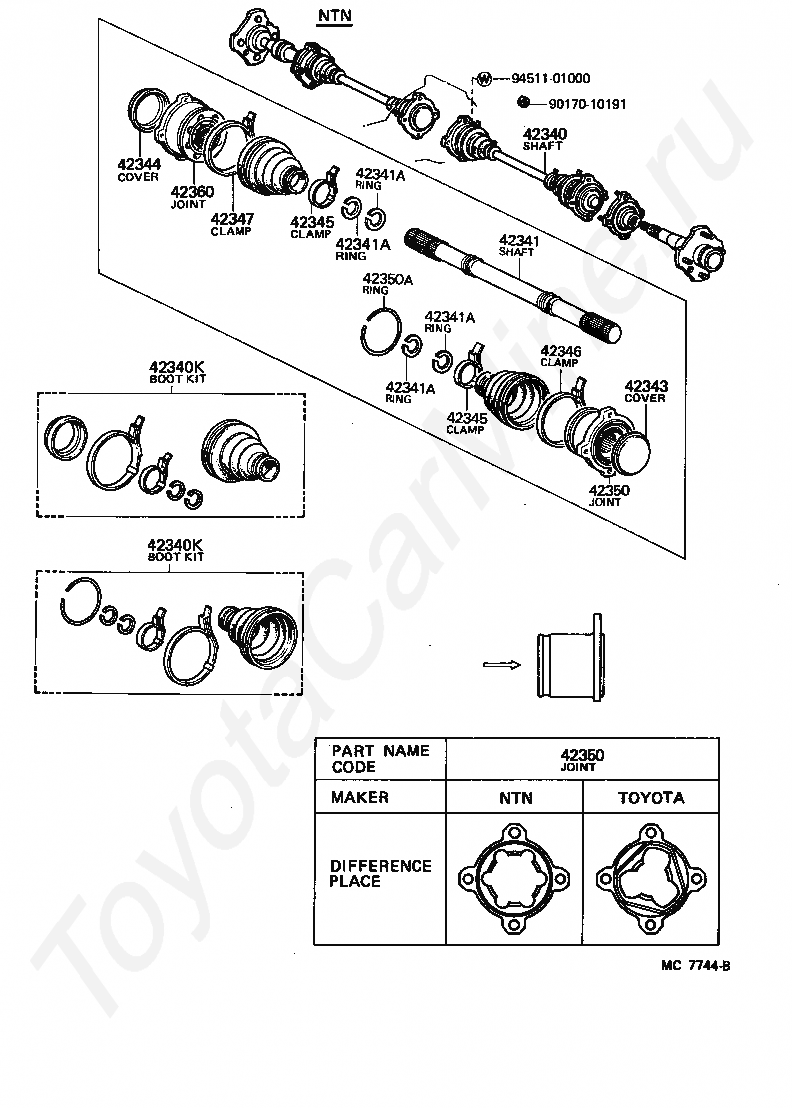

Код

Описание

42340

SHAFT ASSY, REAR DRIVE

42340K

BOOT KIT, REAR DRIVE SHAFT JOINT

42340K

BOOT KIT, REAR DRIVE SHAFT JOINT

42341

SHAFT, REAR DRIVE

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42343

COVER, OUTBOARD JOINT END

42344

COVER, REAR AXLE INBOARD JOINT END

42345

CLAMP, REAR DRIVE SHAFT BOOT

42345

CLAMP, REAR DRIVE SHAFT BOOT

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42350

JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

42350

JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

42360

JOINT ASSY, REAR DRIVE SHAFT INBOARD

9017010191

Крепеж

9451101000

Крепеж

Код

Описание

42340

SHAFT ASSY, REAR DRIVE

42340K

BOOT KIT, REAR DRIVE SHAFT JOINT

42340K

BOOT KIT, REAR DRIVE SHAFT JOINT

42341

SHAFT, REAR DRIVE

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42341A

RING, SNAP (FOR REAR DRIVE SHAFT)

42343

COVER, OUTBOARD JOINT END

42344

COVER, REAR AXLE INBOARD JOINT END

42345

CLAMP, REAR DRIVE SHAFT BOOT

42345

CLAMP, REAR DRIVE SHAFT BOOT

42346

CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

42347

CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

42350

JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

42350

JOINT ASSY, REAR DRIVE SHAFT OUTBOARD

42350A

RING, HOLE SNAP

42360

JOINT ASSY, REAR DRIVE SHAFT INBOARD

9017010191

Крепеж

9451101000

Крепеж
