Ходовые запчасти

Каталог

Масла

Каталог

Европа

Модель

CELICA

VIN

Дата

1981/08

Двигатель

2 литра

Кузов

купе

Класс

SINGAPORE TAXI

Фрейм

RA60

КПП

механика МКПП, 5 скоростей

Опции

правый руль Австралия

Рулевая колонка TOYOTA CELICA

Код

Описание

45201

SHAFT SUB-ASSY, STEERING MAIN

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201D

RING(FOR STEERING MAIN SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45209

YOKE SUB-ASSY, STEERING SLIDING

45253

COVER, STEERING COLUMN HOLE

45254

SHIELD, STEERING COLUMN HOLE

45255

PLATE, STEERING COLUMN HOLE COVER

45255A

GROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

45266

COVER, STEERING INTERMEDIATE SHAFT DUST

45269

RETAINER, MAIN SHAFT BEARING

45275

BRACKET, STEERING COLUMN, UPPER

45275A

BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

45281

HOUSING, STEERING COLUMN

45807

BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

45817

STOPPER, STEERING SHAFT THRUST

45817A

RING, O(FOR STEERING SHAFT THRUST STOPPER)

45867

RETAINER, STEERING MAIN SHAFT STOPPER

9010108070

Крепеж

9010510082

Крепеж

9011908185

Крепеж

9016450048

Крепеж

9017910178

Крепеж

9020110323

Крепеж

9098007195

Крепеж

9161140816

Крепеж

9161160614

Крепеж

9165140614

Крепеж

9165640620

Крепеж

9331514010

Крепеж

9331914008

Крепеж

9451200800

Крепеж

Код

Описание

45222

COVER, STEERING GEAR DUST

45501

HOUSING SUB-ASSY, STEERING RACK

45501A

SEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

45503

END SUB-ASSY, STEERING RACK

45503

END SUB-ASSY, STEERING RACK

45510

GEAR ASSY, STEERING

45514

BRACKET, STEERING RACK HOUSING, NO.1

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

45518

BRACKET, STEERING RACK HOUSING, NO.3

45521

RACK, STEERING

45522

BUSH, STEERING RACK

45523

GUIDE, RACK(FOR STEERING GEAR)

45523A

SPRING(FOR STEERING GEAR RACK GUIDE)

45523C

SPACER(FOR RACK GUIDE)

45524

CAP, STEERING RACK GUIDE SPRING

45524A

NUT(FOR STEERING RACK GUIDE SPRING CAP)

45535

BOOT, STEERING RACK, NO.1

45535A

CLAMP(FOR STEERING RACK BOOT)

45535A

CLAMP(FOR STEERING RACK BOOT)

45535B

CLIP(FOR STEERING RACK BOOT)

45535B

CLIP(FOR STEERING RACK BOOT)

45536

BOOT, STEERING RACK, NO.2

45537A

WASHER, CLAW(FOR STEERING RACK END LOCK)

45537A

WASHER, CLAW(FOR STEERING RACK END LOCK)

45541

PINION, STEERING

45541A

BEARING, RADIAL BALL(FOR STEERING PINION UPPER)

45541B

BEARING, RADIAL BALL(FOR STEERING PINION LOWER)

45545

SCREW, PINION BEARING ADJUSTING

45545A

NUT(FOR PINION BEARING ADJUSTING SCREW)

9011910218

Крепеж

9011910220

Крепеж

9011910220

Крепеж

9011910220

Крепеж

9017910041

Крепеж

9326963020

Крепеж

Код

Описание

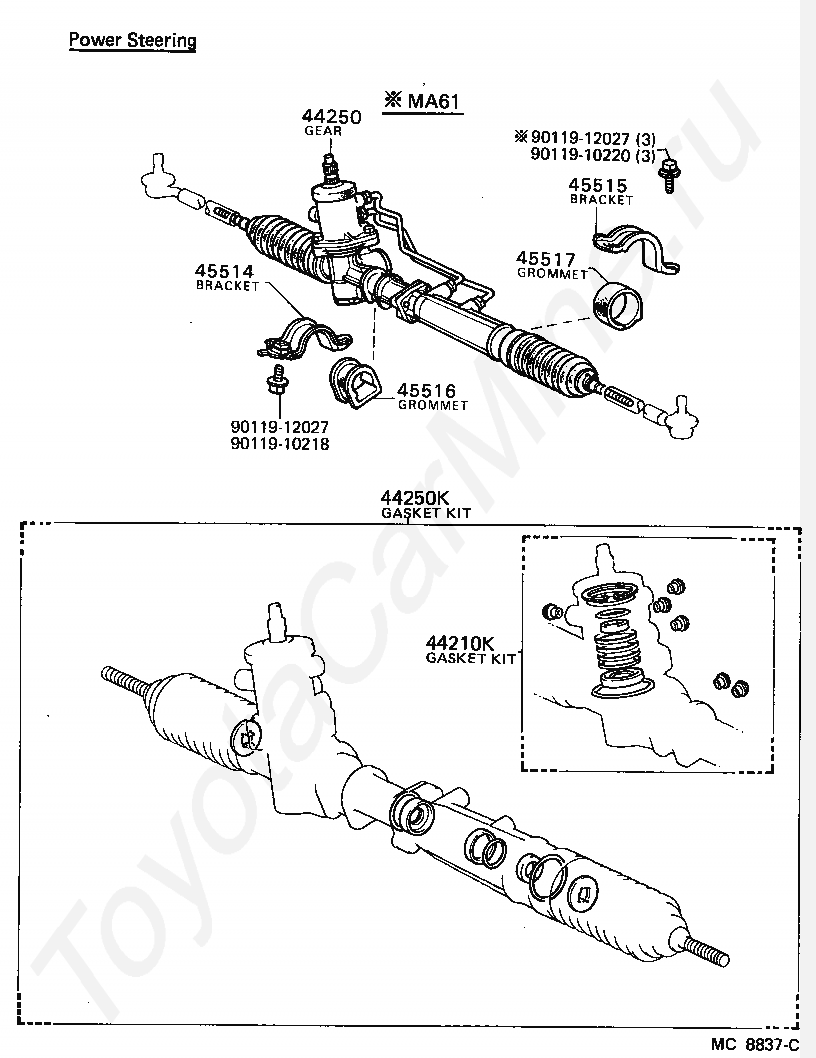

44210K

GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL

44250

GEAR ASSY, POWER STEERING(FOR RACK & PINION)

44250K

GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

45514

BRACKET, STEERING RACK HOUSING, NO.1

45515

BRACKET, STEERING RACK HOUSING, NO.2

45516

GROMMET, STEERING RACK HOUSING, NO.1

45517

GROMMET, STEERING RACK HOUSING, NO.2

9011910218

Крепеж

9011910220

Крепеж

9011912027

Крепеж

9011912027

Крепеж

Код

Описание

44147

SEAT, SPOOL VALVE SPRING

44201

VALVE SUB-ASSY, POWER STEERING CONTROL

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44201C

RING(FOR POWER STEERING CONTROL VALVE)

44204

RACK SUB-ASSY, POWER STEERING

44204A

RING(FOR RACK STEERING PISTON)

44204A

RING(FOR RACK STEERING PISTON)

44205

STOPPER SUB-ASSY, CYLINDER END

44205A

RING, O(FOR CYLINDER END STOPPER)

44205B

SEAL, OIL(FOR CYLINDER END STOPPER)

44207

CAP SUB-ASSY, VALVE

44207A

RING, O(FOR VALVE CAP SUB-ASSY)

44207A

RING, O(FOR VALVE CAP SUB-ASSY)

44207B

RING, SNAP(FOR VALVE CAP SUB-ASSY)

44207C

SEAL, OIL(FOR VALVE CAP SUB-ASSY)

44207D

BEARING(FOR VALVE CAP SUB-ASSY)

44207E

RING, SNAP(FOR VALVE CAP SUB-ASSY)

44207F

SPRING, CONICAL(FOR VALVE CAP SUB-ASSY)

44209

HOUSING SUB-ASSY, POWER STEERING CYLINDER

44209A

SEAL(FOR POWER STEERING CYLINDER HOUSING)

44209B

SPACER(FOR POWER STEERING CYLINDER HOUSING)

44210

VALVE ASSY, POWER STEERING CONTROL

44210B

SEAT, UNION(FOR POWER STEERING CONTROL VALVE)

44210C

RING, O(FOR POWER STEERING CONTROL VALVE)

44211

HOUSING, CONTROL VALVE

44222A

COVER, DUST(FOR POWER STEERING GEAR)

44252B

BEARING(FOR POWER STEERING PINION)

44252C

CAP(FOR POWER STEERING PINION)

44252D

NUT(FOR POWER STEERING PINION CAP)

44253

HOUSING, POWER STEERING RACK

44253A

SEAL, OIL(FOR POWER STEERING RACK HOUSING)

44253B

RING, O(FOR POWER STEERING RACK HOUSING)

44256

NUT, CYLINDER END STOPPER

44267

GUIDE, RACK END

44267A

WASHER(FOR RACK END GUIDE)

44277

SEAT, RACK GUIDE

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418A

TUBE, STEERING RIGHT TURN PRESSURE

44418B
