Европа

Модель

CELICA

VIN

Дата

1977/08

Двигатель

2 литра

Кузов

POUNDS

Класс

XT TYPE

Фрейм

RA40

КПП

автомат АКПП, 3 ступени

Опции

левый руль Европа Европа

Вакуумный тормозной цилиндр TOYOTA CELICA

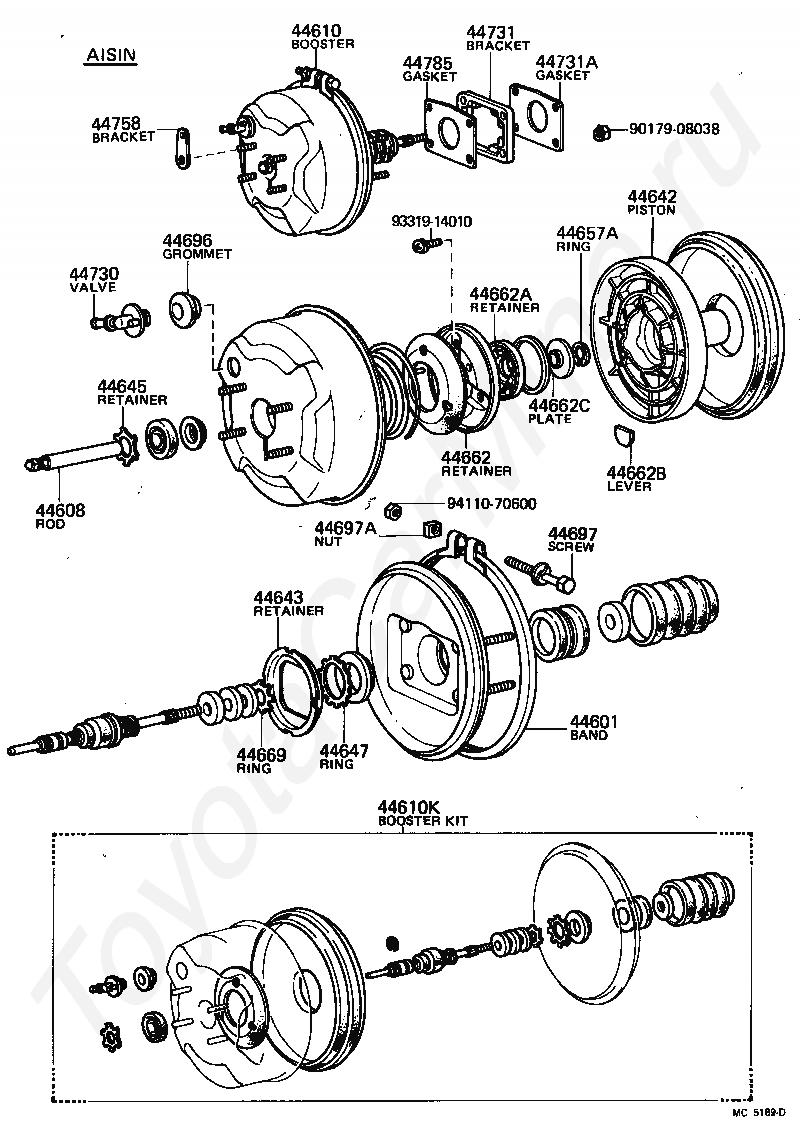

Код

Описание

44601

BAND SUB-ASSY, BOOSTER BODY

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662A

RETAINER, REACTION, NO.2

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44696

GROMMET, CHECK VALVE

44697

SCREW, BOOSTER BAND SET

44697A

NUT(FOR BOOSTER BAND SET)

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

9331914010

Крепеж

9411070600

Крепеж

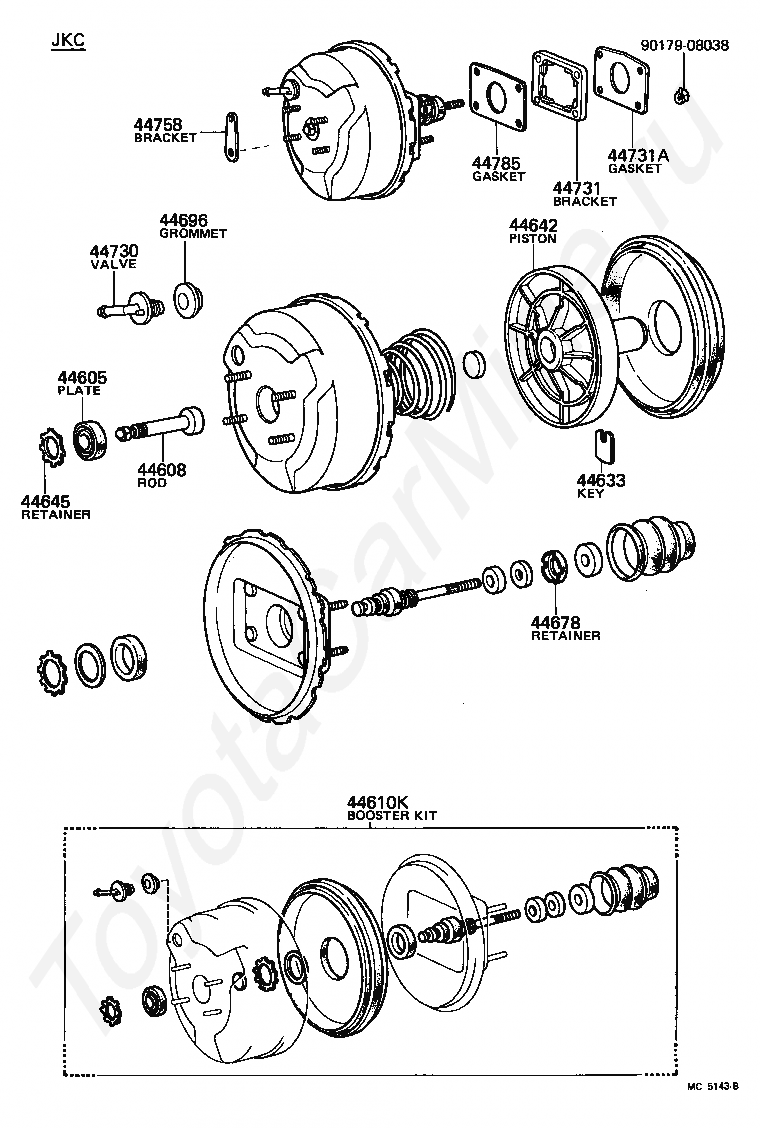

Код

Описание

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610K

BOOSTER KIT, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44642

PISTON, BRAKE BOOSTER

44645

RETAINER, BOOSTER PUSH ROD SEAL

44678

RETAINER, BOOSTER AIR CLEANER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

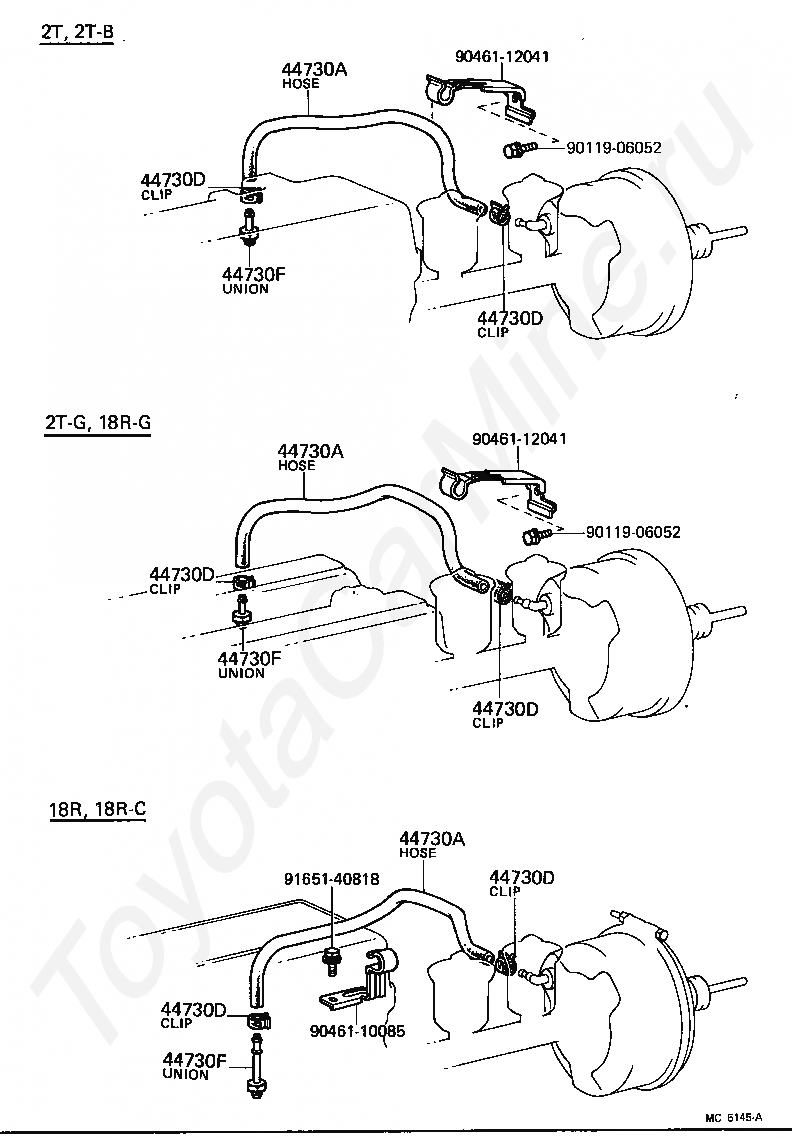

Код

Описание

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

9011906052

Крепеж

9011906052

Крепеж

9046110085

Крепеж

9046112041

Крепеж

9046112041

Крепеж

9165140818

Крепеж
