Европа

Модель

CELICA

VIN

Дата

1983/08

Двигатель

2,8 литра, DOHC, EFI

Кузов

POUNDS

Класс

SPUTTERING

Фрейм

MA61

КПП

автомат АКПП, 4 ступени

Опции

правый руль TWIN CAM Европа Европа

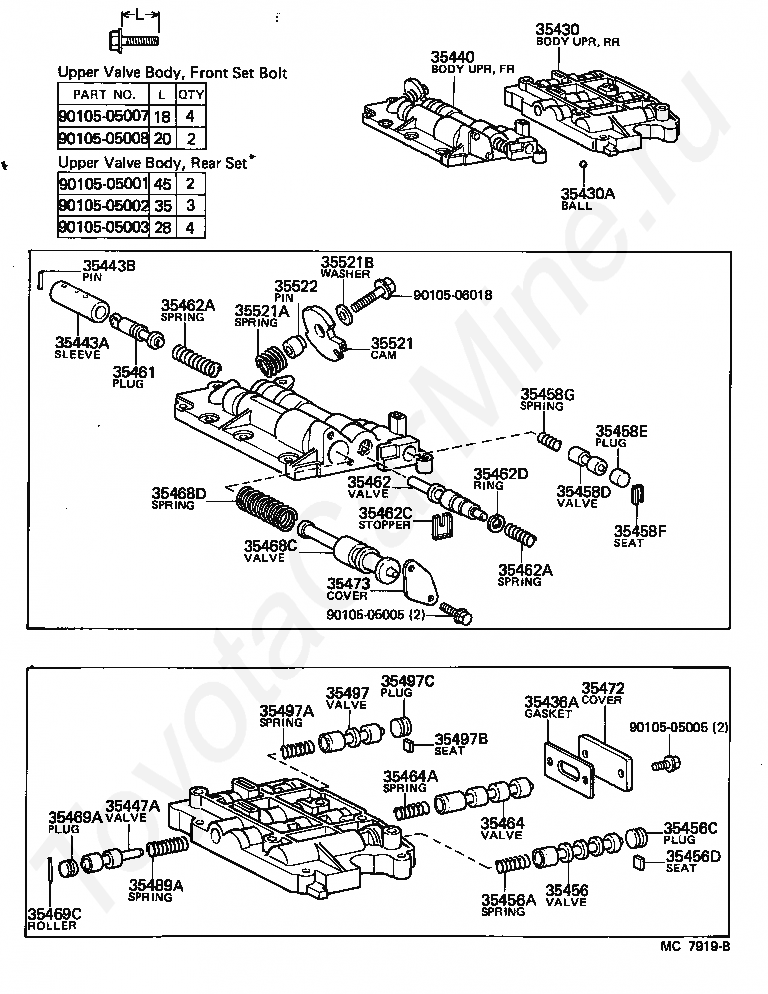

VALVE BODY & OIL STRAINER (ATM) TOYOTA CELICA

Код

Описание

35430

BODY ASSY, REAR UPPER VALVE

35430A

BALL (FOR REAR UPPER VALVE BODY)

35436A

GASKET, VALVE BODY PLATE, NO.4

35440

BODY ASSY, FRONT UPPER VALVE

35443A

SLEEVE, DOWN SHIFT PLUG

35443B

PIN (FOR DOWN SHIFT PLUG SLEEVE)

35447A

VALVE, REVERSE CLUTCH SEQUENCE

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456D

SEAT (FOR 2-3 SHIFT VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458F

SEAT (FOR CUT BACK VALVE)

35458G

SPRING, COMPRESSION (FOR CUT BACK VALVE)

35461

PLUG, DOWN SHIFT

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462C

STOPPER, VALVE VIBRATING

35462D

RING, E (FOR THROTTLE VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35469A

PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE

35469C

ROLLER, SHIFT VALVE PLUG

35472

COVER, VALVE BODY, NO.2

35473

COVER, TRANSMISSION VALVE BODY

35489A

SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497B

SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35521

CAM, THROTTLE VALVE

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35522

PIN, THROTTLE VALVE CAM

9010505001

Крепеж

9010505002

Крепеж

9010505003

Крепеж

9010505005

Крепеж

9010505005

Крепеж

9010505007

Крепеж

9010505008

Крепеж

9010506018

Крепеж

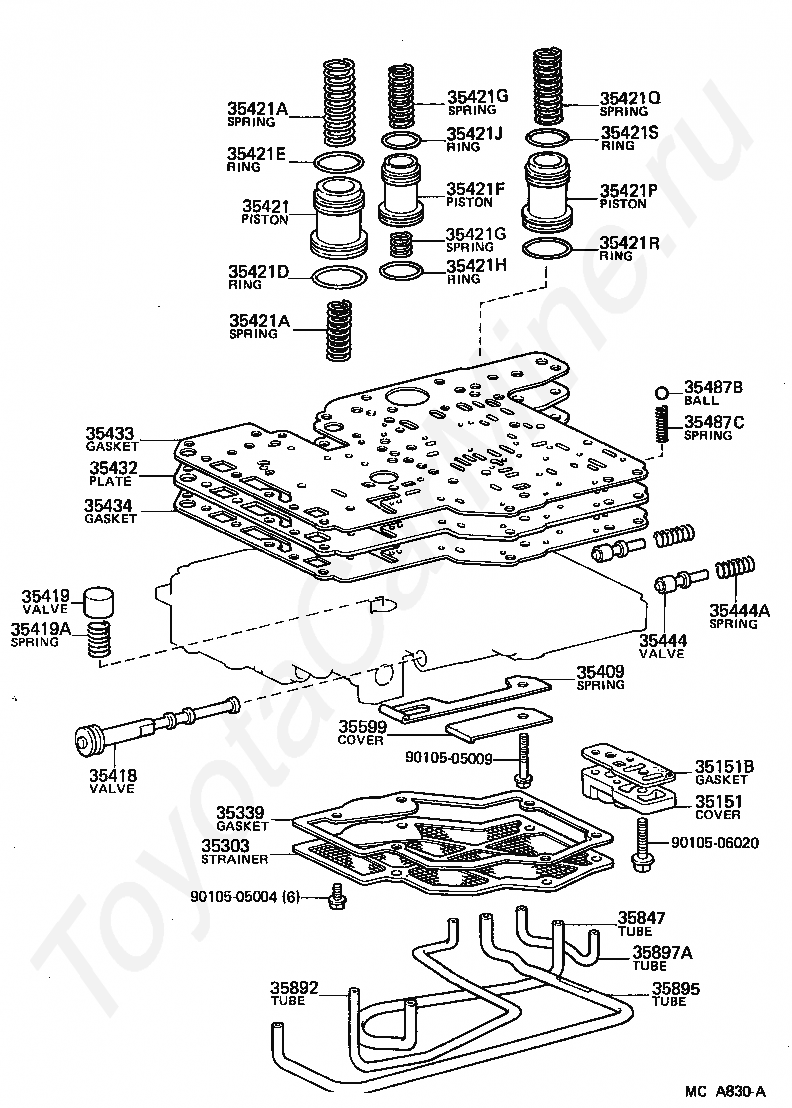

Код

Описание

35151

COVER, TRANSMISSION CASE, LOWER

35151B

GASKET, TRANSMISSION CASE LOWER COVER

35303

STRAINER SUB-ASSY, OIL

35339

GASKET, OIL STRAINER

35409

SPRING SUB-ASSY, MANUAL DETENT

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35421

PISTON, ACCUMULATOR, NO.1

35421A

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

35421A

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

35421D

RING (FOR ACCUMULATOR PISTON NO.1)

35421E

RING (FOR ACCUMULATOR PISTON NO.1)

35421F

PISTON, ACCUMULATOR, NO.2

35421G

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

35421G

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

35421H

RING (FOR ACCUMULATOR PISTON NO.2)

35421J

RING (FOR ACCUMULATOR PISTON NO.2)

35421P

PISTON, ACCUMULATOR, NO.3

35421Q

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)

35421R

RING (FOR ACCUMULATOR PISTON NO.3)

35421S

RING (FOR ACCUMULATOR PISTON NO.3)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35444

VALVE, INTERMEDIATE MODULATOR

35444A

SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

35487B

BALL, CHECK, NO.4

35487C

SPRING, COMPRESSION (FOR CHECK BALL)

35599

COVER, MANUAL DETENT SPRING

35847

TUBE, TRANSMISSION LUBE APPLY

35892

TUBE, OVERDRIVE BRAKE

35895

TUBE, FRONT CLUTCH APPLY

35897A

TUBE, 1ST & REVERSE BRAKE, NO.1

9010505004

Крепеж

9010505009

Крепеж

9010506020

Крепеж

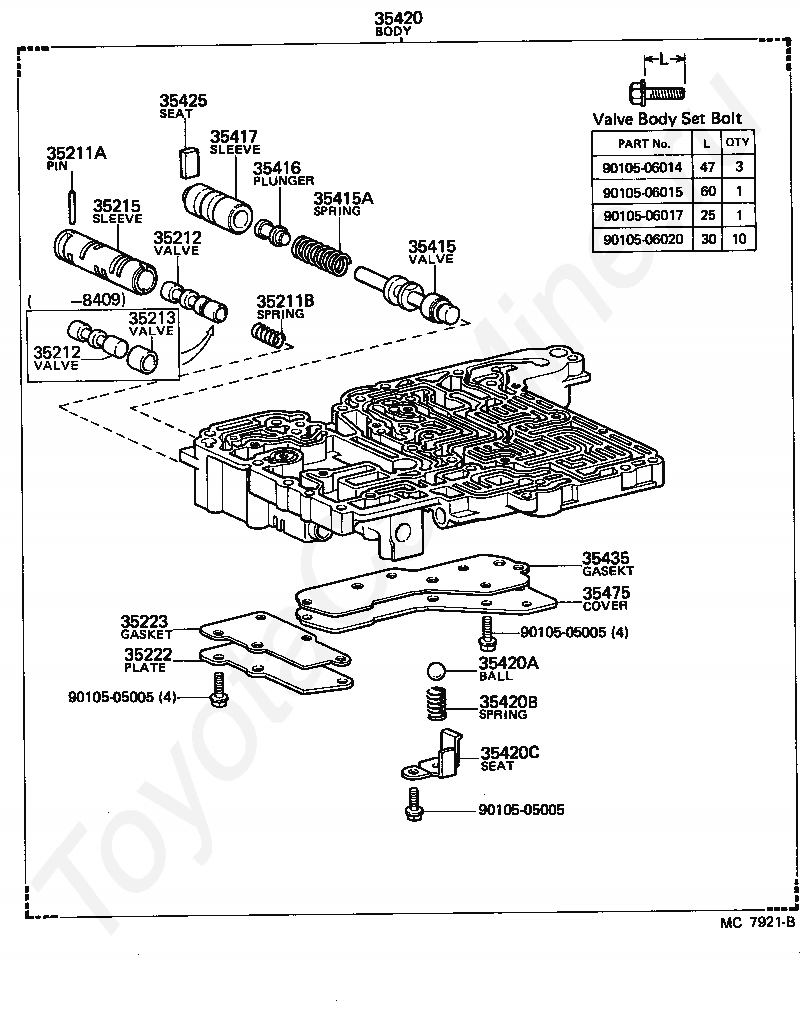

Код

Описание

35211A

PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE)

35211B

SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE)

35212

VALVE, LOCK UP RELAY

35212

VALVE, LOCK UP RELAY

35213

VALVE, LOCK UP RELAY CONTROL

35215

SLEEVE, LOCK UP RELAY VALVE

35222

PLATE, LOCK UP RELAY VALVE BODY

35223

GASKET, LOCK UP RELAY VALVE BODY

35415

VALVE, PRESSURE REGULATOR

35415A

SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417

SLEEVE, PRESSURE REGULATOR VALVE

35420

BODY ASSY, LOWER VALVE

35420A

BALL (FOR PRESSURE RELIEF)

35420B

SPRING (FOR PRESSURE RELIEF)

35420C

SEAT (FOR PRESSURE RELIEF)

35425

SEAT, PRESSURE REGULATOR VALVE SLEEVE

35435

GASKET, VALVE BODY PLATE, NO.3

35475

COVER, VALVE BODY, NO.5

9010505005

Крепеж

9010505005

Крепеж

9010505005

Крепеж

9010506014

Крепеж

9010506015

Крепеж

9010506017

Крепеж

9010506020

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA CELICA
