Ходовые запчасти

Каталог

Европа

Модель

CELICA

VIN

Дата

1983/08

Двигатель

2,8 литра, DOHC, EFI

Кузов

POUNDS

Класс

SPUTTERING

Фрейм

MA61

КПП

автомат АКПП, 4 ступени

Опции

левый руль TWIN CAM Саудовская Аравия

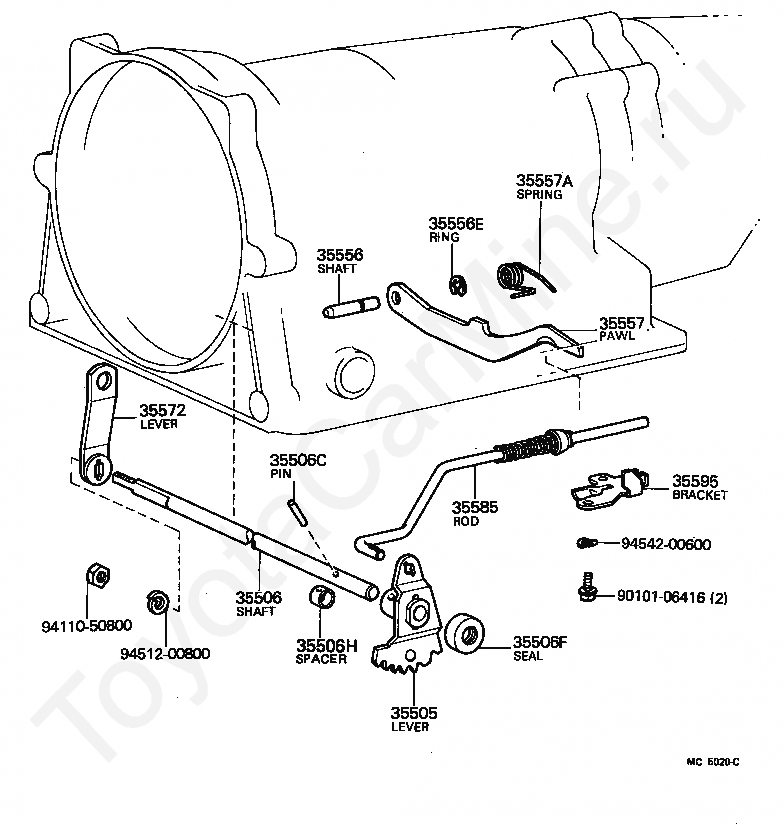

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA CELICA

Код

Описание

35505

LEVER SUB-ASSY, MANUAL VALVE

35506

SHAFT SUB-ASSY, MANUAL VALVE LEVER

35506C

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506H

SPACER (FOR MANUAL VALVE LEVER SHAFT)

35556

SHAFT, PARKING LOCK PAWL

35556E

RING, E (FOR PARKING LOCK PAWL SHAFT)

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35572

LEVER, TRANSMISSION CONTROL SHAFT, RH

35585

ROD, PARKING LOCK

35595

BRACKET, PARKING LOCK PAWL

9010106416

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9454200600

Крепеж

Код

Описание

35520

CABLE ASSY, THROTTLE

35520

CABLE ASSY, THROTTLE

35520

CABLE ASSY, THROTTLE

35520A

PIN, THROTTLE CABLE

35520B

RING, O(FOR THROTTLE CABLE)

35520B

RING, O(FOR THROTTLE CABLE)

35520B

RING, O(FOR THROTTLE CABLE)

35523

CLAMP, THROTTLE CABLE

35523

CLAMP, THROTTLE CABLE

35523

CLAMP, THROTTLE CABLE

35523

CLAMP, THROTTLE CABLE

35525

BRACKET, THROTTLE CABLE

35525

BRACKET, THROTTLE CABLE

35526

BRACKET, THROTTLE CABLE GUIDE

9046106966

Крепеж

9046106966

Крепеж

9046106966

Крепеж

9046400065

Крепеж

9046814001

Крепеж

9046818002

Крепеж

9054100500

Крепеж

9161140610

Крепеж

9161140610

Крепеж

9161140610

Крепеж

9161140816

Крепеж

9161140816

Крепеж

9461110800

Крепеж

9461110800

Крепеж

Код

Описание

35520

CABLE ASSY, THROTTLE

35520

CABLE ASSY, THROTTLE

35520B

RING, O(FOR THROTTLE CABLE)

35520B

RING, O(FOR THROTTLE CABLE)

35523

CLAMP, THROTTLE CABLE

35523

CLAMP, THROTTLE CABLE

35524

CLAMP, THROTTLE CABLE, NO.2

35524

CLAMP, THROTTLE CABLE, NO.2

35525

BRACKET, THROTTLE CABLE

9046106052

Крепеж

9111140812

Крепеж

9111140812

Крепеж

9111140812

Крепеж

9161140812

Крепеж

9161140812

Крепеж

9161140814

Крепеж

9165140610

Крепеж

9165140610

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

9622110710

Крепеж
