Ходовые запчасти

Каталог

Америка

Модель

CELICA

VIN

Дата

1981/08

Двигатель

2,8 литра, DOHC, EFI

Кузов

POUNDS

Класс

SPUTTERING

Фрейм

MA61

КПП

механика МКПП, 5 скоростей

Опции

электронная система впрыска топлива Канада

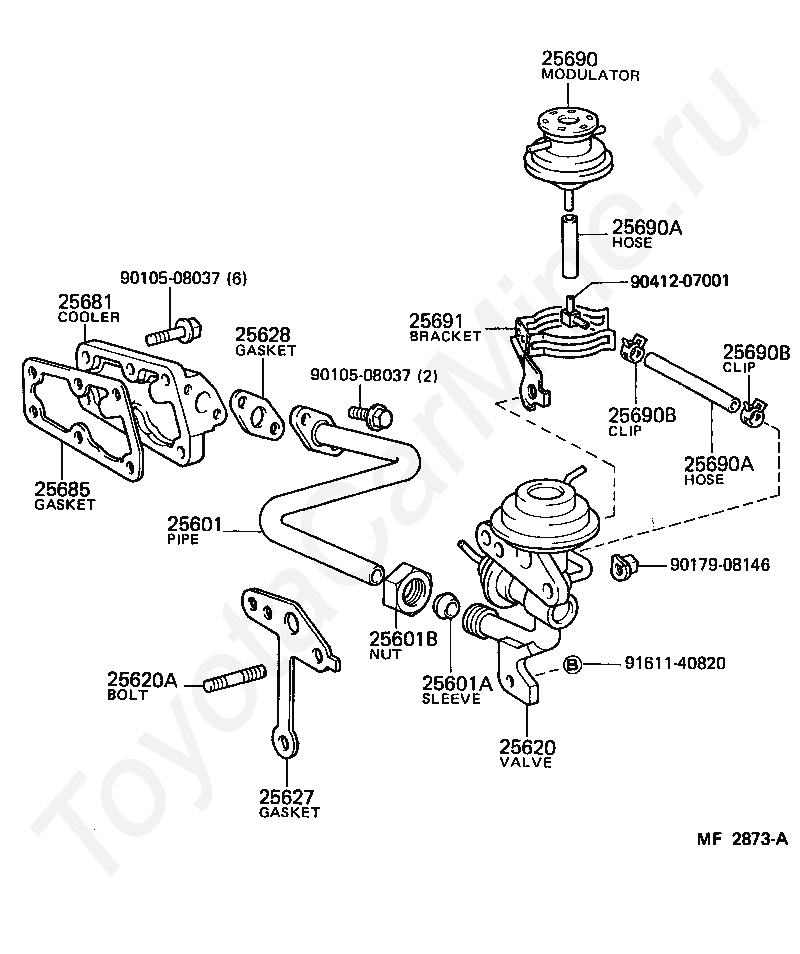

Система рециркуляции газов TOYOTA CELICA

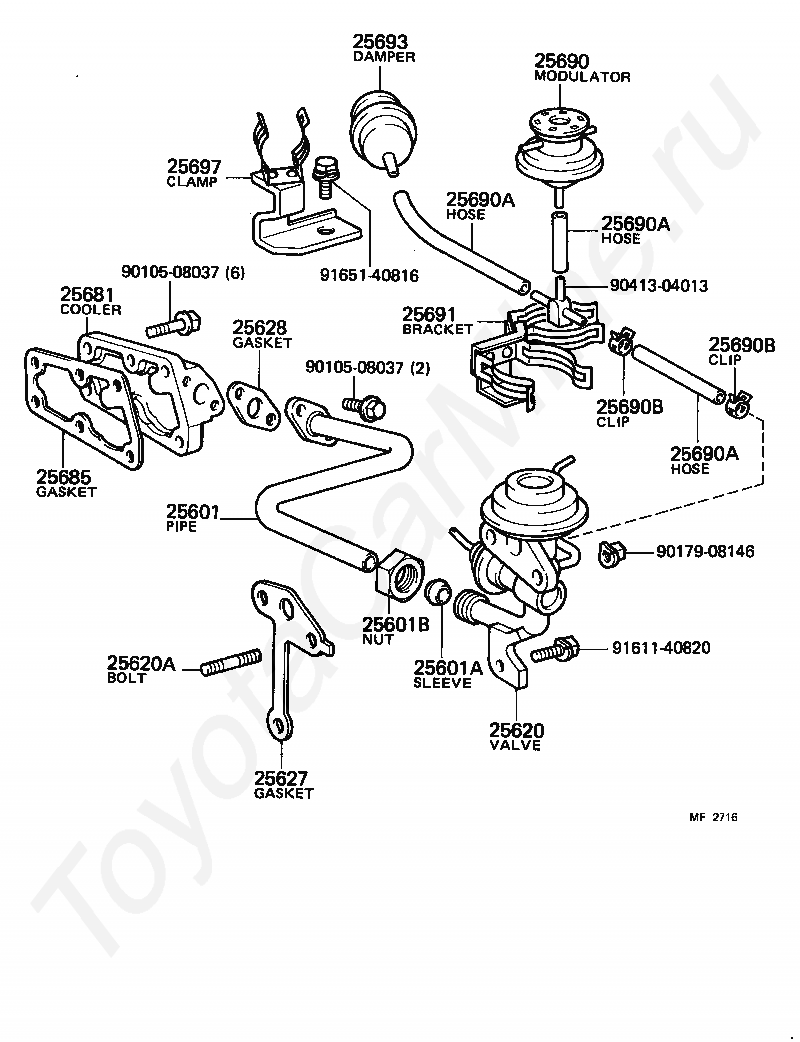

Код

Описание

25601

PIPE SUB-ASSY, EGR, NO.1

25601A

SLEEVE, BALL, EGR PIPE, NO.1

25601B

NUT, UNION, EGR PIPE, NO.1

25620

VALVE ASSY, EGR

25620A

BOLT, STUD(FOR EGR VALVE)

25627

GASKET, EGR VALVE

25628

GASKET, EGR INLET

25681

COOLER, EGR, NO.1

25685

GASKET, EGR COOLER, NO.1

25690

MODULATOR ASSY, EGR VACUUM

25690A

HOSE(FOR EGR VACUUM MODULATOR)

25690A

HOSE(FOR EGR VACUUM MODULATOR)

25690A

HOSE(FOR EGR VACUUM MODULATOR)

25690B

CLIP(FOR EGR VACUUM MODULATOR)

25690B

CLIP(FOR EGR VACUUM MODULATOR)

25691

BRACKET, EGR VACUUM MODULATOR

25693

DAMPER, EGR VACUUM MODULATOR

25697

CLAMP, EGR DAMPER

9010508037

Крепеж

9010508037

Крепеж

9017908146

Крепеж

9041304013

Крепеж

9161140820

Крепеж

9165140816

Крепеж

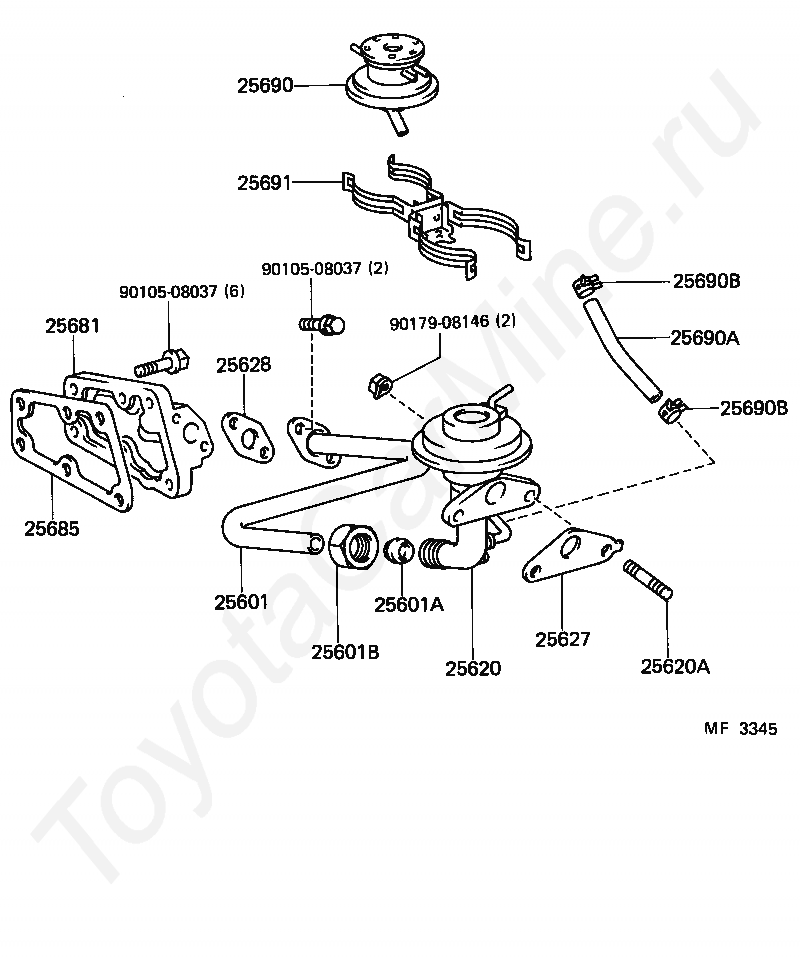

Код

Описание

25601

PIPE SUB-ASSY, EGR, NO.1

25601A

SLEEVE, BALL, EGR PIPE, NO.1

25601B

NUT, UNION, EGR PIPE, NO.1

25620

VALVE ASSY, EGR

25620A

BOLT, STUD(FOR EGR VALVE)

25627

GASKET, EGR VALVE

25628

GASKET, EGR INLET

25681

COOLER, EGR, NO.1

25685

GASKET, EGR COOLER, NO.1

25690

MODULATOR ASSY, EGR VACUUM

25690A

HOSE(FOR EGR VACUUM MODULATOR)

25690A

HOSE(FOR EGR VACUUM MODULATOR)

25690B

CLIP(FOR EGR VACUUM MODULATOR)

25690B

CLIP(FOR EGR VACUUM MODULATOR)

25691

BRACKET, EGR VACUUM MODULATOR

9010508037

Крепеж

9010508037

Крепеж

9017908146

Крепеж

9041207001

Крепеж

9161140820

Крепеж

Код

Описание

25601

PIPE SUB-ASSY, EGR, NO.1

25601A

SLEEVE, BALL, EGR PIPE, NO.1

25601B

NUT, UNION, EGR PIPE, NO.1

25620

VALVE ASSY, EGR

25620A

BOLT, STUD(FOR EGR VALVE)

25627

GASKET, EGR VALVE

25628

GASKET, EGR INLET

25681

COOLER, EGR, NO.1

25685

GASKET, EGR COOLER, NO.1

25690

MODULATOR ASSY, EGR VACUUM

25690A

HOSE(FOR EGR VACUUM MODULATOR)

25690B

CLIP(FOR EGR VACUUM MODULATOR)

25690B

CLIP(FOR EGR VACUUM MODULATOR)

25691

BRACKET, EGR VACUUM MODULATOR

9010508037

Крепеж

9010508037

Крепеж

9017908146

Крепеж
