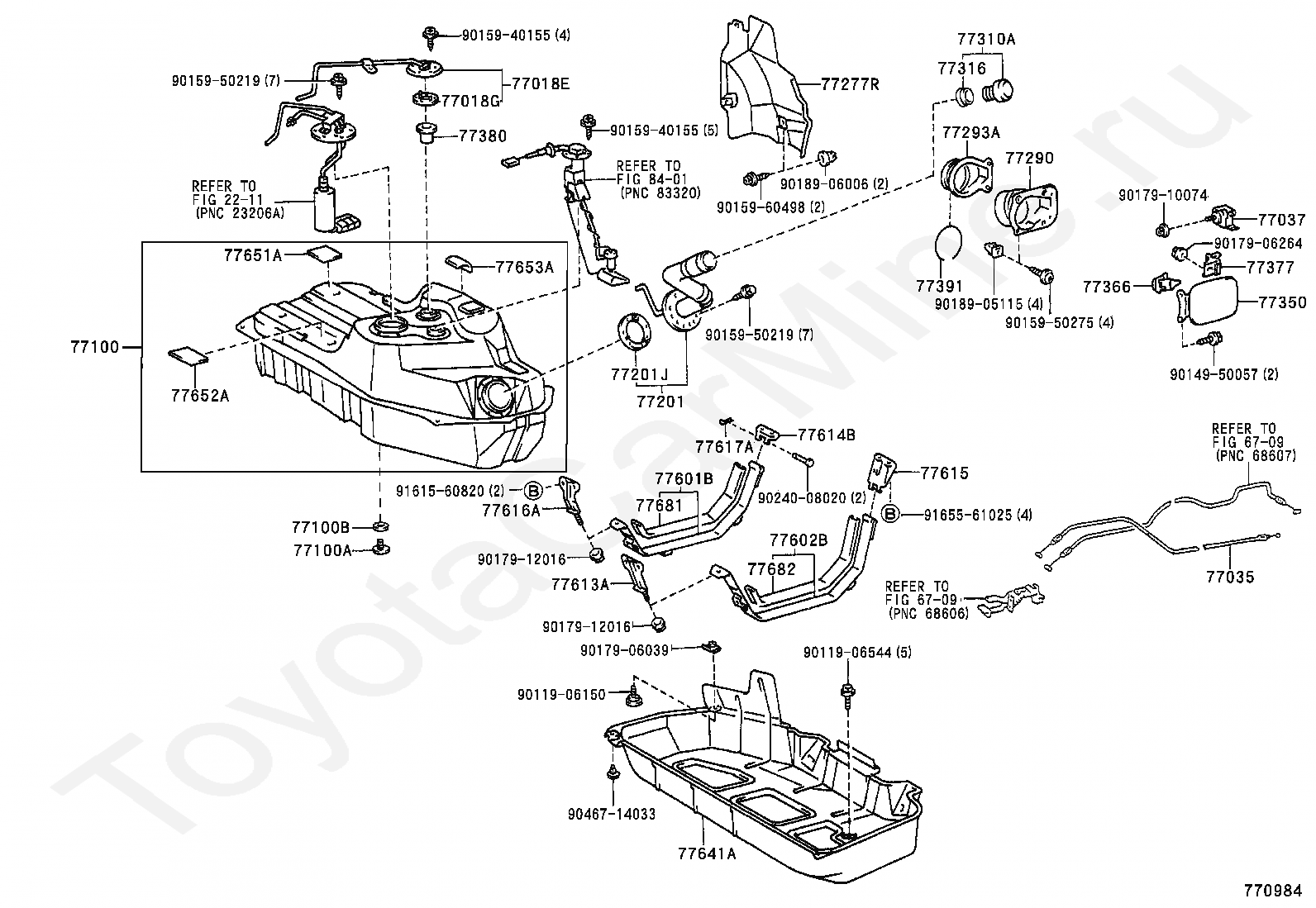

77018E
TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018G
GASKET, FUEL TANK EVAP/VENT TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201J
GASKET(FOR FUEL TANK INLET PIPE)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77613A
BRACKET, FUEL TANK BAND, NO.1
77614B
BRACKET, FUEL TANK BAND, NO.2
77615
BRACKET, FUEL TANK BAND, NO.3
77616A
BRACKET, FUEL TANK BAND, NO.4
77617A
UNION, AUXILIARY FUEL BAND
77641A
PROTECTOR, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77652A
CUSHION, FUEL TANK, NO.2
77653A
CUSHION, FUEL TANK, NO.3
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
