Япония

Модель

CELICA

VIN

Дата

1991/08

Двигатель

2 литра, 16 клапанов, DOHC, EFI, турбо

Кузов

POUNDS

Класс

GT-FOUR TYPE

Фрейм

ST185

КПП

механика

Опции

WIDE BODY

ACTIVE CONTROL TOYOTA CELICA

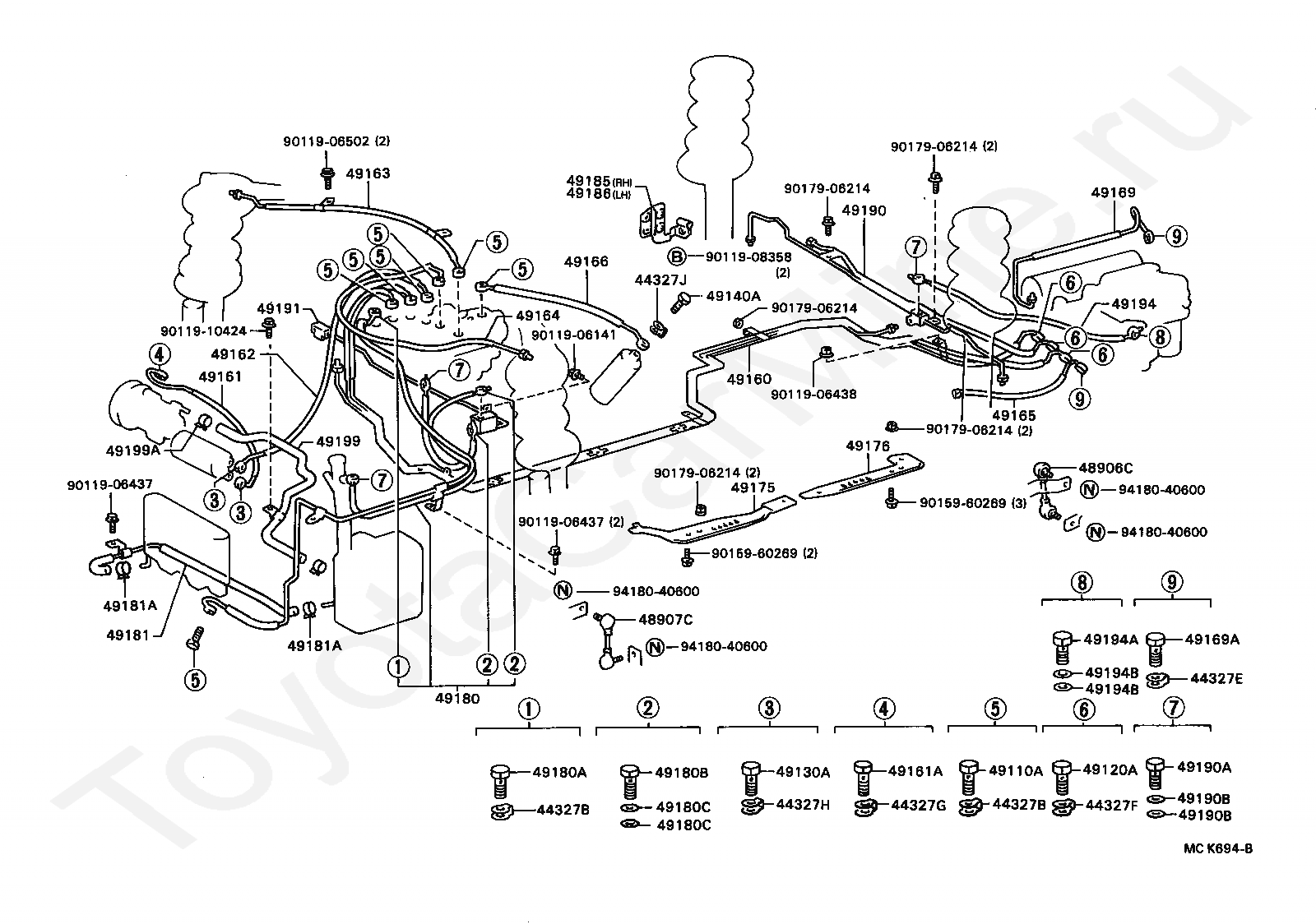

Код

Описание

44327B

GASKET, PRESSURE PORT, FRONT SUSPENSION CONTROL VALVE HOSE

44327B

GASKET, PRESSURE PORT, FRONT SUSPENSION CONTROL VALVE HOSE

44327E

GASKET, REAR SUSPENSION CONTROL VALVE

44327F

GASKET, PRESSURE PORT, REAR SUSPENSION CONTROL

44327G

GASKET, PRESSURE PORT, SUSPENSION CONTROL PRESSURE HOSE

44327H

GASKET, SUSPENSION CONTROL PUMP ACCUMULATOR PRESSURE PORT

44327J

GASKET, FRONT SUSPENSION CONTROL ACCUMULATOR PRESSURE PORT

48906C

LINK, HEIGHT CONTROL SENSOR, REAR(FOR ACTIVE SUSPENSION)

48907C

LINK, HEIGHT CONTROL SENSOR, FRONT(FOR ACTIVE SUSPENSION)

49110A

HOUSING, CONNECTOR MALE

49120A

HOUSING, CONNECTOR FEMALE

49130A

BOLT, UNION(FOR SUSPENSION CONTROL PUMP ACCUMULATOR)

49140A

BOLT, UNION(FOR SUSPENSION CONTROL ACCUMULATOR)

49160

HOSE ASSY, SUSPENSION CONTROL PRESSURE, NO.1

49161

HOSE, SUSPENSION CONTROL PRESSURE, NO.1

49161A

BOLT, UNION(FOR SUSPENSION CONTROL PRESSURE HOSE)

49162

HOSE, SUSPENSION CONTROL PRESSURE, NO.2

49163

HOSE, SUSPENSION CONTROL PRESSURE, NO.3

49164

HOSE, SUSPENSION CONTROL PRESSURE, NO.4

49165

HOSE, SUSPENSION CONTROL PRESSURE, NO.5

49166

HOSE, SUSPENSION CONTROL PRESSURE, NO.6

49169

HOSE, SUSPENSION CONTROL PRESSURE, NO.9

49169A

BOLT, UNION, NO.1(FOR SUSPENSION CONTROL PRESSURE HOSE)

49175

PROTECTOR, SUSPENSION CONTROL HOSE, NO.1

49176

PROTECTOR, SUSPENSION CONTROL HOSE, NO.2

49180

HOSE ASSY, SUSPENSION CONTROL RETURN

49180A

BOLT, UNION, NO.1(FOR SUSPENSION CONTROL RETURN HOSE)

49180B

BOLT, UNION, NO.2(FOR SUSPENSION CONTROL RETURN HOSE)

49180C

GASKET(FOR SUSPENSION CONTROL RETURN HOSE)

49180C

GASKET(FOR SUSPENSION CONTROL RETURN HOSE)

49181

HOSE, SUSPENSION CONTROL RETURN

49181A

CLIP(FOR SUSPENSION CONTROL RETURN HOSE)

49181A

CLIP(FOR SUSPENSION CONTROL RETURN HOSE)

49185

BRACKET, SUSPENSION CONTROL HOSE, NO.1

49186

BRACKET, SUSPENSION CONTROL HOSE, NO.3

49190

HOSE ASSY, SUSPENSION CONTROL PRESSURE, NO.3

49190A

BOLT, UNION(FOR SUSPENSION CONTROL PRESSURE HOSE)

49190B

GASKET(FOR SUSPENSION CONTROL PRESSURE HOSE)

49190B

GASKET(FOR SUSPENSION CONTROL PRESSURE HOSE)

49191

HOSE, SUSPENSION CONTROL DRAIN

49194

HOSE, SUSPENSION CONTROL DRAIN, NO.4

49194A

BOLT, UNION(FOR SUSPENSION CONTROL DRAIN HOSE)

49194B

GASKET(FOR SUSPENSION CONTROL DRAIN HOSE)

49194B

GASKET(FOR SUSPENSION CONTROL DRAIN HOSE)

49199

HOSE, SUSPENSION CONTROL SUCTION

49199A

CLIP(FOR SUSPENSION CONTROL SUCTION HOSE)

9011906141

Крепеж

9011906437

Крепеж

9011906437

Крепеж

9011906438

Крепеж

9011906502

Крепеж

9011908358

Крепеж

9011910424

Крепеж

9015960269

Крепеж

9015960269

Крепеж

9017906214

Крепеж

9017906214

Крепеж

9017906214

Крепеж

9017906214

Крепеж

9017906214

Крепеж

9418040600

Крепеж

9418040600

Крепеж

9418040600

Крепеж

9418040600

Крепеж

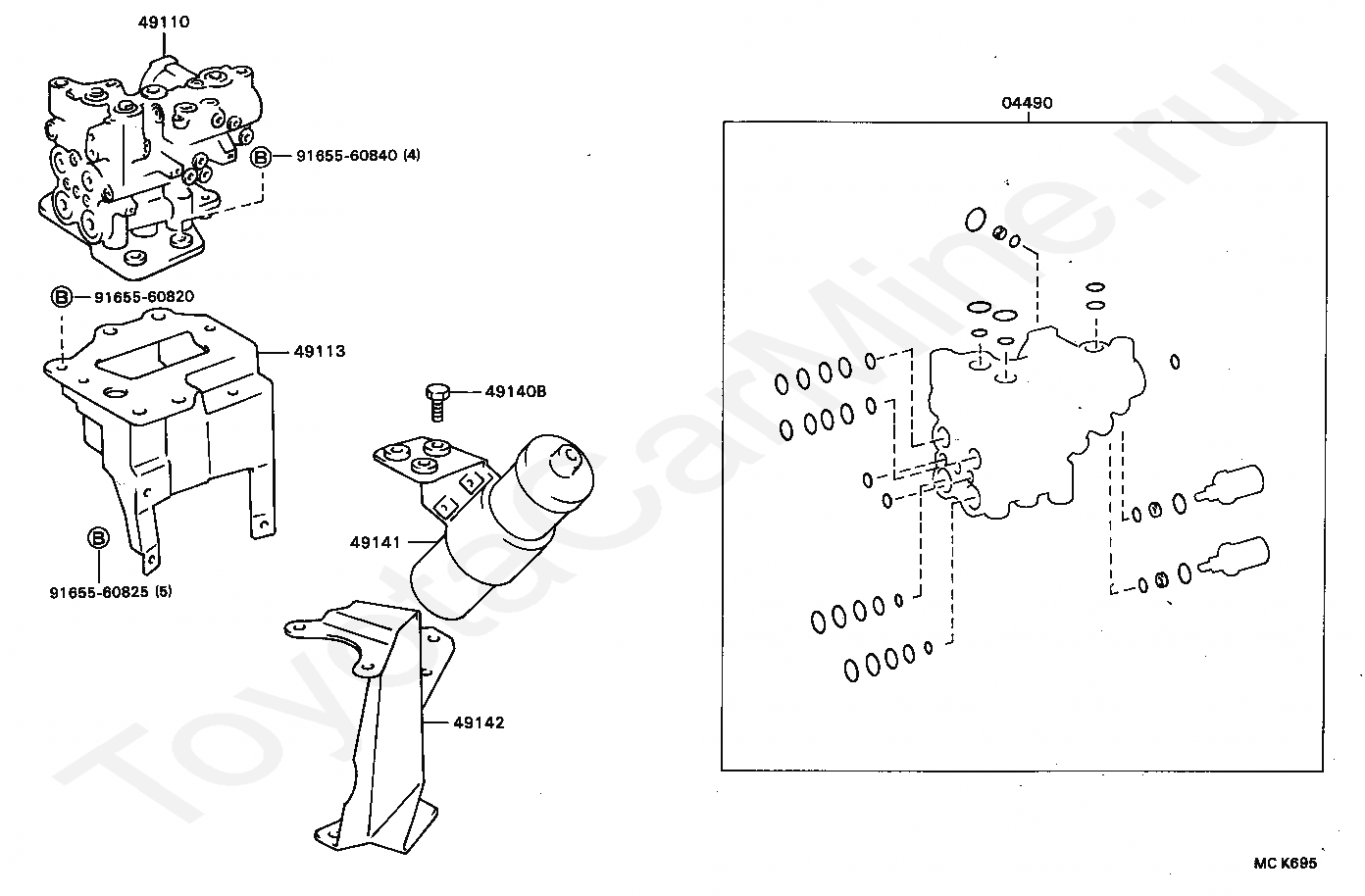

Код

Описание

04490

OVERHAUL KIT, FRONT SUSPENSION CONTROL VALVE

49110

VALVE ASSY, FRONT SUSPENSION CONTROL

49113

BRACKET, FRONT SUSPENSION CONTROL VALVE, NO.2

49140B

BOLT(FOR FRONT SUSPENSION CONTROL ACCUMULATOR)

49141

ACCUMULATOR, FRONT SUSPENSION CONTROL

49142

BRACKET, FRONT SUSPENSION CONTROL ACCUMULATOR

9165560820

Крепеж

9165560825

Крепеж

9165560840

Крепеж

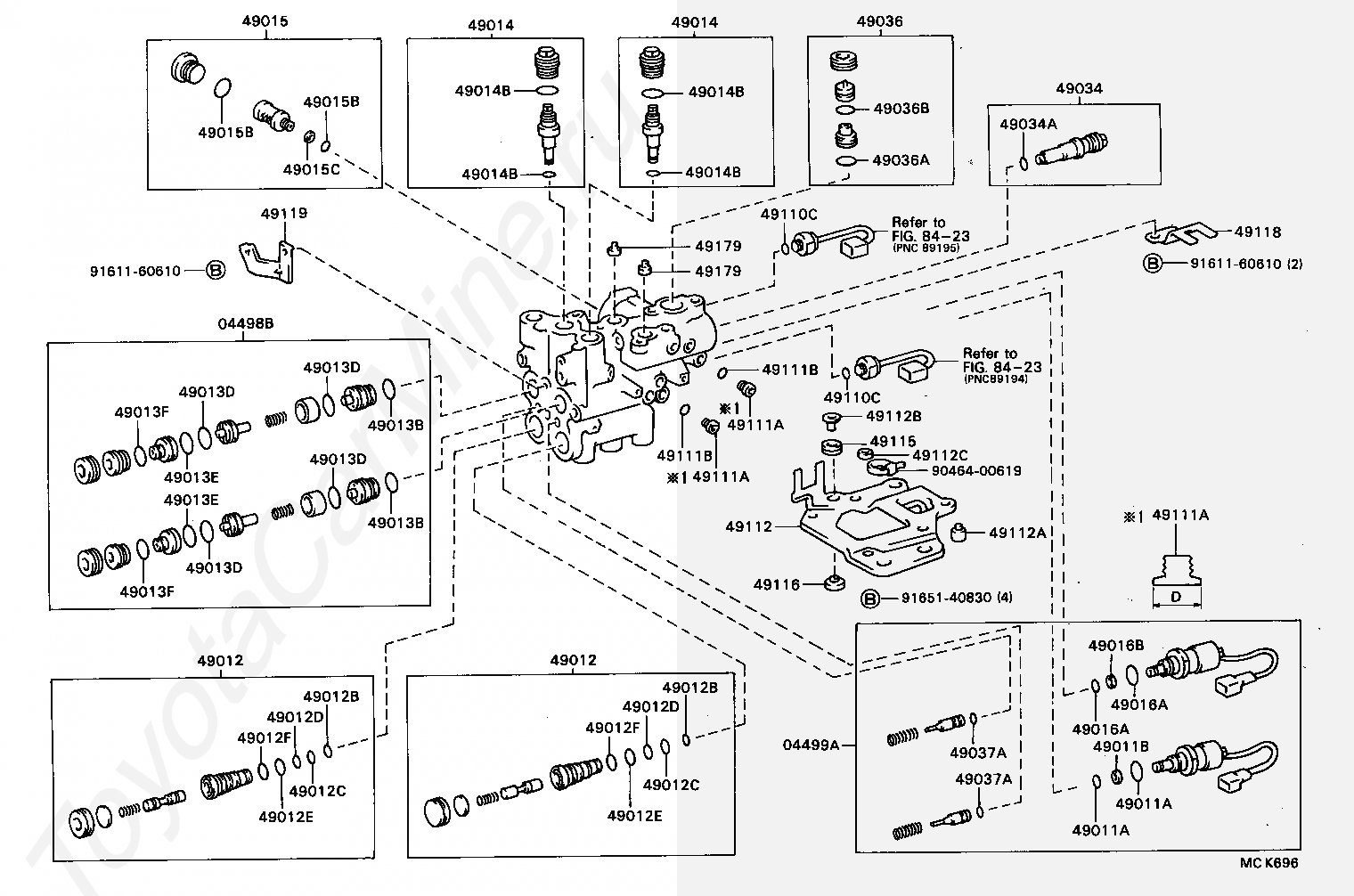

Код

Описание

04498B

VALVE KIT, FRONT ABSORBER PRESSURE HOLDING

04499A

VALVE KIT, FRONT SUSPENSION CONTROL

49011A

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH)

49011A

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH)

49011B

RING(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH)

49012

VALVE SUB-ASSY, FRONT SHOCK ABSORBER CONTROL SPOOL

49012

VALVE SUB-ASSY, FRONT SHOCK ABSORBER CONTROL SPOOL

49012B

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012B

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012C

RING, O, NO.2(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012C

RING, O, NO.2(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012D

RING, O, NO.3(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012D

RING, O, NO.3(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012E

RING, O, NO.4(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012E

RING, O, NO.4(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012F

RING, O, NO.5(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012F

RING, O, NO.5(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49013B

RING, O, NO.1(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013B

RING, O, NO.1(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013D

RING, O, NO.2(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013D

RING, O, NO.2(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013D

RING, O, NO.2(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013D

RING, O, NO.2(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013E

RING, O, NO.3(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013E

RING, O, NO.3(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013F

RING, O, NO.4(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013F

RING, O, NO.4(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49014

VALVE SUB-ASSY, FRONT SHOCK ABSORBER RELIEF

49014

VALVE SUB-ASSY, FRONT SHOCK ABSORBER RELIEF

49014B

RING, O(FOR FRONT SHOCK ABSORBER RELIEF VALVE)

49014B

RING, O(FOR FRONT SHOCK ABSORBER RELIEF VALVE)

49014B

RING, O(FOR FRONT SHOCK ABSORBER RELIEF VALVE)

49014B

RING, O(FOR FRONT SHOCK ABSORBER RELIEF VALVE)

49015

FILTER SUB-ASSY, FRONT SHOCK ABSORBER CONTROL OIL

49015B

RING, O(FOR FRONT SHOCK ABSORBER CONTROL OIL FILTER)

49015B

RING, O(FOR FRONT SHOCK ABSORBER CONTROL OIL FILTER)

49015C

SPACER(FOR FRONT SHOCK ABSORBER CONTROL OIL FILTER)

49016A

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH)

49016A

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH)

49016B

RING(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH)

49034

VALVE SUB-ASSY, FRONT SUSPENSION CONTROL RELIEF

49034A

RING, O(FOR FRONT SUSPENSION CONTROL RELIEF VALVE)

49036

VALVE SUB-ASSY, FRONT SUSPENSION CONTROL CHECK

49036A

RING, O, NO.1(FOR FRONT SUSPENSION CONTROL CHECK VALVE)

49036B

RING, O, NO.2(FOR FRONT SUSPENSION CONTROL CHECK VALVE)

49037A

RING, O(FOR FRONT SUSPENSION CONTROL VALVE ORIFICE)

49037A

RING, O(FOR FRONT SUSPENSION CONTROL VALVE ORIFICE)

49110C

RING, O(FOR FRONT SUSPENSION CONTROL VALVE)

49110C

RING, O(FOR FRONT SUSPENSION CONTROL VALVE)

49111A

PLUG(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49111A

PLUG(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49111A

PLUG(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49111B

RING, O(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49111B

RING, O(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49112

BRACKET, FRONT SUSPENSION CONTROL VALVE, NO.1

49112A

GROMMET(FOR FRONT SUSPENSION CONTROL VALVE BRACKET)

49112B

SPACER, NO.1(FOR FRONT SUSPENSION CONTROL VALVE BRACKET)

49112C

SPACER, NO.2(FOR FRONT SUSPENSION CONTROL VALVE BRACKET)

49115

GROMMET, FRONT SUSPENSION CONTROL VALVE, NO.1

49116

GROMMET, FRONT SUSPENSION CONTROL VALVE, NO.2

49118

STAY, FRONT SUSPENSION CONTROL VALVE HOUSING, NO.1

49119

STAY, FRONT SUSPENSION CONTROL VALVE HOUSING, NO.2

49179

ORIFICE, FRONT SUSPENSION CONTROL VALVE HOUSING

49179

ORIFICE, FRONT SUSPENSION CONTROL VALVE HOUSING

8423

переход к группе запчастей

8423

переход к группе запчастей

9046400619

Крепеж

9161160610

Крепеж

9161160610

Крепеж

9165140830

Крепеж

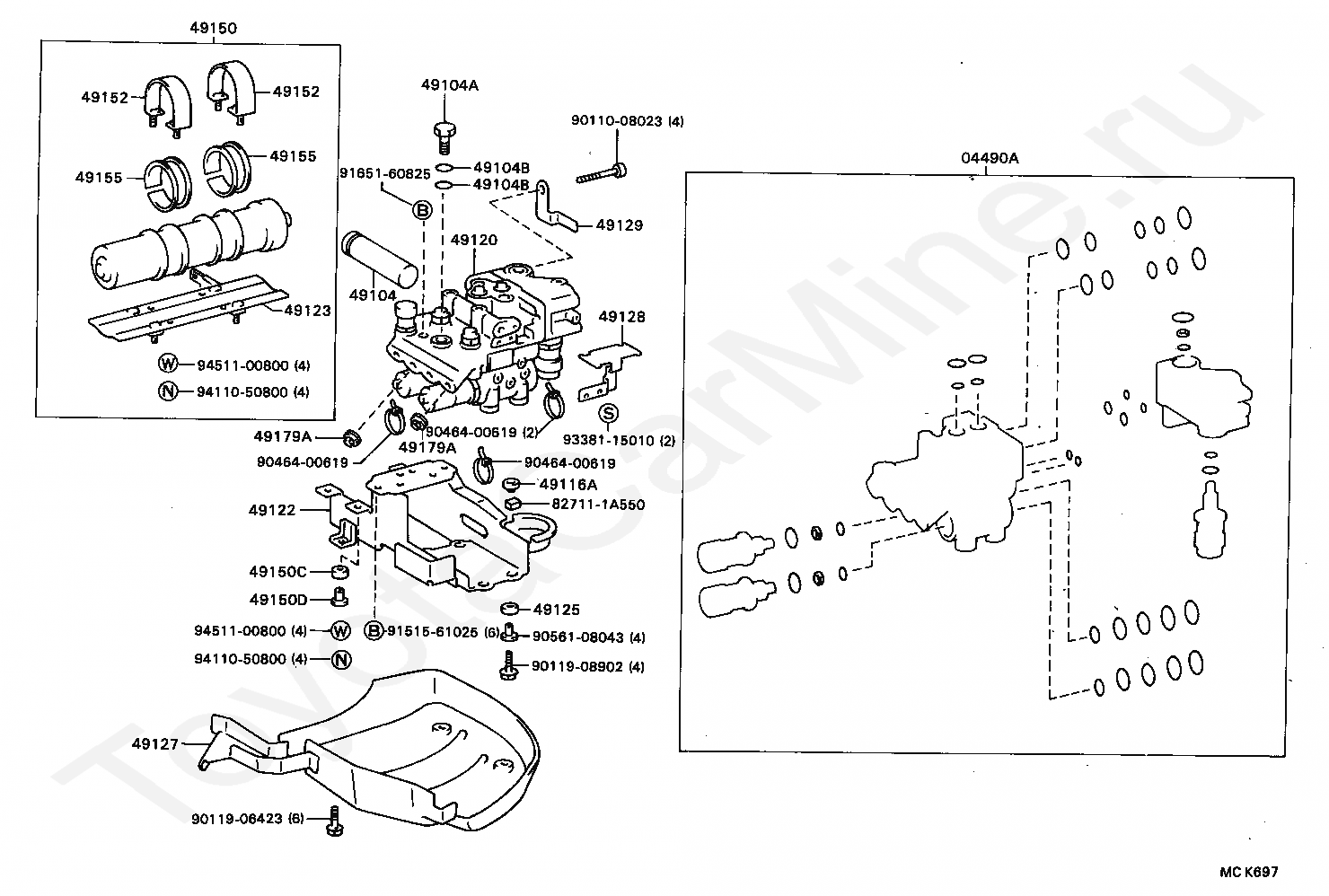

Код

Описание

04490A

OVERHAUL KIT, REAR SUSPENSION CONTROL VALVE

49104

ACCUMULATOR SUB-ASSY, REAR SUSPENSION CONTROL RETURN

49104A

BOLT, UNION(FOR RR SUSPENSION CONTROL RETURN ACCUMULATOR)

49104B

RING, O(FOR REAR SUSPENSION CONTROL RETURN ACCUMULATOR)

49104B

RING, O(FOR REAR SUSPENSION CONTROL RETURN ACCUMULATOR)

49116A

GROMMET, REAR SUSPENSION CONTROL VALVE, NO.1

49120

VALVE ASSY, REAR SUSPENSION CONTROL

49122

BRACKET, REAR SUSPENSION CONTROL VALVE, NO.1

49123

BRACKET, REAR SUSPENSION CONTROL VALVE, NO.2

49125

GROMMET, REAR SUSPENSION CONTROL VALVE, NO.2

49127

PROTECTOR, REAR SUSPENSION CONTROL VALVE

49128

STAY, REAR SUSPENSION CONTROL VALVE HOUSING, NO.1

49129

STAY, REAR SUSPENSION CONTROL VALVE HOUSING, NO.2

49150

ACCUMULATOR ASSY, REAR SUSPENSION CONTROL

49150C

BUSH(FOR REAR SUSPENSION CONTROL ACCUMULATOR)

49150D

SPACER(FOR REAR SUSPENSION CONTROL ACCUMULATOR)

49152

BRACKET, REAR SUSPENSION CONTROL ACCUMULATOR

49152

BRACKET, REAR SUSPENSION CONTROL ACCUMULATOR

49155

GROMMET, REAR SUSPENSION CONTROL ACCUMULATOR

49155

GROMMET, REAR SUSPENSION CONTROL ACCUMULATOR

49179A

ORIFICE, REAR SUSPENSION CONTROL VALVE HOUSING

49179A

ORIFICE, REAR SUSPENSION CONTROL VALVE HOUSING

827111A550

Крепеж

9011008023

Крепеж

9011906423

Крепеж

9011908902

Крепеж

9046400619

Крепеж

9046400619

Крепеж

9046400619

Крепеж

9056108043

Крепеж

9151561025

Крепеж

9165160825

Крепеж

9338115010

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

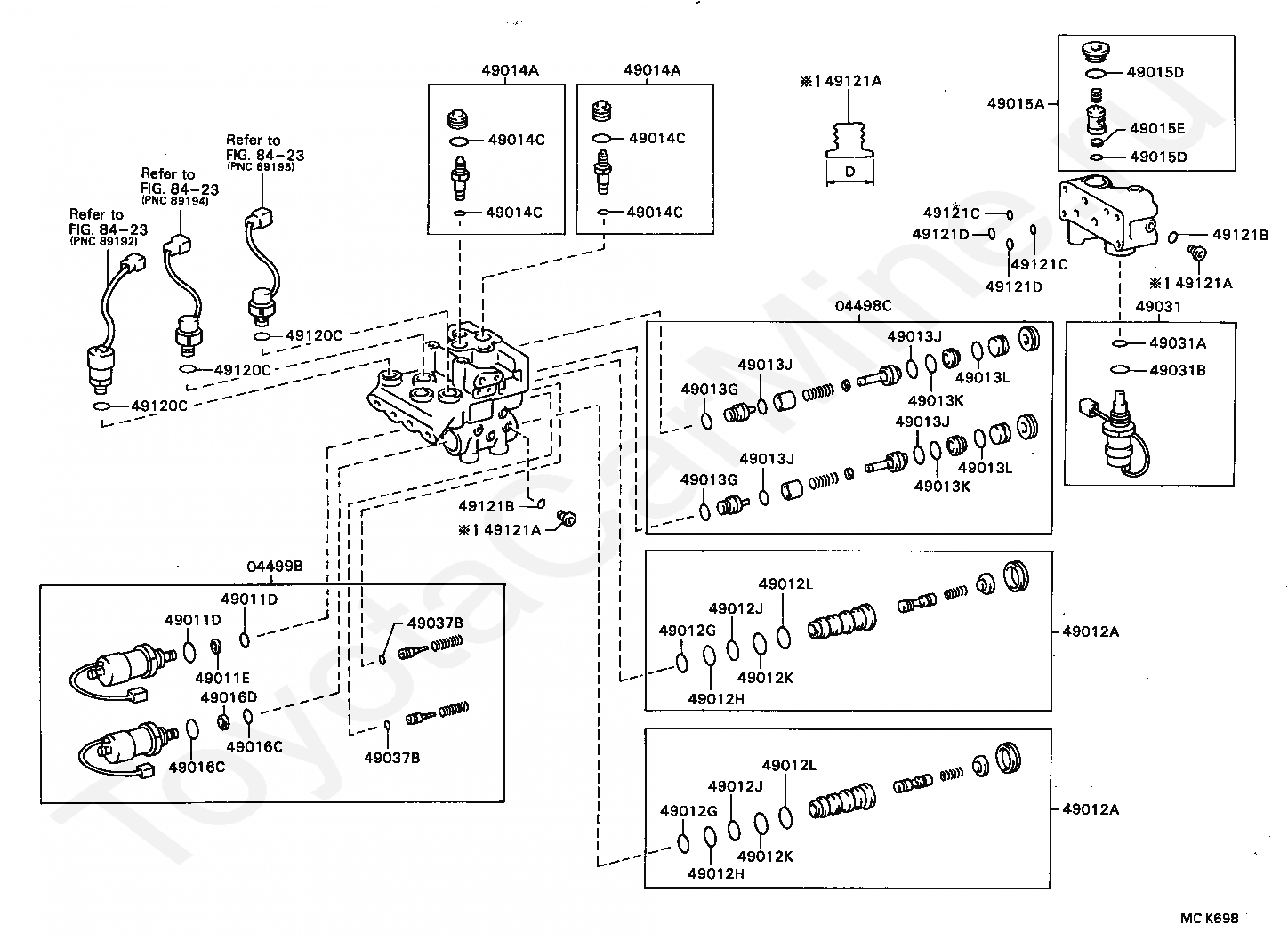

Код

Описание

04498C

VALVE KIT, REAR ABSORBER PRESSURE HOLDING

04499B

VALVE KIT, REAR SUSPENSION CONTROL

49011D

RING, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE RH)

49011D

RING, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE RH)

49011E

RING(FOR REAR ABSORBER CONTROL SOLENOID VALVE RH)

49012A

VALVE SUB-ASSY, REAR SHOCK ABSORBER CONTROL SPOOL

49012A

VALVE SUB-ASSY, REAR SHOCK ABSORBER CONTROL SPOOL

49012G

RING, O, NO.1(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012G

RING, O, NO.1(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012H

RING, O, NO.2(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012H

RING, O, NO.2(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012J

RING, O, NO.3(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012J

RING, O, NO.3(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012K

RING, O, NO.4(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012K

RING, O, NO.4(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012L

RING, O, NO.5(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012L

RING, O, NO.5(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49013G

RING, O, NO.1(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013G

RING, O, NO.1(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013J

RING, O, NO.2(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013J

RING, O, NO.2(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013J

RING, O, NO.2(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013J

RING, O, NO.2(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013K

RING, O, NO.3(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013K

RING, O, NO.3(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013L

RING, O, NO.4(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013L

RING, O, NO.4(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49014A

VALVE SUB-ASSY, REAR SHOCK ABSORBER RELIEF

49014A

VALVE SUB-ASSY, REAR SHOCK ABSORBER RELIEF

49014C

RING, O(FOR REAR SHOCK ABSORBER RELIEF VALVE)

49014C

RING, O(FOR REAR SHOCK ABSORBER RELIEF VALVE)

49014C

RING, O(FOR REAR SHOCK ABSORBER RELIEF VALVE)

49014C

RING, O(FOR REAR SHOCK ABSORBER RELIEF VALVE)

49015A

FILTER SUB-ASSY, REAR SHOCK ABSORBER CONTROL OIL

49015D

RING, O(FOR REAR SHOCK ABSORBER CONTROL OIL FILTER)

49015D

RING, O(FOR REAR SHOCK ABSORBER CONTROL OIL FILTER)

49015E

SPACER(FOR REAR SHOCK ABSORBER CONTROL OIL FILTER)

49016C

RING, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE LH)

49016C

RING, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE LH)

49016D

RING(FOR REAR ABSORBER CONTROL SOLENOID VALVE LH)

49031

VALVE SUB-ASSY, REAR SUSPENSION CONTROL SOLENOID

49031A

RING, O, NO.1(FOR REAR SUSPENSION CONTROL SOLENOID VALVE)

49031B

RING, O, NO.2(FOR REAR SUSPENSION CONTROL SOLENOID VALVE)

49037B

RING, O(FOR REAR SUSPENSION CONTROL VALVE ORIFICE)

49037B

RING, O(FOR REAR SUSPENSION CONTROL VALVE ORIFICE)

49120C

RING, O(FOR REAR SUSPENSION CONTROL VALVE)

49120C

RING, O(FOR REAR SUSPENSION CONTROL VALVE)

49120C

RING, O(FOR REAR SUSPENSION CONTROL VALVE)

49121A

PLUG(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121A

PLUG(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121A

PLUG(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121B

RING, O, NO.1(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121B

RING, O, NO.1(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121C

RING, O, NO.2(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121C

RING, O, NO.2(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121D

RING, O, NO.3(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121D

RING, O, NO.3(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

8423

переход к группе запчастей

8423

переход к группе запчастей

8423

переход к группе запчастей

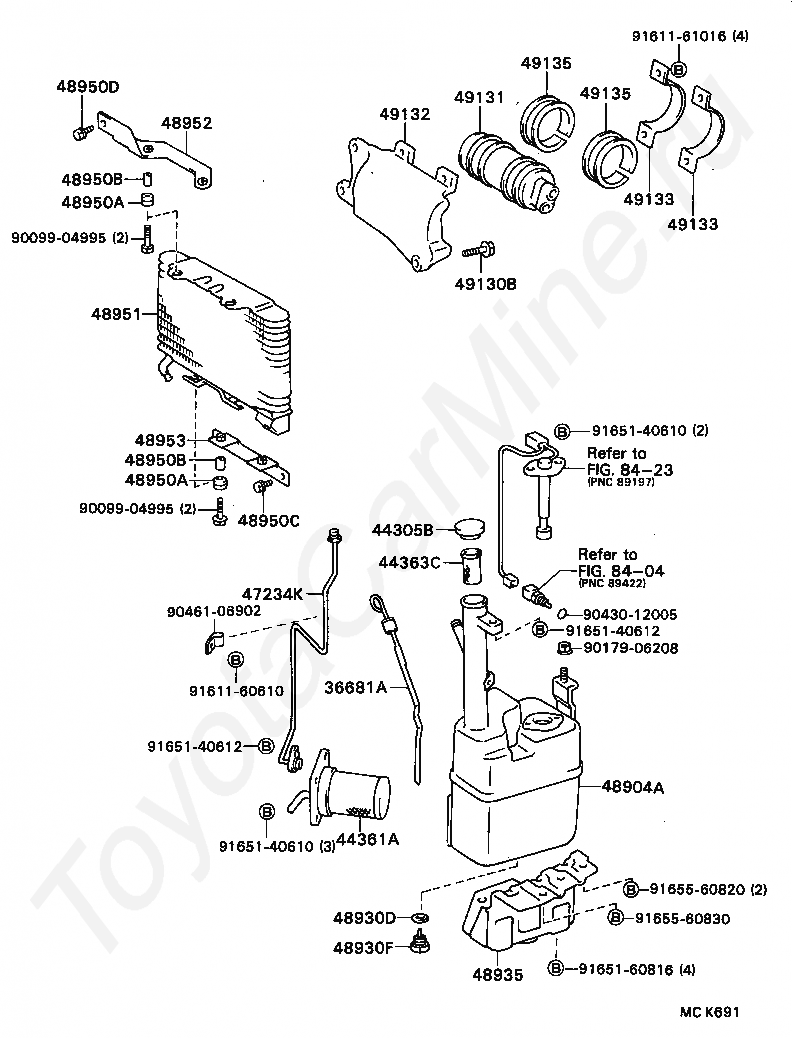

Код

Описание

36681A

GAGE, SUSPENSION CONTROL OIL LEVEL

44305B

CAP SUB-ASSY, SUSPENSION CONTROL OIL RESERVOIR

44361A

FILTER, SUSPENSION CONTROL OIL RESERVOIR, NO.1

44363C

STRAINER, SUSPENSION CONTROL OIL RESERVOIR

47234K

TUBE, SUSPENSION CONTROL OIL RESERVOIR

48904A

RESERVOIR SUB-ASSY, SUSPENSION CONTROL OIL

48930D

GASKET, SUSPENSION CONTROL OIL RESERVOIR DRAIN PLUG

48930F

PLUG(FOR SUSPENSION CONTROL OIL RESERVOIR DRAIN)

48935

BRACKET, SUSPENSION CONTROL OIL RESERVOIR

48950A

CUSHION(FOR SUSPENSION CONTROL OIL COOLER)

48950A

CUSHION(FOR SUSPENSION CONTROL OIL COOLER)

48950B

SPACER(FOR SUSPENSION CONTROL OIL COOLER)

48950B

SPACER(FOR SUSPENSION CONTROL OIL COOLER)

48950C

BOLT(FOR SUSPENSION CONTROL OIL COOLER)

48950D

NUT(FOR SUSPENSION CONTROL OIL COOLER)

48951

COOLER, SUSPENSION CONTROL OIL

48952

BRACKET, SUSPENSION CONTROL OIL COOLER, NO.1

48953

BRACKET, SUSPENSION CONTROL OIL COOLER, NO.2

49130B

BOLT(FOR SUSPENSION CONTROL PUMP ACCUMULATOR)

49131

ACCUMULATOR, SUSPENSION CONTROL PUMP

49132

BRACKET, SUSPENSION CONTROL PUMP ACCUMLATOR, NO.1

49133

BRACKET, SUSPENSION CONTROL PUMP ACCUMLATOR, NO.2

49133

BRACKET, SUSPENSION CONTROL PUMP ACCUMLATOR, NO.2

49135

GROMMET, SUSPENSION CONTROL PUMP ACCUMULATOR

49135

GROMMET, SUSPENSION CONTROL PUMP ACCUMULATOR

8404

переход к группе запчастей

8423

переход к группе запчастей

9009904995

Крепеж

9009904995

Крепеж

9017906208

Крепеж

9043012005

Крепеж

9046106902

Крепеж

9161160610

Крепеж

9161161016

Крепеж

9165140610

Крепеж

9165140610

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165160816

Крепеж

9165560820

Крепеж

9165560830

Крепеж

Код

Описание

44327B

GASKET, PRESSURE PORT, FRONT SUSPENSION CONTROL VALVE HOSE

44327B

GASKET, PRESSURE PORT, FRONT SUSPENSION CONTROL VALVE HOSE

44327E

GASKET, REAR SUSPENSION CONTROL VALVE

44327F

GASKET, PRESSURE PORT, REAR SUSPENSION CONTROL

44327G

GASKET, PRESSURE PORT, SUSPENSION CONTROL PRESSURE HOSE

44327H

GASKET, SUSPENSION CONTROL PUMP ACCUMULATOR PRESSURE PORT

44327J

GASKET, FRONT SUSPENSION CONTROL ACCUMULATOR PRESSURE PORT

48906C

LINK, HEIGHT CONTROL SENSOR, REAR(FOR ACTIVE SUSPENSION)

48907C

LINK, HEIGHT CONTROL SENSOR, FRONT(FOR ACTIVE SUSPENSION)

49110A

HOUSING, CONNECTOR MALE

49120A

HOUSING, CONNECTOR FEMALE

49130A

BOLT, UNION(FOR SUSPENSION CONTROL PUMP ACCUMULATOR)

49140A

BOLT, UNION(FOR SUSPENSION CONTROL ACCUMULATOR)

49160

HOSE ASSY, SUSPENSION CONTROL PRESSURE, NO.1

49161

HOSE, SUSPENSION CONTROL PRESSURE, NO.1

49161A

BOLT, UNION(FOR SUSPENSION CONTROL PRESSURE HOSE)

49162

HOSE, SUSPENSION CONTROL PRESSURE, NO.2

49163

HOSE, SUSPENSION CONTROL PRESSURE, NO.3

49164

HOSE, SUSPENSION CONTROL PRESSURE, NO.4

49165

HOSE, SUSPENSION CONTROL PRESSURE, NO.5

49166

HOSE, SUSPENSION CONTROL PRESSURE, NO.6

49169

HOSE, SUSPENSION CONTROL PRESSURE, NO.9

49169A

BOLT, UNION, NO.1(FOR SUSPENSION CONTROL PRESSURE HOSE)

49175

PROTECTOR, SUSPENSION CONTROL HOSE, NO.1

49176

PROTECTOR, SUSPENSION CONTROL HOSE, NO.2

49180

HOSE ASSY, SUSPENSION CONTROL RETURN

49180A

BOLT, UNION, NO.1(FOR SUSPENSION CONTROL RETURN HOSE)

49180B

BOLT, UNION, NO.2(FOR SUSPENSION CONTROL RETURN HOSE)

49180C

GASKET(FOR SUSPENSION CONTROL RETURN HOSE)

49180C

GASKET(FOR SUSPENSION CONTROL RETURN HOSE)

49181

HOSE, SUSPENSION CONTROL RETURN

49181A

CLIP(FOR SUSPENSION CONTROL RETURN HOSE)

49181A

CLIP(FOR SUSPENSION CONTROL RETURN HOSE)

49185

BRACKET, SUSPENSION CONTROL HOSE, NO.1

49186

BRACKET, SUSPENSION CONTROL HOSE, NO.3

49190

HOSE ASSY, SUSPENSION CONTROL PRESSURE, NO.3

49190A

BOLT, UNION(FOR SUSPENSION CONTROL PRESSURE HOSE)

49190B

GASKET(FOR SUSPENSION CONTROL PRESSURE HOSE)

49190B

GASKET(FOR SUSPENSION CONTROL PRESSURE HOSE)

49191

HOSE, SUSPENSION CONTROL DRAIN

49194

HOSE, SUSPENSION CONTROL DRAIN, NO.4

49194A

BOLT, UNION(FOR SUSPENSION CONTROL DRAIN HOSE)

49194B

GASKET(FOR SUSPENSION CONTROL DRAIN HOSE)

49194B

GASKET(FOR SUSPENSION CONTROL DRAIN HOSE)

49199

HOSE, SUSPENSION CONTROL SUCTION

49199A

CLIP(FOR SUSPENSION CONTROL SUCTION HOSE)

9011906141

Крепеж

9011906437

Крепеж

9011906437

Крепеж

9011906438

Крепеж

9011906502

Крепеж

9011908358

Крепеж

9011910424

Крепеж

9015960269

Крепеж

9015960269

Крепеж

9017906214

Крепеж

9017906214

Крепеж

9017906214

Крепеж

9017906214

Крепеж

9017906214

Крепеж

9418040600

Крепеж

9418040600

Крепеж

9418040600

Крепеж

9418040600

Крепеж

Код

Описание

04490

OVERHAUL KIT, FRONT SUSPENSION CONTROL VALVE

49110

VALVE ASSY, FRONT SUSPENSION CONTROL

49113

BRACKET, FRONT SUSPENSION CONTROL VALVE, NO.2

49140B

BOLT(FOR FRONT SUSPENSION CONTROL ACCUMULATOR)

49141

ACCUMULATOR, FRONT SUSPENSION CONTROL

49142

BRACKET, FRONT SUSPENSION CONTROL ACCUMULATOR

9165560820

Крепеж

9165560825

Крепеж

9165560840

Крепеж

Код

Описание

04498B

VALVE KIT, FRONT ABSORBER PRESSURE HOLDING

04499A

VALVE KIT, FRONT SUSPENSION CONTROL

49011A

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH)

49011A

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH)

49011B

RING(FOR FRONT ABSORBER CONTROL SOLENOID VALVE RH)

49012

VALVE SUB-ASSY, FRONT SHOCK ABSORBER CONTROL SPOOL

49012

VALVE SUB-ASSY, FRONT SHOCK ABSORBER CONTROL SPOOL

49012B

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012B

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012C

RING, O, NO.2(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012C

RING, O, NO.2(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012D

RING, O, NO.3(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012D

RING, O, NO.3(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012E

RING, O, NO.4(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012E

RING, O, NO.4(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012F

RING, O, NO.5(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49012F

RING, O, NO.5(FOR FRONT ABSORBER CONTROL SPOOL VALVE)

49013B

RING, O, NO.1(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013B

RING, O, NO.1(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013D

RING, O, NO.2(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013D

RING, O, NO.2(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013D

RING, O, NO.2(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013D

RING, O, NO.2(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013E

RING, O, NO.3(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013E

RING, O, NO.3(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013F

RING, O, NO.4(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49013F

RING, O, NO.4(FOR FRONT ABSORBER PRESSURE HOLDING VALVE)

49014

VALVE SUB-ASSY, FRONT SHOCK ABSORBER RELIEF

49014

VALVE SUB-ASSY, FRONT SHOCK ABSORBER RELIEF

49014B

RING, O(FOR FRONT SHOCK ABSORBER RELIEF VALVE)

49014B

RING, O(FOR FRONT SHOCK ABSORBER RELIEF VALVE)

49014B

RING, O(FOR FRONT SHOCK ABSORBER RELIEF VALVE)

49014B

RING, O(FOR FRONT SHOCK ABSORBER RELIEF VALVE)

49015

FILTER SUB-ASSY, FRONT SHOCK ABSORBER CONTROL OIL

49015B

RING, O(FOR FRONT SHOCK ABSORBER CONTROL OIL FILTER)

49015B

RING, O(FOR FRONT SHOCK ABSORBER CONTROL OIL FILTER)

49015C

SPACER(FOR FRONT SHOCK ABSORBER CONTROL OIL FILTER)

49016A

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH)

49016A

RING, O, NO.1(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH)

49016B

RING(FOR FRONT ABSORBER CONTROL SOLENOID VALVE LH)

49034

VALVE SUB-ASSY, FRONT SUSPENSION CONTROL RELIEF

49034A

RING, O(FOR FRONT SUSPENSION CONTROL RELIEF VALVE)

49036

VALVE SUB-ASSY, FRONT SUSPENSION CONTROL CHECK

49036A

RING, O, NO.1(FOR FRONT SUSPENSION CONTROL CHECK VALVE)

49036B

RING, O, NO.2(FOR FRONT SUSPENSION CONTROL CHECK VALVE)

49037A

RING, O(FOR FRONT SUSPENSION CONTROL VALVE ORIFICE)

49037A

RING, O(FOR FRONT SUSPENSION CONTROL VALVE ORIFICE)

49110C

RING, O(FOR FRONT SUSPENSION CONTROL VALVE)

49110C

RING, O(FOR FRONT SUSPENSION CONTROL VALVE)

49111A

PLUG(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49111A

PLUG(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49111A

PLUG(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49111B

RING, O(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49111B

RING, O(FOR FRONT SUSPENSION CONTROL VALVE HOUSING)

49112

BRACKET, FRONT SUSPENSION CONTROL VALVE, NO.1

49112A

GROMMET(FOR FRONT SUSPENSION CONTROL VALVE BRACKET)

49112B

SPACER, NO.1(FOR FRONT SUSPENSION CONTROL VALVE BRACKET)

49112C

SPACER, NO.2(FOR FRONT SUSPENSION CONTROL VALVE BRACKET)

49115

GROMMET, FRONT SUSPENSION CONTROL VALVE, NO.1

49116

GROMMET, FRONT SUSPENSION CONTROL VALVE, NO.2

49118

STAY, FRONT SUSPENSION CONTROL VALVE HOUSING, NO.1

49119

STAY, FRONT SUSPENSION CONTROL VALVE HOUSING, NO.2

49179

ORIFICE, FRONT SUSPENSION CONTROL VALVE HOUSING

49179

ORIFICE, FRONT SUSPENSION CONTROL VALVE HOUSING

8423

переход к группе запчастей

8423

переход к группе запчастей

9046400619

Крепеж

9161160610

Крепеж

9161160610

Крепеж

9165140830

Крепеж

Код

Описание

04490A

OVERHAUL KIT, REAR SUSPENSION CONTROL VALVE

49104

ACCUMULATOR SUB-ASSY, REAR SUSPENSION CONTROL RETURN

49104A

BOLT, UNION(FOR RR SUSPENSION CONTROL RETURN ACCUMULATOR)

49104B

RING, O(FOR REAR SUSPENSION CONTROL RETURN ACCUMULATOR)

49104B

RING, O(FOR REAR SUSPENSION CONTROL RETURN ACCUMULATOR)

49116A

GROMMET, REAR SUSPENSION CONTROL VALVE, NO.1

49120

VALVE ASSY, REAR SUSPENSION CONTROL

49122

BRACKET, REAR SUSPENSION CONTROL VALVE, NO.1

49123

BRACKET, REAR SUSPENSION CONTROL VALVE, NO.2

49125

GROMMET, REAR SUSPENSION CONTROL VALVE, NO.2

49127

PROTECTOR, REAR SUSPENSION CONTROL VALVE

49128

STAY, REAR SUSPENSION CONTROL VALVE HOUSING, NO.1

49129

STAY, REAR SUSPENSION CONTROL VALVE HOUSING, NO.2

49150

ACCUMULATOR ASSY, REAR SUSPENSION CONTROL

49150C

BUSH(FOR REAR SUSPENSION CONTROL ACCUMULATOR)

49150D

SPACER(FOR REAR SUSPENSION CONTROL ACCUMULATOR)

49152

BRACKET, REAR SUSPENSION CONTROL ACCUMULATOR

49152

BRACKET, REAR SUSPENSION CONTROL ACCUMULATOR

49155

GROMMET, REAR SUSPENSION CONTROL ACCUMULATOR

49155

GROMMET, REAR SUSPENSION CONTROL ACCUMULATOR

49179A

ORIFICE, REAR SUSPENSION CONTROL VALVE HOUSING

49179A

ORIFICE, REAR SUSPENSION CONTROL VALVE HOUSING

827111A550

Крепеж

9011008023

Крепеж

9011906423

Крепеж

9011908902

Крепеж

9046400619

Крепеж

9046400619

Крепеж

9046400619

Крепеж

9056108043

Крепеж

9151561025

Крепеж

9165160825

Крепеж

9338115010

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9451100800

Крепеж

9451100800

Крепеж

Код

Описание

04498C

VALVE KIT, REAR ABSORBER PRESSURE HOLDING

04499B

VALVE KIT, REAR SUSPENSION CONTROL

49011D

RING, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE RH)

49011D

RING, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE RH)

49011E

RING(FOR REAR ABSORBER CONTROL SOLENOID VALVE RH)

49012A

VALVE SUB-ASSY, REAR SHOCK ABSORBER CONTROL SPOOL

49012A

VALVE SUB-ASSY, REAR SHOCK ABSORBER CONTROL SPOOL

49012G

RING, O, NO.1(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012G

RING, O, NO.1(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012H

RING, O, NO.2(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012H

RING, O, NO.2(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012J

RING, O, NO.3(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012J

RING, O, NO.3(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012K

RING, O, NO.4(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012K

RING, O, NO.4(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012L

RING, O, NO.5(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49012L

RING, O, NO.5(FOR REAR ABSORBER CONTROL SPOOL VALVE)

49013G

RING, O, NO.1(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013G

RING, O, NO.1(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013J

RING, O, NO.2(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013J

RING, O, NO.2(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013J

RING, O, NO.2(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013J

RING, O, NO.2(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013K

RING, O, NO.3(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013K

RING, O, NO.3(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013L

RING, O, NO.4(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49013L

RING, O, NO.4(FOR REAR ABSORBER PRESSURE HOLDING VALVE)

49014A

VALVE SUB-ASSY, REAR SHOCK ABSORBER RELIEF

49014A

VALVE SUB-ASSY, REAR SHOCK ABSORBER RELIEF

49014C

RING, O(FOR REAR SHOCK ABSORBER RELIEF VALVE)

49014C

RING, O(FOR REAR SHOCK ABSORBER RELIEF VALVE)

49014C

RING, O(FOR REAR SHOCK ABSORBER RELIEF VALVE)

49014C

RING, O(FOR REAR SHOCK ABSORBER RELIEF VALVE)

49015A

FILTER SUB-ASSY, REAR SHOCK ABSORBER CONTROL OIL

49015D

RING, O(FOR REAR SHOCK ABSORBER CONTROL OIL FILTER)

49015D

RING, O(FOR REAR SHOCK ABSORBER CONTROL OIL FILTER)

49015E

SPACER(FOR REAR SHOCK ABSORBER CONTROL OIL FILTER)

49016C

RING, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE LH)

49016C

RING, O(FOR REAR ABSORBER CONTROL SOLENOID VALVE LH)

49016D

RING(FOR REAR ABSORBER CONTROL SOLENOID VALVE LH)

49031

VALVE SUB-ASSY, REAR SUSPENSION CONTROL SOLENOID

49031A

RING, O, NO.1(FOR REAR SUSPENSION CONTROL SOLENOID VALVE)

49031B

RING, O, NO.2(FOR REAR SUSPENSION CONTROL SOLENOID VALVE)

49037B

RING, O(FOR REAR SUSPENSION CONTROL VALVE ORIFICE)

49037B

RING, O(FOR REAR SUSPENSION CONTROL VALVE ORIFICE)

49120C

RING, O(FOR REAR SUSPENSION CONTROL VALVE)

49120C

RING, O(FOR REAR SUSPENSION CONTROL VALVE)

49120C

RING, O(FOR REAR SUSPENSION CONTROL VALVE)

49121A

PLUG(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121A

PLUG(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121A

PLUG(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121B

RING, O, NO.1(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121B

RING, O, NO.1(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121C

RING, O, NO.2(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121C

RING, O, NO.2(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121D

RING, O, NO.3(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

49121D

RING, O, NO.3(FOR REAR SUSPENSION CONTROL VALVE HOUSING)

8423

переход к группе запчастей

8423

переход к группе запчастей

8423

переход к группе запчастей

Код

Описание

36681A

GAGE, SUSPENSION CONTROL OIL LEVEL

44305B

CAP SUB-ASSY, SUSPENSION CONTROL OIL RESERVOIR

44361A

FILTER, SUSPENSION CONTROL OIL RESERVOIR, NO.1

44363C

STRAINER, SUSPENSION CONTROL OIL RESERVOIR

47234K

TUBE, SUSPENSION CONTROL OIL RESERVOIR

48904A

RESERVOIR SUB-ASSY, SUSPENSION CONTROL OIL

48930D

GASKET, SUSPENSION CONTROL OIL RESERVOIR DRAIN PLUG

48930F

PLUG(FOR SUSPENSION CONTROL OIL RESERVOIR DRAIN)

48935

BRACKET, SUSPENSION CONTROL OIL RESERVOIR

48950A

CUSHION(FOR SUSPENSION CONTROL OIL COOLER)

48950A

CUSHION(FOR SUSPENSION CONTROL OIL COOLER)

48950B

SPACER(FOR SUSPENSION CONTROL OIL COOLER)

48950B

SPACER(FOR SUSPENSION CONTROL OIL COOLER)

48950C

BOLT(FOR SUSPENSION CONTROL OIL COOLER)

48950D

NUT(FOR SUSPENSION CONTROL OIL COOLER)

48951

COOLER, SUSPENSION CONTROL OIL

48952

BRACKET, SUSPENSION CONTROL OIL COOLER, NO.1

48953

BRACKET, SUSPENSION CONTROL OIL COOLER, NO.2

49130B

BOLT(FOR SUSPENSION CONTROL PUMP ACCUMULATOR)

49131

ACCUMULATOR, SUSPENSION CONTROL PUMP

49132

BRACKET, SUSPENSION CONTROL PUMP ACCUMLATOR, NO.1

49133

BRACKET, SUSPENSION CONTROL PUMP ACCUMLATOR, NO.2

49133

BRACKET, SUSPENSION CONTROL PUMP ACCUMLATOR, NO.2

49135

GROMMET, SUSPENSION CONTROL PUMP ACCUMULATOR

49135

GROMMET, SUSPENSION CONTROL PUMP ACCUMULATOR

8404

переход к группе запчастей

8423

переход к группе запчастей

9009904995

Крепеж

9009904995

Крепеж

9017906208

Крепеж

9043012005

Крепеж

9046106902

Крепеж

9161160610

Крепеж

9161161016

Крепеж

9165140610

Крепеж

9165140610

Крепеж

9165140612

Крепеж

9165140612

Крепеж

9165160816

Крепеж

9165560820

Крепеж

9165560830

Крепеж

ACTIVE CONTROL TOYOTA CELICA

Купить

Поиск
