Ходовые запчасти

Каталог

Япония

Модель

CELICA

VIN

Дата

1983/08

Двигатель

1,8 литра

Кузов

POUNDS

Класс

SV SPECIFICATION

Фрейм

SA60

КПП

механика МКПП, 5 скоростей

Опции

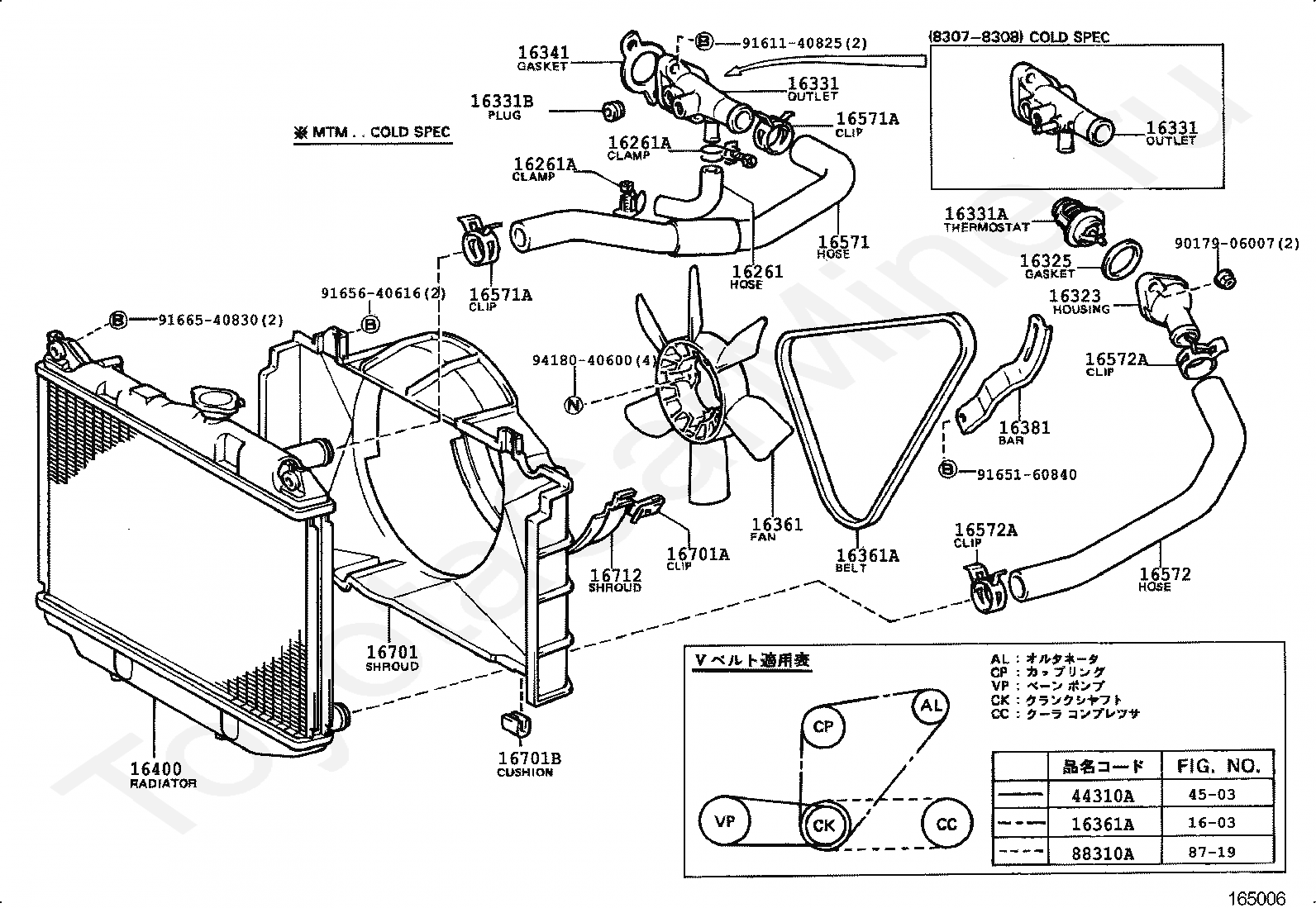

Радиатор и шланги TOYOTA CELICA

Код

Описание

1603

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331

OUTLET, WATER

16331A

THERMOSTAT

16331B

PLUG(FOR WATER OUTLET)

16341

GASKET, WATER OUTLET

16361

FAN

16361A

BELT, V(FOR FAN & ALTERNATOR)

16361A

BELT, V(FOR FAN & ALTERNATOR)

16381

BAR, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

16701A

CLIP(FOR FAN SHROUD)

16701B

CUSHION, FAN SHROUD

16712

SHROUD, FAN, NO.2

44310A

BELT, V(FOR VANE PUMP)

4503

переход к группе запчастей

8719

переход к группе запчастей

88310A

BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

9017906007

Крепеж

9161140825

Крепеж

9165160840

Крепеж

9165640616

Крепеж

9166540830

Крепеж

9418040600

Крепеж

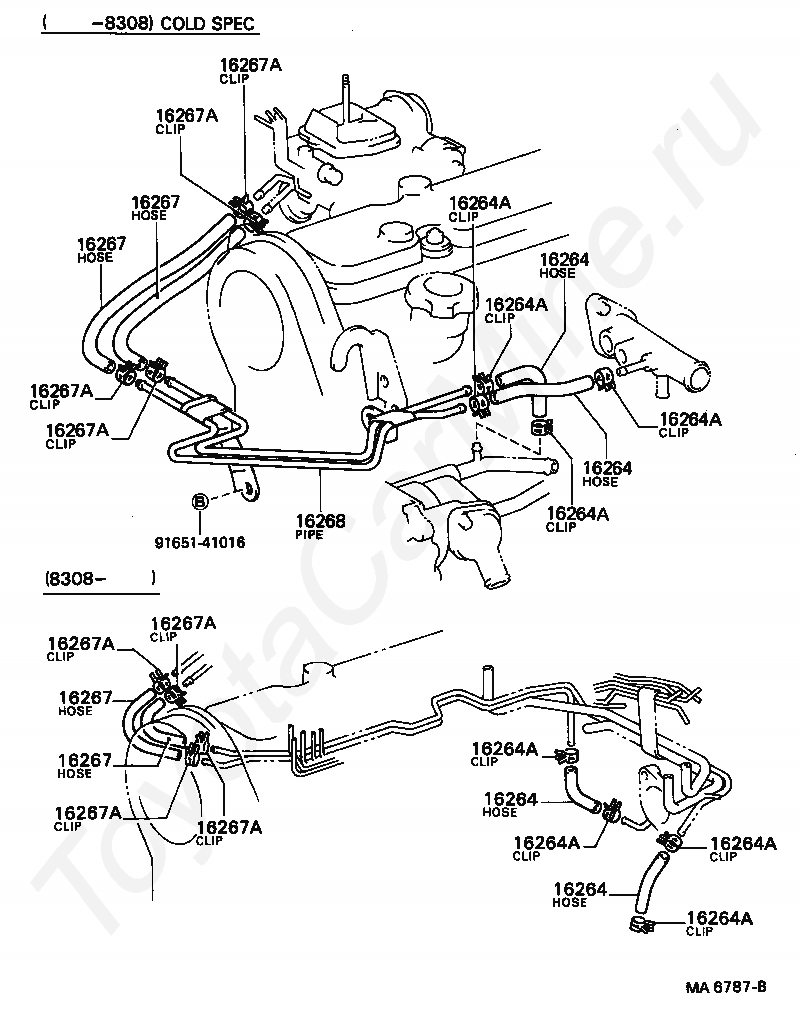

Код

Описание

16264

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267

HOSE, WATER BY-PASS, NO.3

16267

HOSE, WATER BY-PASS, NO.3

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

9165141016

Крепеж

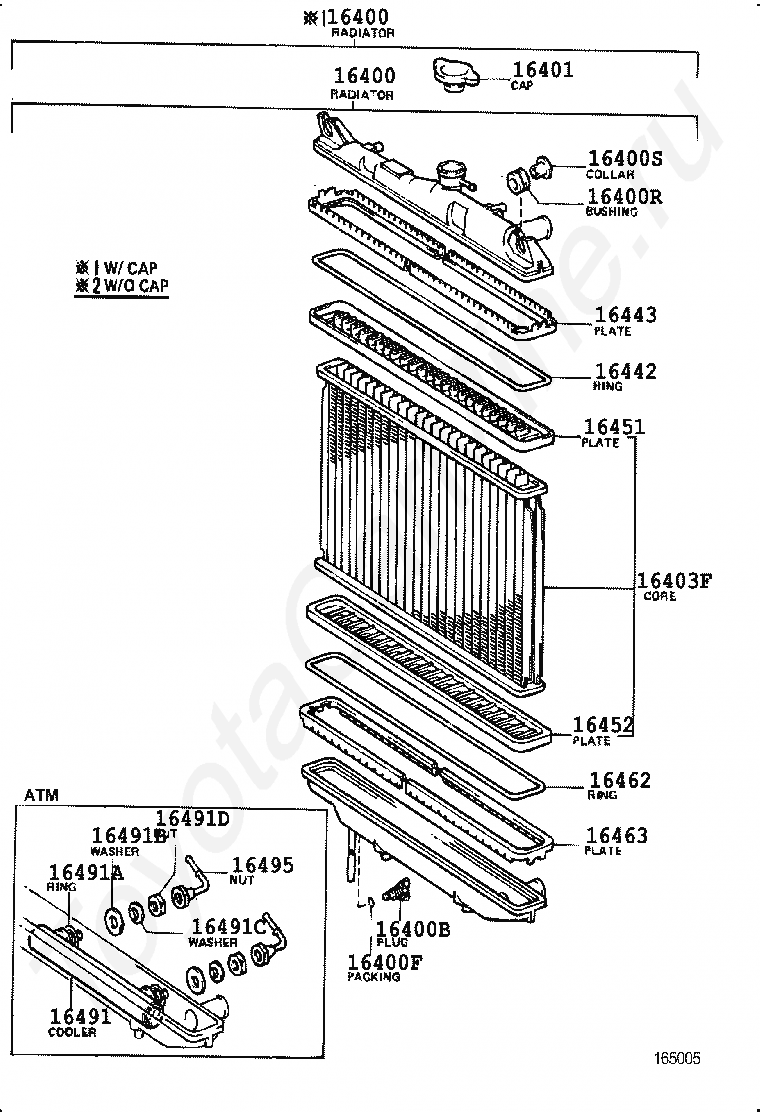

Код

Описание

16400

RADIATOR ASSY

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400R

BUSHING(FOR RADIATOR)

16400S

COLLAR(FOR RADIATOR)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16442

RING, O(FOR RADIATOR UPPER TANK)

16443

PLATE, RADIATOR TANK, LOCK, UPPER

16451

PLATE, RADIATOR CORE, UPPER

16452

PLATE, RADIATOR CORE, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16463

PLATE, RADIATOR TANK, LOCK, LOWER

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16491C

WASHER, SPRING(FOR ATM OIL COOLER)

16491D

NUT(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)
