Каталог

Япония

Модель

CARINA FR

VIN

Дата

1981/09

Двигатель

1,5 литра

Кузов

седан

Класс

боковое стекло

Фрейм

AA60

КПП

механика МКПП, 4 ступени

Опции

5-местный

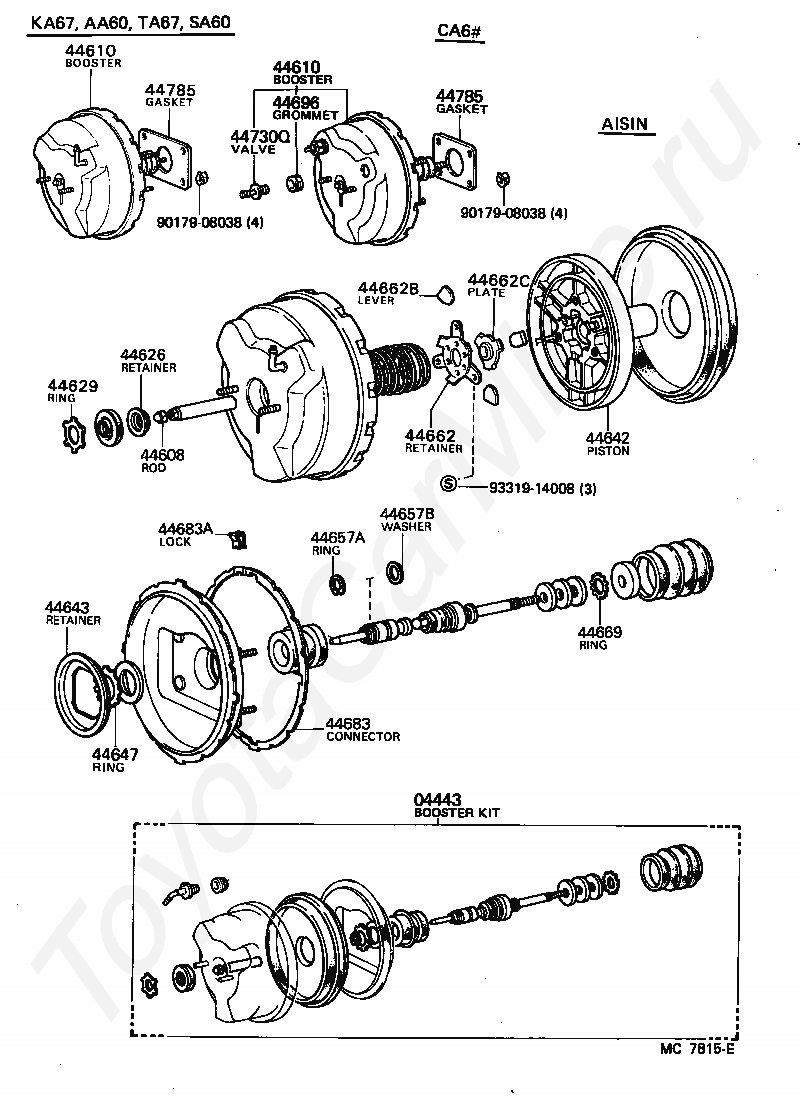

Вакуумный тормозной цилиндр TOYOTA CARINA FR

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44642

PISTON, BRAKE BOOSTER

44645

RETAINER, BOOSTER PUSH ROD SEAL

44678

RETAINER, BOOSTER AIR CLEANER

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

9017908038

Крепеж

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610

BOOSTER ASSY, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44647

RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662

RETAINER, REACTION, NO.1

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44696

GROMMET, CHECK VALVE

44730Q

VALVE ASSY, VACUUM CHECK, NO.2

44785

GASKET, BRAKE BOOSTER

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

9017908038

Крепеж

9331914008

Крепеж

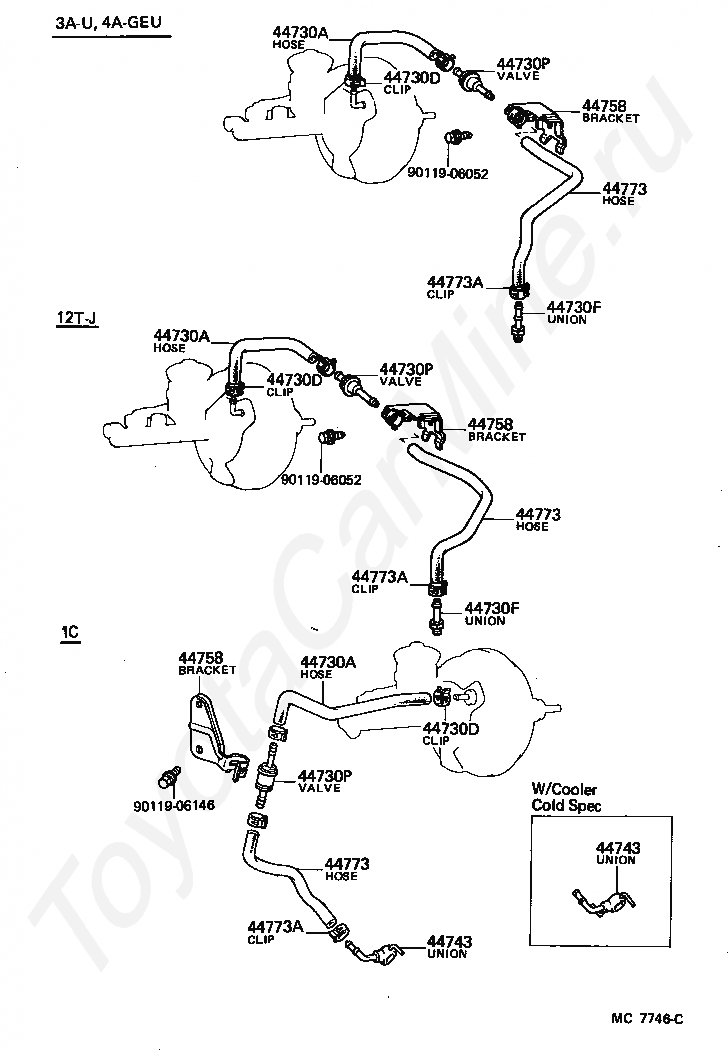

Код

Описание

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44730P

VALVE ASSY, VACUUM CHECK, NO.1

44743

UNION(FOR VACUUM PUMP)

44743

UNION(FOR VACUUM PUMP)

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44758

BRACKET, VACUUM CHECK VALVE

44773

HOSE, VACUUM, NO.2

44773

HOSE, VACUUM, NO.2

44773

HOSE, VACUUM, NO.2

44773A

CLIP, NO.1(FOR VACUUM HOSE, NO.2)

44773A

CLIP, NO.1(FOR VACUUM HOSE, NO.2)

44773A

CLIP, NO.1(FOR VACUUM HOSE, NO.2)

9011906052

Крепеж

9011906052

Крепеж

9011906146

Крепеж

Вакуумный тормозной цилиндр TOYOTA CARINA FR
