1708
переход к группе запчастей

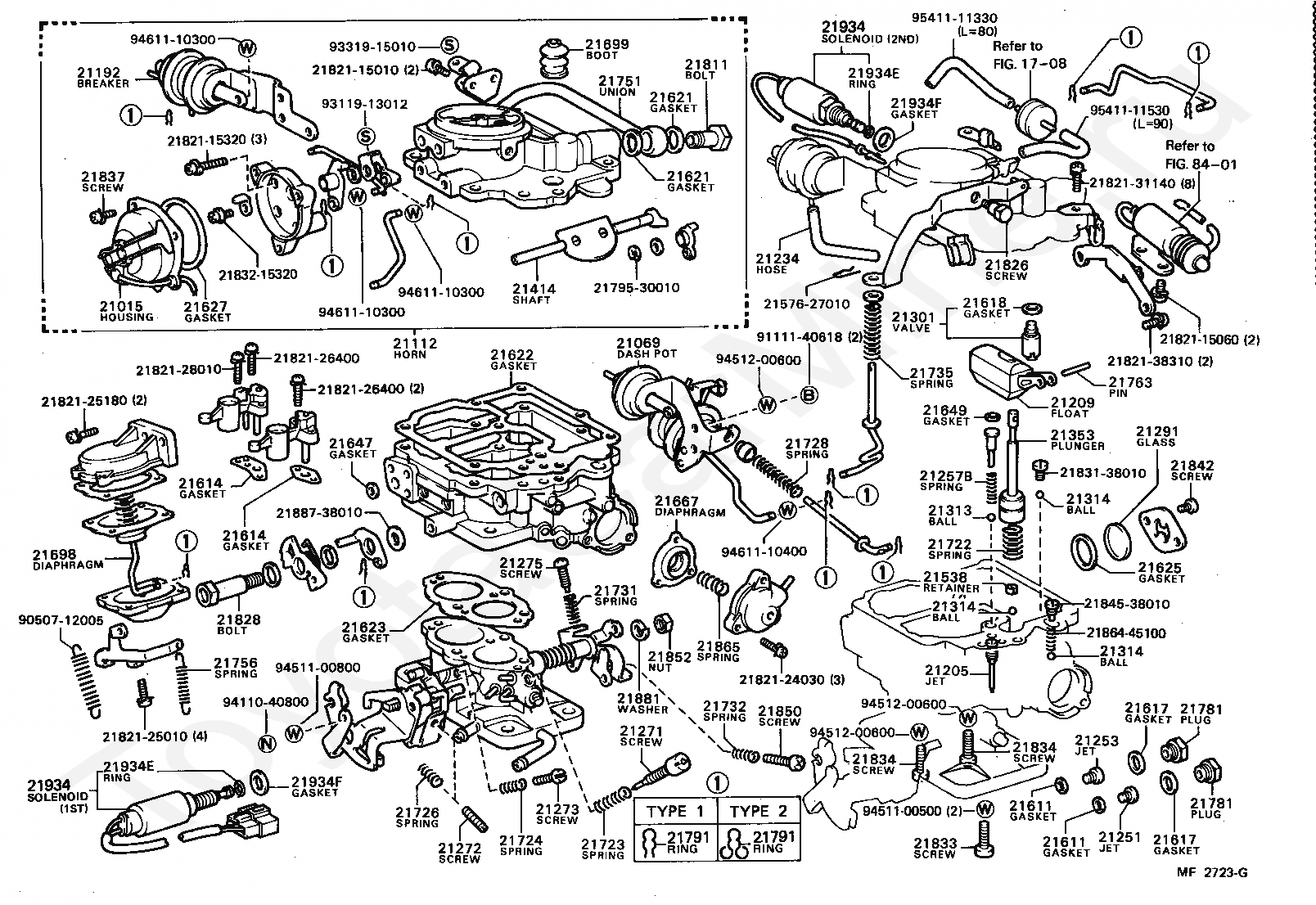

21015
HOUSING SUB-ASSY, COIL
21257B
SPRING(FOR PUMP JET)
21271
SCREW, IDLE ADJUSTING
21272
SCREW, 1ST IDLE ADJUSTING
21273
SCREW, THROTTLE ADJUSTING
21301
VALVE SUB-ASSY, NEEDLE
21313
BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21314
BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21538
RETAINER, BALL CHECK
21617
GASKET, MAIN PASSAGE PLUG
21617
GASKET, MAIN PASSAGE PLUG
21618
GASKET, NEEDLE VALVE SEAT
21621
GASKET, UNION NIPPLE
21621
GASKET, UNION NIPPLE
21623
GASKET, BODY FLANGE
21627
GASKET, COIL HOUSING
21647
GASKET, DIAPHRAGM HOUSING CAP
21649
GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21699
BOOT(FOR PUMP PLUNGER)
21722
SPRING, PUMP DAMPING
21723
SPRING, IDLE ADJUSTING
21724
SPRING, THROTTLE ADJUSTING
21726
SPRING, 1ST IDLE ADJUSTING
21728
SPRING, THROTTLE VALVE RETURN
21731
SPRING, DASH POT OR POSITIONER ADJUSTING
21732
SPRING, THROTTLE ADJUSTING
21756
SPRING, BACK(FOR THROTTLE SHAFT)
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21781
PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21791
RING, SNAP, NO.1(FOR CARBURETOR LINK)
21826
SCREW, PUMP ARM SET
21828
SCREW, 1ST IDLE SET
21833
SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21834
SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21837
SCREW, COIL HOUSING SET
21842
SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21850
SCREW, THROTTLE SWITCH ADJUSTING
21852
NUT, THROTTLE LEVER SET
21881
WASHER, LOCK(FOR THROTTLE SHAFT)
21934
SOLENOID, THROTTLE VALVE
21934
SOLENOID, THROTTLE VALVE
21934E
RING, O(FOR SOLENOID VALVE)
21934E
RING, O(FOR SOLENOID VALVE)
8401
переход к группе запчастей
