Япония

Модель

CARINA FF

VIN

Дата

1994/08

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

SX-I TYPE

Фрейм

AT191

КПП

автомат

Опции

Реле и кнопки TOYOTA CARINA FF

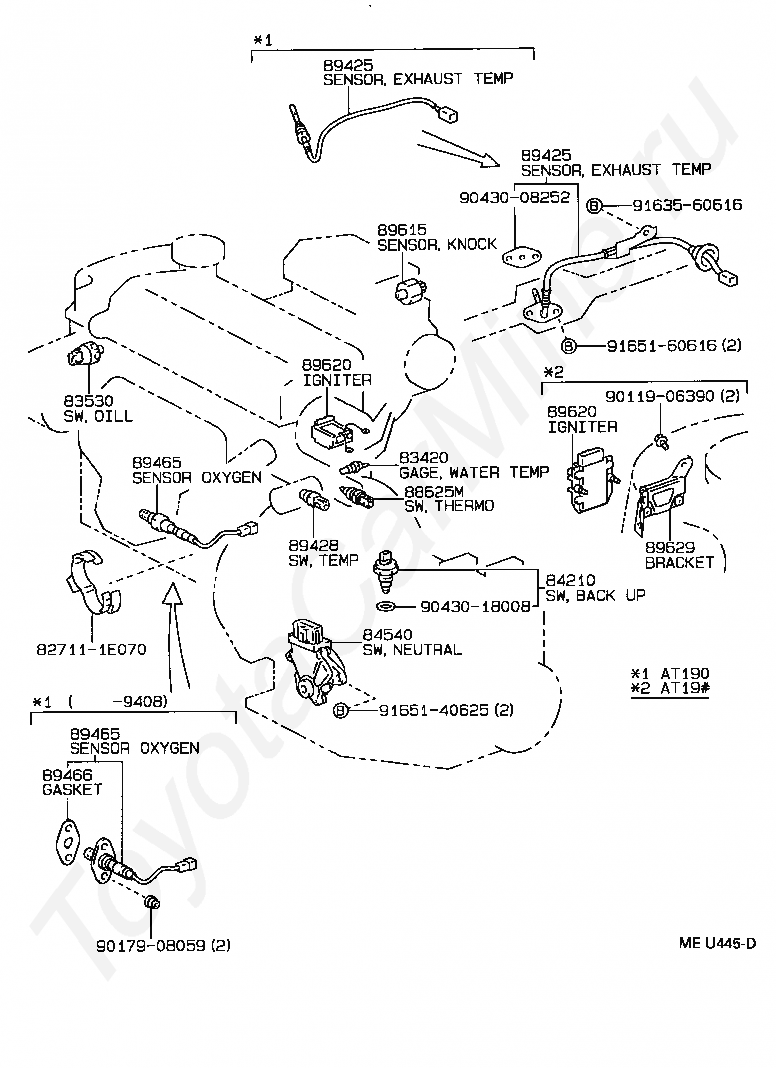

Код

Описание

827111E070

Крепеж

83420

GAGE ASSY, WATER TEMPERATURE SENDER

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

88625M

THERMISTOR, COOLER

89425

SENSOR, EXHAUST GAS TEMPERATURE

89425

SENSOR, EXHAUST GAS TEMPERATURE

89428

SWITCH, TEMPERATURE DETECT, NO.2

89465

SENSOR, OXYGEN

89465

SENSOR, OXYGEN

89466

GASKET, OXYGEN SENSOR

89615

SENSOR, KNOCK CONTROL

89620

IGNITER ASSY

89620

IGNITER ASSY

89629

BRACKET, IGNITER ASSY

9011906390

Крепеж

9017908059

Крепеж

9043008252

Крепеж

9043018008

Крепеж

9163560616

Крепеж

9165140625

Крепеж

9165160616

Крепеж

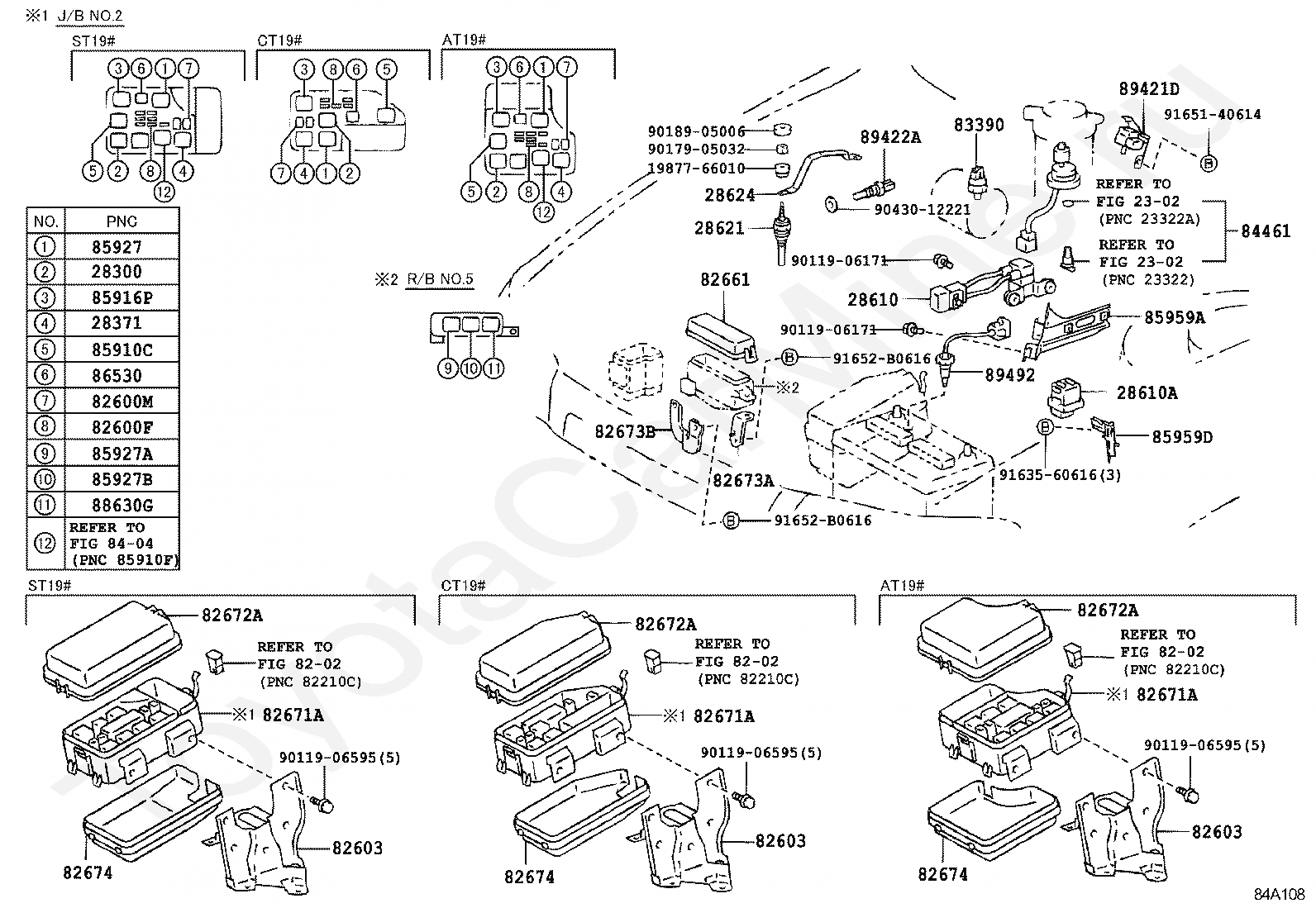

Код

Описание

1987766010

Крепеж

2302

переход к группе запчастей

2302

переход к группе запчастей

28300

RELAY ASSY, STARTER

28371

RELAY, IGNITION, NO.1

28610

RELAY ASSY, INTAKE HEATER OR GLOW PLUG

28610A

RELAY ASSY, GLOW PLUG(SUB)

28621

RESISTOR, GLOW PLUG

28624

PLATE, CURRENT SENSOR

8202

переход к группе запчастей

8202

переход к группе запчастей

8202

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600M

FUSE, MEDIUM CURRENT

82603

BRACKET SUB-ASSY, FUSIBLE LINK BLOCK

82603

BRACKET SUB-ASSY, FUSIBLE LINK BLOCK

82603

BRACKET SUB-ASSY, FUSIBLE LINK BLOCK

82661

COVER, RELAY BLOCK, NO.1

82671A

BLOCK, JUNCTION

82671A

BLOCK, JUNCTION

82671A

BLOCK, JUNCTION

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82674

COVER, JUNCTION BLOCK LOWER

82674

COVER, JUNCTION BLOCK LOWER

82674

COVER, JUNCTION BLOCK LOWER

83390

SWITCH ASSY, VACUUM WARNING

8404

переход к группе запчастей

84461

SWITCH, LEVEL WARNING

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85916P

RELAY, HEADLAMP

85927

RELAY, COOLING FAN

85927A

RELAY, COOLING FAN, NO.2

85927B

RELAY, COOLING FAN, NO.3

85959A

HOLDER, RELAY

85959D

HOLDER, RELAY

86530

RELAY ASSY, HORN

88630G

RELAY ASSY, COOLER

89421D

SENSOR, TURBO PRESSURE

89422A

SENSOR, WATER TEMPERATURE

89492

SENSOR, ELECTROLYTE LEVEL

9011906171

Крепеж

9011906171

Крепеж

9011906595

Крепеж

9011906595

Крепеж

9011906595

Крепеж

9017905032

Крепеж

9018905006

Крепеж

9043012221

Крепеж

9163560616

Крепеж

9165140614

Крепеж

91652B0616

Крепеж

91652B0616

Крепеж

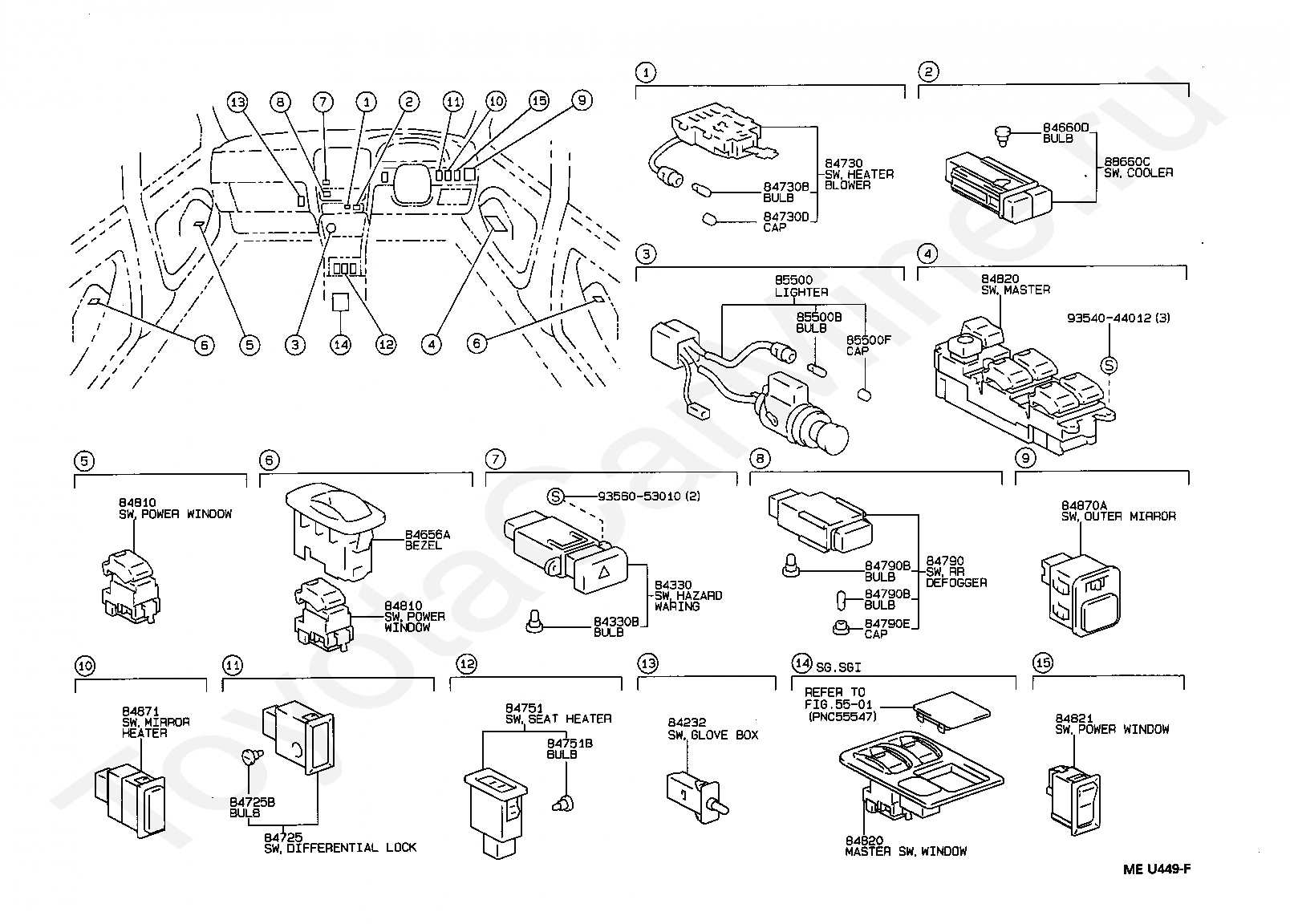

Код

Описание

5501

переход к группе запчастей

84232

SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX)

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84330B

BULB, HAZARD WARNING SIGNAL SWITCH

84656A

BEZEL, SWITCH

84660D

BULB(FOR COOLER SWITCH)

84725

SWITCH, CENTER DIFFERENTIAL LOCK

84725B

BLUB, DIFFERENTIAL LOCK SWITCH

84730

SWITCH ASSY, HEATER BLOWER

84730B

BULB, HEATER BLOWER SWITCH

84730D

CAP, HEATER BLOWER SWITCH BULB

84751

SWITCH, SEAT HEATER

84751B

BULB, SEAT HEATER SWITCH

84790

SWITCH ASSY, REAR WINDOW DEFOGGER

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84790B

BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84790E

CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84821

SWITCH, POWER WINDOW LOCK

84870A

SWITCH ASSY, OUTER MIRROR

84871

SWITCH ASSY, OUTER MIRROR HEATER

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

88660C

SWITCH ASSY, COOLER CONTROL

9354044012

Крепеж

9356053010

Крепеж

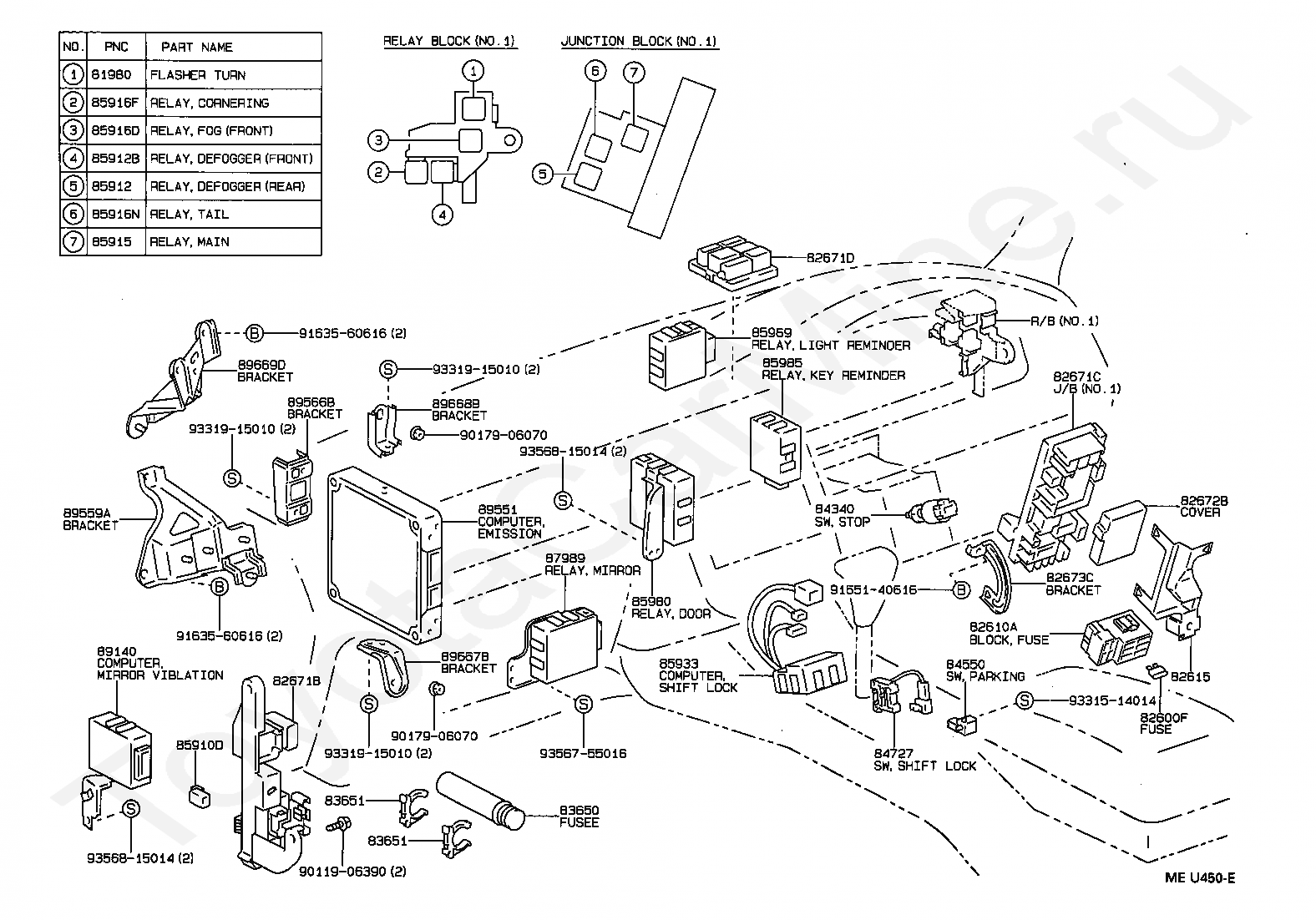

Код

Описание

81980

FLASHER ASSY, TURN SIGNAL

82600F

FUSE, FUSE BLOCK

82610A

BLOCK ASSY, FUSE

82615

BRACKET, FUSE

82671B

BLOCK, JUNCTION

82671C

BLOCK, JUNCTION

82671D

BLOCK, JUNCTION

82672B

COVER, JUNCTION BLOCK

82673C

BRACKET, JUNCTION BLOCK

83650

FUSEE

83651

CLAMP, FUSEE

83651

CLAMP, FUSEE

84340

SWITCH ASSY, STOP LAMP

84550

SWITCH ASSY, PARKING BRAKE

84727

SWITCH, SHIFT LOCK CONTROL

85910D

RELAY (FOR HEATER IDLE UP)

85912

RELAY, DEFOGGER

85912B

RELAY, DEFOGGER(FOR FRONT WINDOW)

85915

RELAY, MAIN

85916D

RELAY, FOG LAMP

85916F

RELAY, CORNERING LAMP

85916N

RELAY, TAIL LAMP

85933

COMPUTER, SHIFT LOCK CONTROL

85969

RELAY, LIGHT REMINDER

85980

RELAY ASSY, DOOR CONTROL

85985

RELAY, KEY REMINDER

87989

RELAY, MIRROR CONTROL

89140

COMPUTER,ASSY MIRROR VIBLATION CONTROL

89551

COMPUTER, EMISSION CONTROL

89559A

BRACKET, EMISSION CONTROL COMPUTER

89566B

BRACKET, ENGINE CONTROL COMPUTER, NO.4

89667B

BRACKET, ENGINE CONTROL COMPUTER, NO.1

89668B

BRACKET, ENGINE CONTROL COMPUTER, NO.2

89669D

BRACKET, ENGINE CONTROL COMPUTER, NO.3

9011906390

Крепеж

9017906070

Крепеж

9017906070

Крепеж

9163560616

Крепеж

9163560616

Крепеж

9165140616

Крепеж

9331514014

Крепеж

9331915010

Крепеж

9331915010

Крепеж

9331915010

Крепеж

9356755016

Крепеж

9356815014

Крепеж

9356815014

Крепеж

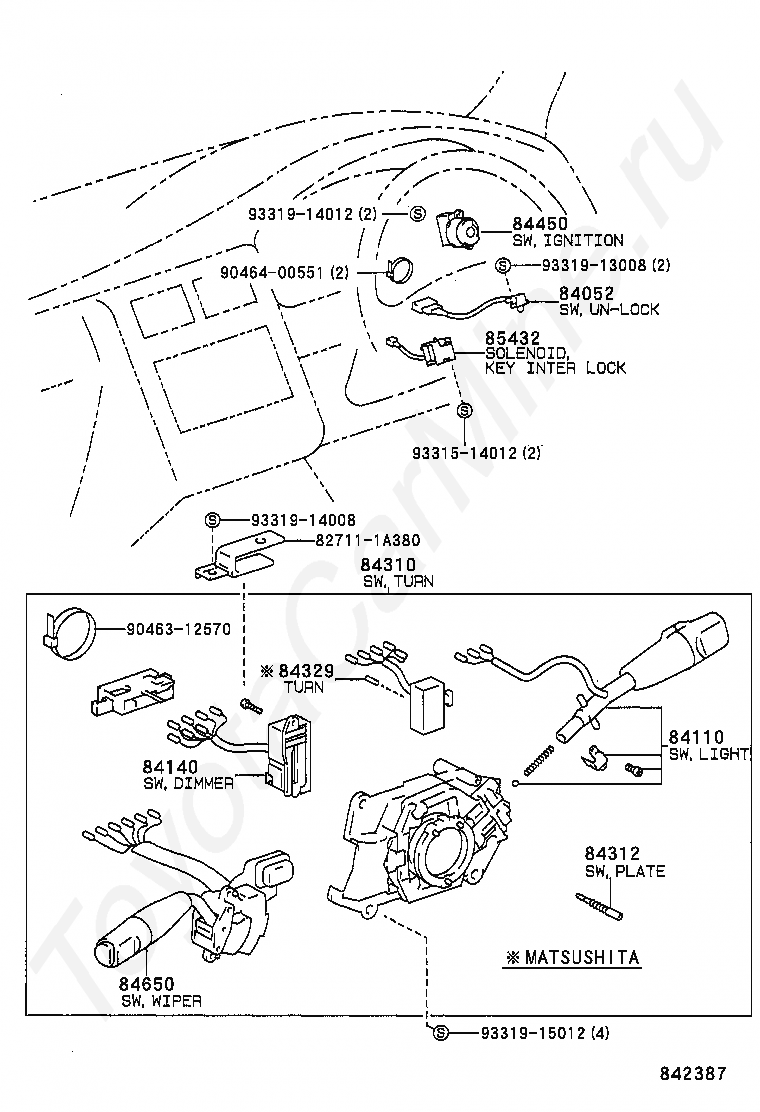

Код

Описание

827111A380

Крепеж

84052

SWITCH ASSY, UN-LOCK WARNING

84110

SWITCH ASSY, LIGHT CONTROL, NO.1

84140

SWITCH ASSY, HEADLAMP DIMMER

84310

SWITCH ASSY, TURN SIGNAL

84312

PLATE, HORN CONTACT

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

9046312570

Крепеж

9046400551

Крепеж

9331514012

Крепеж

9331913008

Крепеж

9331914008

Крепеж

9331914012

Крепеж

9331915012

Крепеж

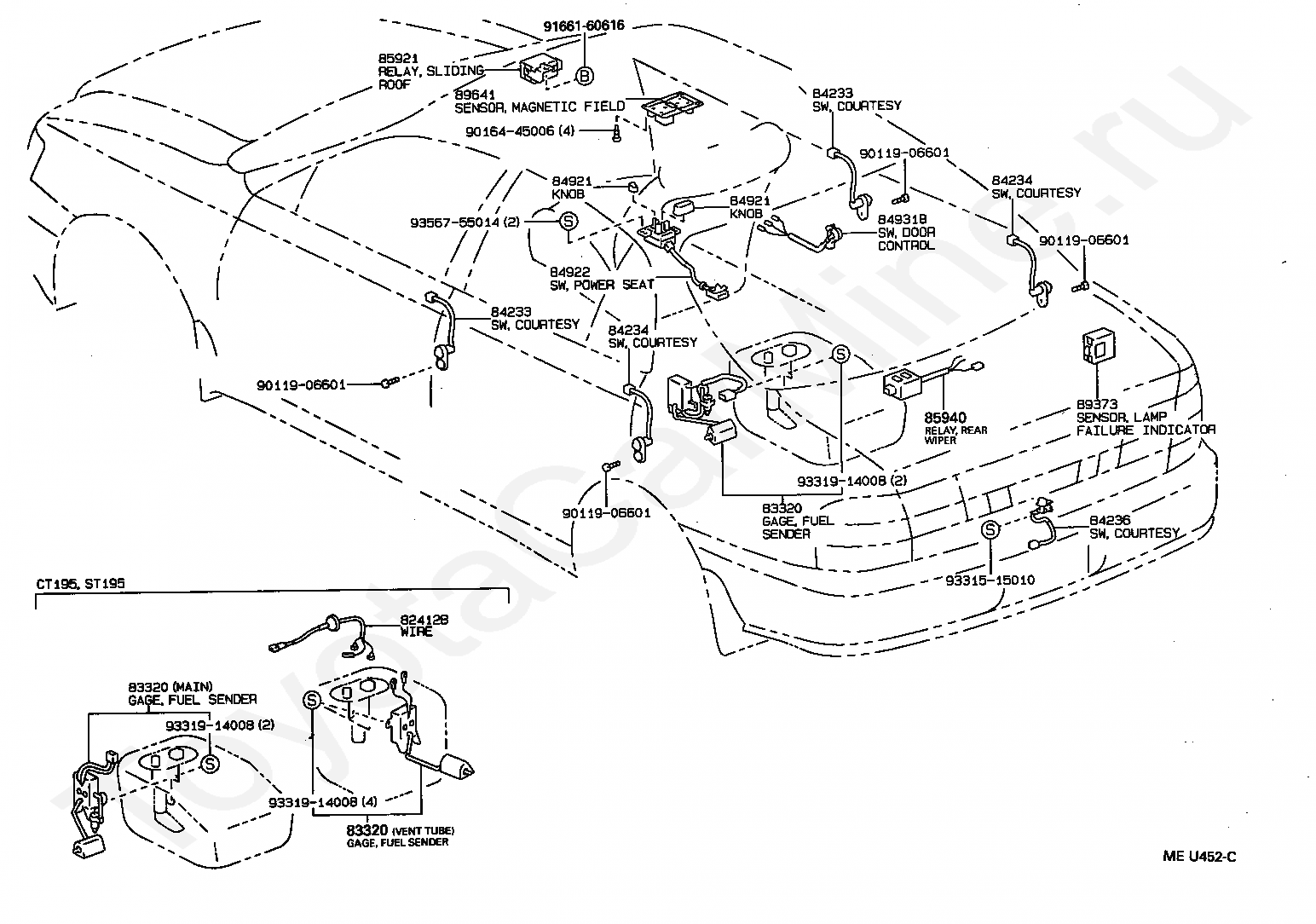

Код

Описание

82412B

WIRE, FUEL GAGE

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84236

SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)

84921

KNOB, POWER SEAT SWITCH

84921

KNOB, POWER SEAT SWITCH

84922

SWITCH, FRONT POWER SEAT

84931B

SWITCH, DOOR CONTROL

85921

RELAY, SLIDING ROOF CONTROL

85940

RELAY ASSY, WINDSHIELD WIPER

89373

SENSOR, LAMP FAILURE INDICATOR

89641

SENSOR, MAGNETIC FIELD

9011906601

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9011906601

Крепеж

9016445006

Крепеж

9166160616

Крепеж

9331515010

Крепеж

9331914008

Крепеж

9331914008

Крепеж

9331914008

Крепеж

9356755014

Крепеж
