Каталог

Япония

Модель

CARINA FF

VIN

Дата

1988/05

Двигатель

1,5 литра, 16 клапанов, DOHC

Кузов

фургон

Класс

SV SPECIFICATION

Фрейм

AT170

КПП

автомат АКПП, 4 ступени

Опции

STANDARD CARBURETOR SPECIFICATION

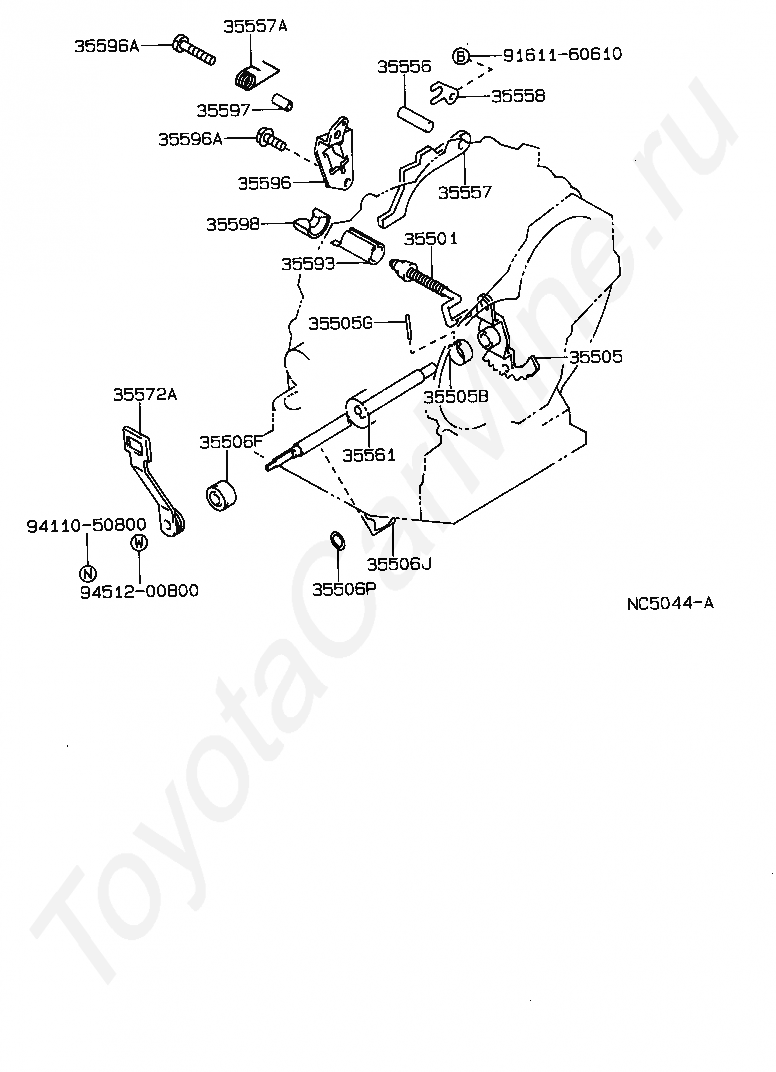

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA CARINA FF

Код

Описание

35501

ROD SUB-ASSY, PARKING LOCK

35505

LEVER SUB-ASSY, MANUAL VALVE

35505B

SPACER (FOR MANUAL VALVE LEVER)

35505G

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506J

SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

35506P

WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

35556

SHAFT, PARKING LOCK PAWL

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35558

CLAMP, PAWL SHAFT

35561

SHAFT, MANUAL VALVE LEVER

35572A

LEVER, TRANSMISSION CONTROL SHAFT

35593

SLEEVE, CAM GUIDE

35596

PLATE, PAWL STOPPER

35596A

BOLT (FOR PAWL STOPPER PLATE)

35596A

BOLT (FOR PAWL STOPPER PLATE)

35597

SLEEVE, SPRING GUIDE

35598

SLEEVE, PARKING LOCK

9161160610

Крепеж

9411050800

Крепеж

9451200800

Крепеж

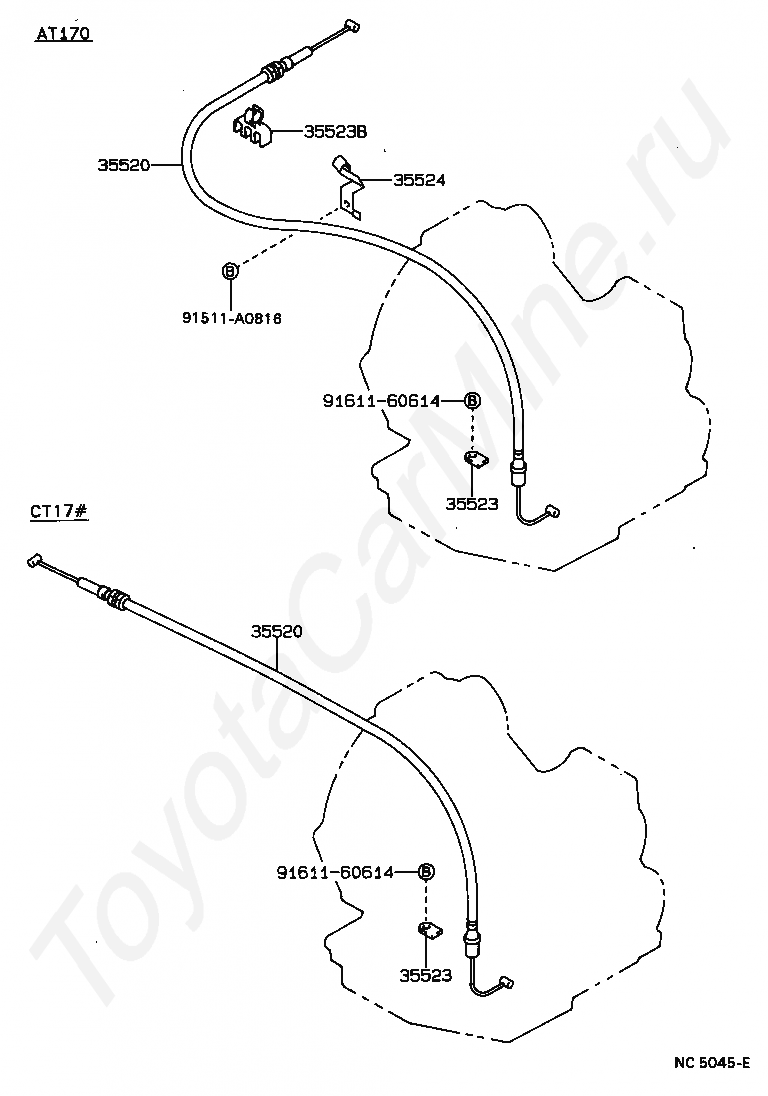

Код

Описание

35520

CABLE ASSY, THROTTLE

35520

CABLE ASSY, THROTTLE

35523

CLAMP, THROTTLE CABLE

35523

CLAMP, THROTTLE CABLE

35523B

CLAMP, THROTTLE CABLE, NO.3

35524

CLAMP, THROTTLE CABLE, NO.2

91511A0816

Крепеж

9161160614

Крепеж

9161160614

Крепеж
