Каталог

Европа

Модель

CARINA E SED/LB(JPP)

VIN

Дата

1992/02

Двигатель

1,6 литра, 16 клапанов, DOHC, EFI

Кузов

POUNDS

Класс

GL SPECIFICATION

Фрейм

AT190

КПП

автомат

Опции

JAPAN PRODUCT левый руль электронная система впрыска топлива

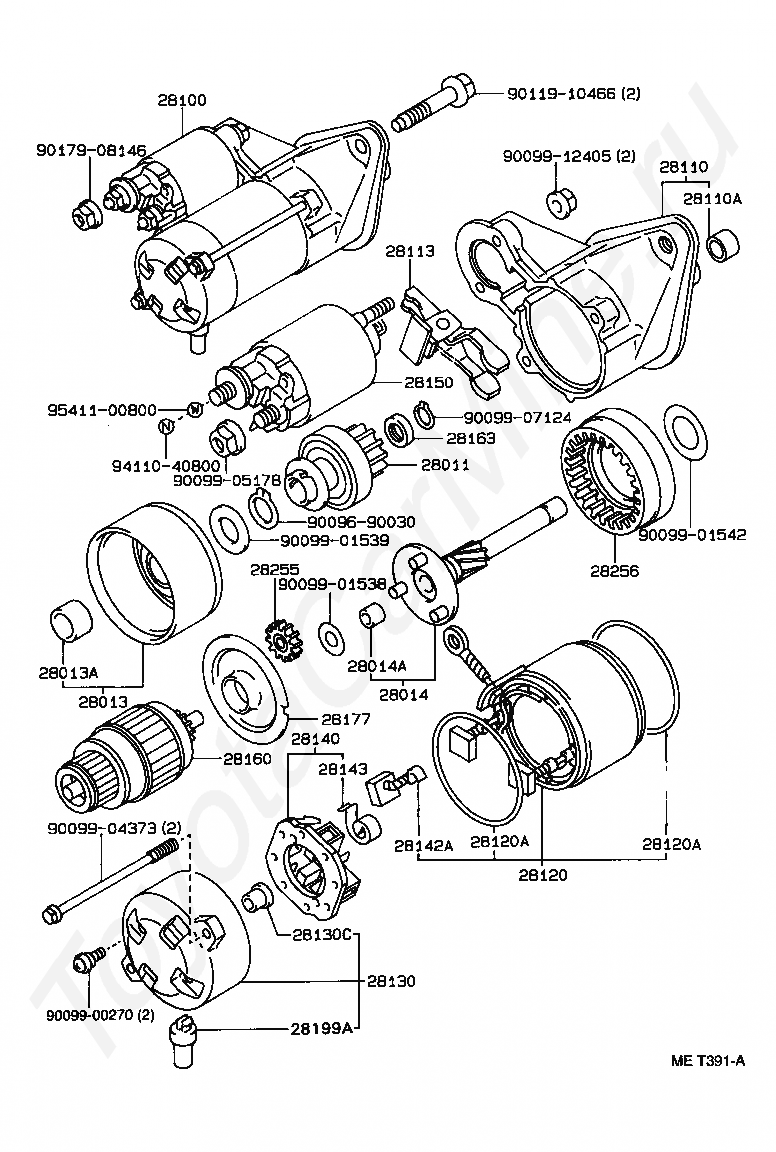

Стартер TOYOTA CARINA E SED/LB(JPP)

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28013

BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

28013A

BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

28014

SHAFT SUB-ASSY, PLANET CARRIER

28014A

BUSH OR BEARING, PLANET CARRIER SHAFT

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28110A

BEARING(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28120

YOKE ASSY, STARTER

28120A

RING, O(FOR STARTER YOKE)

28120A

RING, O(FOR STARTER YOKE)

28130

FRAME ASSY, STARTER COMMUTATOR END

28130C

BEARING, STARTER FLANGE

28140

HOLDER ASSY, STARTER BRUSH

28142A

STARTER KIT

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

28163

NUT OR COLLAR, PINION STOP, STARTER

28177

PLATE(FOR STARTER ARMATURE)

28199A

PROTECTOR, DUST STARTER

28255

GEAR, PLANET

28256

GEAR, STARTER INTERNAL

9009690030

Крепеж

9009900270

Крепеж

9009901538

Крепеж

9009901539

Крепеж

9009901542

Крепеж

9009904373

Крепеж

9009905178

Крепеж

9009907124

Крепеж

9009912405

Крепеж

9011910466

Крепеж

9017908146

Крепеж

9411040800

Крепеж

9541100800

Крепеж

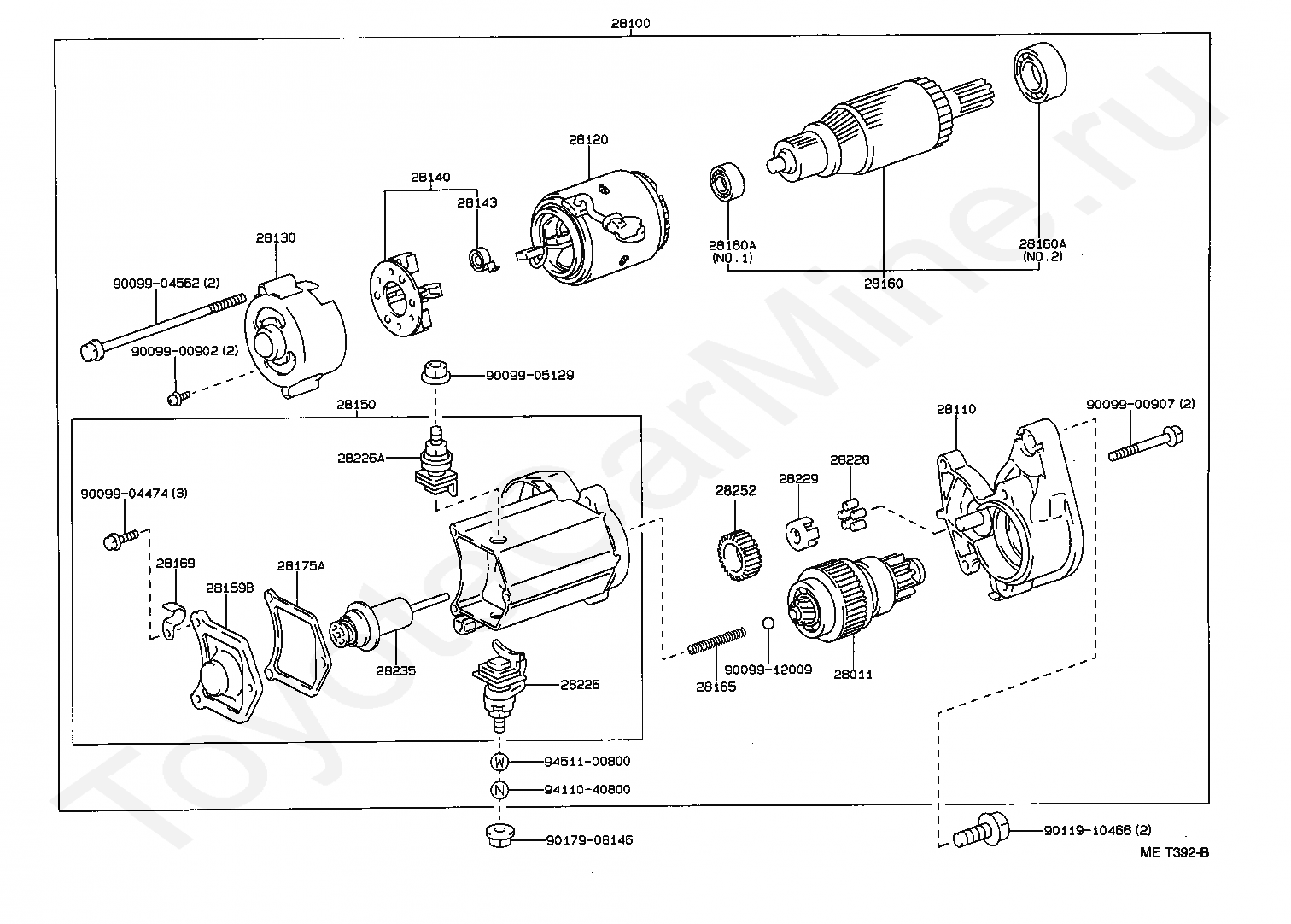

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28159B

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

28169

CLAMP, STARTER MOTOR LEAD WIRE

28175A

GASKET, MAGNET SWITCH COVER

28226

STARTER KIT, BATTERY TERMINAL

28226A

STARTER KIT, MOTOR TERMINAL

28228

ROLLER, STARTER IDLE GEAR CLUTCH

28229

RETAINER, STARTER IDLE GEAR

28235

PLUNGER, MAGNET SWITCH

28252

GEAR, STARTER IDLE

9009900902

Крепеж

9009900907

Крепеж

9009904474

Крепеж

9009904562

Крепеж

9009905129

Крепеж

9009912009

Крепеж

9011910466

Крепеж

9017908146

Крепеж

9411040800

Крепеж

9451100800

Крепеж

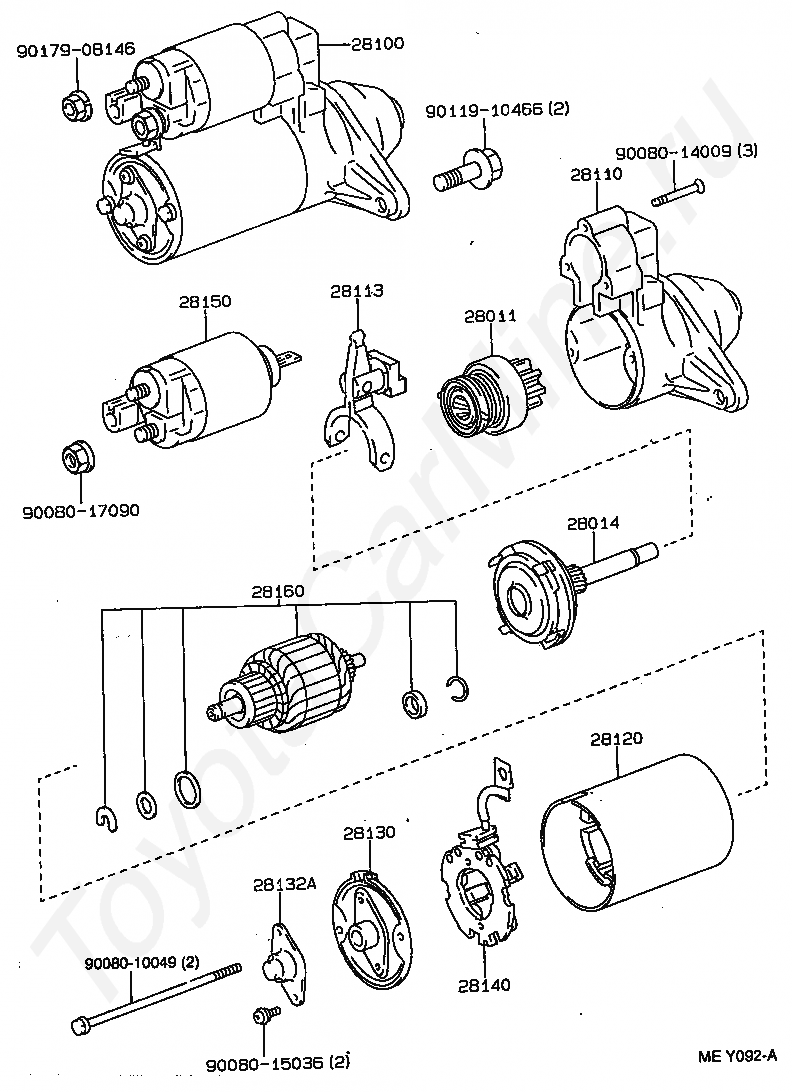

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28014

SHAFT SUB-ASSY, PLANET CARRIER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28113

LEVER, STARTER PINION DRIVE

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28132A

COVER, STARTER COMMUTATOR END FRAME

28140

HOLDER ASSY, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

9008010049

Крепеж

9008014009

Крепеж

9008015036

Крепеж

9008017090

Крепеж

9011910466

Крепеж

9017908146

Крепеж
