Каталог

Европа

Модель

CARINA 2

VIN

Дата

1987/12

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

GL SPECIFICATION

Фрейм

ST171

КПП

механика МКПП, 5 скоростей

Опции

левый руль GRAMS электронная система впрыска топлива

Радиатор и шланги TOYOTA CARINA 2







Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16268F

RING, O(FOR WATER BY-PASS PIPE)

16321

INLET, WATER

16325

GASKET, WATER INLET HOUSING, NO.1

16331

OUTLET, WATER

16331A

THERMOSTAT

16331B

PLUG(FOR WATER OUTLET)

16341

GASKET, WATER OUTLET

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16470

TANK ASSY, RADIATOR RESERVE

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470C

BRACKET(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16471

CAP SUB-ASSY, RESERVE TANK

16472

HOSE, BREATHER

16472

HOSE, BREATHER

16533

SUPPORT, RADIATOR, UPPER

16535

SUPPORT, RADIATOR, LOWER

16546

PROTECTOR, RADIATOR

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16701

SHROUD SUB-ASSY, FAN

9009900183

Крепеж

9009905164

Крепеж

9011908938

Крепеж

9011908938

Крепеж

9017906007

Крепеж

9017906045

Крепеж

9017906226

Крепеж

9017908044

Крепеж

9017908135

Крепеж

9046400290

Крепеж

9161160814

Крепеж

9161160814

Крепеж

9165140612

Крепеж

9165140616

Крепеж

9165140816

Крепеж

9165160612

Крепеж

9165160820

Крепеж

9212260822

Крепеж

9212260825

Крепеж

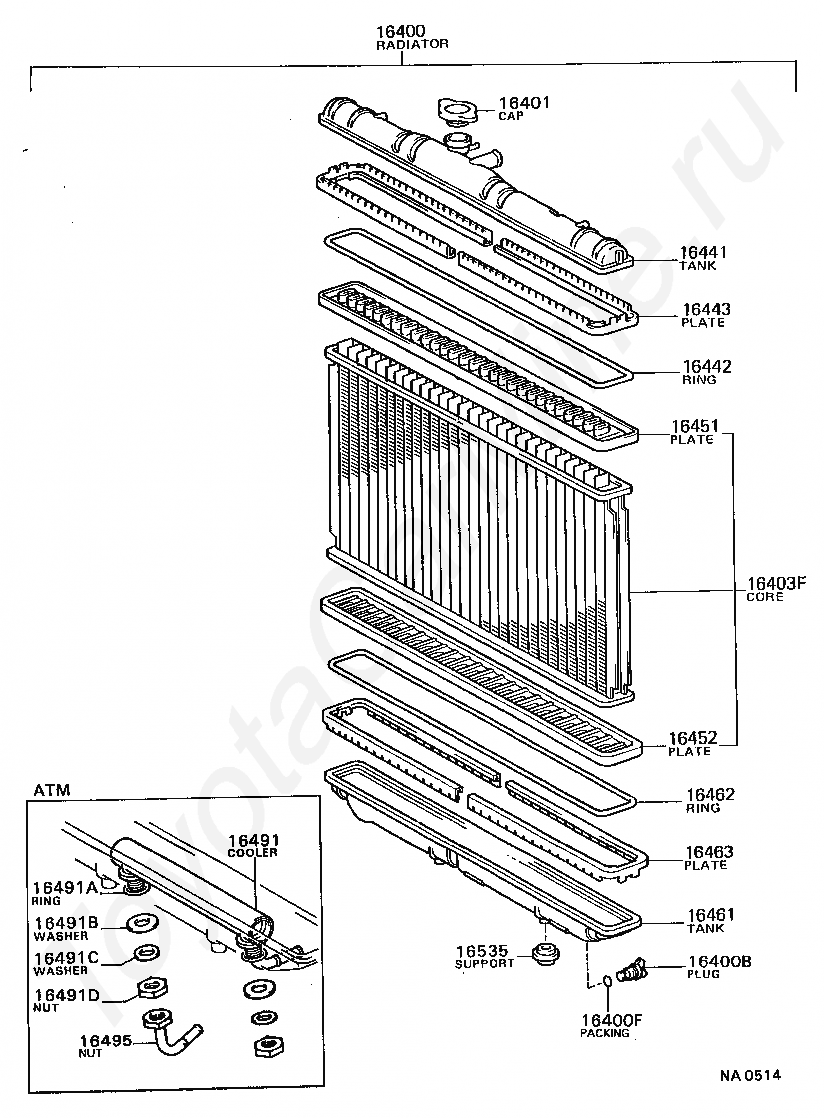

Код

Описание

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16443

PLATE, RADIATOR TANK, LOCK, UPPER

16451

PLATE, RADIATOR CORE, UPPER

16452

PLATE, RADIATOR CORE, LOWER

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)

16463

PLATE, RADIATOR TANK, LOCK, LOWER

16491

COOLER, OIL(FOR ATM)

16491A

RING, O(FOR ATM OIL COOLER)

16491B

WASHER, PLATE(FOR ATM OIL COOLER)

16491C

WASHER, SPRING(FOR ATM OIL COOLER)

16491D

NUT(FOR ATM OIL COOLER)

16495

NUT, FLARE(FOR ATM OIL COOLER)

16535

SUPPORT, RADIATOR, LOWER
