Ходовые запчасти

Каталог

Ближний Восток

Модель

CARINA

VIN

Дата

1980/03

Двигатель

1,6 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

TA40

КПП

механика МКПП, 5 скоростей

Опции

левый руль 4 двери 4 двери Европа Европа

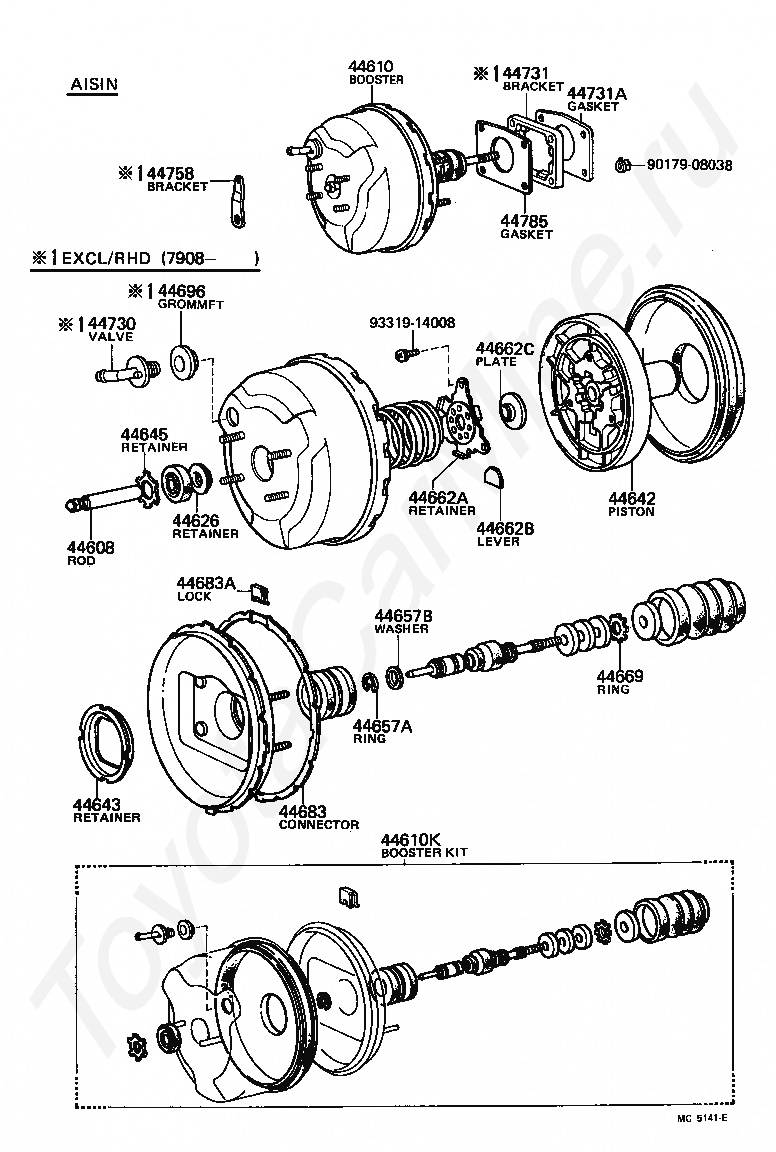

Вакуумный тормозной цилиндр TOYOTA CARINA

Код

Описание

44608

PUSH ROD SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44610K

BOOSTER KIT, BRAKE

44626

RETAINER, BOOSTER ROD CUP

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44657A

RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

44657B

WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

44662A

RETAINER, REACTION, NO.2

44662B

LEVER, REACTION

44662C

PLATE, REACTION, NO.1

44669

RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

44683

CONNECTOR, BOOSTER BODY

44683A

LOCK, CONNECTOR

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

9331914008

Крепеж

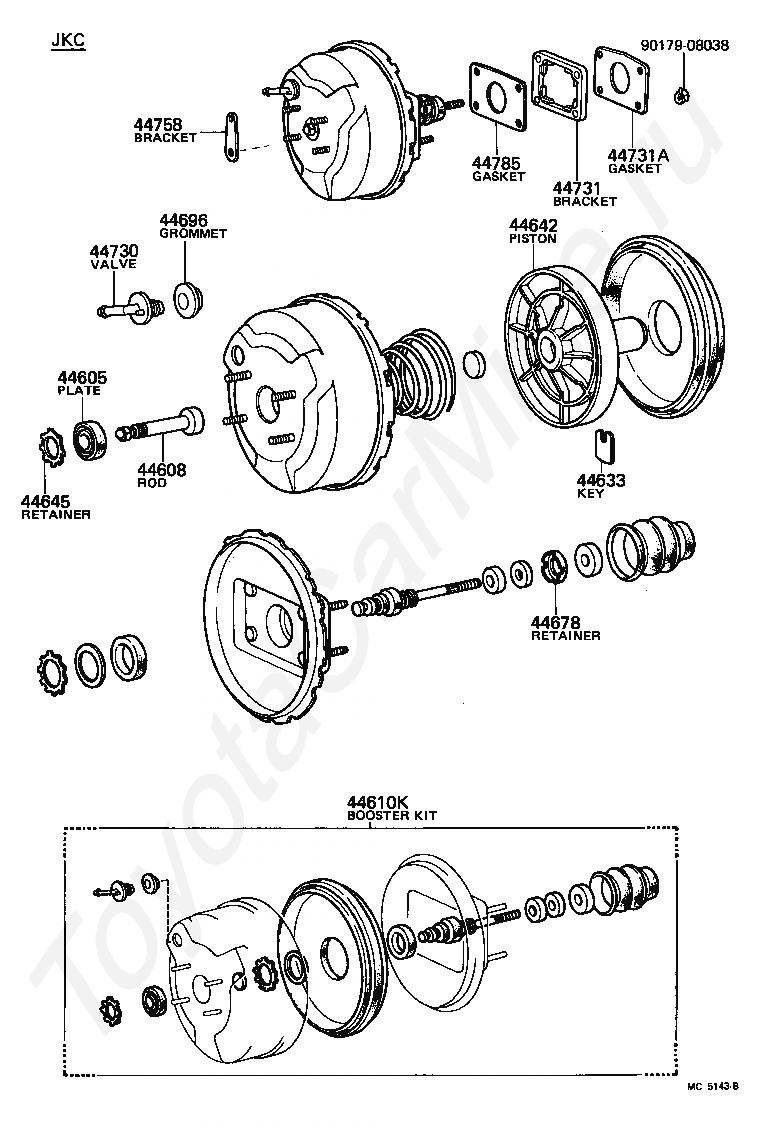

Код

Описание

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44610K

BOOSTER KIT, BRAKE

44633

KEY, BOOSTER VALVE PLUNGER

44642

PISTON, BRAKE BOOSTER

44645

RETAINER, BOOSTER PUSH ROD SEAL

44678

RETAINER, BOOSTER AIR CLEANER

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44731

BRACKET, BRAKE BOOSTER, FRONT

44731A

GASKET, BRAKE BOOSTER BRACKET

44758

BRACKET, VACUUM CHECK VALVE

44785

GASKET, BRAKE BOOSTER

9017908038

Крепеж

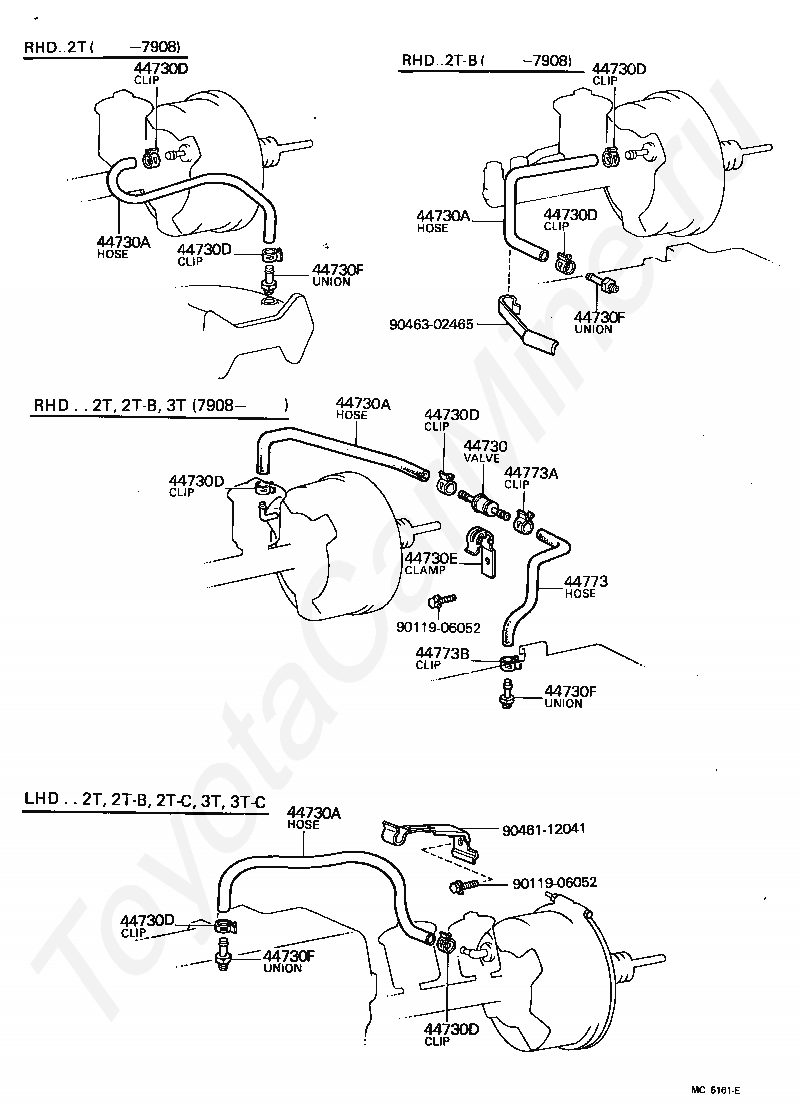

Код

Описание

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730A

HOSE, VACUUM, NO.1

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730D

CLIP(FOR VACUUM HOSE, NO.1)

44730E

CLAMP, VACUUM CHECK VALVE

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44773

HOSE, VACUUM, NO.2

44773A

CLIP, NO.1(FOR VACUUM HOSE, NO.2)

44773B

CLIP, NO.2(FOR VACUUM HOSE, NO.2)

9011906052

Крепеж

9011906052

Крепеж

9046112041

Крепеж

9046302465

Крепеж
