Ближний Восток

Модель

CARINA

VIN

Дата

1980/03

Двигатель

1,6 литра

Кузов

седан

Класс

DELUX SPECIFICATION

Фрейм

TA40

КПП

механика МКПП, 5 скоростей

Опции

левый руль 4 двери 4 двери Европа Европа

Стартер TOYOTA CARINA

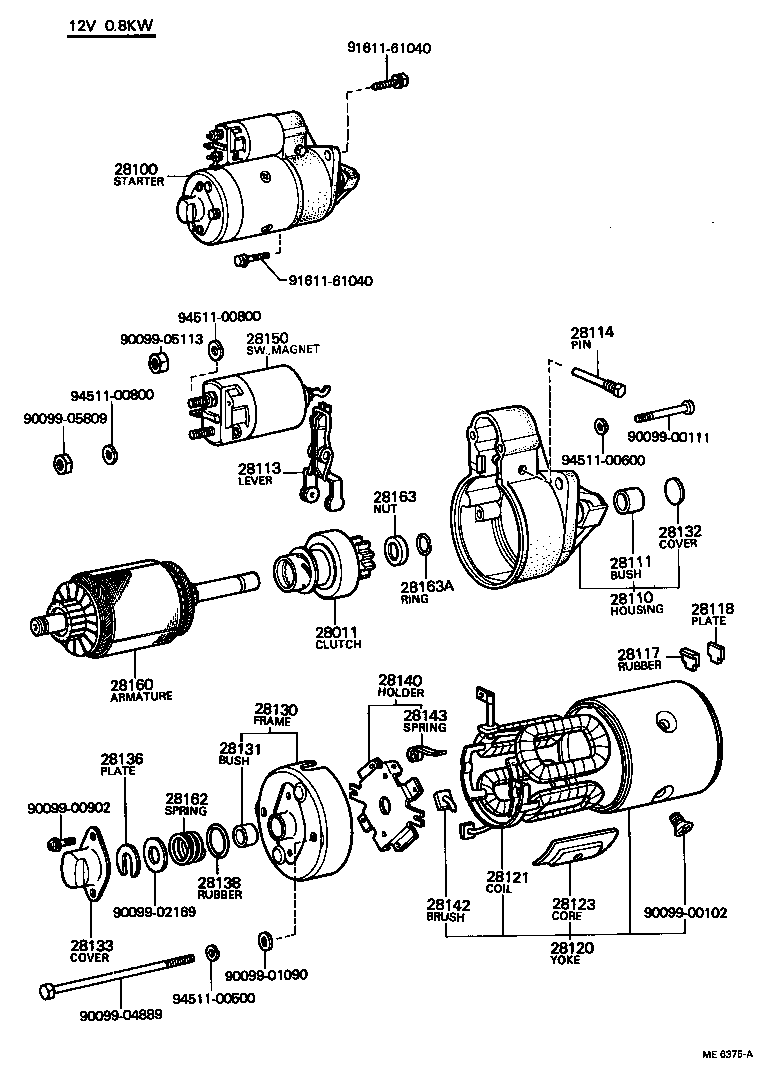

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28111

BUSH(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28114

PIN, STARTER DRIVE LEVER SET

28117

RUBBER(FOR STARTER YOKE)

28118

PLATE(FOR STARTER YOKE)

28120

YOKE ASSY, STARTER

28121

COIL, STARTER FIELD

28123

CORE, STARTER POLE

28130

FRAME ASSY, STARTER COMMUTATOR END

28131

BUSH, COMMUTATOR END FRAME

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

28140

HOLDER ASSY, STARTER BRUSH

28142

BRUSH, STARTER

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

28163A

RING, SNAP(FOR STARTER PINION STOP NUT)

9009900102

Крепеж

9009900111

Крепеж

9009900902

Крепеж

9009901090

Крепеж

9009902169

Крепеж

9009904889

Крепеж

9009905113

Крепеж

9009905809

Крепеж

9161161040

Крепеж

9161161040

Крепеж

9451100500

Крепеж

9451100600

Крепеж

9451100800

Крепеж

9451100800

Крепеж

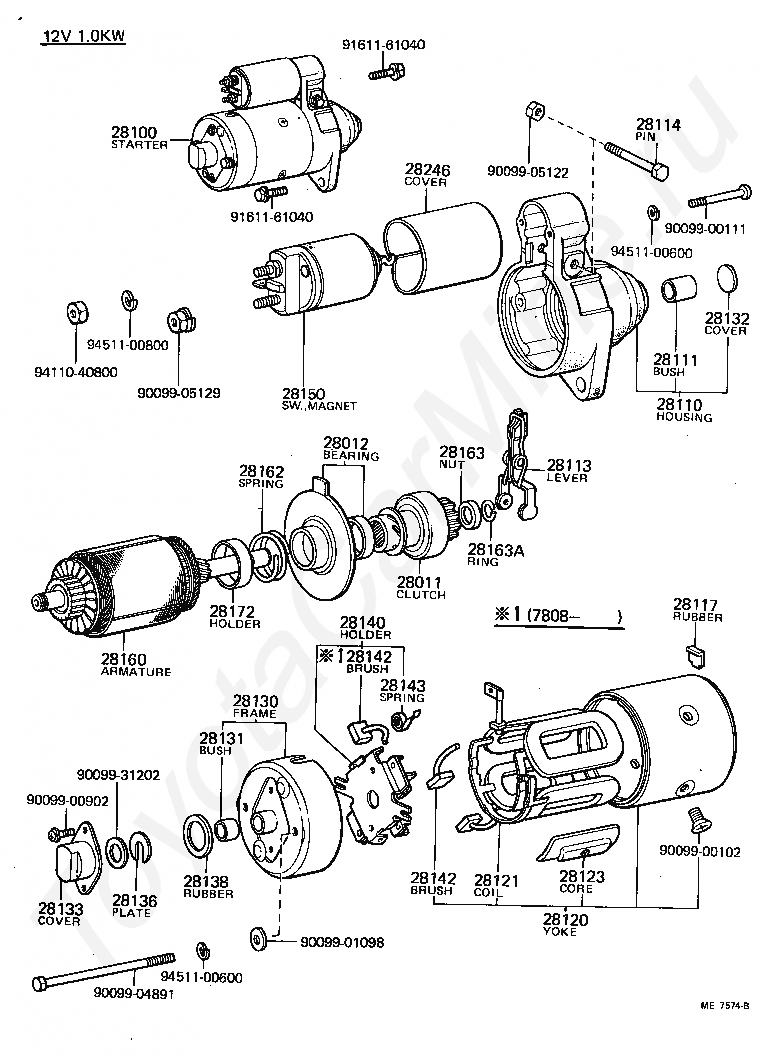

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28012

BEARING SUB-ASSY, CENTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28111

BUSH(FOR STARTER HOUSING)

28113

LEVER, STARTER PINION DRIVE

28114

PIN, STARTER DRIVE LEVER SET

28117

RUBBER(FOR STARTER YOKE)

28120

YOKE ASSY, STARTER

28121

COIL, STARTER FIELD

28123

CORE, STARTER POLE

28130

FRAME ASSY, STARTER COMMUTATOR END

28131

BUSH, COMMUTATOR END FRAME

28132

COVER, STARTER BEARING(FOR DRIVE HOUSING)

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

28140

HOLDER ASSY, STARTER BRUSH

28142

BRUSH, STARTER

28142

BRUSH, STARTER

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

28163A

RING, SNAP(FOR STARTER PINION STOP NUT)

28172

HOLDER, STARTER SPRING

28246

COVER, MAGNET SWITCH

9009900102

Крепеж

9009900111

Крепеж

9009900902

Крепеж

9009901098

Крепеж

9009904891

Крепеж

9009905122

Крепеж

9009905129

Крепеж

9009931202

Крепеж

9161161040

Крепеж

9161161040

Крепеж

9411040800

Крепеж

9451100600

Крепеж

9451100600

Крепеж

9451100800

Крепеж

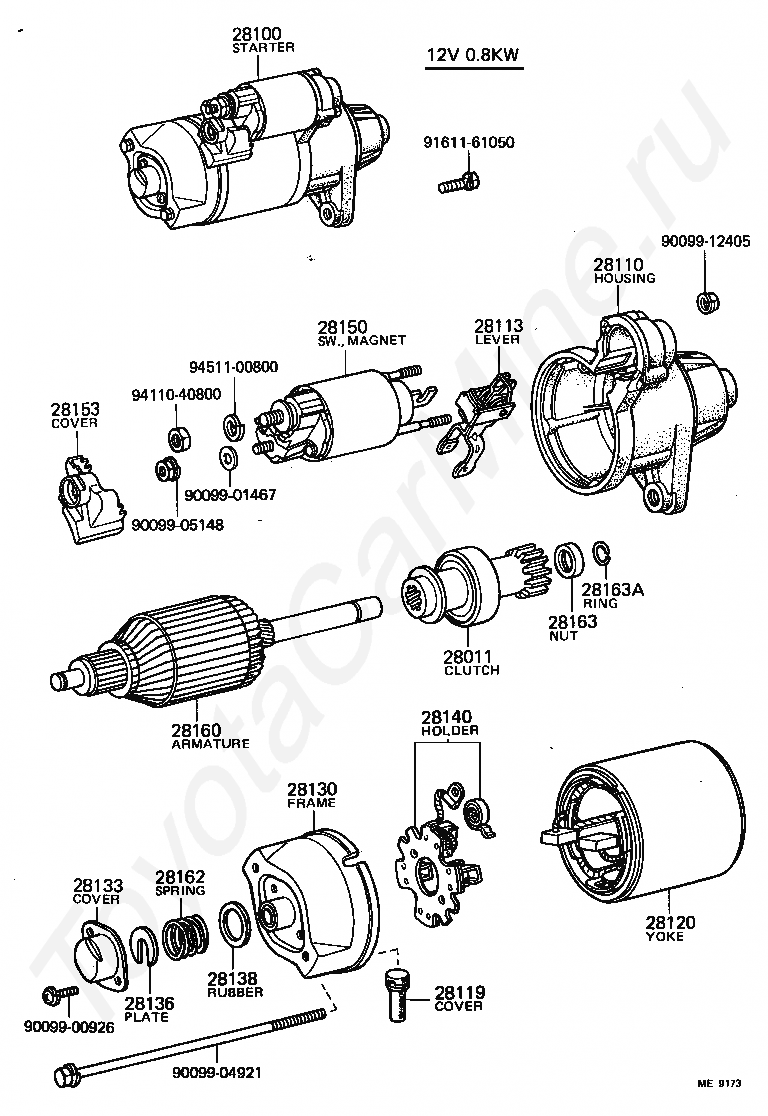

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28113

LEVER, STARTER PINION DRIVE

28119

COVER, STARTER END FRAME

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28133

COVER, BEARING(FOR END FRAME)

28136

PLATE, STARTER LOCK

28138

RUBBER(FOR STARTER BEARING COVER)

28140

HOLDER ASSY, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28153

COVER, MAGNET SWITCH

28160

ARMATURE ASSY, STARTER

28162

SPRING, STARTER BRAKE

28163

NUT OR COLLAR, PINION STOP, STARTER

28163A

RING, SNAP(FOR STARTER PINION STOP NUT)

9009900926

Крепеж

9009901467

Крепеж

9009904921

Крепеж

9009905148

Крепеж

9009912405

Крепеж

9161161050

Крепеж

9411040800

Крепеж

9451100800

Крепеж

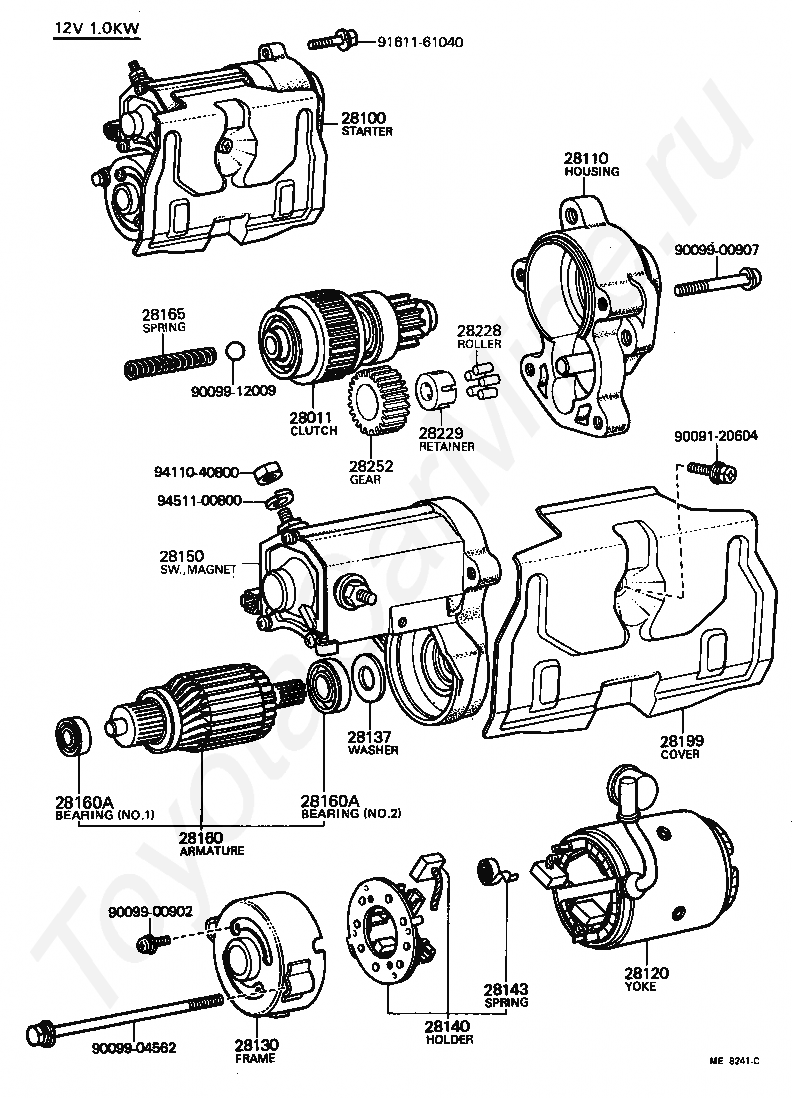

Код

Описание

28011

CLUTCH SUB-ASSY, STARTER

28100

STARTER ASSY

28110

HOUSING ASSY, STARTER DRIVE

28120

YOKE ASSY, STARTER

28130

FRAME ASSY, STARTER COMMUTATOR END

28137

WASHER, FELT, STARTER

28140

HOLDER ASSY, STARTER BRUSH

28143

SPRING, STARTER BRUSH

28150

SWITCH ASSY, MAGNET STARTER

28160

ARMATURE ASSY, STARTER

28160A

BEARING, STARTER ARMATURE

28160A

BEARING, STARTER ARMATURE

28165

SPRING, STARTER MAGNET SWITCH RETURN

28199

COVER, STARTER

28228

ROLLER, STARTER IDLE GEAR CLUTCH

28229

RETAINER, STARTER IDLE GEAR

28252

GEAR, STARTER IDLE

9000900902

Крепеж

9009120604

Крепеж

9009900907

Крепеж

9009904562

Крепеж

9009912009

Крепеж

9161161040

Крепеж

9411040800

Крепеж

9451100800

Крепеж

Стартер TOYOTA CARINA
