Ходовые запчасти

Каталог

Ближний Восток

Модель

CARINA

VIN

Дата

1970/12

Двигатель

1,6 литра

Кузов

4 двери

Класс

STANDARD TYPE

Фрейм

TA12

КПП

автомат АКПП, 3 ступени

Опции

седан левый руль 4 двери

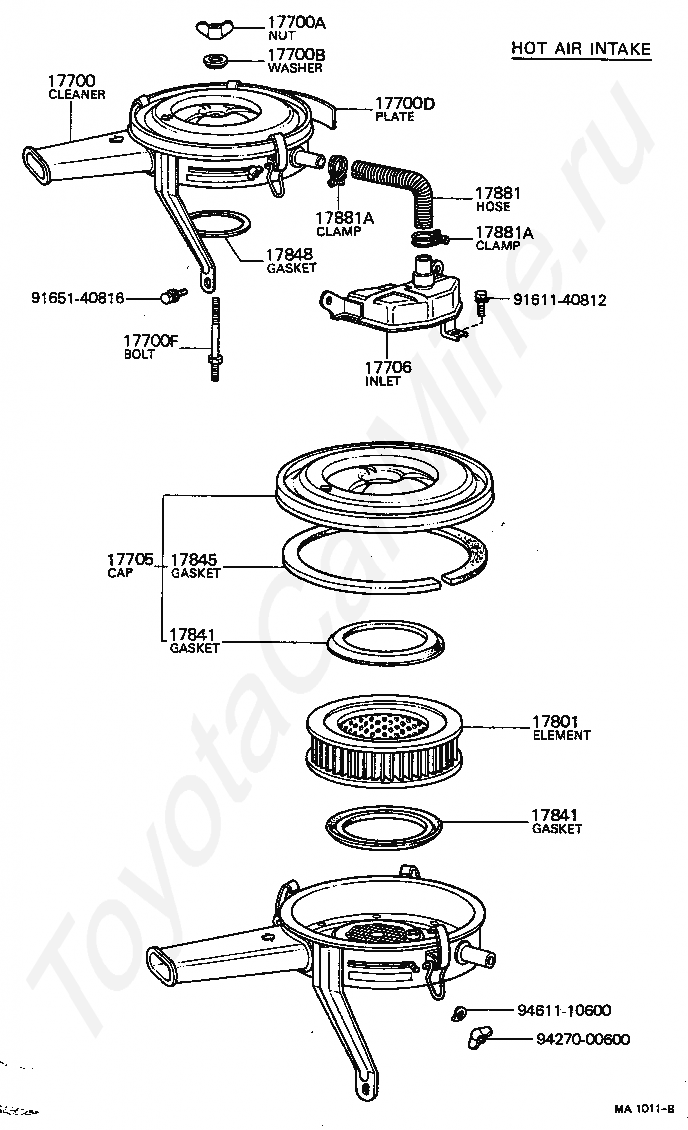

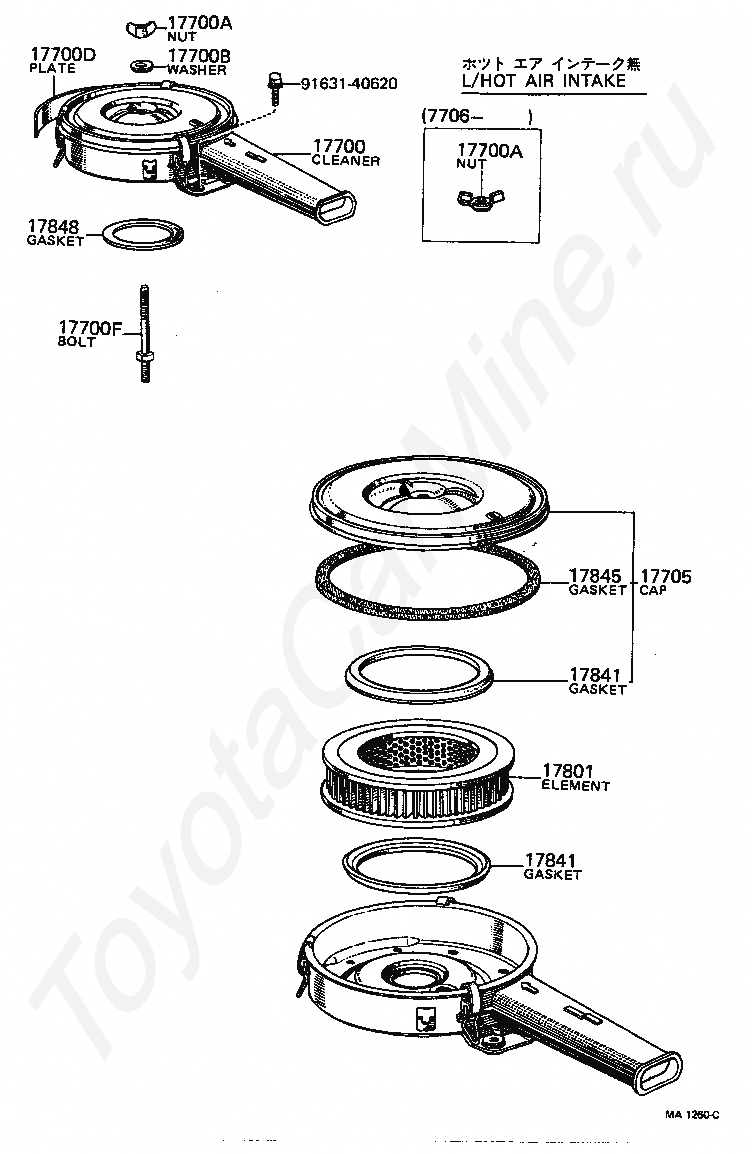

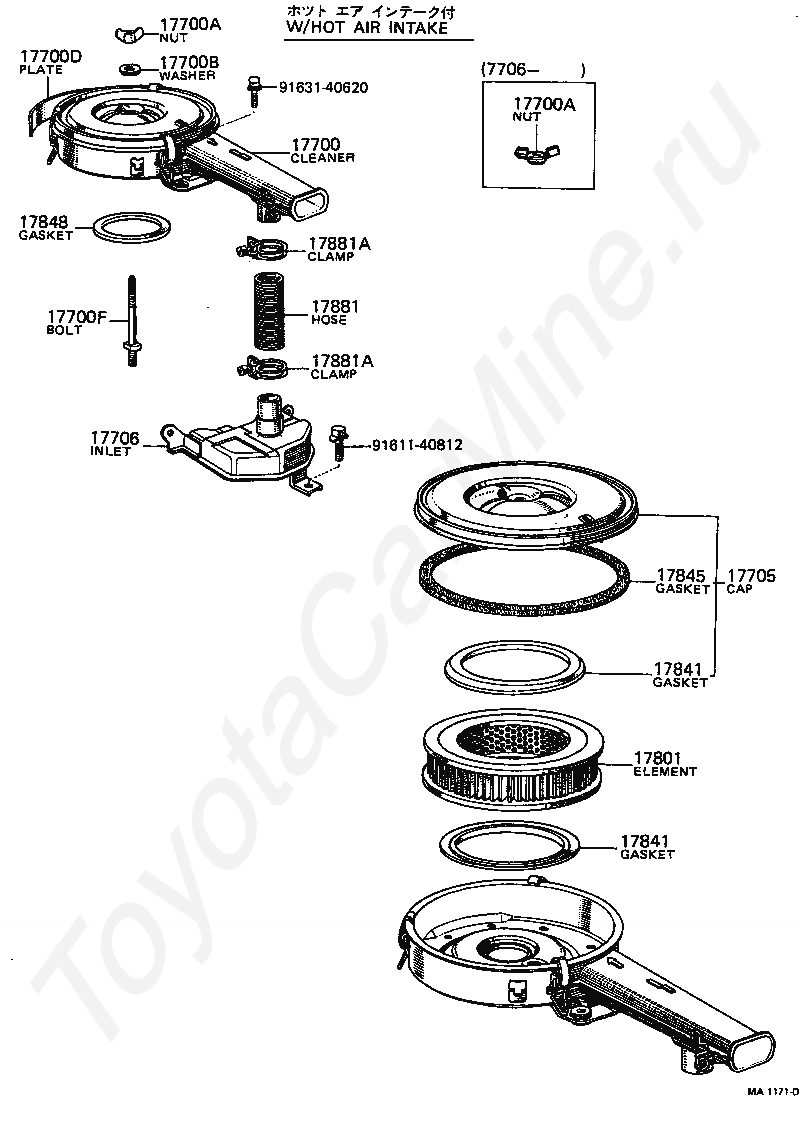

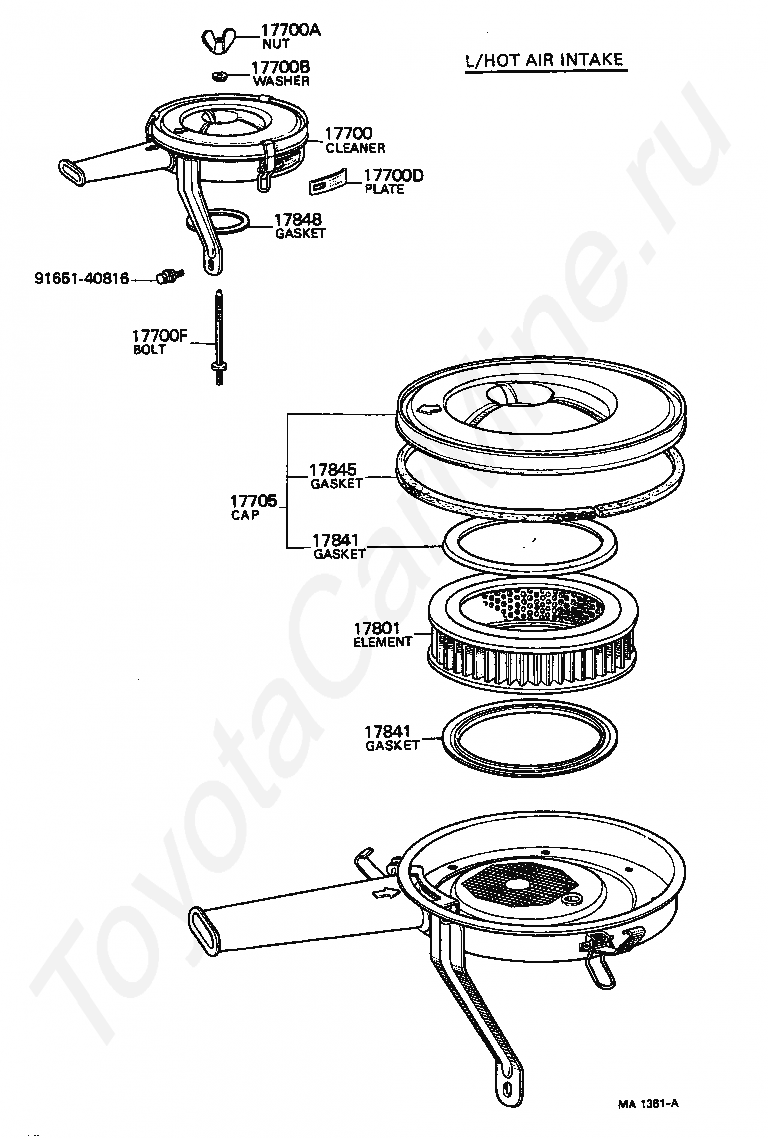

Воздушный фильтр TOYOTA CARINA

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700D

PLATE, ENGINE CAUTION

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9165140816

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700D

PLATE, ENGINE CAUTION

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17706

INLET SUB-ASSY, AIR CLEANER, NO.2

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

9161140812

Крепеж

9165140816

Крепеж

9427000600

Крепеж

9461110600

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700D

PLATE, ENGINE CAUTION

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

9163140620

Крепеж

Код

Описание

17700

CLEANER ASSY, AIR

17700A

NUT, WING(FOR AIR CLEANER)

17700A

NUT, WING(FOR AIR CLEANER)

17700B

WASHER, SEAL(FOR AIR CLEANER)

17700D

PLATE, ENGINE CAUTION

17700F

BOLT, STUD(FOR AIR CLEANER SETTING)

17705

CAP SUB-ASSY, AIR CLEANER

17706

INLET SUB-ASSY, AIR CLEANER, NO.2

17801

ELEMENT SUB-ASSY, AIR CLEANER FILTER

17841

GASKET, FILTER ELEMENT

17841

GASKET, FILTER ELEMENT

17845

GASKET, AIR CLEANER CAP

17848

GASKET, AIR CLEANER TO CARBURETOR

17881

HOSE, AIR CLEANER, NO.1

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

17881A

CLAMP(FOR AIR CLEANER HOSE, NO.1)

9161140812

Крепеж

9163140620

Крепеж
