Ходовые запчасти

Каталог

Ближний Восток

Модель

CARINA

VIN

Дата

1970/12

Двигатель

1,6 литра

Кузов

4 двери

Класс

STANDARD TYPE

Фрейм

TA12

КПП

автомат АКПП, 3 ступени

Опции

седан левый руль 4 двери

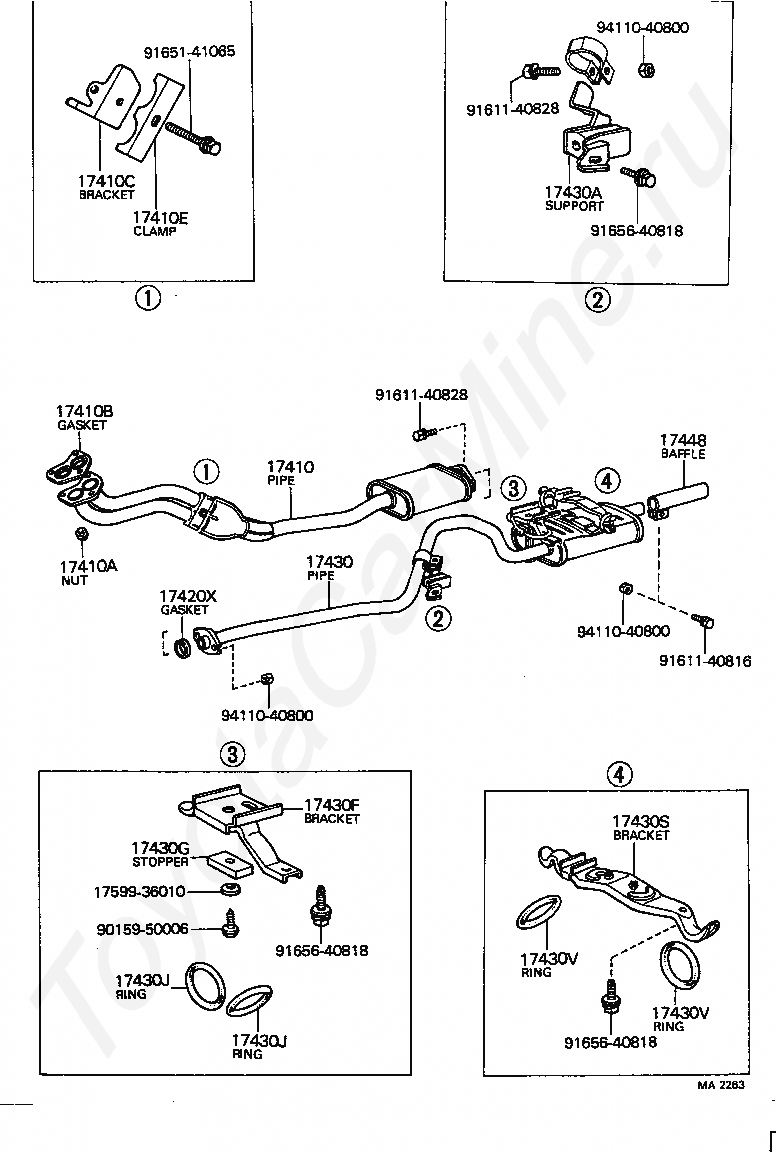

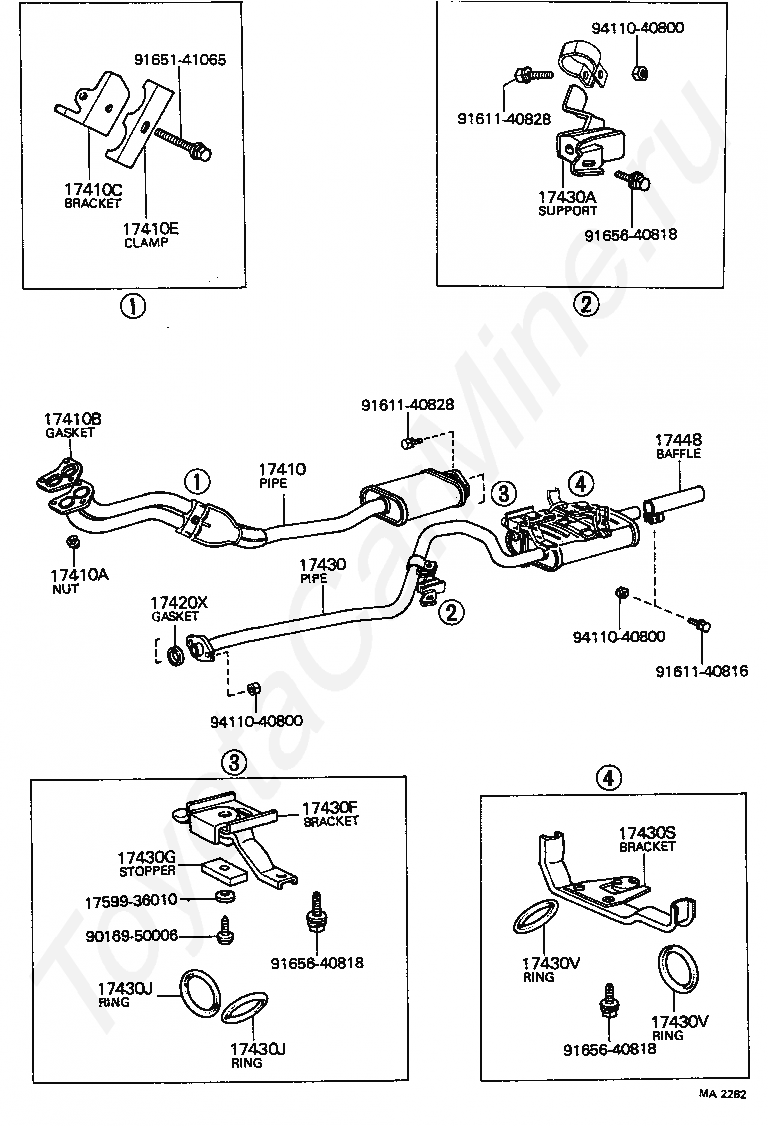

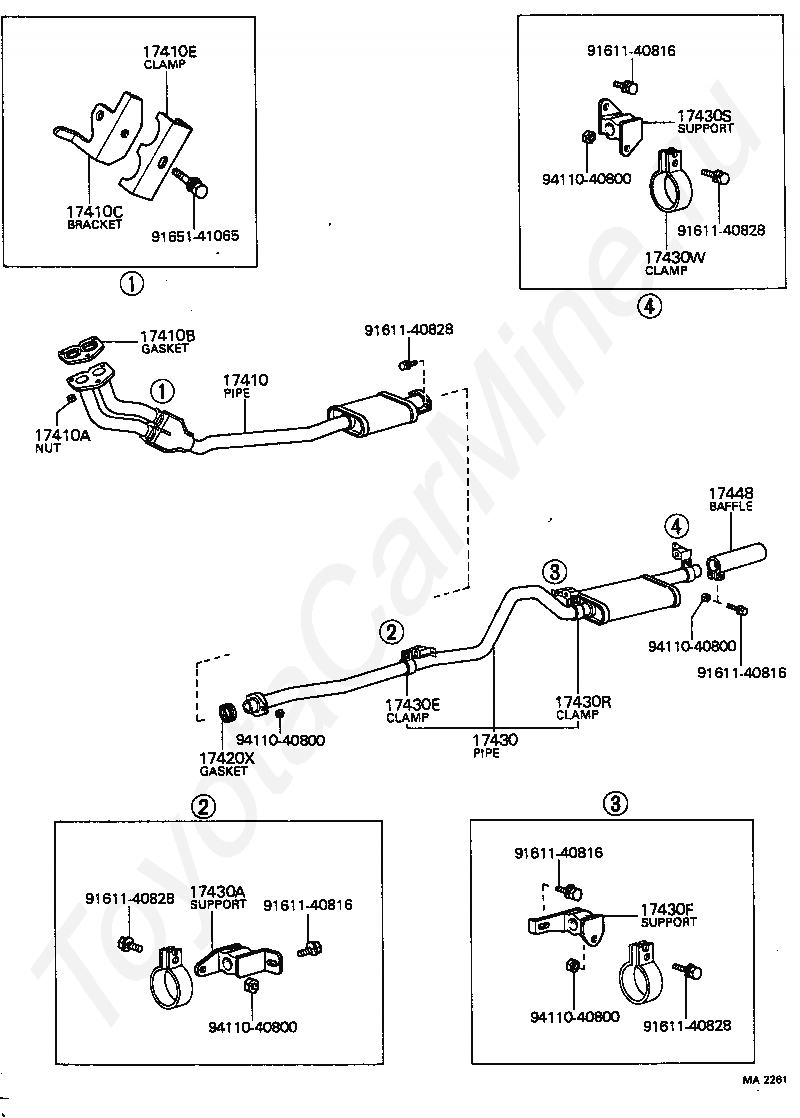

Глушитель TOYOTA CARINA

Код

Описание

17410

PIPE ASSY, EXHAUST, FRONT

17410A

NUT, EXHAUST PIPE SET STUD BOLT

17410B

GASKET, EXHAUST PIPE

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410E

CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

17420X

GASKET, EXHAUST PIPE, CENTER

17430

PIPE ASSY, EXHAUST, TAIL

17430A

BRACKET, EXHAUST TAIL PIPE(FOR FRONT)

17430E

CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)

17430F

BRACKET, EXHAUST TAIL PIPE(FOR CENTER)

17430R

CLAMP NO.2, EXHAUST TAIL PIPE (FOR CENTER)

17430S

BRACKET, EXHAUST TAIL PIPE (FOR REAR)

17430W

CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)

17448

BAFFLE, TAIL PIPE

9161140816

Крепеж

9161140816

Крепеж

9161140816

Крепеж

9161140816

Крепеж

9161140828

Крепеж

9161140828

Крепеж

9161140828

Крепеж

9161140828

Крепеж

9165141065

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

Код

Описание

17410

PIPE ASSY, EXHAUST, FRONT

17410A

NUT, EXHAUST PIPE SET STUD BOLT

17410B

GASKET, EXHAUST PIPE

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410E

CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

17420X

GASKET, EXHAUST PIPE, CENTER

17430

PIPE ASSY, EXHAUST, TAIL

17430A

BRACKET, EXHAUST TAIL PIPE(FOR FRONT)

17430F

BRACKET, EXHAUST TAIL PIPE(FOR CENTER)

17430G

CUSHION, EXHAUST TAIL PIPE(FOR CENTER)

17430J

BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)

17430J

BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)

17430S

BRACKET, EXHAUST TAIL PIPE (FOR REAR)

17430V

BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)

17430V

BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)

17448

BAFFLE, TAIL PIPE

1759936010

Крепеж

9016950006

Крепеж

9161140816

Крепеж

9161140828

Крепеж

9161140828

Крепеж

9165141065

Крепеж

9165640818

Крепеж

9165640818

Крепеж

9165640818

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

Код

Описание

17410

PIPE ASSY, EXHAUST, FRONT

17410A

NUT, EXHAUST PIPE SET STUD BOLT

17410B

GASKET, EXHAUST PIPE

17410C

BRACKET, EXHAUST PIPE FRONT (FOR FRONT)

17410E

CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

17420X

GASKET, EXHAUST PIPE, CENTER

17430

PIPE ASSY, EXHAUST, TAIL

17430A

BRACKET, EXHAUST TAIL PIPE(FOR FRONT)

17430F

BRACKET, EXHAUST TAIL PIPE(FOR CENTER)

17430G

CUSHION, EXHAUST TAIL PIPE(FOR CENTER)

17430J

BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)

17430J

BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)

17430S

BRACKET, EXHAUST TAIL PIPE (FOR REAR)

17430V

BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)

17430V

BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)

17448

BAFFLE, TAIL PIPE

1759936010

Крепеж

9015950006

Крепеж

9161140816

Крепеж

9161140828

Крепеж

9161140828

Крепеж

9165141065

Крепеж

9165640818

Крепеж

9165640818

Крепеж

9165640818

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж
