2211
переход к группе запчастей
2211
переход к группе запчастей

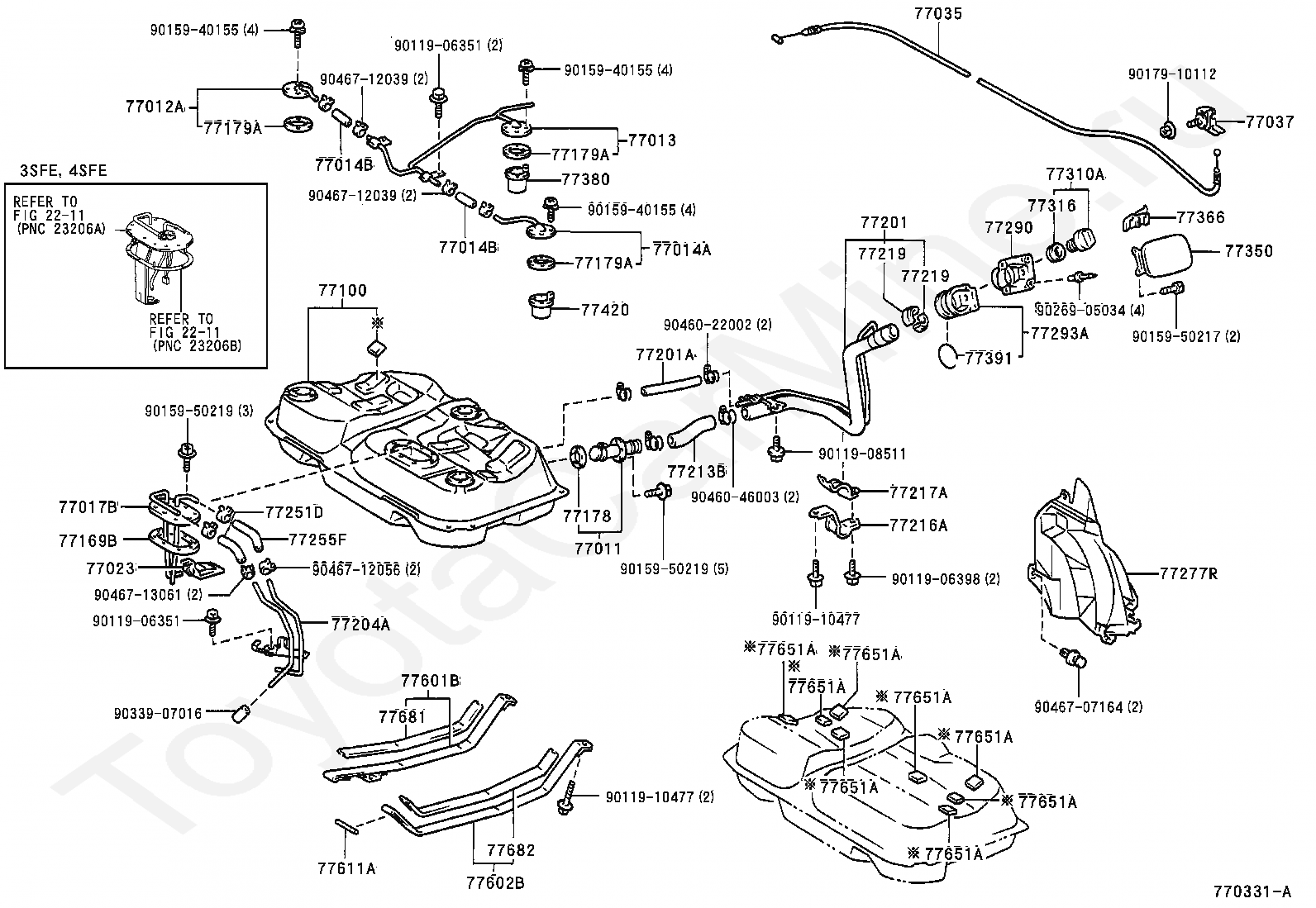

77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77013
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77014A
TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014B
HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
77014B
HOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
77017B
TUBE SUB-ASSY, FUEL TANK VENT
77023
FILTER SUB-ASSY, FUEL SUCTION TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77169B
GASKET, FUEL SUCTION TUBE SET, NO.1
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77179A
GASKET, FUEL TANK BREATHER TUBE
77179A
GASKET, FUEL TANK BREATHER TUBE
77179A
GASKET, FUEL TANK BREATHER TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77204A
TUBE, FUEL TANK RETURN
77213B
HOSE, FUEL TANK TO FILLER PIPE
77216A
SUPPORT, FUEL TANK FILLER PIPE, NO.1
77217A
SUPPORT, FUEL TANK FILLER PIPE, NO.2
77219
COVER, FUEL TANK FILLER PIPE
77219
COVER, FUEL TANK FILLER PIPE

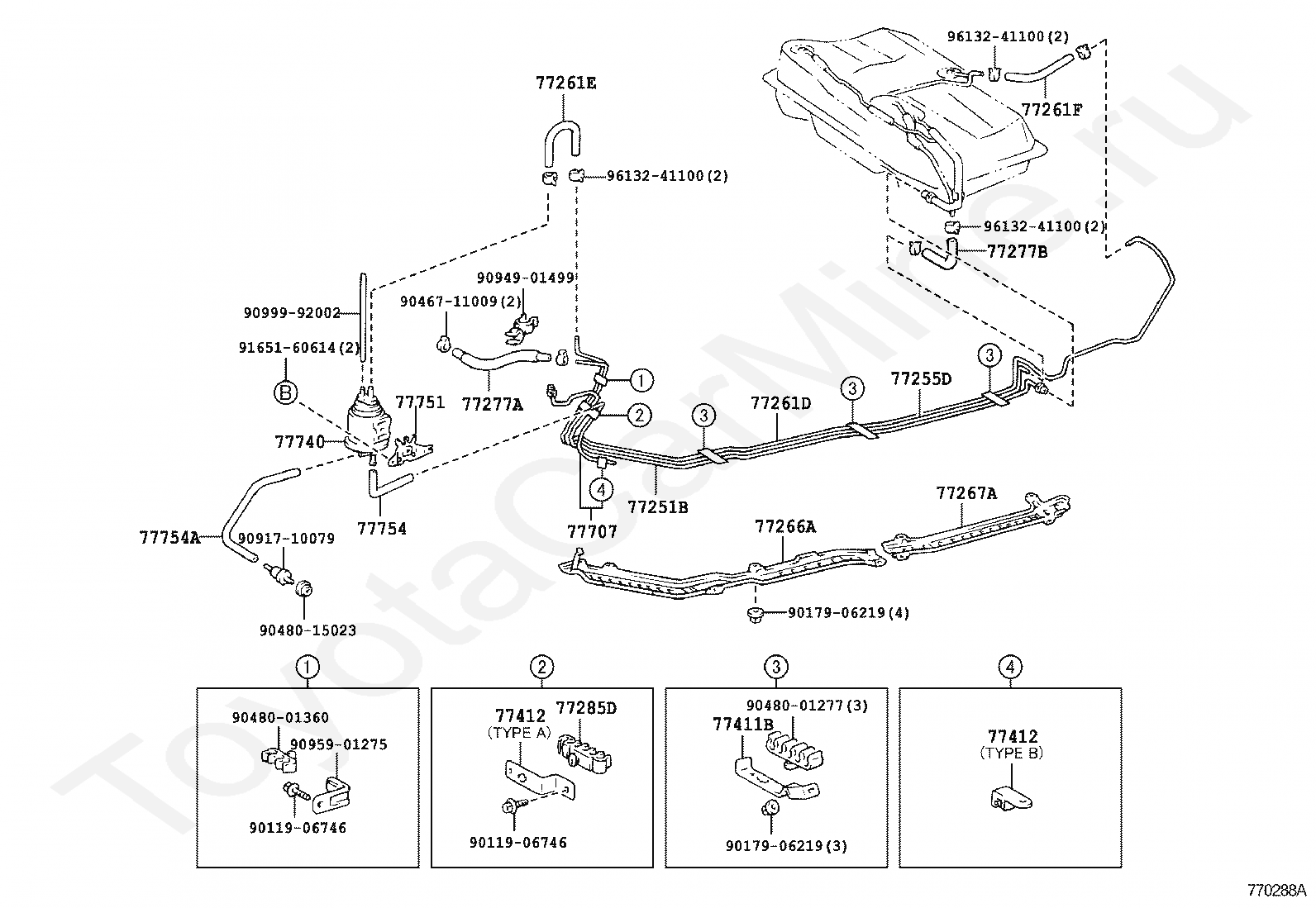

77251D
HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77293A
SHIELD, FUEL TANK FILLER PIPE, NO.3
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77380
VALVE ASSY, FUEL CUT OFF
77391
RING, FUEL INLET BOX
77420
VALVE ASSY, FUEL CUT OFF, NO.2
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77611A
PIN (FOR FUEL TANK BAND)
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77651A
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
