Ближний Восток

Модель

CAMRY/HYBRID

VIN

Дата

2021/02

Двигатель

3,5 литра, 24 клапана, DOHC

Кузов

седан

Класс

SE TYPE

Фрейм

GSV70

КПП

автомат АКПП, 8 скоростей

Опции

левый руль 4 двери страны Персидского залива 813W

Головка блока цилиндров TOYOTA CAMRY/HYBRID

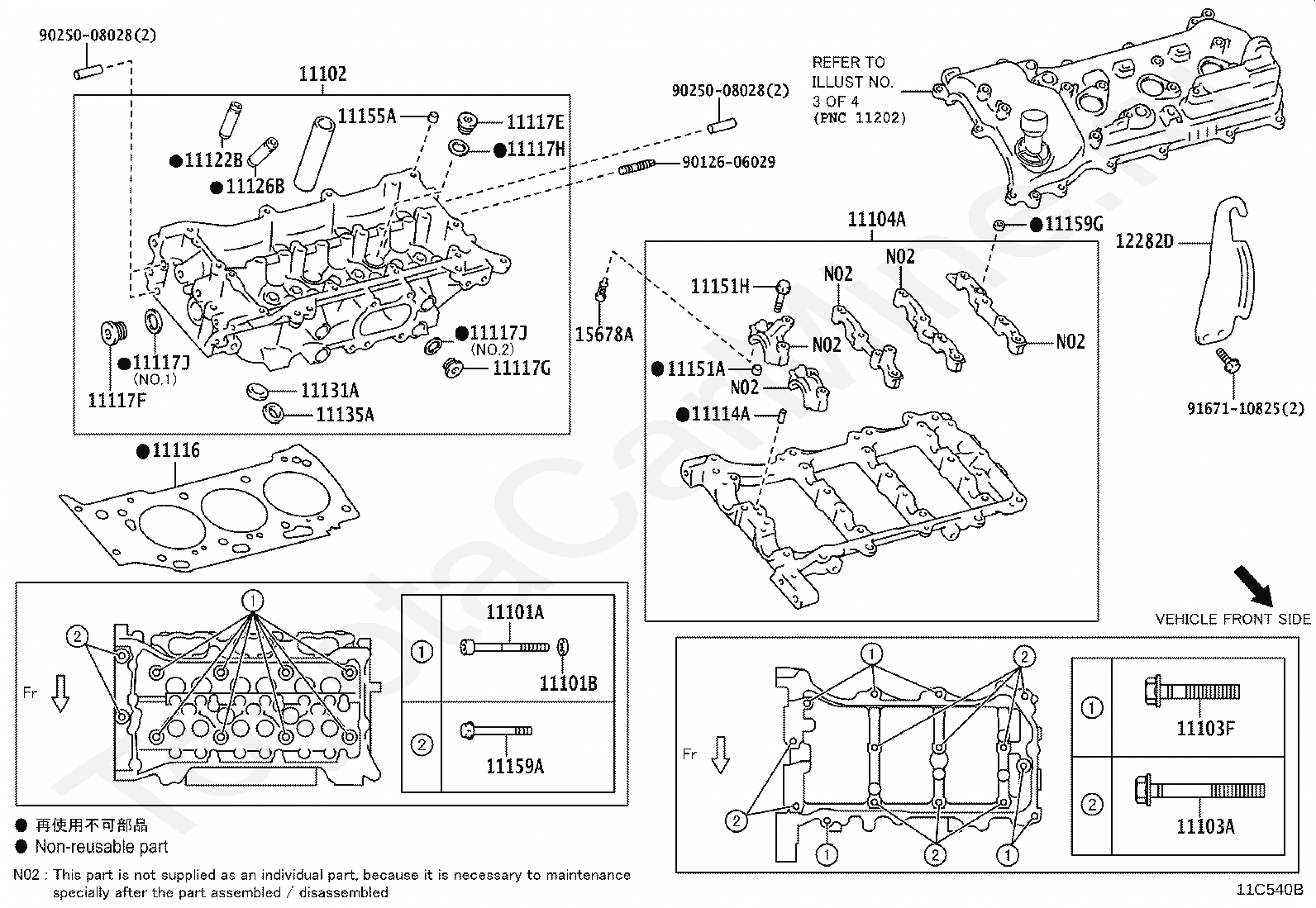

Код

Описание

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11102

HEAD, CYLINDER, LH

11103A

BOLT(FOR CAMSHAFT HOUSING SET)

11103F

BOLT(FOR CAMSHAFT HOUSING SET)

11104A

HOUSING SUB-ASSY, CAMSHAFT, LH

11114A

PIN, STRAIGHT

11116

GASKET, CYLINDER HEAD, NO.2

11117E

PLUG, W/HEAD STRAIGHT SCREW, NO.1

11117F

PLUG, W/HEAD STRAIGHT SCREW, NO.2

11117G

PLUG, W/HEAD STRAIGHT SCREW, NO.3

11117H

GASKET(FOR WATER HOLE)

11117J

GASKET(FOR CYLINDER HEAD SCREW PLUG)

11117J

GASKET(FOR CYLINDER HEAD SCREW PLUG)

11122B

BUSH, INTAKE VALVE GUIDE, NO.2

11126B

BUSH, EXHAUST VALVE GUIDE, NO.2

11131A

SEAT, INTAKE VALVE, NO.2

11135A

SEAT, EXHAUST VALVE, NO.2

11151A

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

11151H

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

11155A

PIN, RING W/HEAD

11159A

BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

11159G

GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH

12282D

HANGER, ENGINE, NO.2

15678A

FILTER, OIL CONTROL VALVE

9012606029

Крепеж

9025008028

Крепеж

9025008028

Крепеж

9167110825

Крепеж

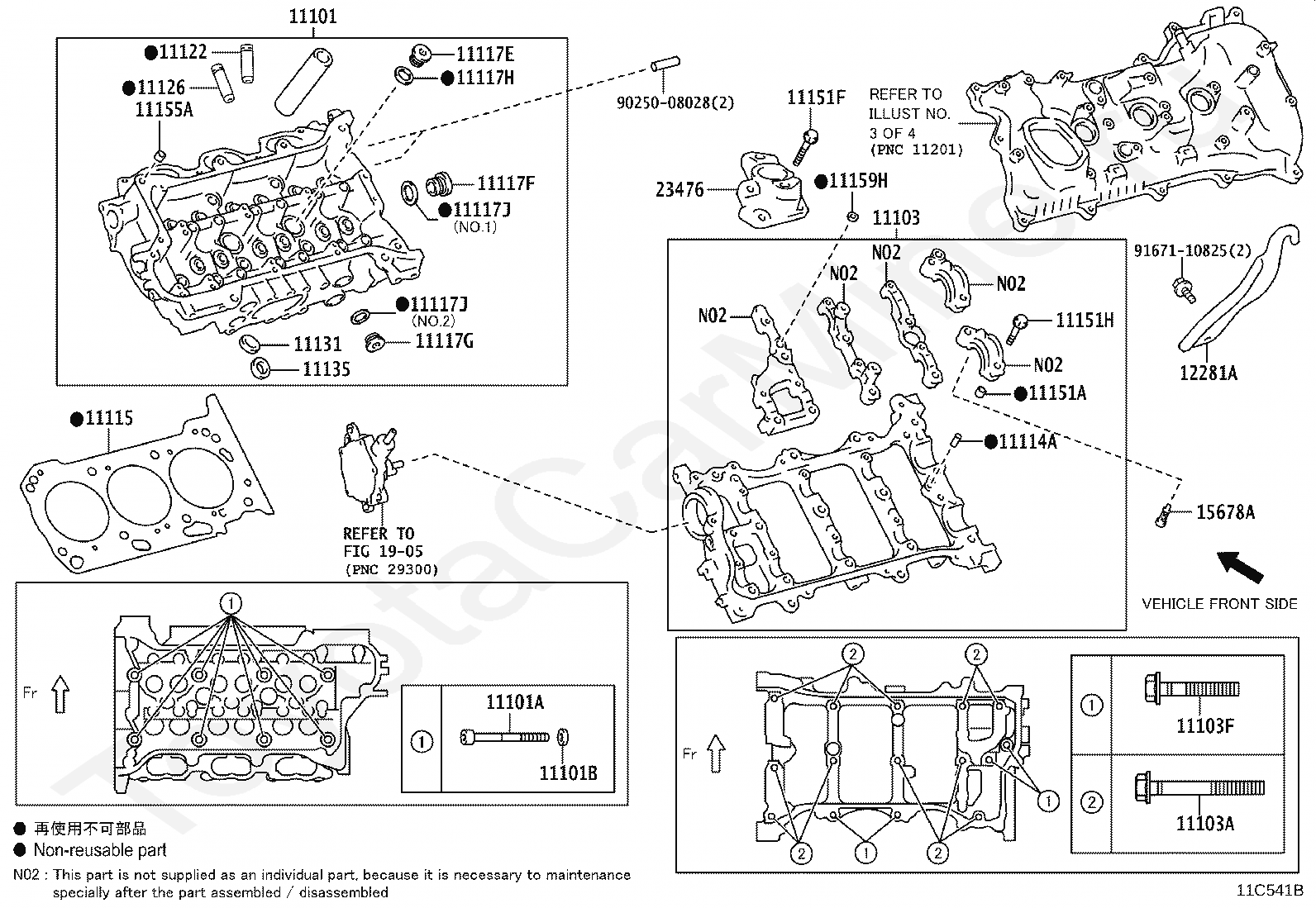

Код

Описание

11101

HEAD SUB-ASSY, CYLINDER

11101A

BOLT(FOR CYLINDER HEAD SET)

11101B

WASHER, PLATE(FOR CYLINDER HEAD SET)

11103

HOUSING SUB-ASSY, CAMSHAFT

11103A

BOLT(FOR CAMSHAFT HOUSING SET)

11103F

BOLT(FOR CAMSHAFT HOUSING SET)

11114A

PIN, STRAIGHT

11115

GASKET, CYLINDER HEAD

11117E

PLUG, W/HEAD STRAIGHT SCREW, NO.1

11117F

PLUG, W/HEAD STRAIGHT SCREW, NO.2

11117G

PLUG, W/HEAD STRAIGHT SCREW, NO.3

11117H

GASKET(FOR WATER HOLE)

11117J

GASKET(FOR CYLINDER HEAD SCREW PLUG)

11117J

GASKET(FOR CYLINDER HEAD SCREW PLUG)

11122

BUSH, INTAKE VALVE GUIDE

11126

BUSH, EXHAUST VALVE GUIDE

11131

SEAT, INTAKE VALVE

11135

SEAT, EXHAUST VALVE

11151A

PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

11151F

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2)

11151H

BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)

11155A

PIN, RING W/HEAD

11159H

GASKET, CAMSHAFT BEARING CAP OIL HOLE

12281A

HANGER, ENGINE, NO.1

15678A

FILTER, OIL CONTROL VALVE

1905

переход к группе запчастей

23476

HOUSING, FUEL PUMP LIFTER

9025008028

Крепеж

9167110825

Крепеж

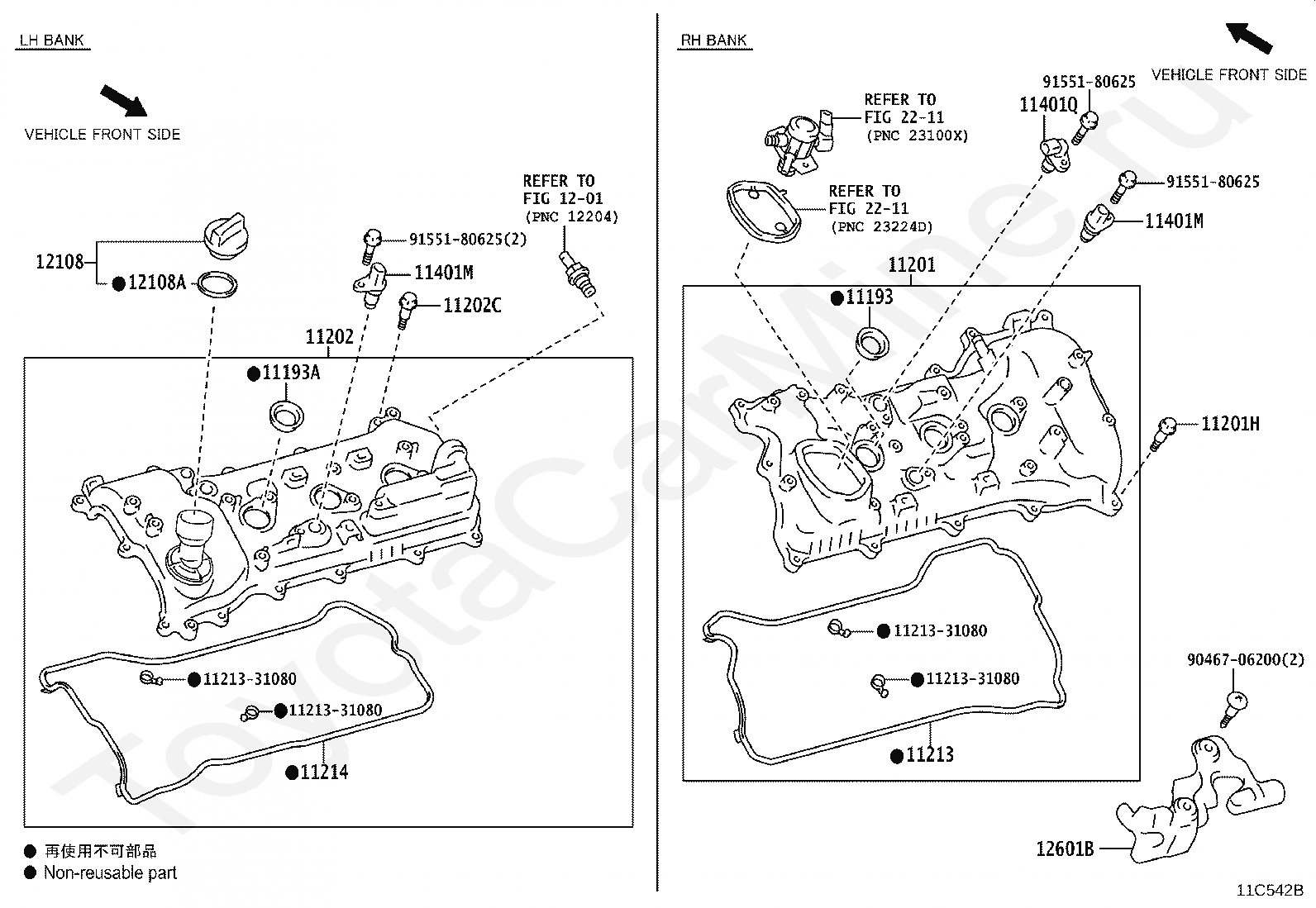

Код

Описание

11193

GASKET, SPARK PLUG TUBE

11193A

GASKET, SPARK PLUG TUBE, LH

11201

COVER SUB-ASSY, CYLINDER HEAD

11201H

BOLT(FOR CYLINDER HEAD COVER)

11202

COVER SUB-ASSY, CYLINDER HEAD, LH

11202C

BOLT(FOR CYLINDER HEAD COVER LH)

11213

GASKET, CYLINDER HEAD COVER

1121331080

Крепеж

1121331080

Крепеж

1121331080

Крепеж

1121331080

Крепеж

11214

GASKET, CYLINDER HEAD COVER, NO.2

11401M

SENSOR, CRANK POSITION, NO.2

11401M

SENSOR, CRANK POSITION, NO.2

11401Q

SENSOR, CRANK POSITION

1201

переход к группе запчастей

12108

CAP SUB-ASSY, OIL FILLER

12108A

GASKET(FOR OIL FILLER CAP)

12601B

COVER SUB-ASSY, ENGINE, NO.1

2211

переход к группе запчастей

2211

переход к группе запчастей

9046706200

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9155180625

Крепеж

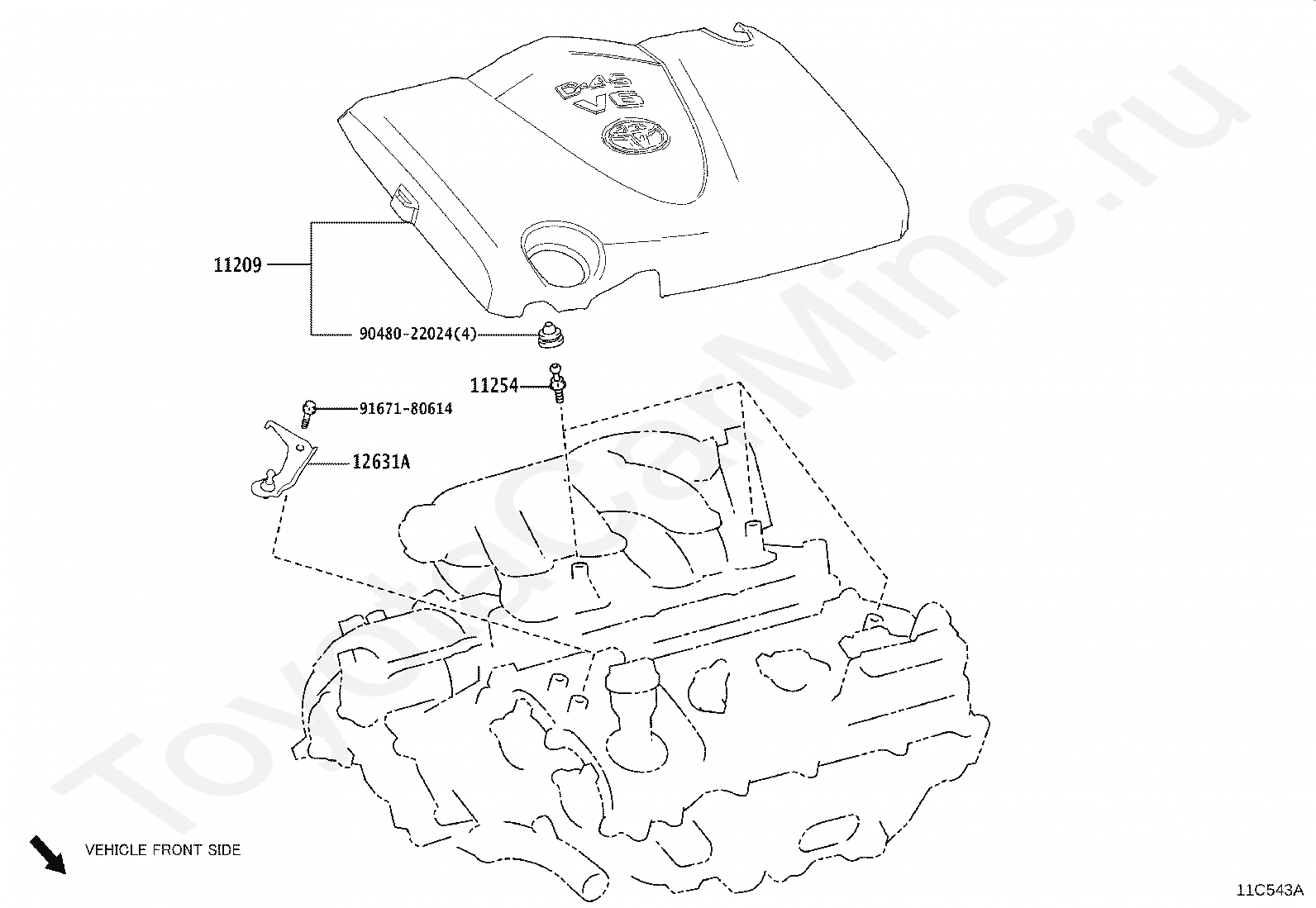

Код

Описание

11209

COVER SUB-ASSY, V-BANK

11254

BRACKET, V-BANK COVER, NO.1

12631A

BRACKET, ENGINE COVER

9048022024

Крепеж

9167180614

Крепеж

Головка блока цилиндров TOYOTA CAMRY/HYBRID
