Европа

Модель

CAMRY/HYBRID

VIN

Дата

2017/09

Двигатель

3,5 литра, 24 клапана, DOHC

Кузов

седан

Фрейм

GSV70

КПП

автомат АКПП, 8 скоростей

Опции

JAPAN PRODUCT левый руль 4 двери Европа GRAMS 664W

Реле и кнопки TOYOTA CAMRY/HYBRID







Код

Описание

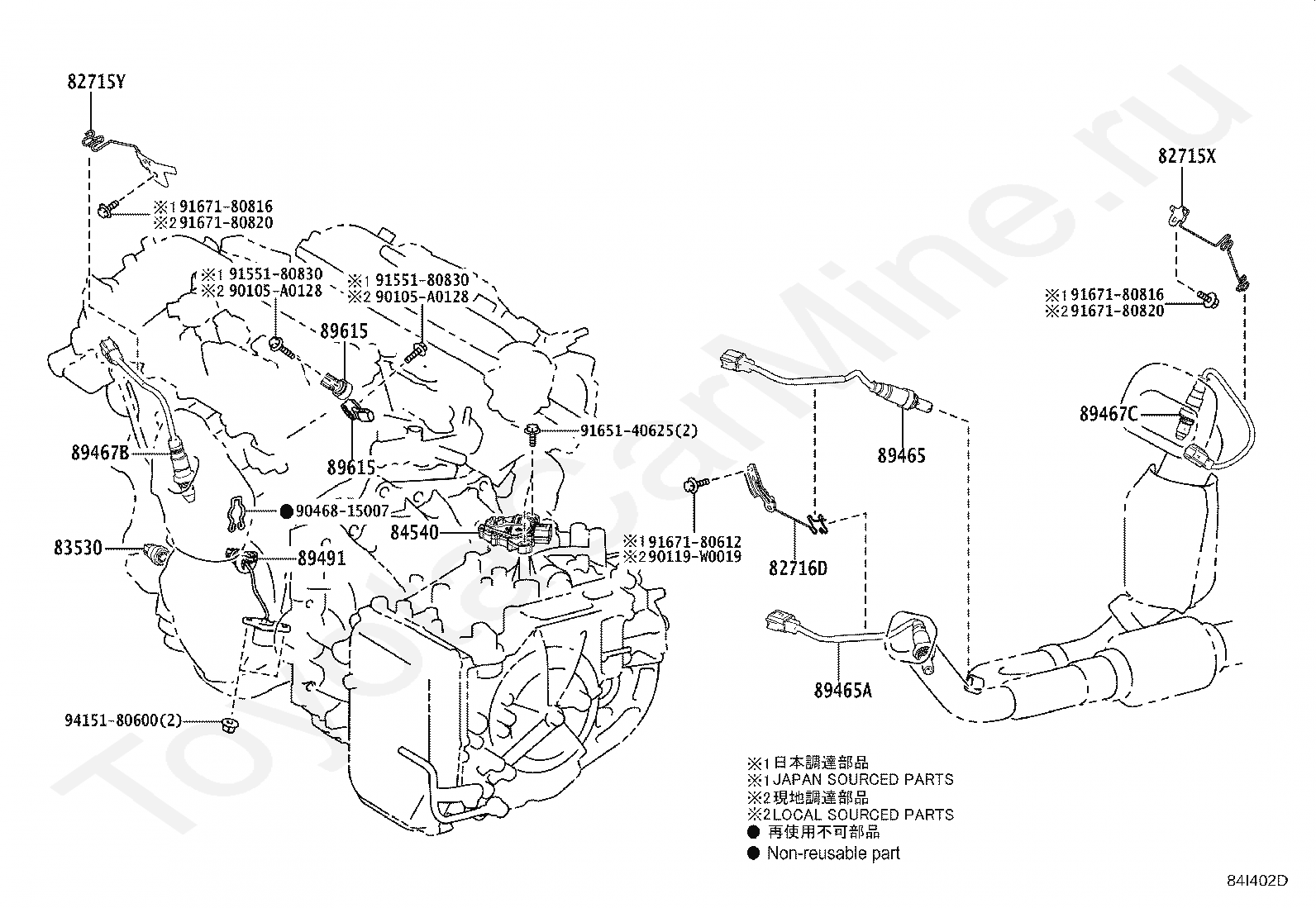

82715X

BRACKET, WIRING HARNESS CLAMP, NO.2

82715Y

BRACKET, WIRING HARNESS CLAMP, NO.3

82716D

BRACKET, WIRING HARNESS CLAMP, NO.2

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84540

SWITCH ASSY, NEUTRAL START

89465

SENSOR, OXYGEN

89465A

SENSOR, OXYGEN NO.2

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

89615

SENSOR, KNOCK CONTROL

90105A0128

Крепеж

90105A0128

Крепеж

90119W0019

Крепеж

9046815007

Крепеж

9155180830

Крепеж

9155180830

Крепеж

9165140625

Крепеж

9167180612

Крепеж

9167180816

Крепеж

9167180816

Крепеж

9167180820

Крепеж

9167180820

Крепеж

9415180600

Крепеж

Код

Описание

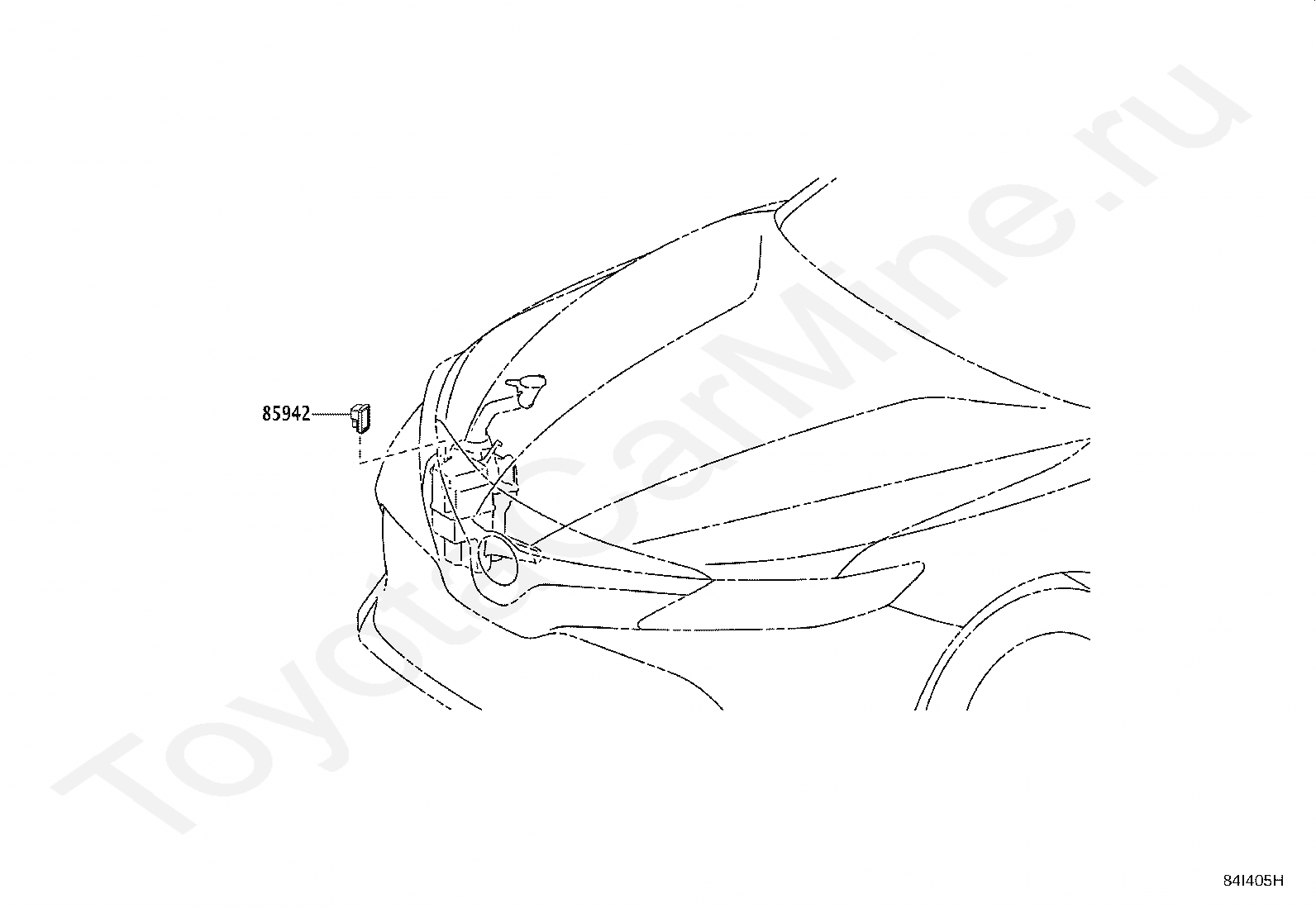

85942

RELAY, HEADLAMP CLEANER CONTROL

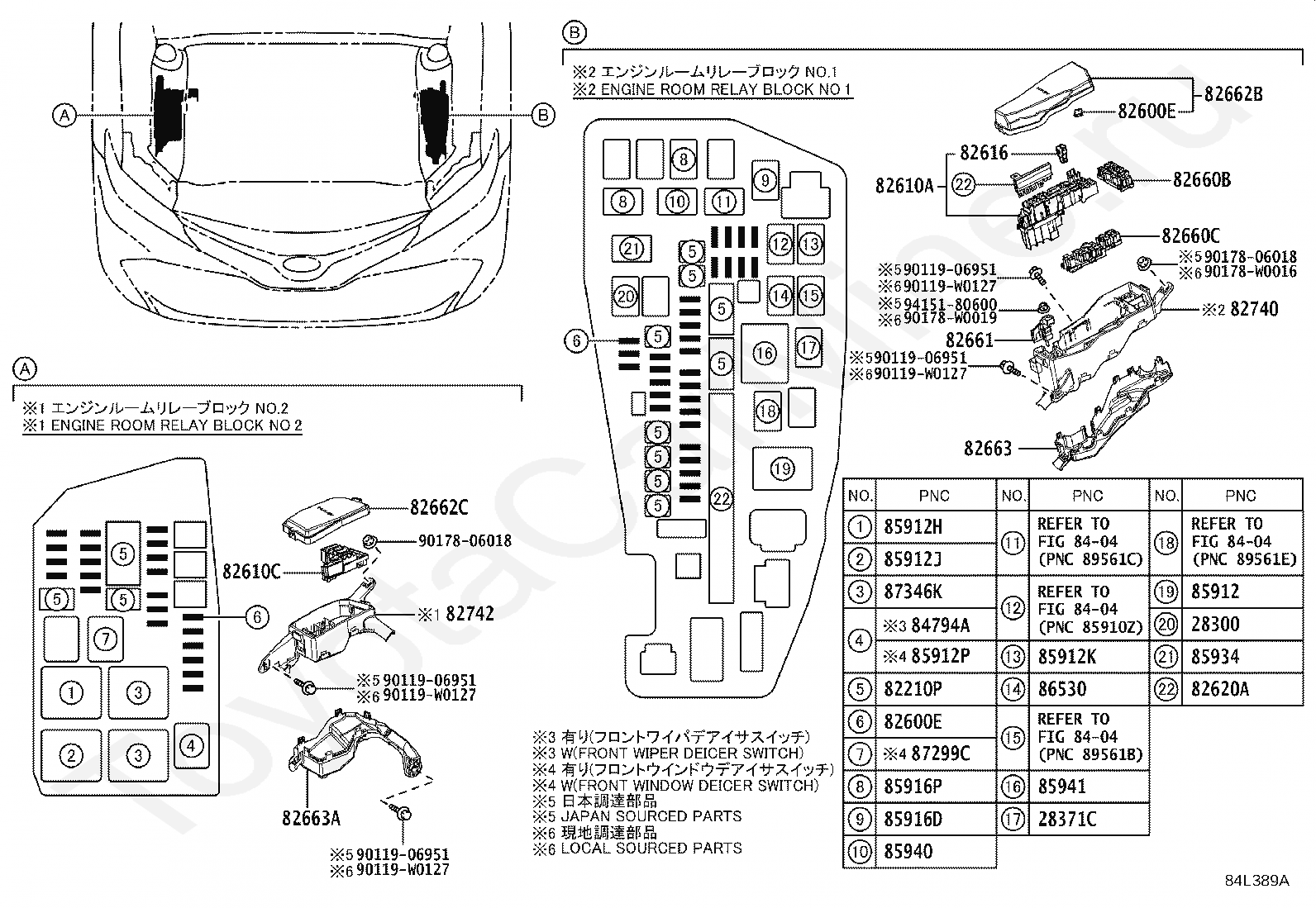

Код

Описание

28300

RELAY ASSY, STARTER

28371C

RELAY, IGNITION, NO.2

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82740

BLOCK ASSY, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

8404

переход к группе запчастей

8404

переход к группе запчастей

8404

переход к группе запчастей

8404

переход к группе запчастей

84794A

RELAY, FR WIPER DEICER

85912

RELAY, DEFOGGER

85912H

RELAY, HWD, NO.1

85912J

RELAY, HWD, NO.2

85912K

RELAY, VVT

85912P

RELAY, HWD, NO.3

85916D

RELAY, FOG LAMP

85916P

RELAY, HEADLAMP

85934

RELAY, MAGNET-CLUTCH

85940

RELAY ASSY, WINDSHIELD WIPER

85941

RELAY, WINDSHIELD WASHER

86530

RELAY ASSY, HORN

87299C

RELAY, WASHER NOZZLE HEATER

87346K

RELAY, PTC HEATER

9011906951

Крепеж

9011906951

Крепеж

9011906951

Крепеж

9011906951

Крепеж

90119W0127

Крепеж

90119W0127

Крепеж

90119W0127

Крепеж

90119W0127

Крепеж

9017806018

Крепеж

9017806018

Крепеж

90178W0016

Крепеж

90178W0019

Крепеж

9415180600

Крепеж

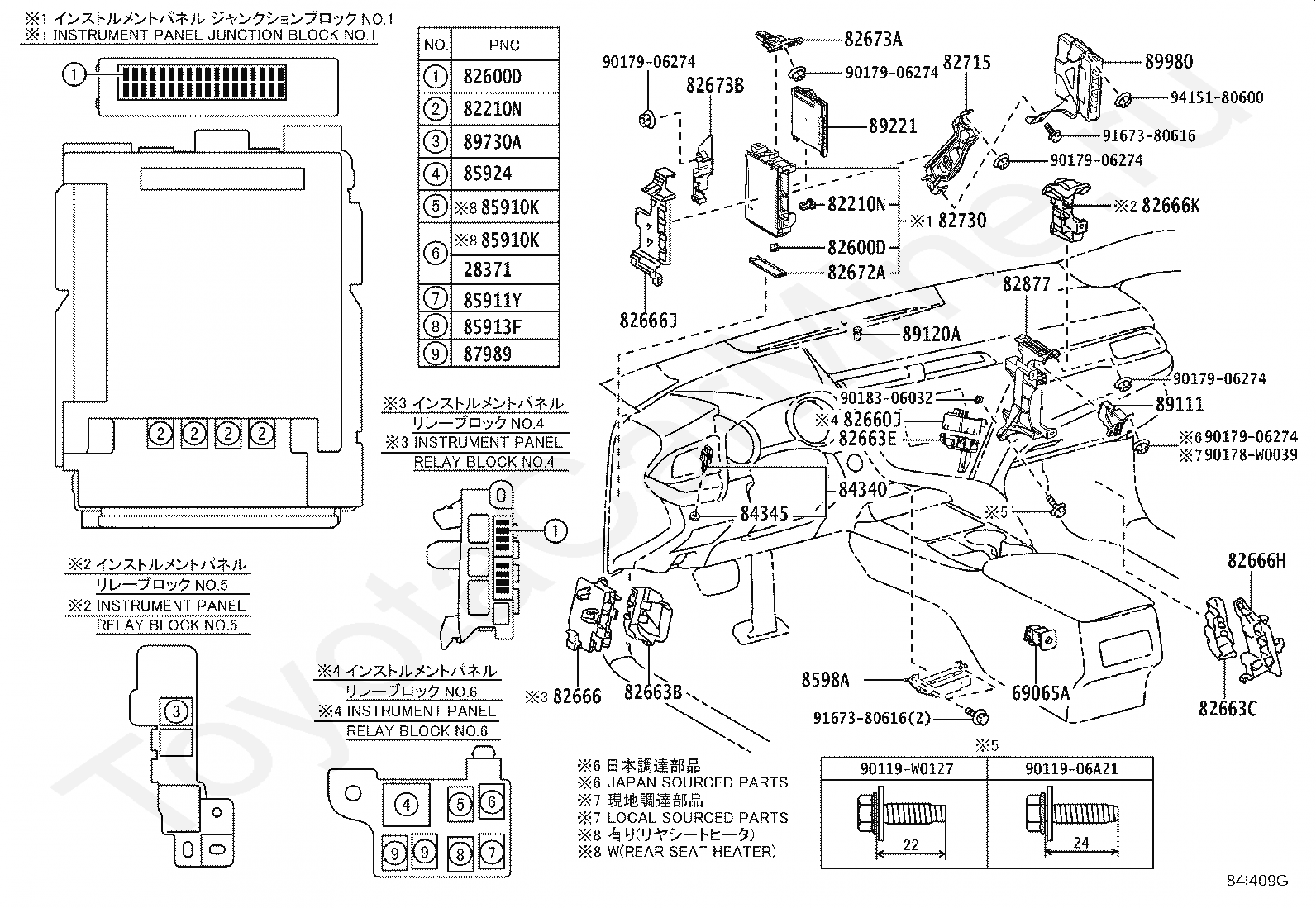

Код

Описание

28371

RELAY, IGNITION, NO.1

69065A

CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660J

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82663E

COVER, RELAY BLOCK, LOWER, NO.7

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

82666J

HOLDER, CONNECTOR, NO.3

82666K

HOLDER, CONNECTOR, NO.4

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715

BRACKET,WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85910K

RELAY, REAR SEAT HEATER

85910K

RELAY, REAR SEAT HEATER

85911Y

RELAY, FRONT SEAT HEATER

85913F

RELAY, STEERING HEATER

85924

RELAY, IGNITION CONTROL

8598A

BATTERY, DOOR CONTROL

87989

RELAY, MIRROR CONTROL

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

89980

COMPUTER ASSY, HYBRID VEHICLE CONTROL

9011906A21

Крепеж

90119W0127

Крепеж

90178W0039

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9415180600

Крепеж

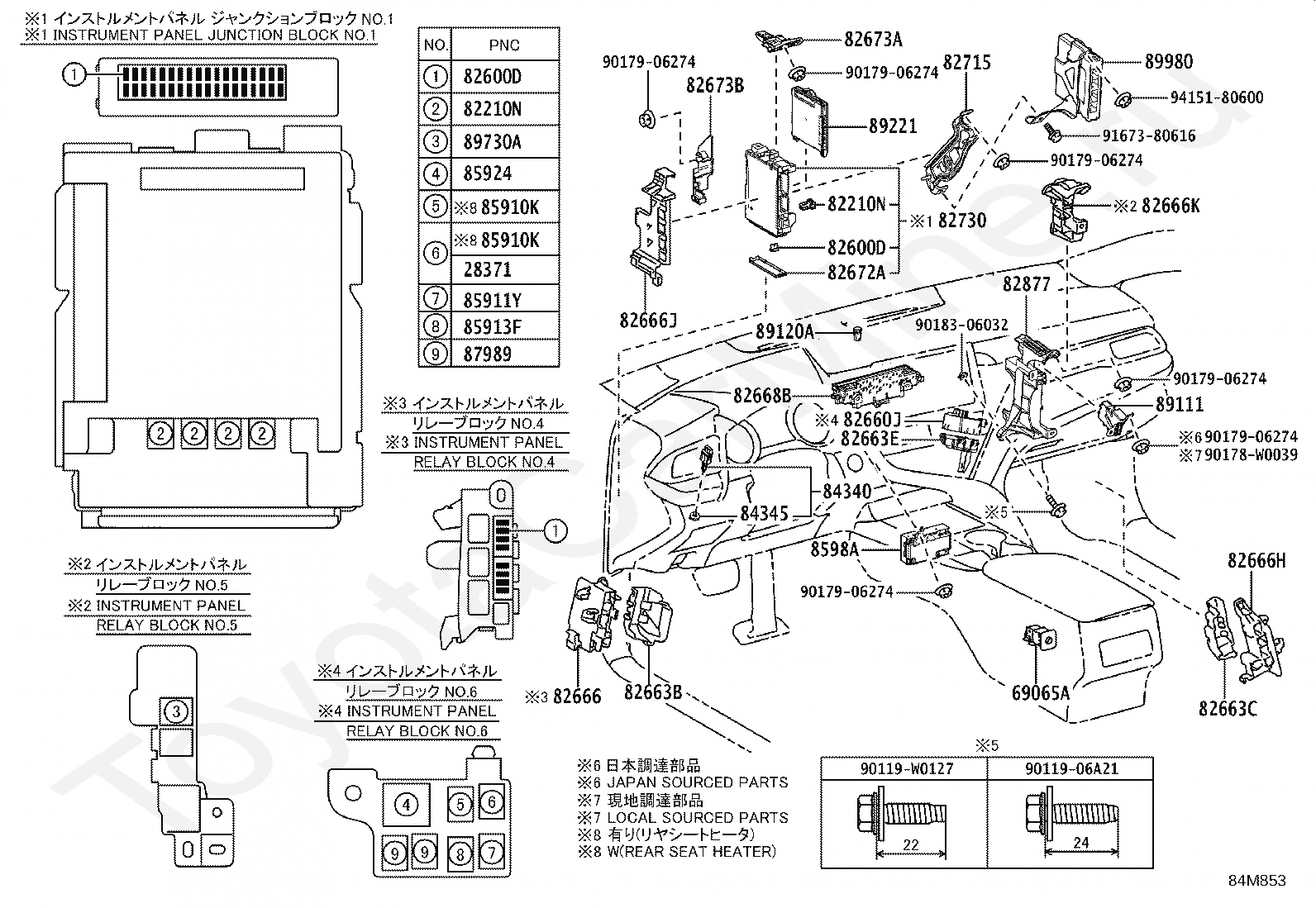

Код

Описание

28371

RELAY, IGNITION, NO.1

69065A

CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660J

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82663E

COVER, RELAY BLOCK, LOWER, NO.7

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

82666J

HOLDER, CONNECTOR, NO.3

82666K

HOLDER, CONNECTOR, NO.4

82668B

HOLDER, CONNECTOR, NO.5

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715

BRACKET,WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85910K

RELAY, REAR SEAT HEATER

85910K

RELAY, REAR SEAT HEATER

85911Y

RELAY, FRONT SEAT HEATER

85913F

RELAY, STEERING HEATER

85924

RELAY, IGNITION CONTROL

8598A

BATTERY, DOOR CONTROL

87989

RELAY, MIRROR CONTROL

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

89980

COMPUTER ASSY, HYBRID VEHICLE CONTROL

9011906A21

Крепеж

90119W0127

Крепеж

90178W0039

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9167380616

Крепеж

9415180600

Крепеж

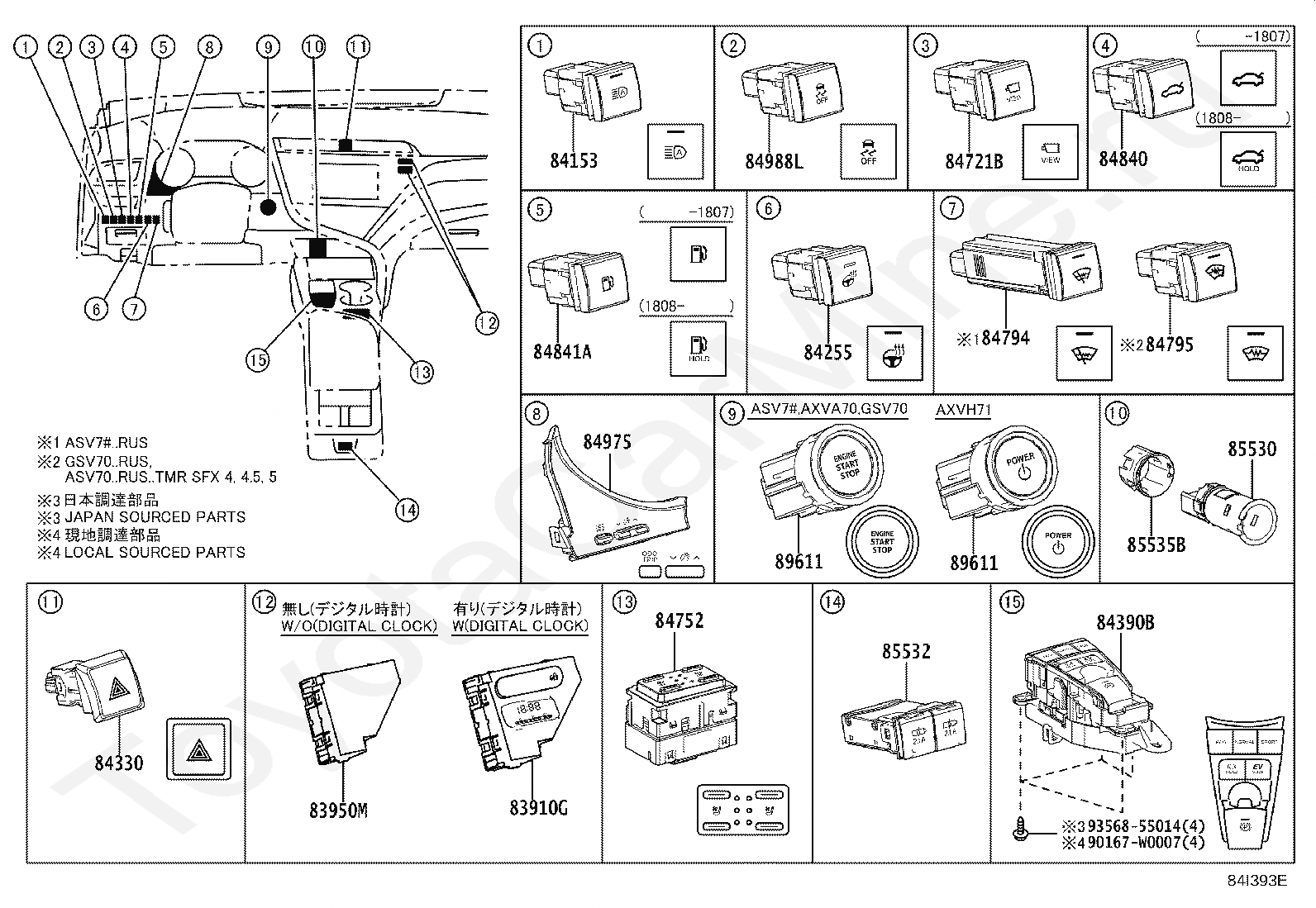

Код

Описание

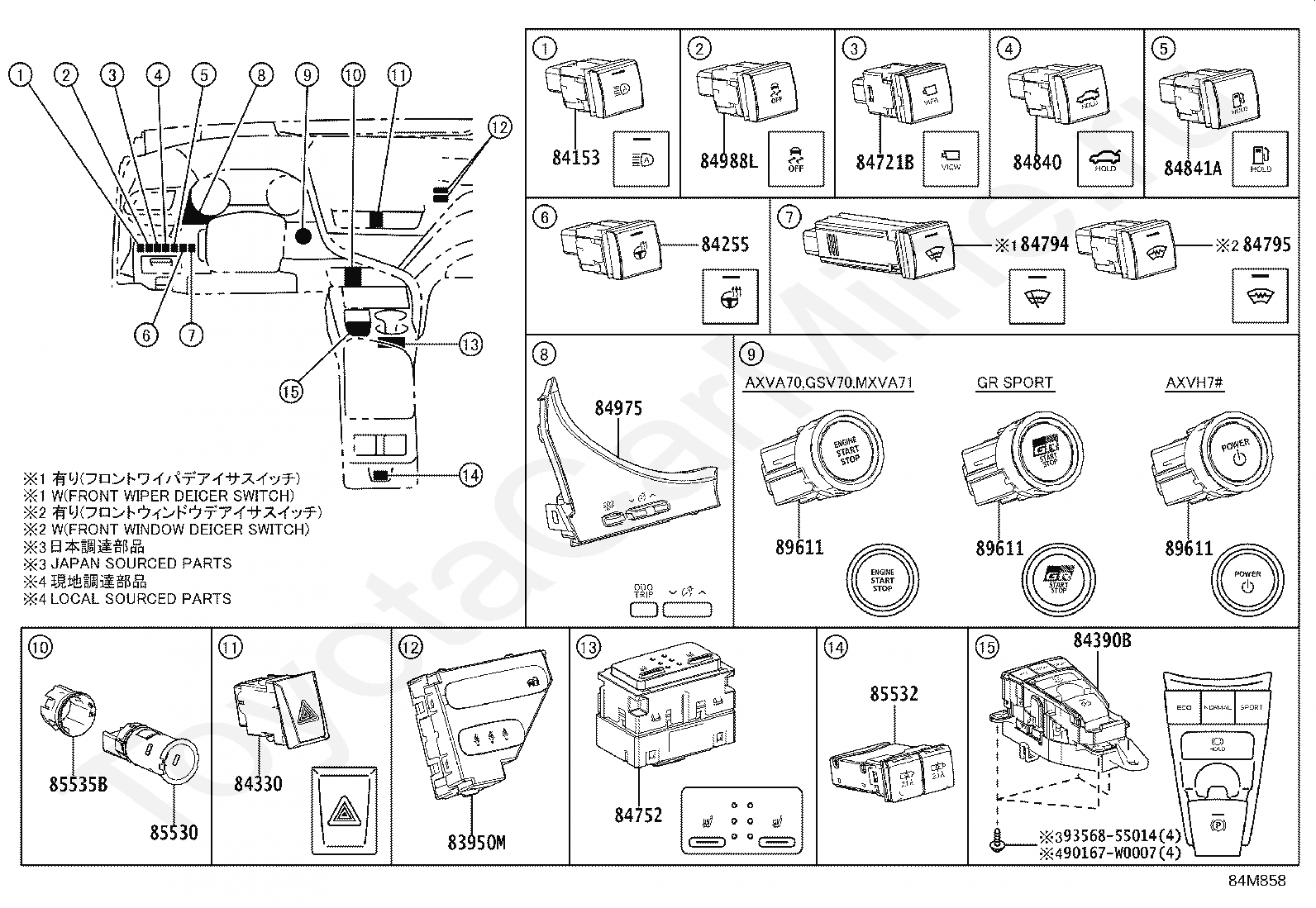

83910G

CLOCK ASSY

83950M

LAMP ASSY, TELLTALE

84153

SWITCH, AUTO HIGH BEAM

84255

SWITCH, STEERING HEATER

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84721B

SWITCH, PANORAMIC VIEW MONITOR

84752

SWITCH, REFRESHING SEAT

84794

SWITCH, FR WIPER DEICER

84795

SWITCH, FRONT WINDOW DEICER

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84841A

SWITCH, FUEL LID OPENER

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

90167W0007

Крепеж

9356855014

Крепеж

Код

Описание

83950M

LAMP ASSY, TELLTALE

84153

SWITCH, AUTO HIGH BEAM

84255

SWITCH, STEERING HEATER

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84721B

SWITCH, PANORAMIC VIEW MONITOR

84752

SWITCH, REFRESHING SEAT

84794

SWITCH, FR WIPER DEICER

84795

SWITCH, FRONT WINDOW DEICER

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84841A

SWITCH, FUEL LID OPENER

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

90167W0007

Крепеж

9356855014

Крепеж

Код

Описание

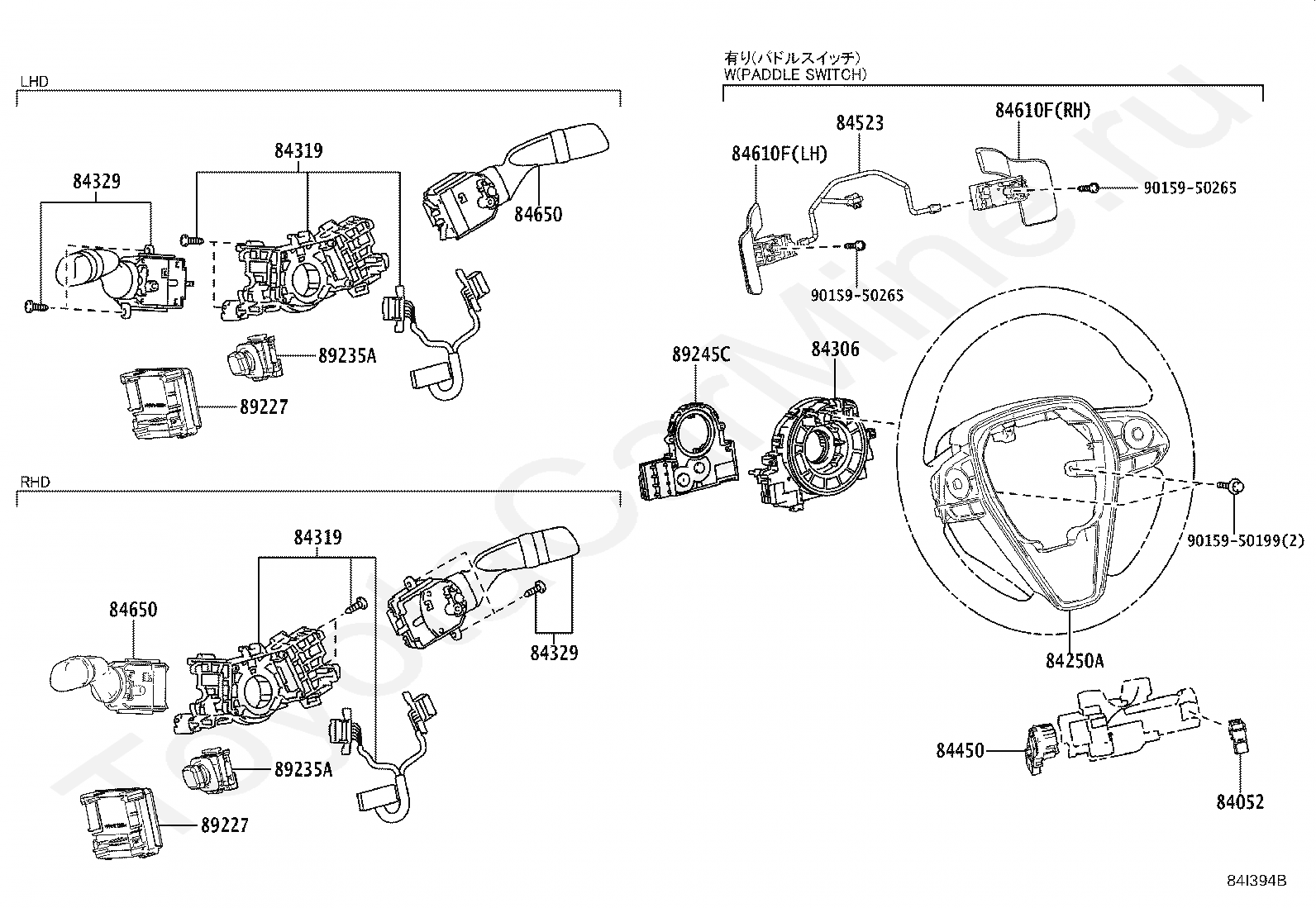

84052

SWITCH ASSY, UN-LOCK WARNING

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84523

WIRE, SWITCH NO.1

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84650

SWITCH ASSY, WINDSHIELD WIPER

84650

SWITCH ASSY, WINDSHIELD WIPER

89227

COMPUTER, MULTIPLEX TILT & TELESCOPIC

89227

COMPUTER, MULTIPLEX TILT & TELESCOPIC

89235A

SWITCH, TILT & TELESCOPIC

89235A

SWITCH, TILT & TELESCOPIC

89245C

SENSOR, STEERING

9015950199

Крепеж

9015950265

Крепеж

9015950265

Крепеж

Код

Описание

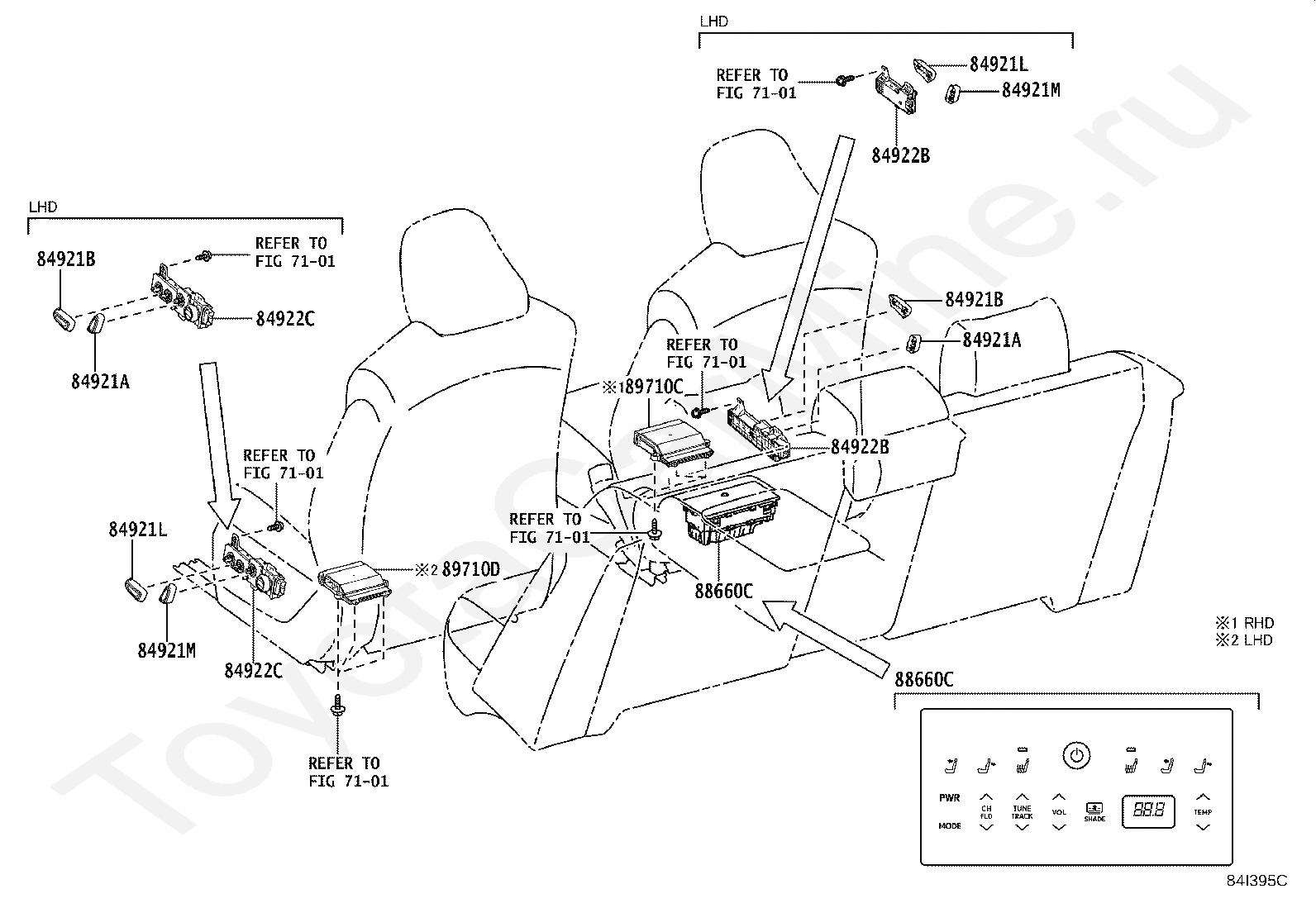

7101

переход к группе запчастей

7101

переход к группе запчастей

7101

переход к группе запчастей

7101

переход к группе запчастей

7101

переход к группе запчастей

7101

переход к группе запчастей

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921L

KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2

84921L

KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2

84921M

KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2

84921M

KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2

84922B

SWITCH, FRONT POWER SEAT, RH

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

84922C

SWITCH, FRONT POWER SEAT, LH

88660C

SWITCH ASSY, COOLER CONTROL

88660C

SWITCH ASSY, COOLER CONTROL

89710C

COMPUTER ASSY, POSITION CONTROL, RH

89710D

COMPUTER ASSY, POSITION CONTROL, LH

Код

Описание

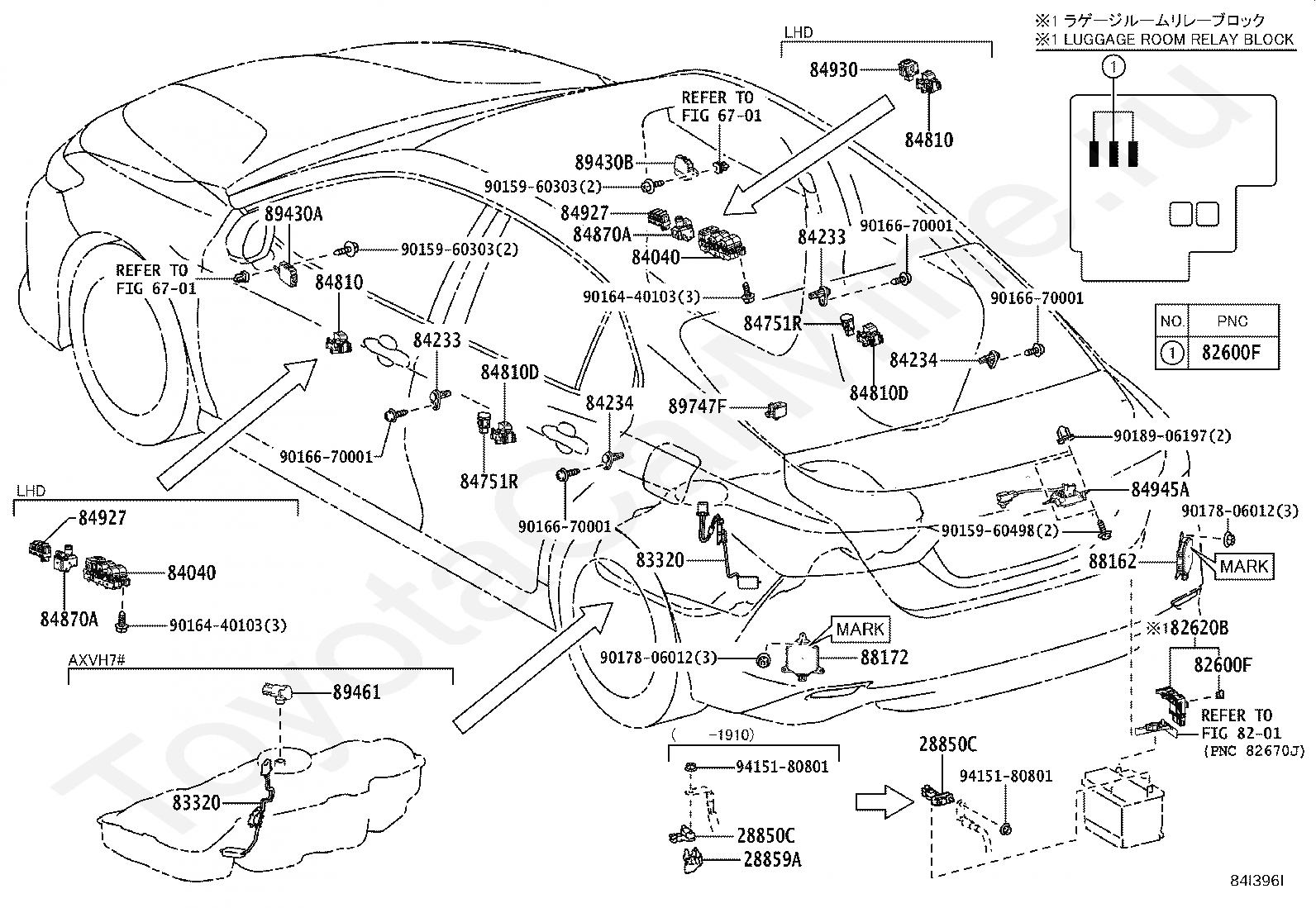

28850C

SENSOR ASSY, BATTERY STATE

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

6701

переход к группе запчастей

6701

переход к группе запчастей

8201

переход к группе запчастей

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82620B

BLOCK ASSY, FUSIBLE LINK

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84751R

SWITCH, SEAT HEATER(REAR)

84751R

SWITCH, SEAT HEATER(REAR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

84927

SWITCH, SEAT MEMORY

84927

SWITCH, SEAT MEMORY

84930

SWITCH ASSY, DOOR CONTROL

84945A

SWITCH, LUGGAGE ELECTRICAL KEY

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

89430A

COMPUTER ASSY, OUTER MIRROR CONTROL, LH

89430B

COMPUTER ASSY, OUTER MIRROR CONTROL, RH

89461

SENSOR, VAPOR PRESSURE

89747F

BUZZER, BLIND SPOT MONITOR

9015960303

Крепеж

9015960303

Крепеж

9015960498

Крепеж

9016440103

Крепеж

9016440103

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9017806012

Крепеж

9017806012

Крепеж

9018906197

Крепеж

9415180801

Крепеж

9415180801

Крепеж

> Запчасти CAMRY > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
