Ближний Восток

Модель

CAMRY/HYBRID (ASIA)

VIN

Дата

2018/10

Двигатель

2,5 литра, 16 клапанов, DOHC

Класс

гибрид

Фрейм

AXVH71

КПП

вариатор

Опции

правый руль 4 двери Индонезия 665W

Реле и кнопки TOYOTA CAMRY/HYBRID (ASIA)

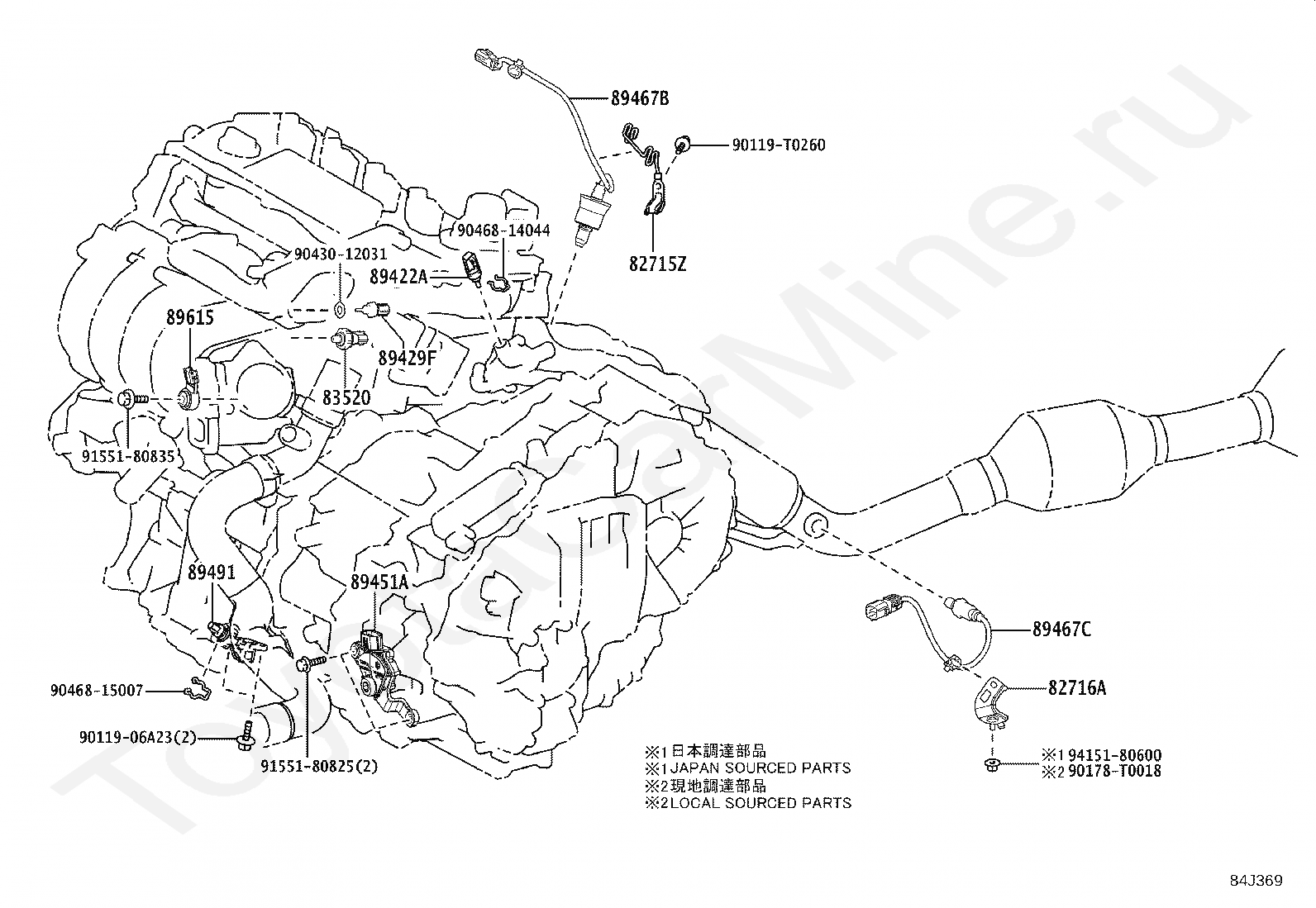

Код

Описание

82715Z

BRACKET, WIRING HARNESS CLAMP

82716A

BRACKET, WIRING HARNESS CLAMP

83520

GAGE ASSY,OIL PRESSURE SENDER

89422A

SENSOR, WATER TEMPERATURE

89429F

SENSOR, TEMPERATURE

89451A

SENSOR, SHIFT LEVER POSITION

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89615

SENSOR, KNOCK CONTROL

9011906A23

Крепеж

90119T0260

Крепеж

90178T0018

Крепеж

9043012031

Крепеж

9046814044

Крепеж

9046815007

Крепеж

9155180825

Крепеж

9155180835

Крепеж

9415180600

Крепеж

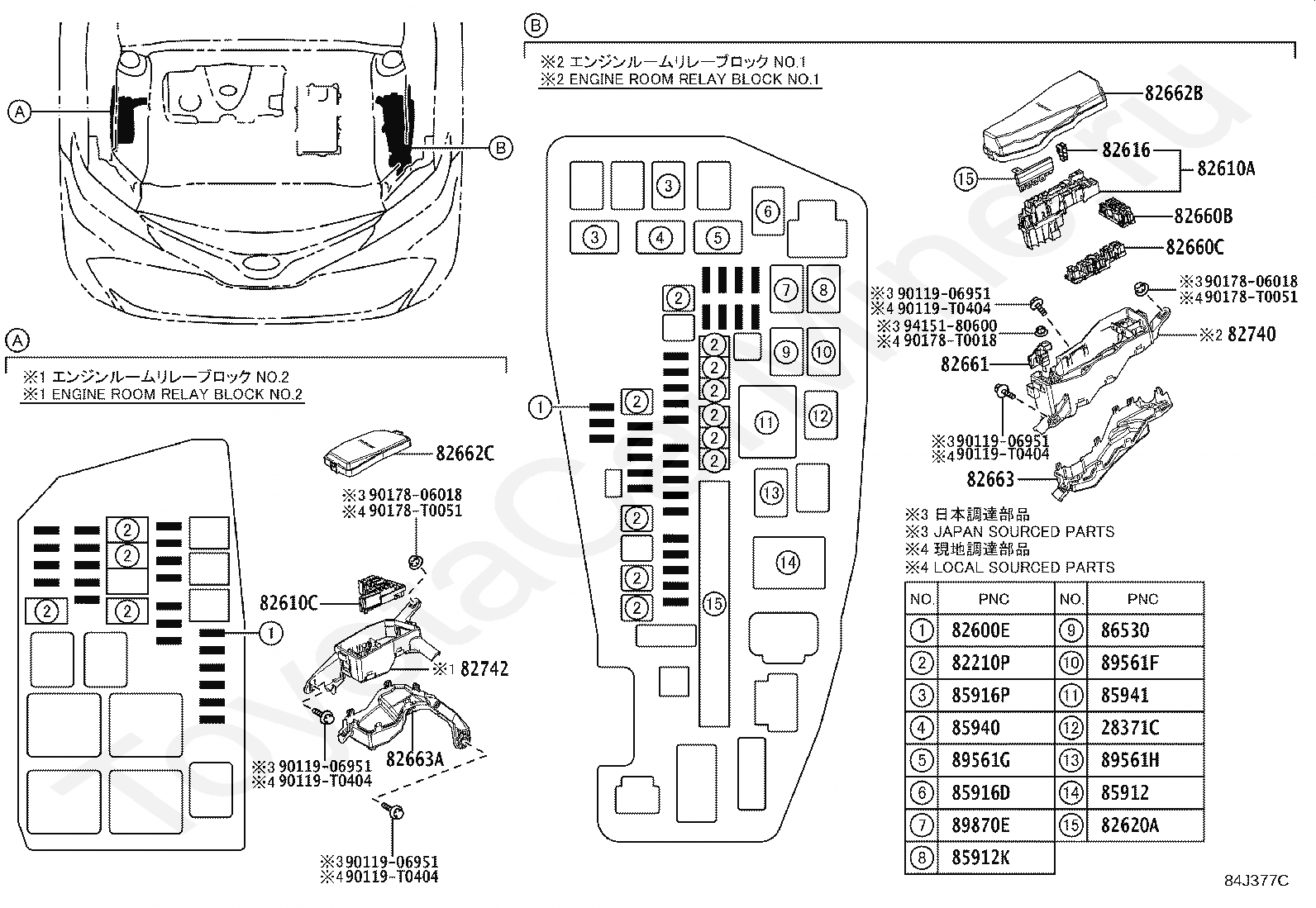

Код

Описание

28371C

RELAY, IGNITION, NO.2

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82740

BLOCK ASSY, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

85912

RELAY, DEFOGGER

85912K

RELAY, VVT

85916D

RELAY, FOG LAMP

85916P

RELAY, HEADLAMP

85940

RELAY ASSY, WINDSHIELD WIPER

85941

RELAY, WINDSHIELD WASHER

86530

RELAY ASSY, HORN

89561F

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

89561G

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

89561H

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

89870E

RELAY, ELECTRONIC DRIVER UNIT

9011906951

Крепеж

9011906951

Крепеж

9011906951

Крепеж

9011906951

Крепеж

90119T0404

Крепеж

90119T0404

Крепеж

90119T0404

Крепеж

90119T0404

Крепеж

9017806018

Крепеж

9017806018

Крепеж

90178T0018

Крепеж

90178T0051

Крепеж

90178T0051

Крепеж

9415180600

Крепеж

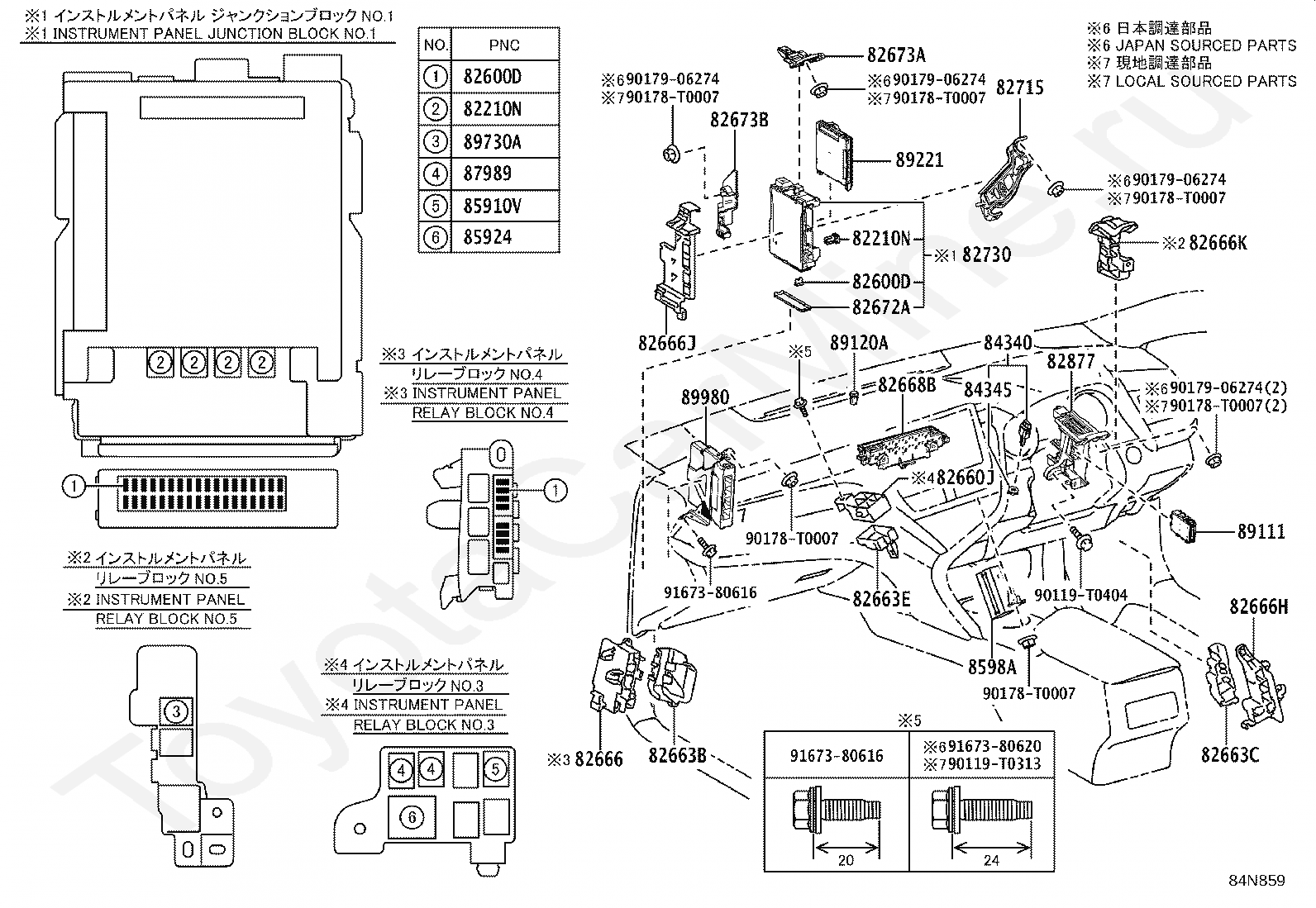

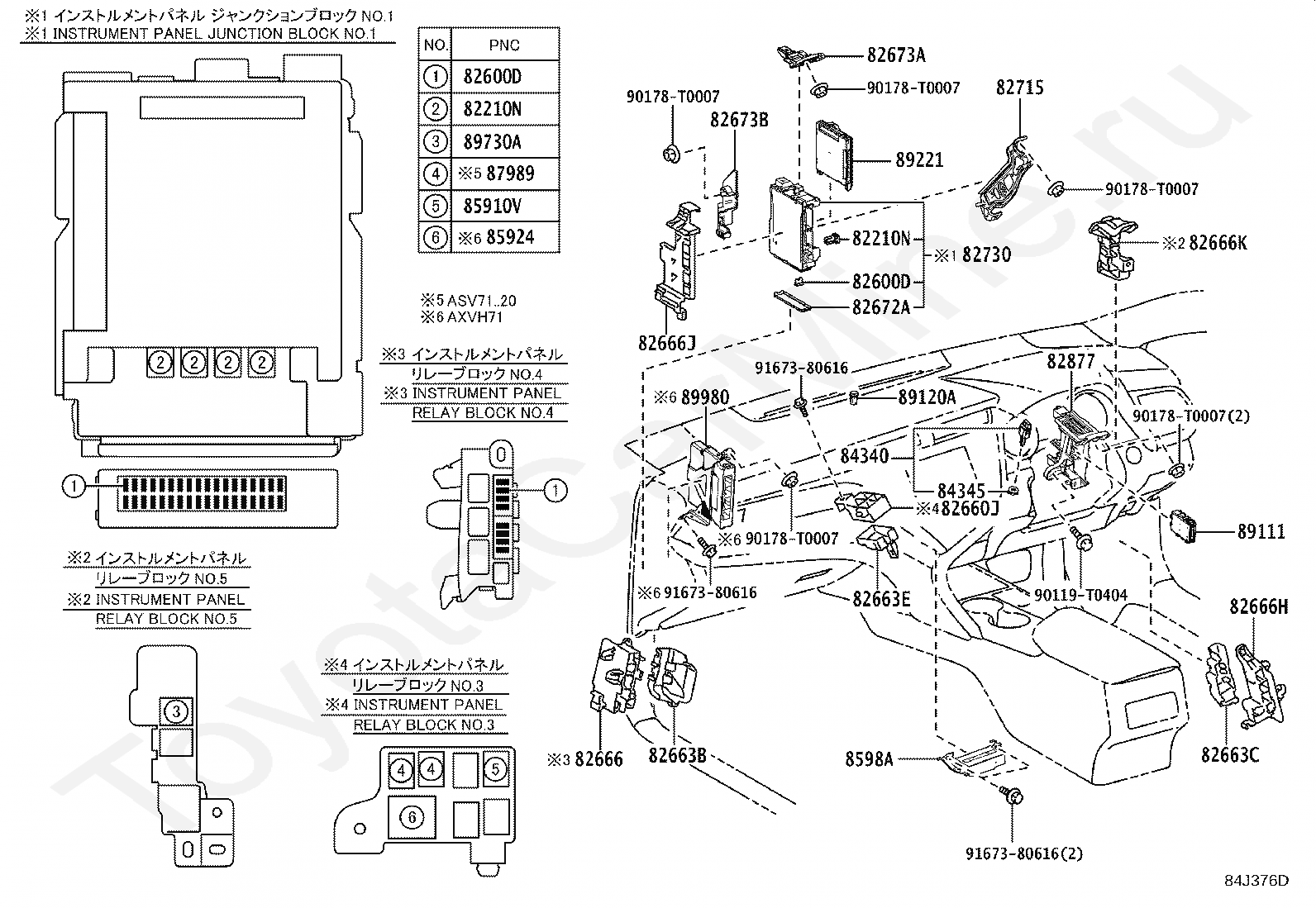

Код

Описание

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660J

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82663E

COVER, RELAY BLOCK, LOWER, NO.7

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

82666J

HOLDER, CONNECTOR, NO.3

82666K

HOLDER, CONNECTOR, NO.4

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715

BRACKET,WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85910V

RELAY, SEAT HEATER

85924

RELAY, IGNITION CONTROL

8598A

BATTERY, DOOR CONTROL

87989

RELAY, MIRROR CONTROL

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

89980

COMPUTER ASSY, HYBRID VEHICLE CONTROL

90119T0404

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9167380616

Крепеж

Код

Описание

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660J

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82663E

COVER, RELAY BLOCK, LOWER, NO.7

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

82666J

HOLDER, CONNECTOR, NO.3

82666K

HOLDER, CONNECTOR, NO.4

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715

BRACKET,WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85910V

RELAY, SEAT HEATER

85924

RELAY, IGNITION CONTROL

8598A

BATTERY, DOOR CONTROL

87989

RELAY, MIRROR CONTROL

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

89980

COMPUTER ASSY, HYBRID VEHICLE CONTROL

90119T0404

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9167380616

Крепеж

Код

Описание

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82660J

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82663E

COVER, RELAY BLOCK, LOWER, NO.7

82666

HOLDER, CONNECTOR

82666H

HOLDER, CONNECTOR, NO.2

82666J

HOLDER, CONNECTOR, NO.3

82666K

HOLDER, CONNECTOR, NO.4

82668B

HOLDER, CONNECTOR, NO.5

82672A

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82715

BRACKET,WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85910V

RELAY, SEAT HEATER

85924

RELAY, IGNITION CONTROL

8598A

BATTERY, DOOR CONTROL

87989

RELAY, MIRROR CONTROL

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

89980

COMPUTER ASSY, HYBRID VEHICLE CONTROL

90119T0313

Крепеж

90119T0404

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

90178T0007

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9167380620

Крепеж

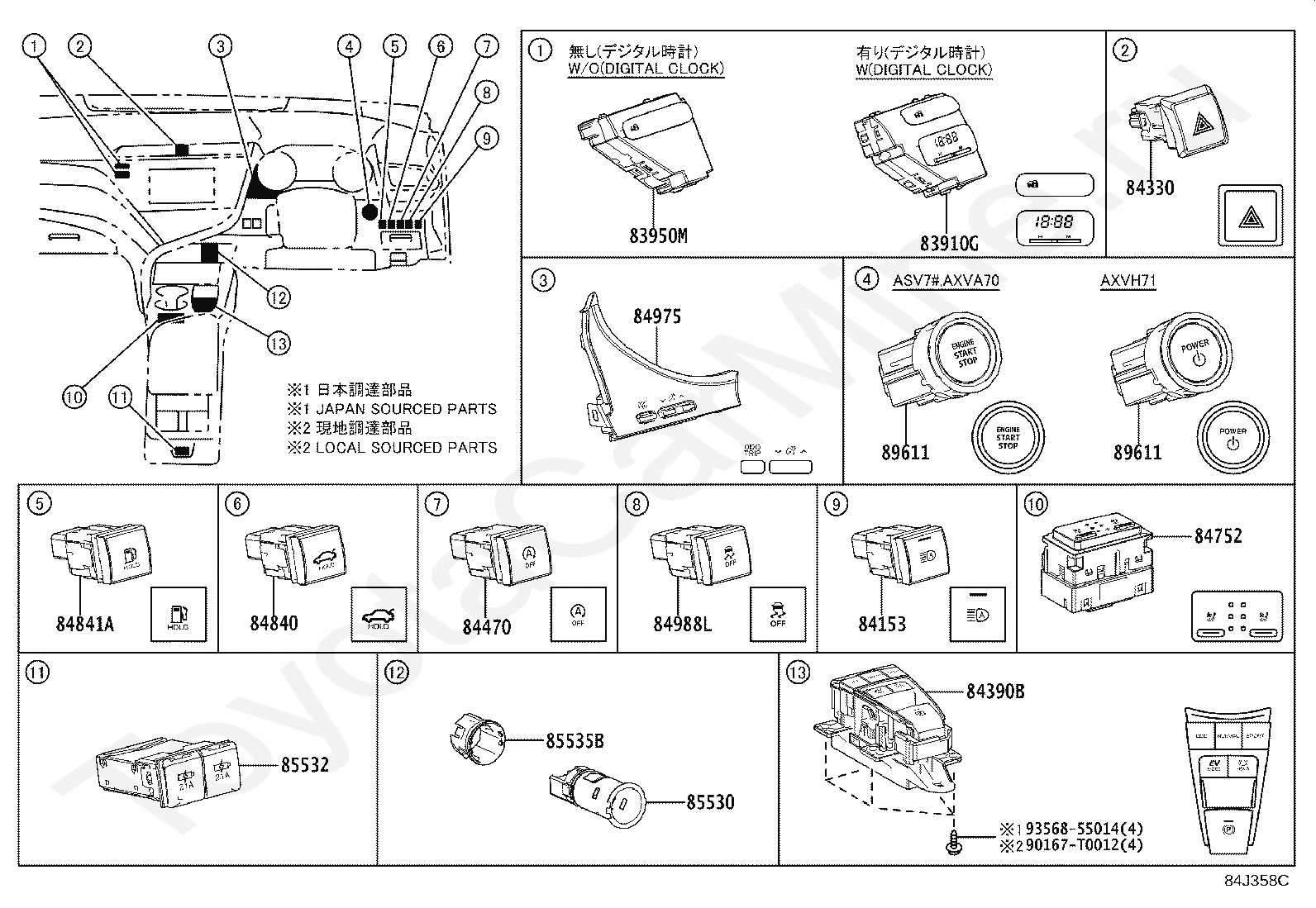

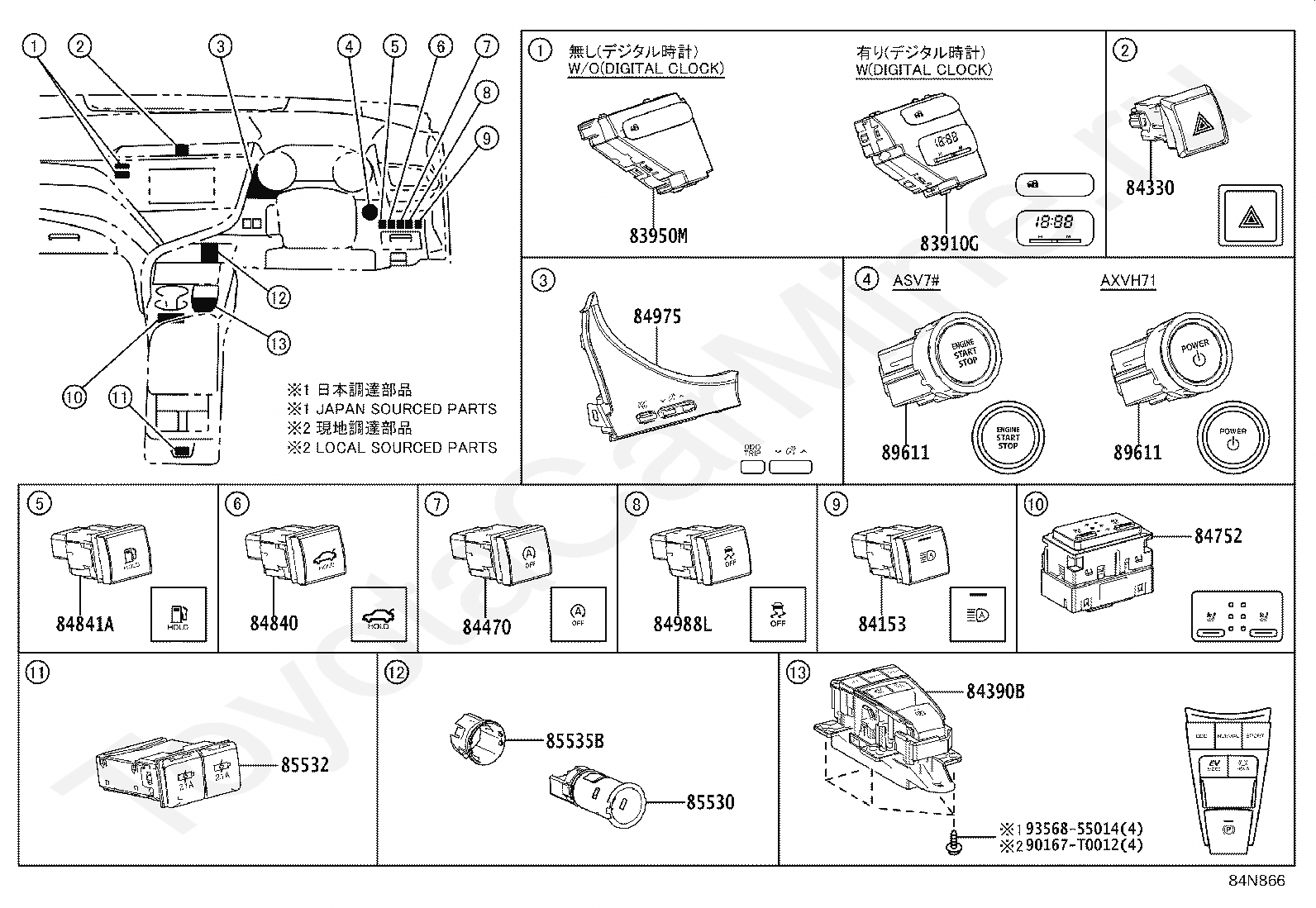

Код

Описание

83910G

CLOCK ASSY

83950M

LAMP ASSY, TELLTALE

84153

SWITCH, AUTO HIGH BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84470

SWITCH ASSY, WARNING CANCELING

84752

SWITCH, REFRESHING SEAT

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84841A

SWITCH, FUEL LID OPENER

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

90167T0012

Крепеж

9356855014

Крепеж

Код

Описание

83910G

CLOCK ASSY

83950M

LAMP ASSY, TELLTALE

84153

SWITCH, AUTO HIGH BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84470

SWITCH ASSY, WARNING CANCELING

84752

SWITCH, REFRESHING SEAT

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84841A

SWITCH, FUEL LID OPENER

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

90167T0012

Крепеж

9356855014

Крепеж

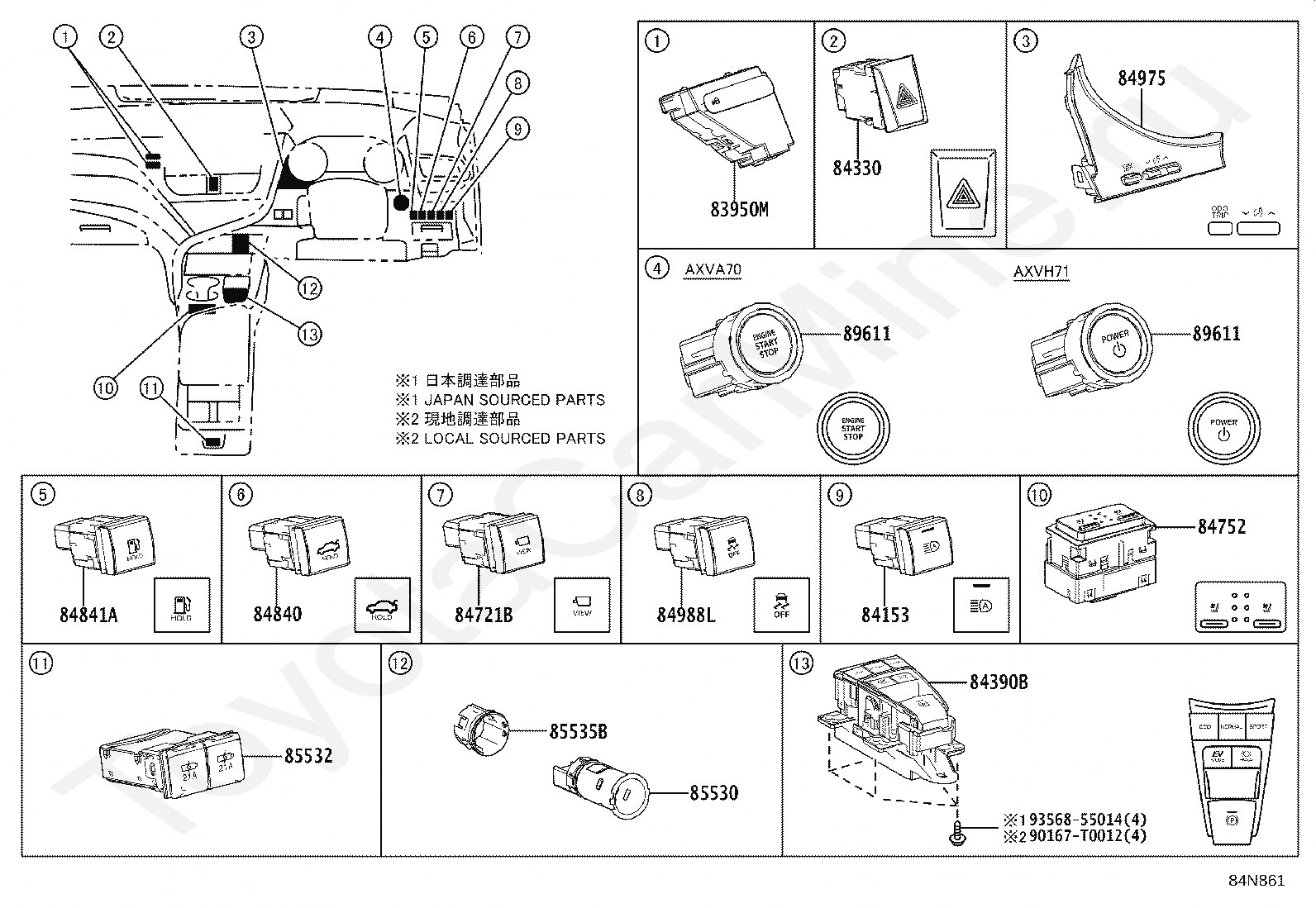

Код

Описание

83950M

LAMP ASSY, TELLTALE

84153

SWITCH, AUTO HIGH BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84390B

SWITCH ASSY, ELECTRIC PARKING BRAKE

84721B

SWITCH, PANORAMIC VIEW MONITOR

84752

SWITCH, REFRESHING SEAT

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84841A

SWITCH, FUEL LID OPENER

84975

SWITCH, TRIP

84988L

SWITCH, VSC OFF

85530

SOCKET ASSY, POWER OUTLET, NO.1

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

90167T0012

Крепеж

9356855014

Крепеж

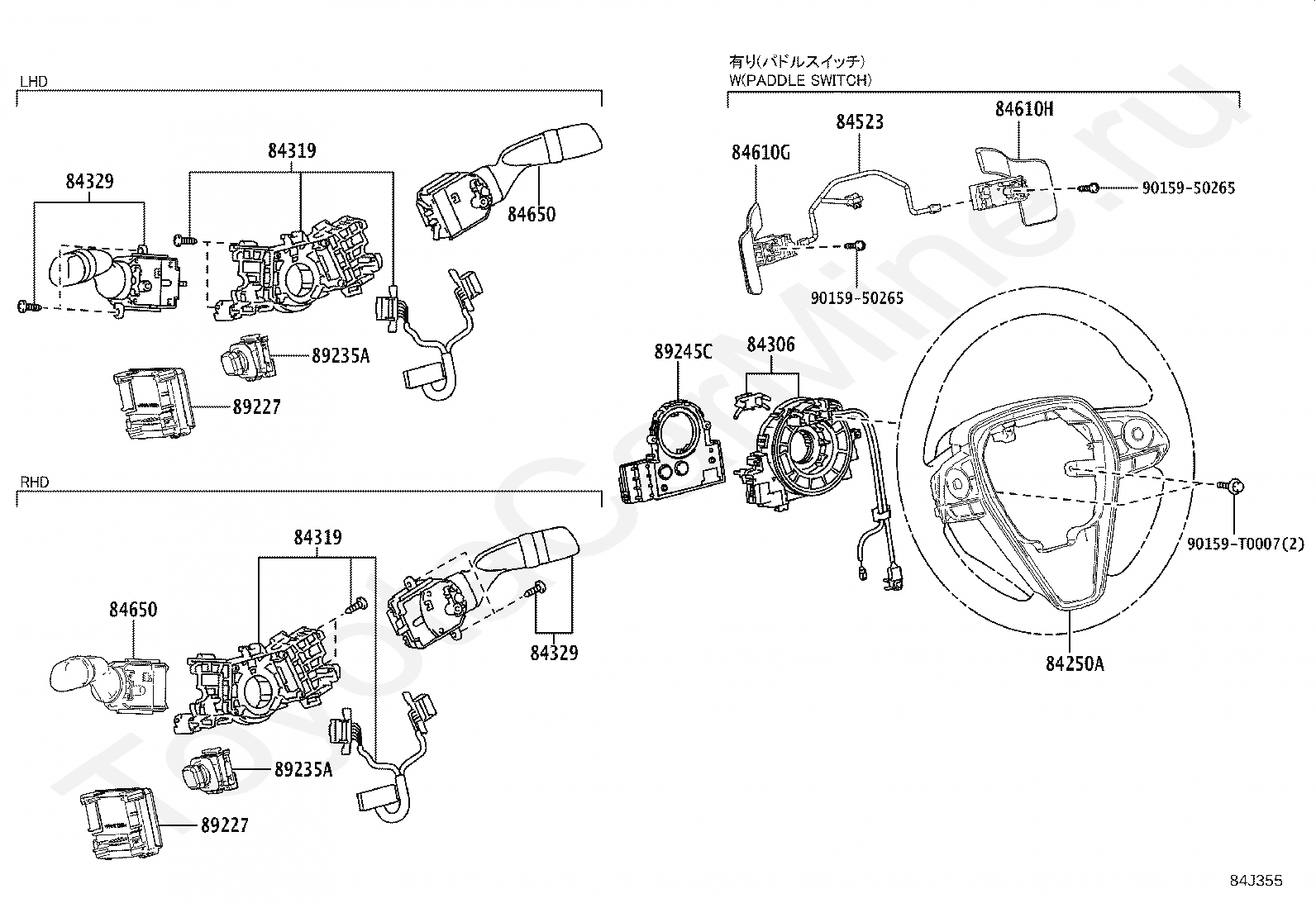

Код

Описание

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84329

SWITCH, TURN SIGNAL

84523

WIRE, SWITCH NO.1

84610G

SWITCH ASSY, TRANSMISSION SHIFT, NO.1

84610H

SWITCH ASSY, TRANSMISSION SHIFT, NO.2

84650

SWITCH ASSY, WINDSHIELD WIPER

84650

SWITCH ASSY, WINDSHIELD WIPER

89227

COMPUTER, MULTIPLEX TILT & TELESCOPIC

89227

COMPUTER, MULTIPLEX TILT & TELESCOPIC

89235A

SWITCH, TILT & TELESCOPIC

89235A

SWITCH, TILT & TELESCOPIC

89245C

SENSOR, STEERING

9015950265

Крепеж

9015950265

Крепеж

90159T0007

Крепеж

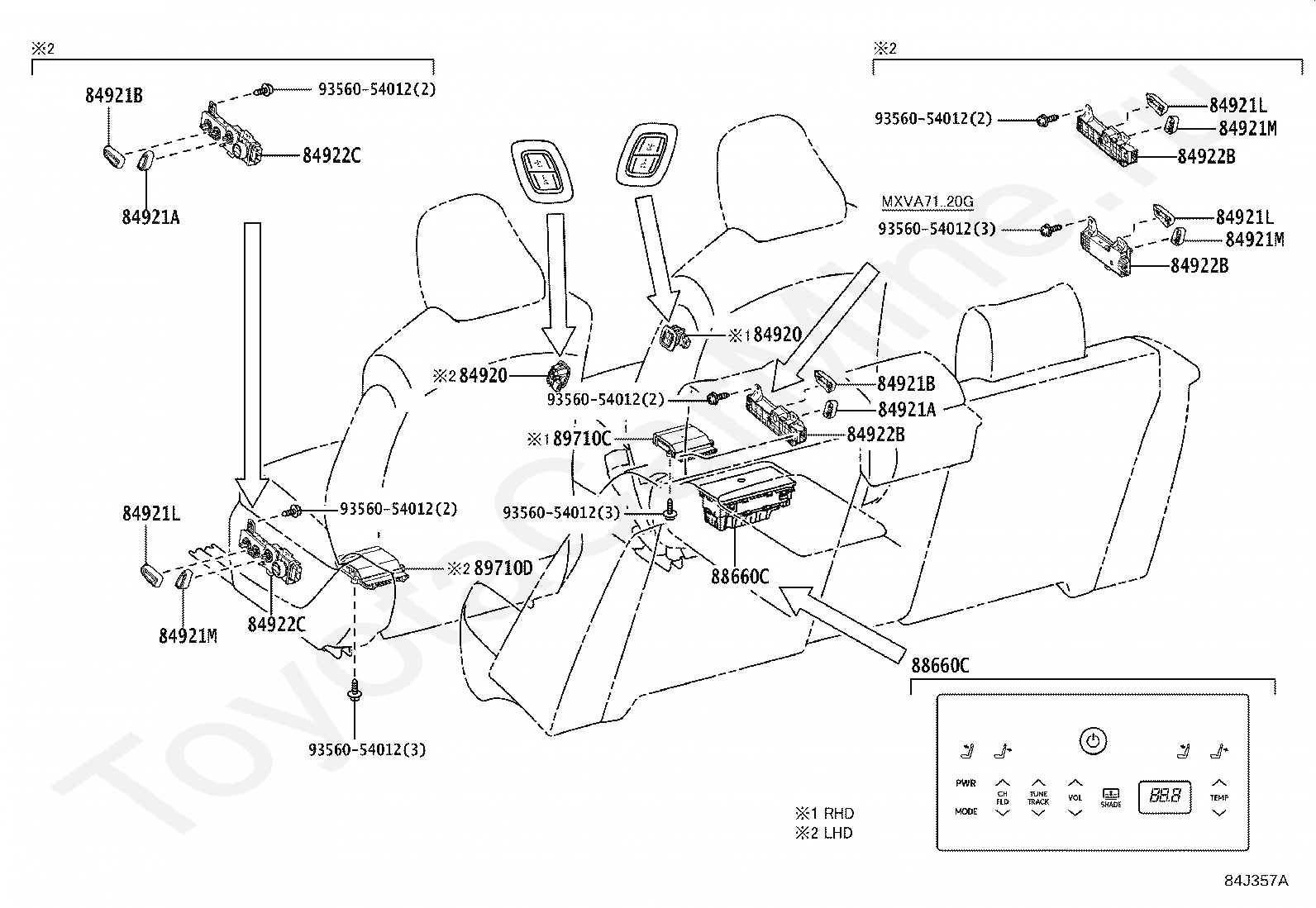

Код

Описание

84920

SWITCH ASSY, POWER SEAT

84920

SWITCH ASSY, POWER SEAT

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921L

KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2

84921L

KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2

84921L

KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2

84921M

KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2

84921M

KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2

84921M

KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2

84922B

SWITCH, FRONT POWER SEAT, RH

84922B

SWITCH, FRONT POWER SEAT, RH

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

84922C

SWITCH, FRONT POWER SEAT, LH

88660C

SWITCH ASSY, COOLER CONTROL

88660C

SWITCH ASSY, COOLER CONTROL

89710C

COMPUTER ASSY, POSITION CONTROL, RH

89710D

COMPUTER ASSY, POSITION CONTROL, LH

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9356054012

Крепеж

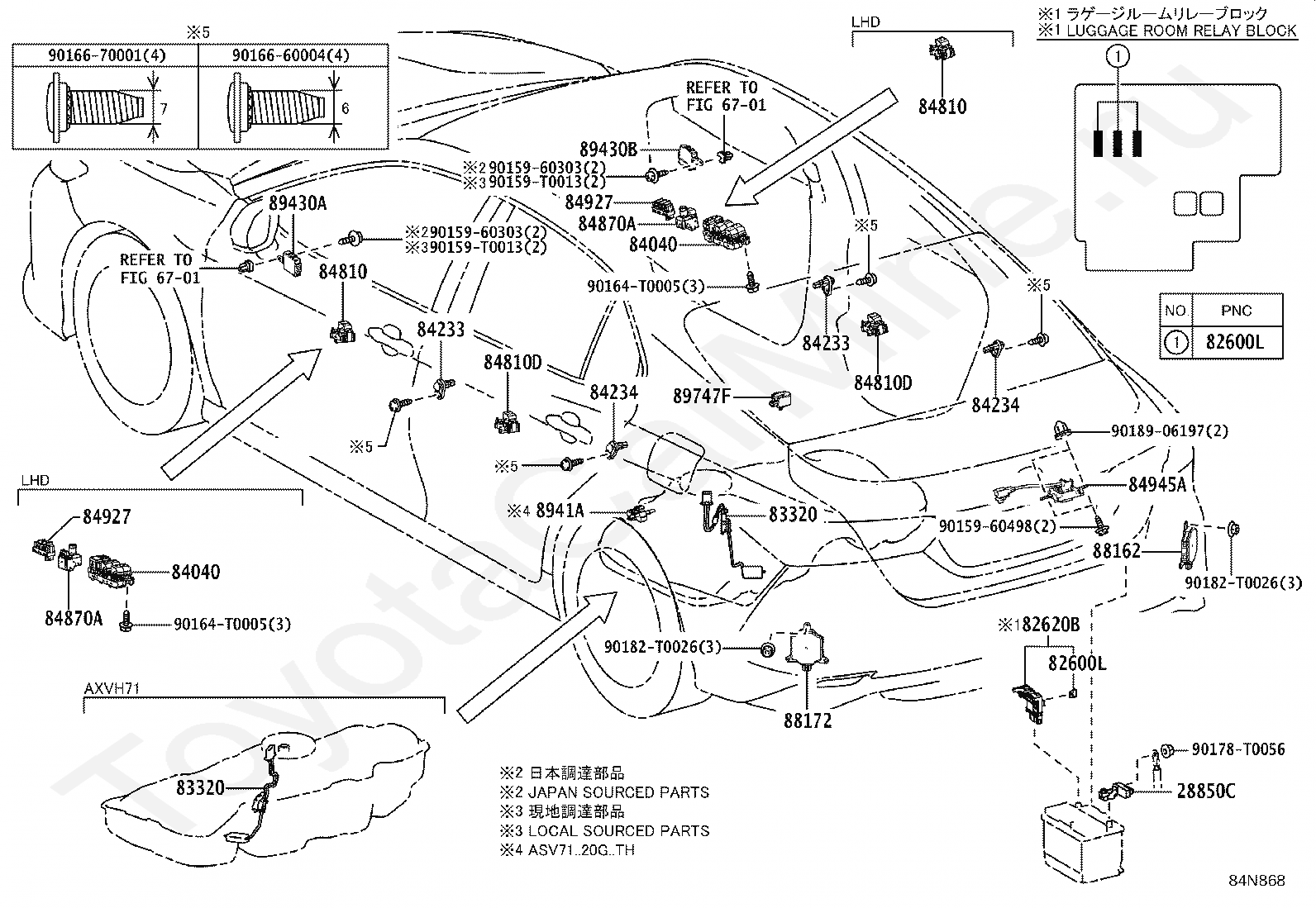

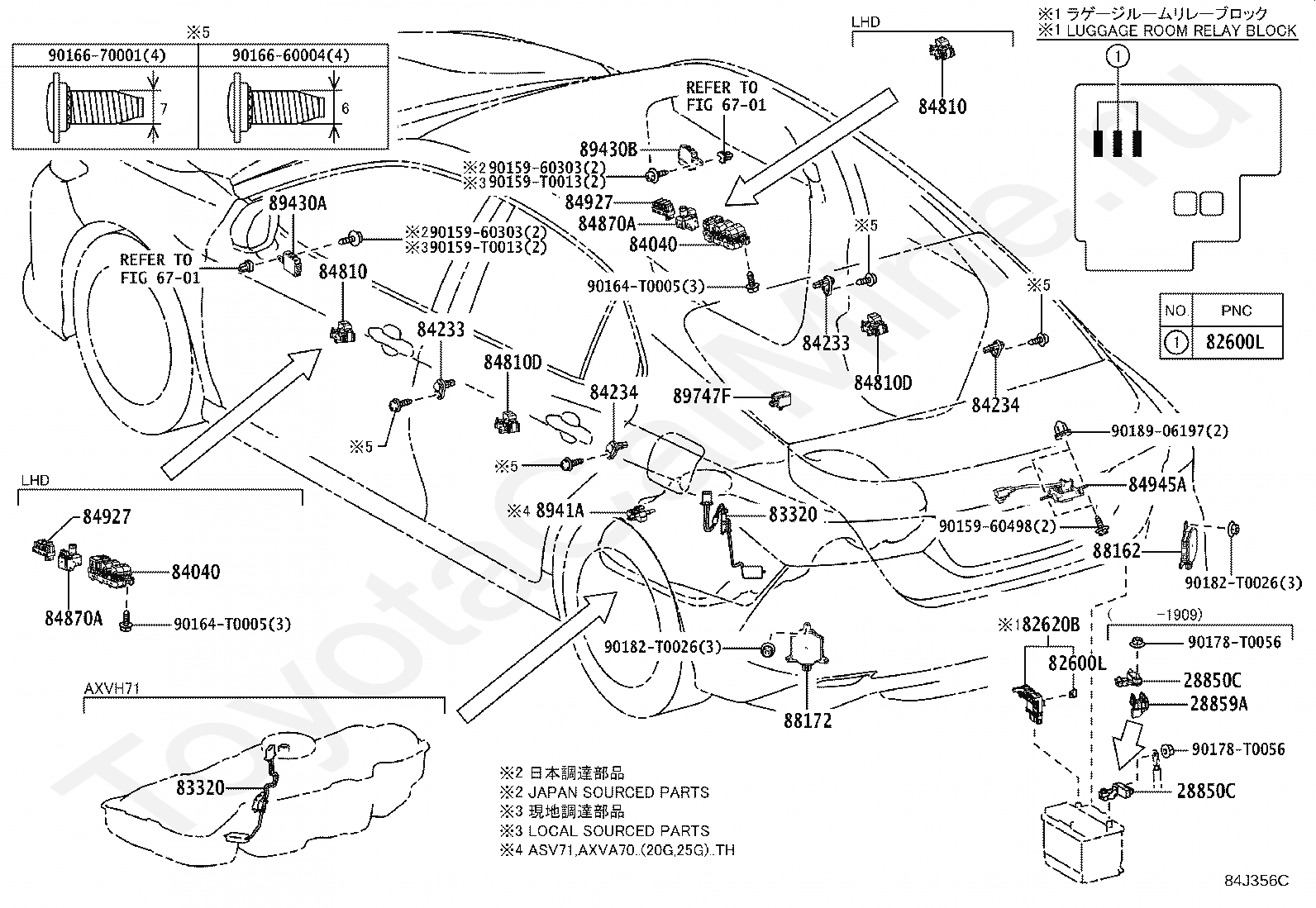

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

6701

переход к группе запчастей

6701

переход к группе запчастей

82600L

LUGGAGE ROOM FUSE

82600L

LUGGAGE ROOM FUSE

82620B

BLOCK ASSY, FUSIBLE LINK

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

84927

SWITCH, SEAT MEMORY

84927

SWITCH, SEAT MEMORY

84945A

SWITCH, LUGGAGE ELECTRICAL KEY

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

8941A

SENSOR, ETHYL ALCOHOL DENSITY

89430A

COMPUTER ASSY, OUTER MIRROR CONTROL, LH

89430B

COMPUTER ASSY, OUTER MIRROR CONTROL, RH

89747F

BUZZER, BLIND SPOT MONITOR

9015960303

Крепеж

9015960303

Крепеж

9015960498

Крепеж

90159T0013

Крепеж

90159T0013

Крепеж

90164T0005

Крепеж

90164T0005

Крепеж

9016660004

Крепеж

9016670001

Крепеж

90178T0056

Крепеж

90178T0056

Крепеж

90182T0026

Крепеж

90182T0026

Крепеж

9018906197

Крепеж

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

6701

переход к группе запчастей

6701

переход к группе запчастей

82600L

LUGGAGE ROOM FUSE

82600L

LUGGAGE ROOM FUSE

82620B

BLOCK ASSY, FUSIBLE LINK

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

84927

SWITCH, SEAT MEMORY

84927

SWITCH, SEAT MEMORY

84945A

SWITCH, LUGGAGE ELECTRICAL KEY

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

8941A

SENSOR, ETHYL ALCOHOL DENSITY

89430A

COMPUTER ASSY, OUTER MIRROR CONTROL, LH

89430B

COMPUTER ASSY, OUTER MIRROR CONTROL, RH

89747F

BUZZER, BLIND SPOT MONITOR

9015960303

Крепеж

9015960303

Крепеж

9015960498

Крепеж

90159T0013

Крепеж

90159T0013

Крепеж

90164T0005

Крепеж

90164T0005

Крепеж

9016660004

Крепеж

9016670001

Крепеж

90178T0056

Крепеж

90182T0026

Крепеж

90182T0026

Крепеж

9018906197

Крепеж

> Запчасти CAMRY > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
