Ближний Восток

Модель

CAMRY/HYBRID (ASIA)

VIN

Дата

2015/02

Двигатель

2,5 литра, 16 клапанов DOHC, EFI

Фрейм

ASV50

КПП

АКПП, 6 скоростей

Опции

левый руль Филиппины E(MODEL MARK) 607W

Реле и кнопки TOYOTA CAMRY/HYBRID (ASIA)

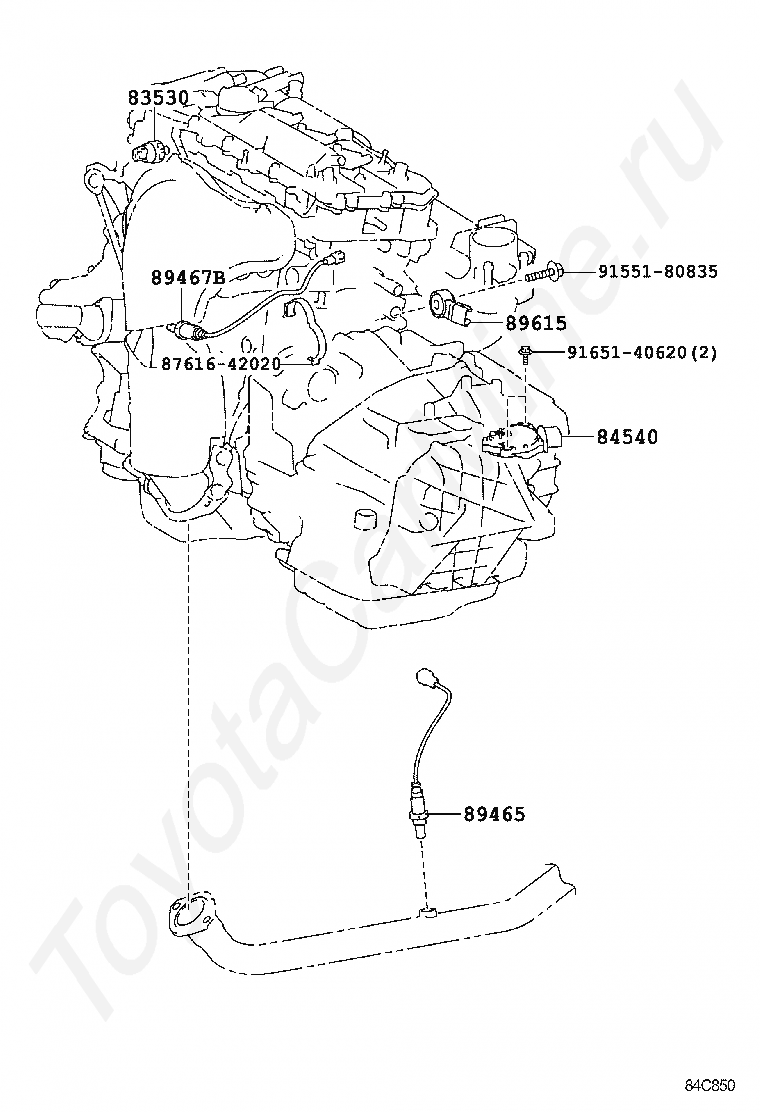

Код

Описание

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84540

SWITCH ASSY, NEUTRAL START

8761642020

Крепеж

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89615

SENSOR, KNOCK CONTROL

9155180835

Крепеж

9165140620

Крепеж

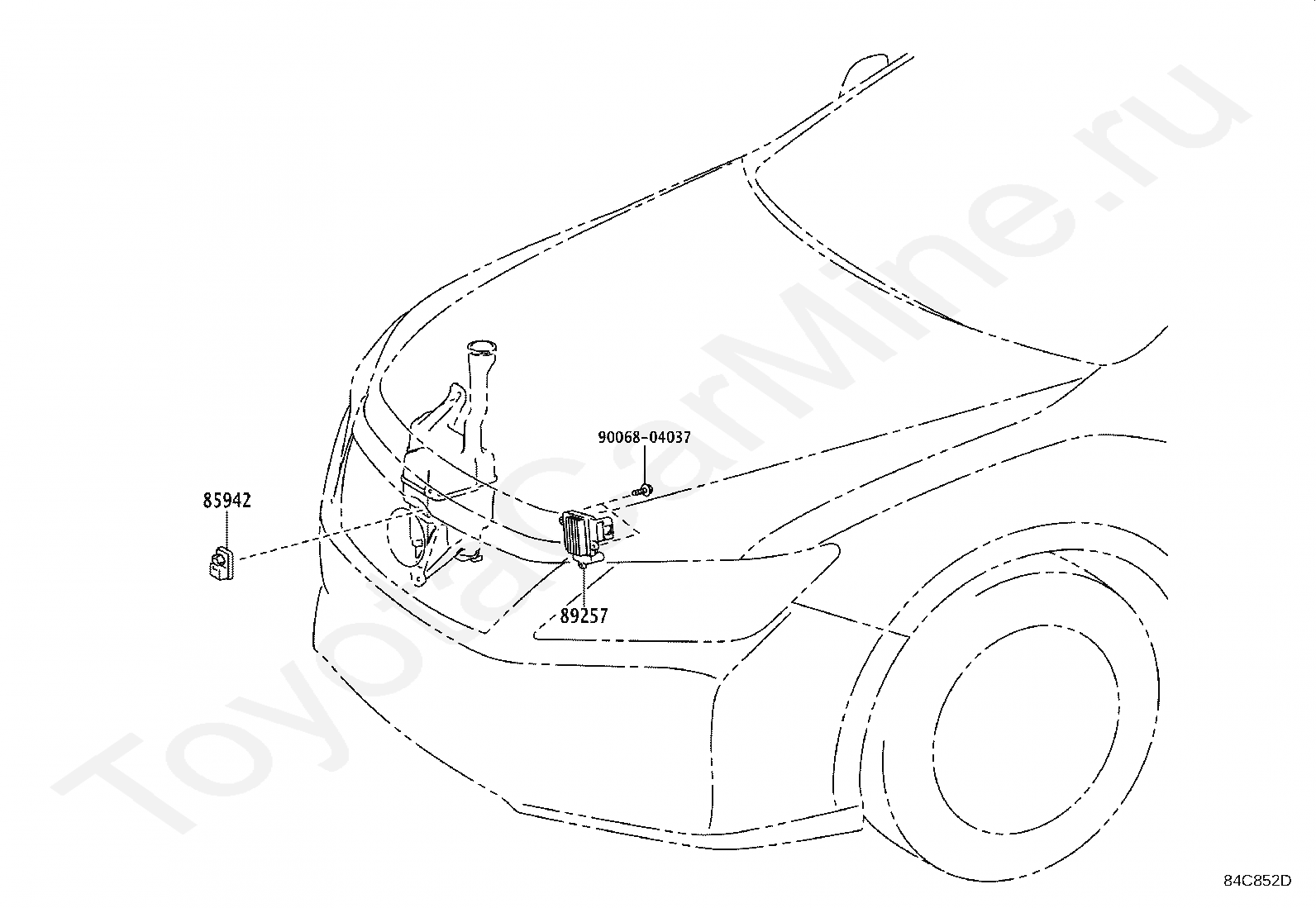

Код

Описание

85942

RELAY, HEADLAMP CLEANER CONTROL

89257

COMPUTER, COOLING FAN

9006804037

Крепеж

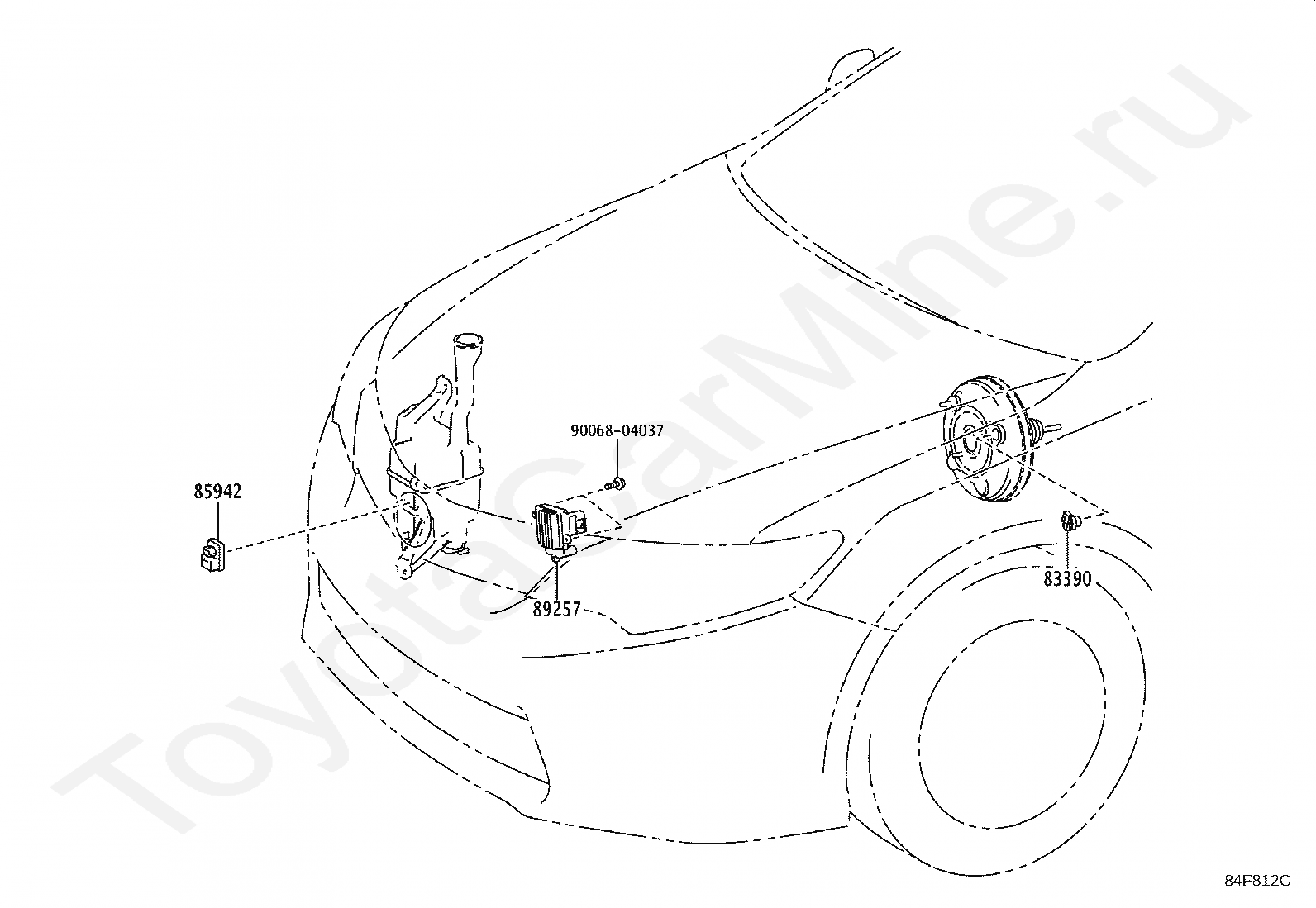

Код

Описание

83390

SWITCH ASSY, VACUUM WARNING

85942

RELAY, HEADLAMP CLEANER CONTROL

89257

COMPUTER, COOLING FAN

9006804037

Крепеж

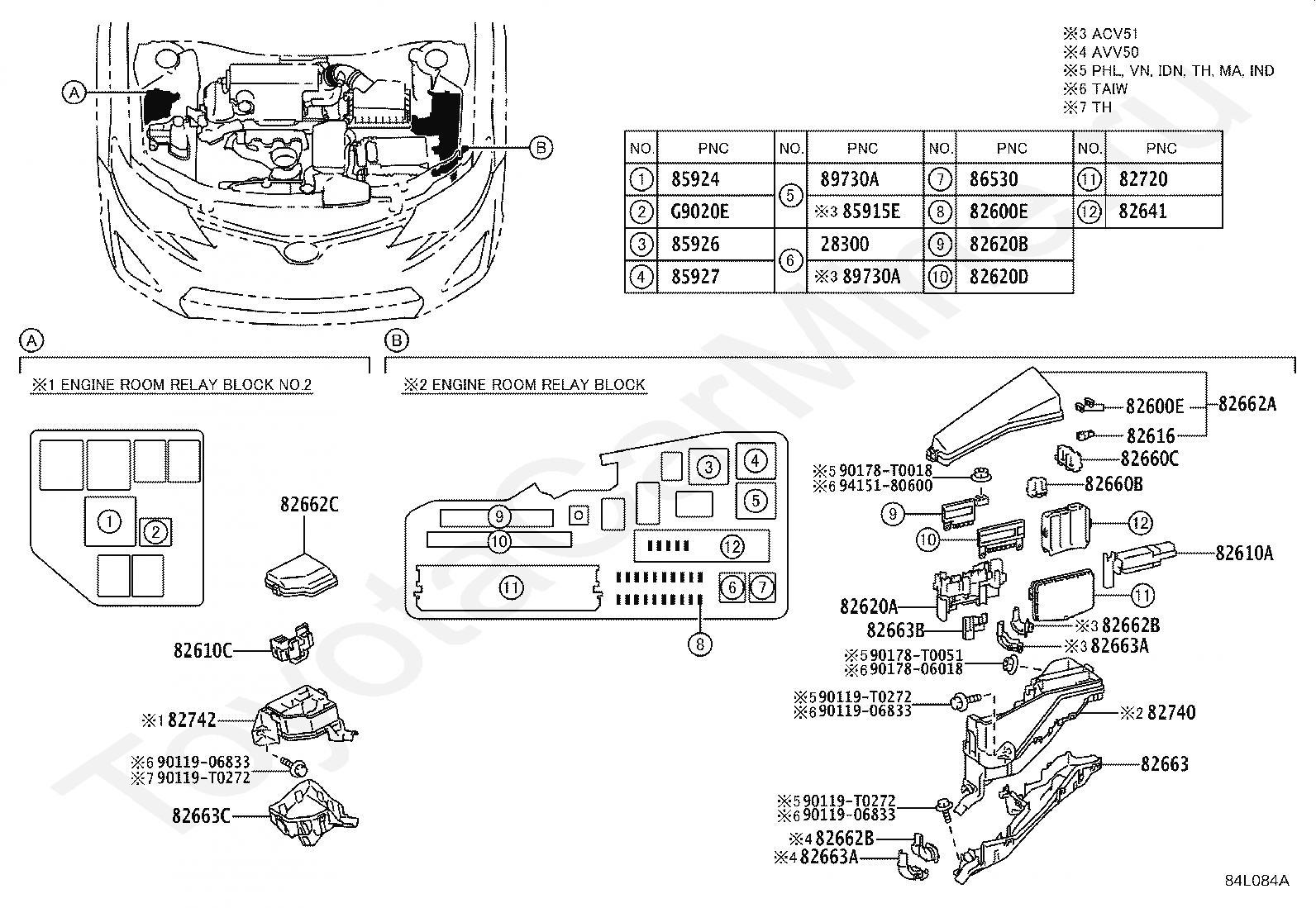

Код

Описание

28300

RELAY ASSY, STARTER

82600E

ENGINE ROOM FUSE

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82620B

BLOCK ASSY, FUSIBLE LINK

82620D

BLOCK ASSY, FUSIBLE LINK

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82720

BLOCK ASSY, ENGINE ROOM JUNCTION

82740

BLOCK ASSY, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

85915E

RELAY

85924

RELAY, IGNITION CONTROL

85926

RELAY, HEADLAMP DIMMER

85927

RELAY, COOLING FAN

86530

RELAY ASSY, HORN

89730A

RELAY(FOR SECURITY WARNING)

89730A

RELAY(FOR SECURITY WARNING)

9011906833

Крепеж

9011906833

Крепеж

9011906833

Крепеж

90119T0272

Крепеж

90119T0272

Крепеж

90119T0272

Крепеж

9017806018

Крепеж

90178T0018

Крепеж

90178T0051

Крепеж

9415180600

Крепеж

G9020E

RELAY, HYBRID WATER PUMP

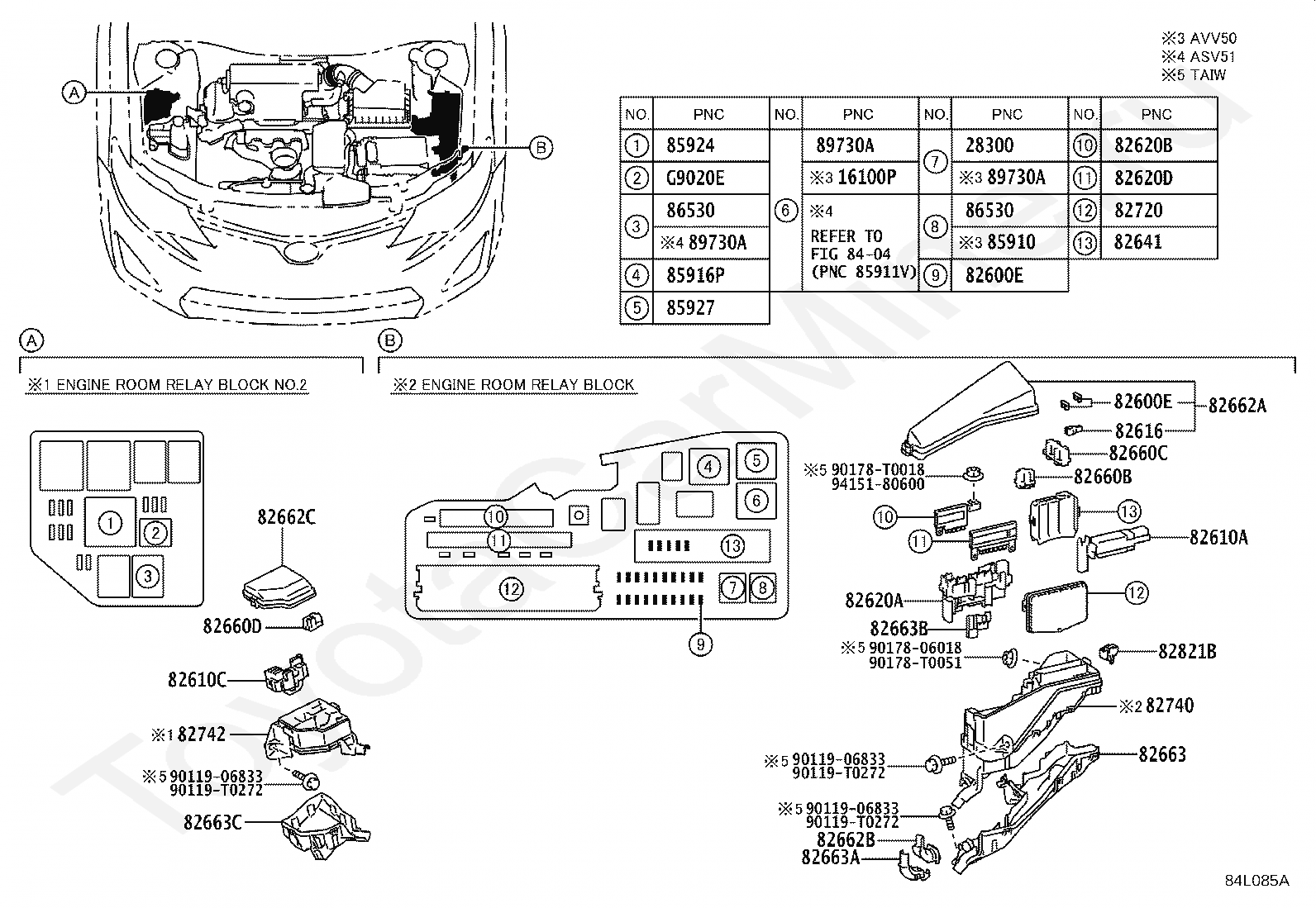

Код

Описание

16100P

RELAY, WATER PUMP

28300

RELAY ASSY, STARTER

82600E

ENGINE ROOM FUSE

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82620B

BLOCK ASSY, FUSIBLE LINK

82620D

BLOCK ASSY, FUSIBLE LINK

82641

RELAY, INTEGRATION NO.1

82660B

BLOCK ASSY, RELAY

82660C

BLOCK ASSY, RELAY

82660D

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82663C

COVER, RELAY BLOCK LOWER, NO.4

82720

BLOCK ASSY, ENGINE ROOM JUNCTION

82740

BLOCK ASSY, ENGINE ROOM RELAY

82742

BLOCK, ENGINE ROOM RELAY, NO.2

82821B

COVER, CONNECTOR

8404

переход к группе запчастей

85910

RELAY ASSY, CIRCUIT OPENING

85916P

RELAY, HEADLAMP

85924

RELAY, IGNITION CONTROL

85927

RELAY, COOLING FAN

86530

RELAY ASSY, HORN

86530

RELAY ASSY, HORN

89730A

RELAY(FOR SECURITY WARNING)

89730A

RELAY(FOR SECURITY WARNING)

89730A

RELAY(FOR SECURITY WARNING)

9011906833

Крепеж

9011906833

Крепеж

9011906833

Крепеж

90119T0272

Крепеж

90119T0272

Крепеж

90119T0272

Крепеж

9017806018

Крепеж

90178T0018

Крепеж

90178T0051

Крепеж

9415180600

Крепеж

G9020E

RELAY, HYBRID WATER PUMP

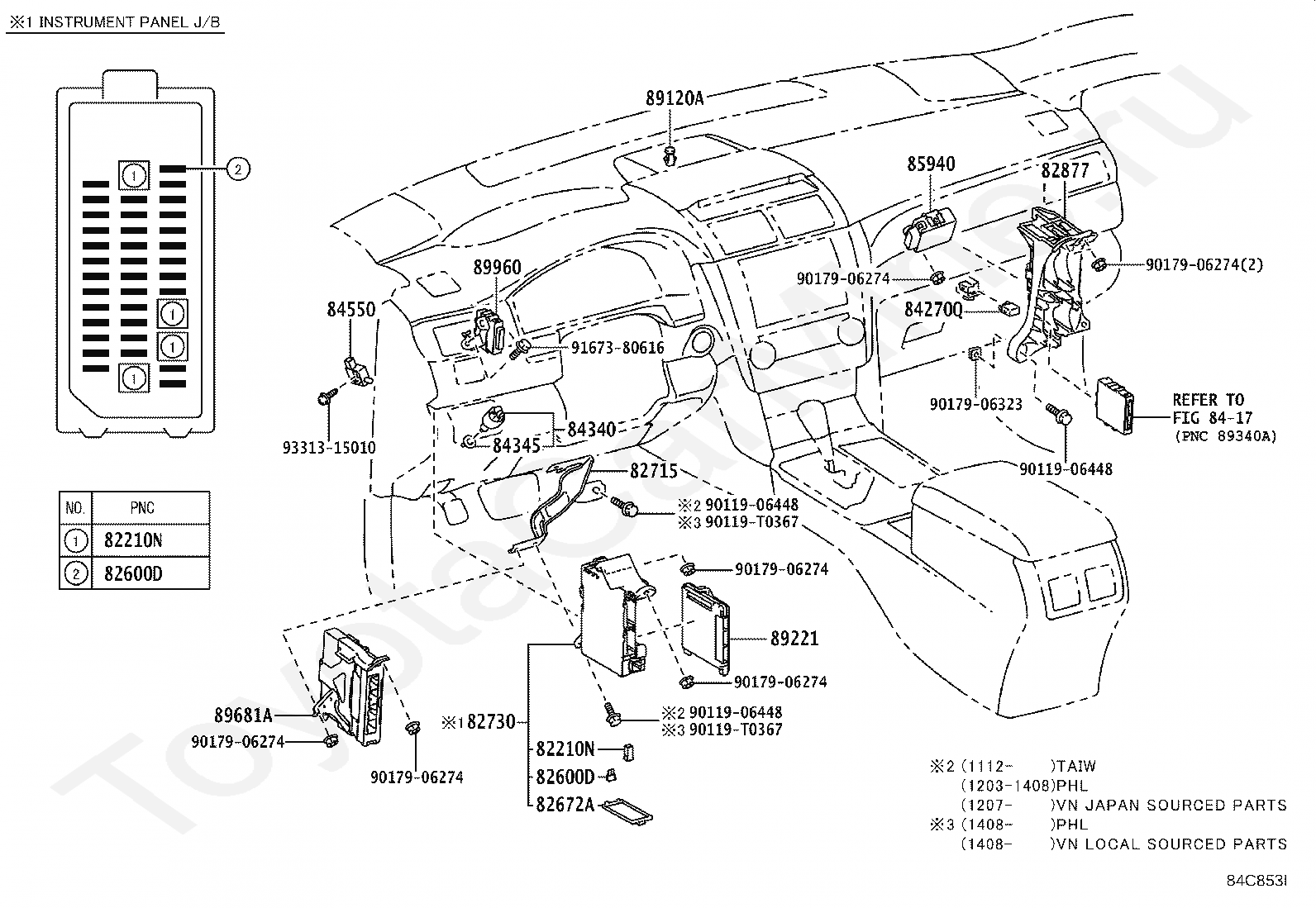

Код

Описание

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82672A

COVER, JUNCTION BLOCK

82715

BRACKET,WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

8417

переход к группе запчастей

84270Q

RELAY, LAMP CUT

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85940

RELAY ASSY, WINDSHIELD WIPER

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89681A

COMPUTER, POWER MANAGEMENT CONTROL

89960

COMPUTER ASSY, HEADLAMP LEVELING

9011906448

Крепеж

9011906448

Крепеж

9011906448

Крепеж

90119T0367

Крепеж

90119T0367

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906323

Крепеж

9167380616

Крепеж

9331315010

Крепеж

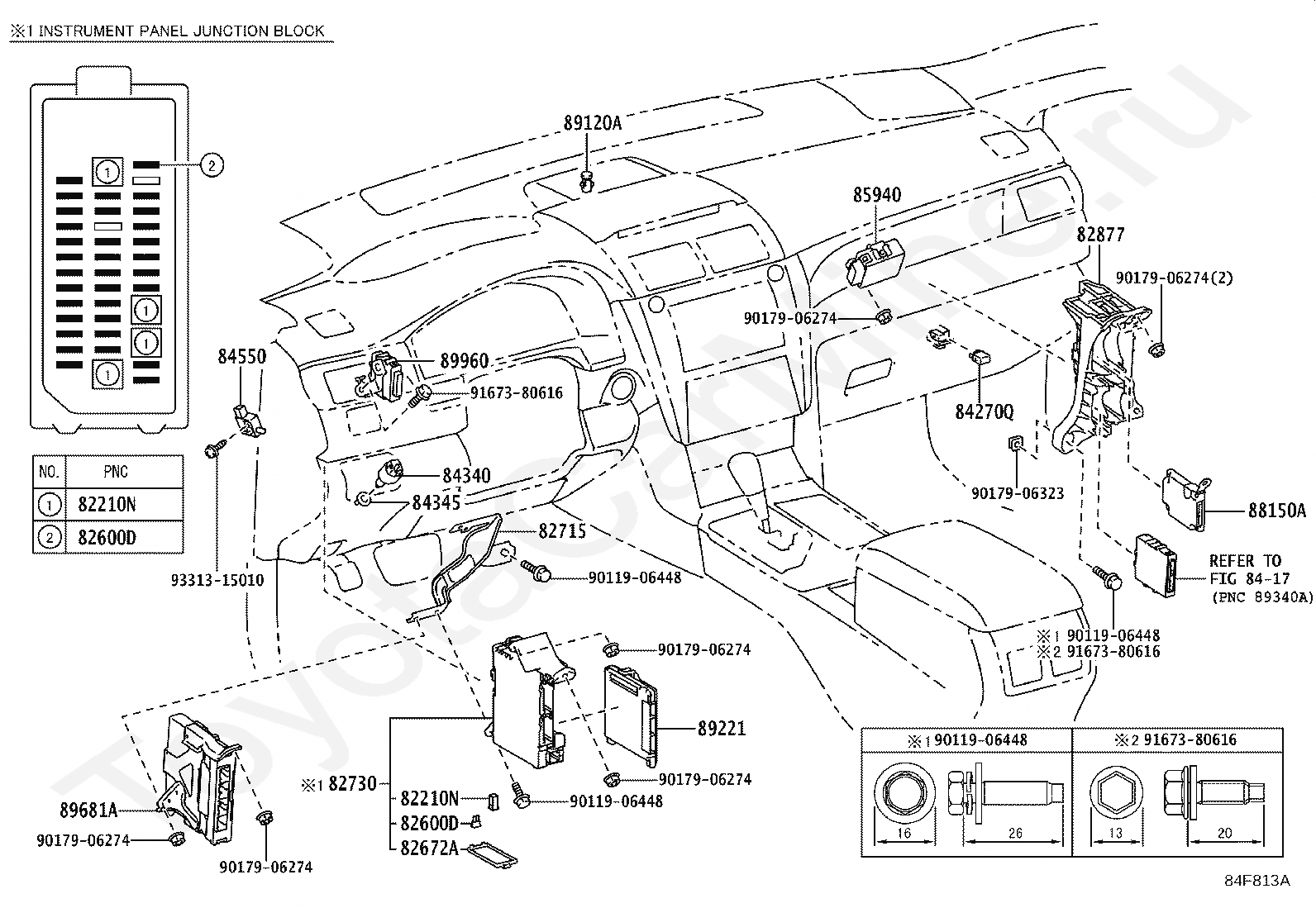

Код

Описание

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82672A

COVER, JUNCTION BLOCK

82715

BRACKET,WIRING HARNESS CLAMP

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

8417

переход к группе запчастей

84270Q

RELAY, LAMP CUT

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84550

SWITCH ASSY, PARKING BRAKE

85940

RELAY ASSY, WINDSHIELD WIPER

88150A

COMPUTER ASSY, DRIVING SUPPORT

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89681A

COMPUTER, POWER MANAGEMENT CONTROL

89960

COMPUTER ASSY, HEADLAMP LEVELING

9011906448

Крепеж

9011906448

Крепеж

9011906448

Крепеж

9011906448

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906323

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9331315010

Крепеж

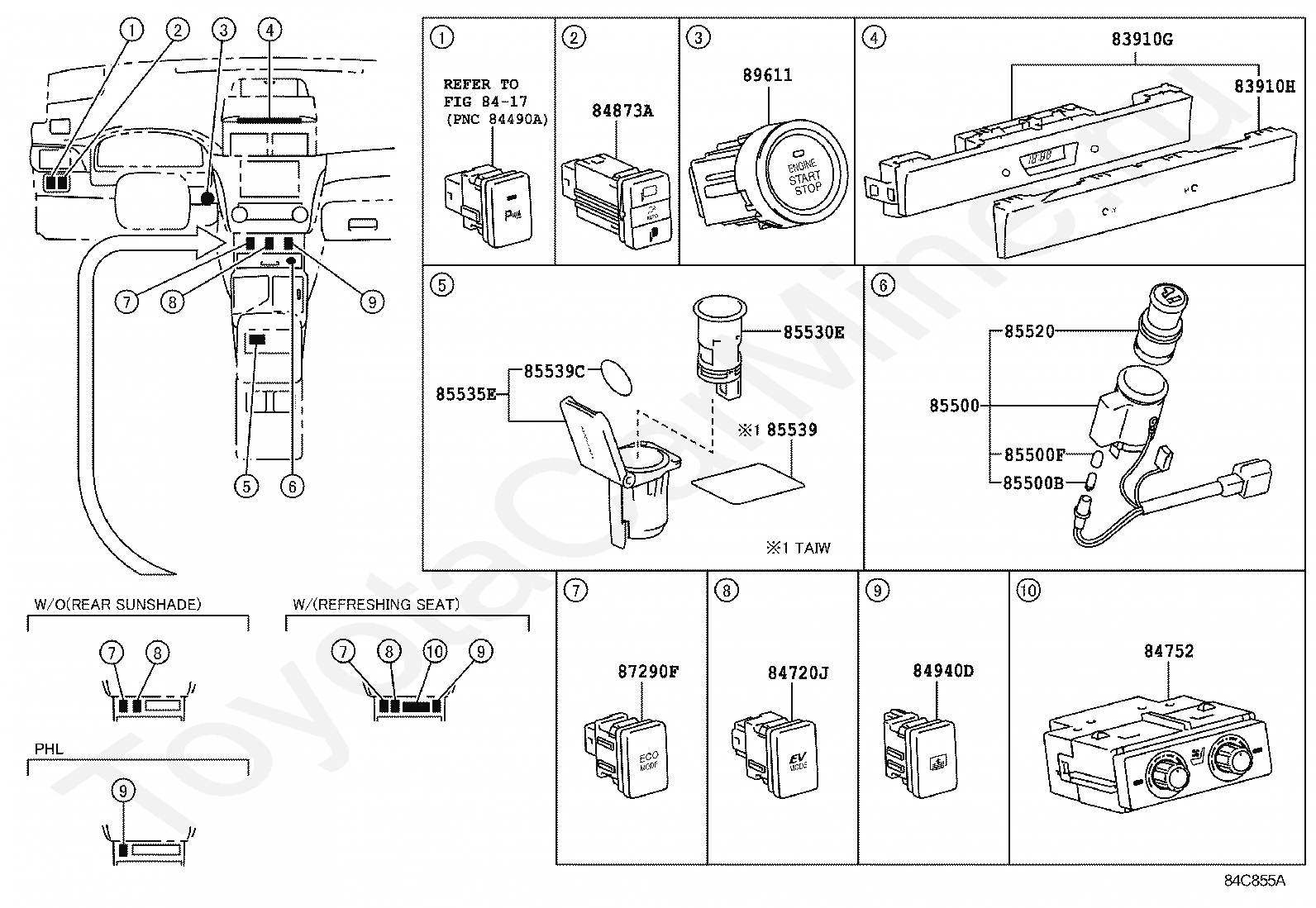

Код

Описание

83910G

CLOCK ASSY

83910H

LENS, CLOCK

8417

переход к группе запчастей

84720J

SWITCH ASSY, PATTERN SELECT

84752

SWITCH, REFRESHING SEAT

84873A

SWITCH, RETRACTABLE OUTER MIRROR

84940D

SWITCH ASSY, REAR SUN SHADE

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85500F

CAP, CIGARETTE LIGHTER BULB

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85535E

COVER, POWER OUTLET SOCKET, NO.2

85539

LABEL, POWER OUTLET NOTICE

85539C

LABEL, POWER OUTLET NOTICE

87290F

SWITCH ASSY, ECO

89611

SWITCH, PUSH START

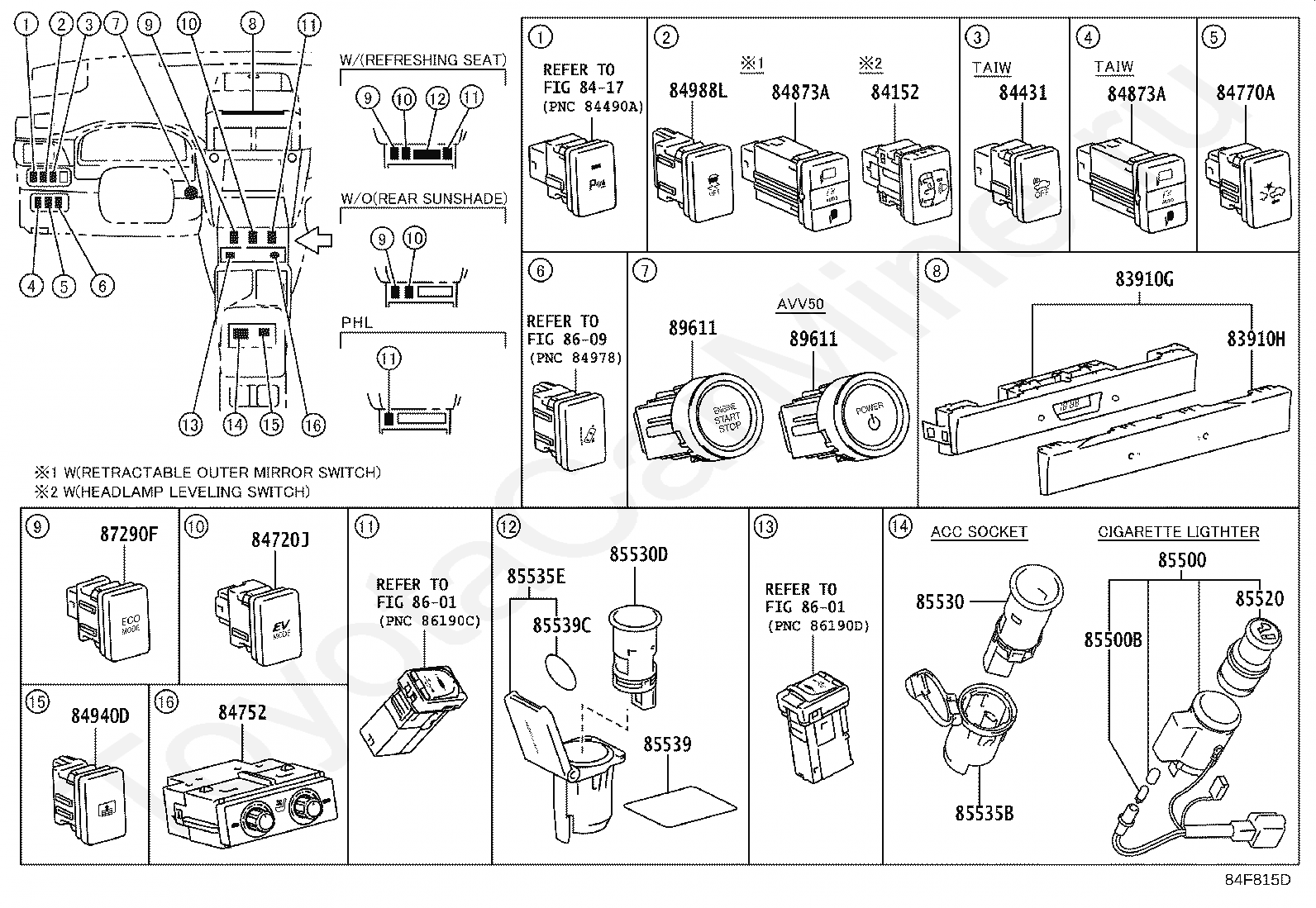

Код

Описание

83910G

CLOCK ASSY

83910H

LENS, CLOCK

84152

SWITCH, HEADLAMP LEVELING

8417

переход к группе запчастей

84431

SWITCH, VEHICLE APPROACHING SPEAKER

84720J

SWITCH ASSY, PATTERN SELECT

84752

SWITCH, REFRESHING SEAT

84770A

SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL

84873A

SWITCH, RETRACTABLE OUTER MIRROR

84873A

SWITCH, RETRACTABLE OUTER MIRROR

84940D

SWITCH ASSY, REAR SUN SHADE

84988L

SWITCH, VSC OFF

85500

LIGHTER ASSY, CIGARETTE

85500B

BULB, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85535B

COVER, POWER OUTLET SOCKET, NO.1

85535E

COVER, POWER OUTLET SOCKET, NO.2

85539

LABEL, POWER OUTLET NOTICE

85539C

LABEL, POWER OUTLET NOTICE

8601

переход к группе запчастей

8601

переход к группе запчастей

8609

переход к группе запчастей

87290F

SWITCH ASSY, ECO

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

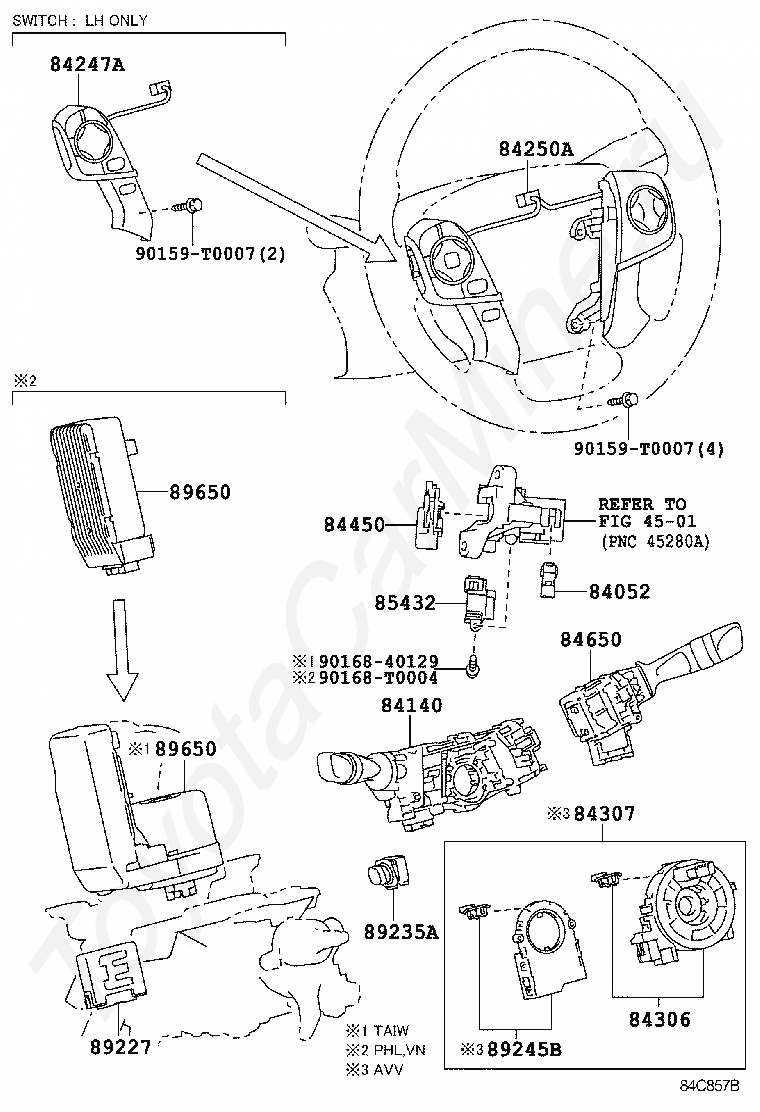

Код

Описание

4501

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84247A

SWITCH, STEERING PAD, LH

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84307

CABLE SUB-ASSY, SPIRAL W/SENSOR

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89227

COMPUTER, MULTIPLEX TILT & TELESCOPIC

89235A

SWITCH, TILT & TELESCOPIC

89245B

SENSOR, STEERING

89650

COMPUTER ASSY, POWER STEERING

89650

COMPUTER ASSY, POWER STEERING

90159T0007

Крепеж

90159T0007

Крепеж

9016840129

Крепеж

90168T0004

Крепеж

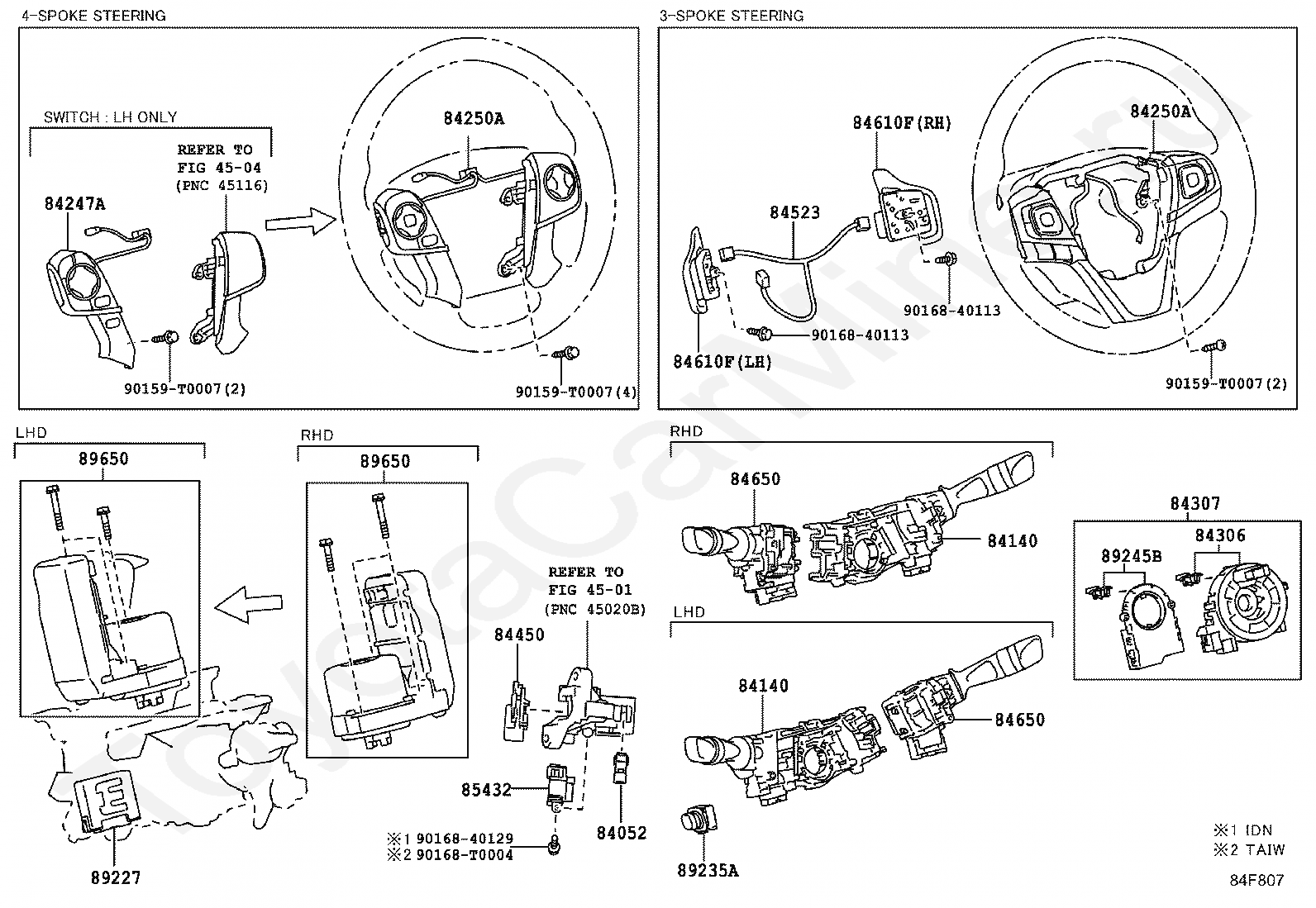

Код

Описание

4501

переход к группе запчастей

4504

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84140

SWITCH ASSY, HEADLAMP DIMMER

84247A

SWITCH, STEERING PAD, LH

84250A

SWITCH ASSY, STEERING PAD

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84307

CABLE SUB-ASSY, SPIRAL W/SENSOR

84450

SWITCH ASSY, IGNITION OR STARTER

84523

WIRE, SWITCH NO.1

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84610F

SWITCH ASSY, TRANSMISSION SHIFT

84650

SWITCH ASSY, WINDSHIELD WIPER

84650

SWITCH ASSY, WINDSHIELD WIPER

85432

SOLENOID, KEY INTER LOCK

89227

COMPUTER, MULTIPLEX TILT & TELESCOPIC

89235A

SWITCH, TILT & TELESCOPIC

89245B

SENSOR, STEERING

89650

COMPUTER ASSY, POWER STEERING

89650

COMPUTER ASSY, POWER STEERING

90159T0007

Крепеж

90159T0007

Крепеж

90159T0007

Крепеж

9016840113

Крепеж

9016840113

Крепеж

9016840129

Крепеж

90168T0004

Крепеж

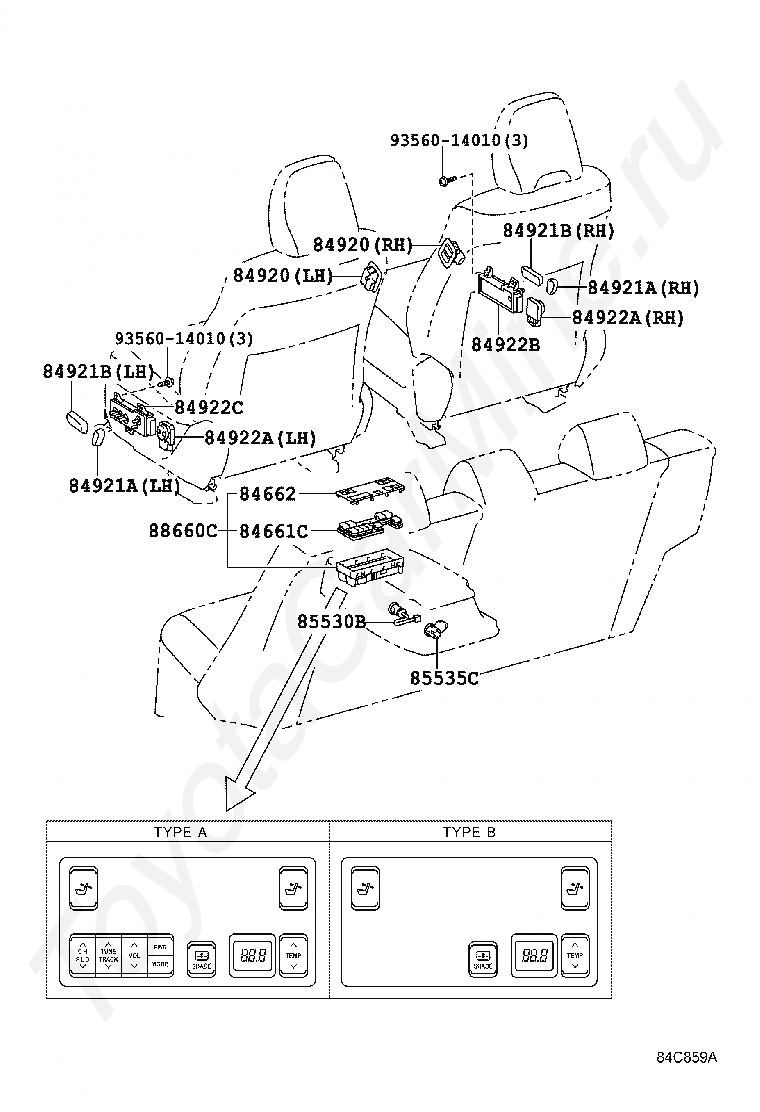

Код

Описание

84661C

KNOB, COOLER CONTROL SWITCH

84662

PANEL, COOLER CONTROL SWITCH

84920

SWITCH ASSY, POWER SEAT

84920

SWITCH ASSY, POWER SEAT

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921A

KNOB, POWER SEAT SWITCH (FOR RECLINING)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84921B

KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922A

SWITCH, FRONT POWER SEAT(FOR LUMBAR)

84922B

SWITCH, FRONT POWER SEAT, RH

84922C

SWITCH, FRONT POWER SEAT, LH

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85535C

COVER, POWER OUTLET SOCKET, REAR

88660C

SWITCH ASSY, COOLER CONTROL

9356014010

Крепеж

9356014010

Крепеж

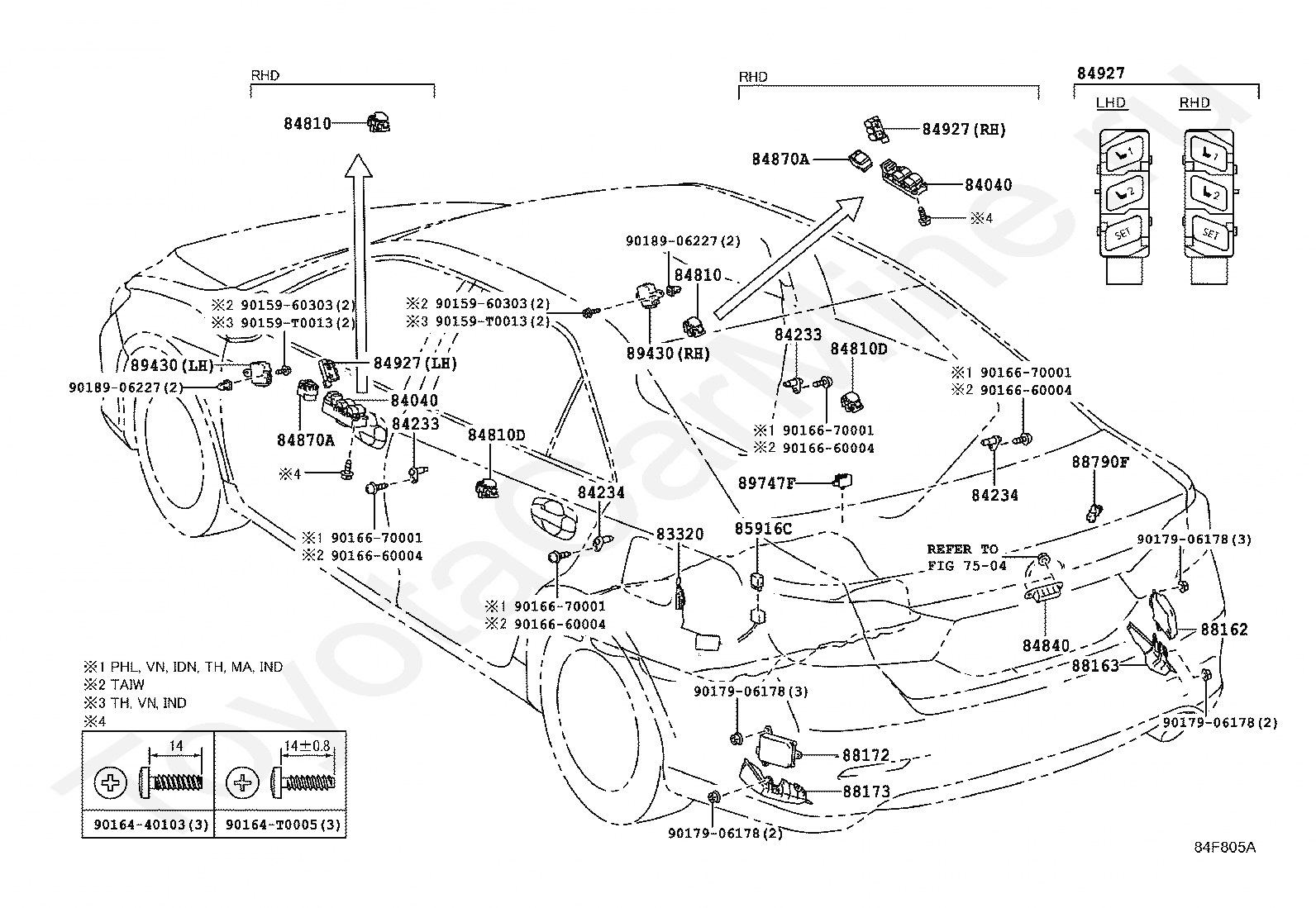

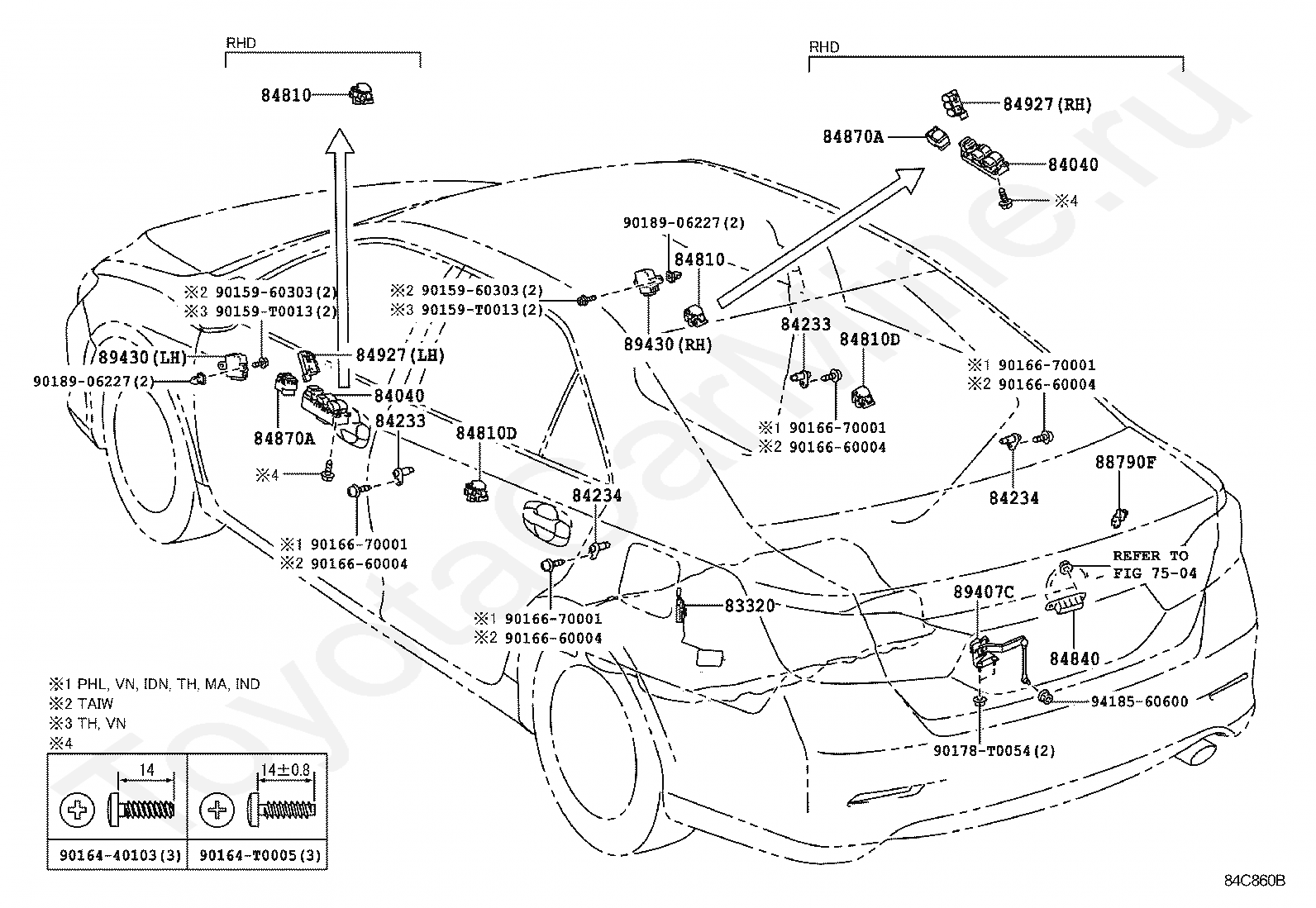

Код

Описание

7504

переход к группе запчастей

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

84927

SWITCH, SEAT MEMORY

84927

SWITCH, SEAT MEMORY

88790F

THERMISTOR ASSY

89407C

SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

89430

COMPUTER ASSY, OUTER MIRROR CONTROL

89430

COMPUTER ASSY, OUTER MIRROR CONTROL

9015960303

Крепеж

9015960303

Крепеж

90159T0013

Крепеж

90159T0013

Крепеж

9016440103

Крепеж

90164T0005

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

90178T0054

Крепеж

9018906227

Крепеж

9018906227

Крепеж

9418560600

Крепеж

Код

Описание

7504

переход к группе запчастей

83320

GAGE ASSY, FUEL SENDER

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84840

SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING

84870A

SWITCH ASSY, OUTER MIRROR

84870A

SWITCH ASSY, OUTER MIRROR

84927

SWITCH, SEAT MEMORY

84927

SWITCH, SEAT MEMORY

84927

SWITCH, SEAT MEMORY

85916C

RELAY, BACK UP LAMP

88162

SENSOR, BLIND SPOT MONITOR, RH

88163

COVER, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

88173

COVER, BLIND SPOT MONITOR, LH

88790F

THERMISTOR ASSY

89430

COMPUTER ASSY, OUTER MIRROR CONTROL

89430

COMPUTER ASSY, OUTER MIRROR CONTROL

89747F

BUZZER, BLIND SPOT MONITOR

9015960303

Крепеж

9015960303

Крепеж

90159T0013

Крепеж

90159T0013

Крепеж

9016440103

Крепеж

90164T0005

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016660004

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9017906178

Крепеж

9018906227

Крепеж

9018906227

Крепеж

> Запчасти CAMRY > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
