Ближний Восток

Модель

CAMRY (CHINA)

VIN

Дата

2006/05

Двигатель

2 литра, 16 клапанов DOHC, EFI

Класс

200E TYPE

Фрейм

ACV41

КПП

АКПП, 4 ступени

Опции

левый руль Китай 334W

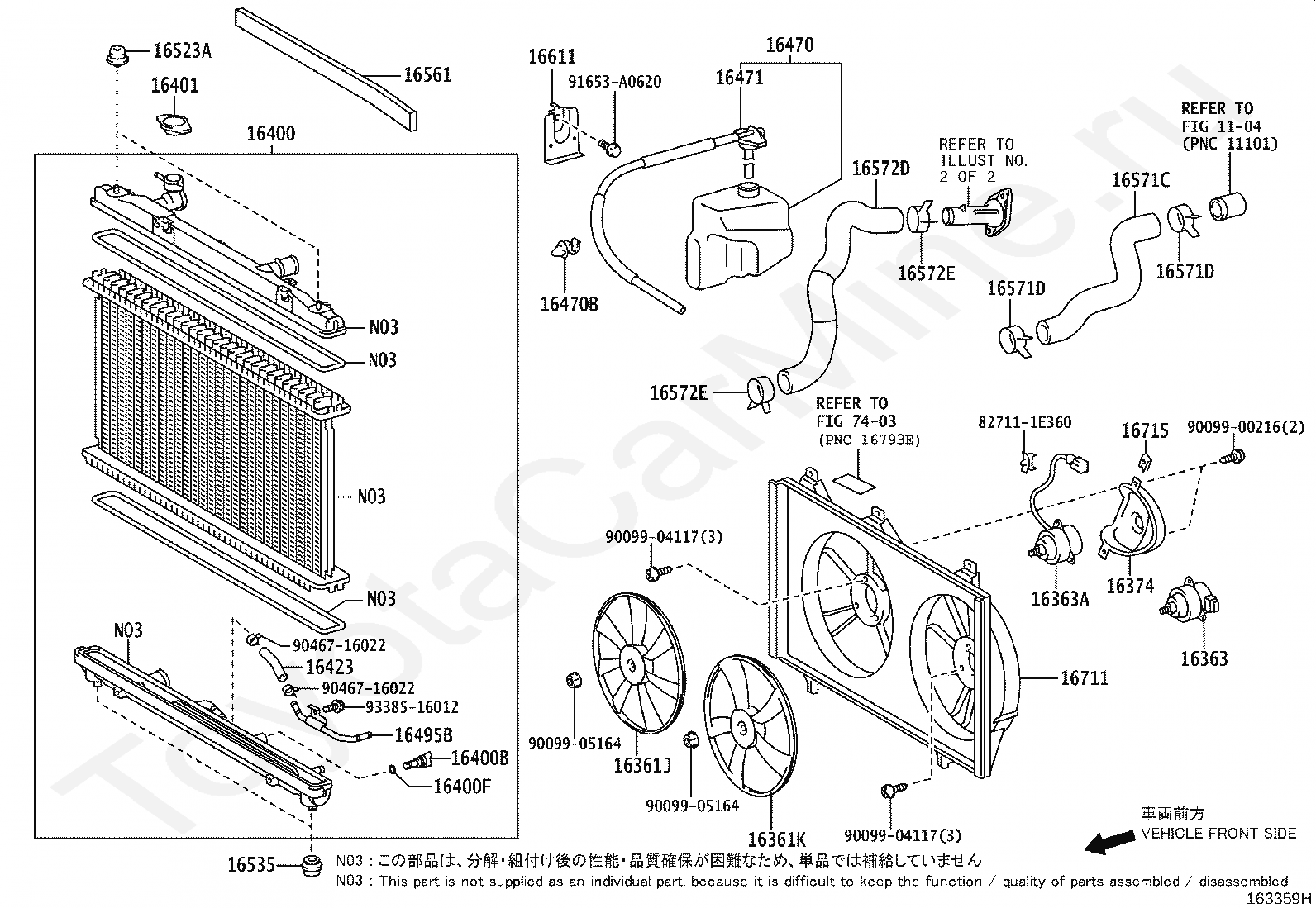

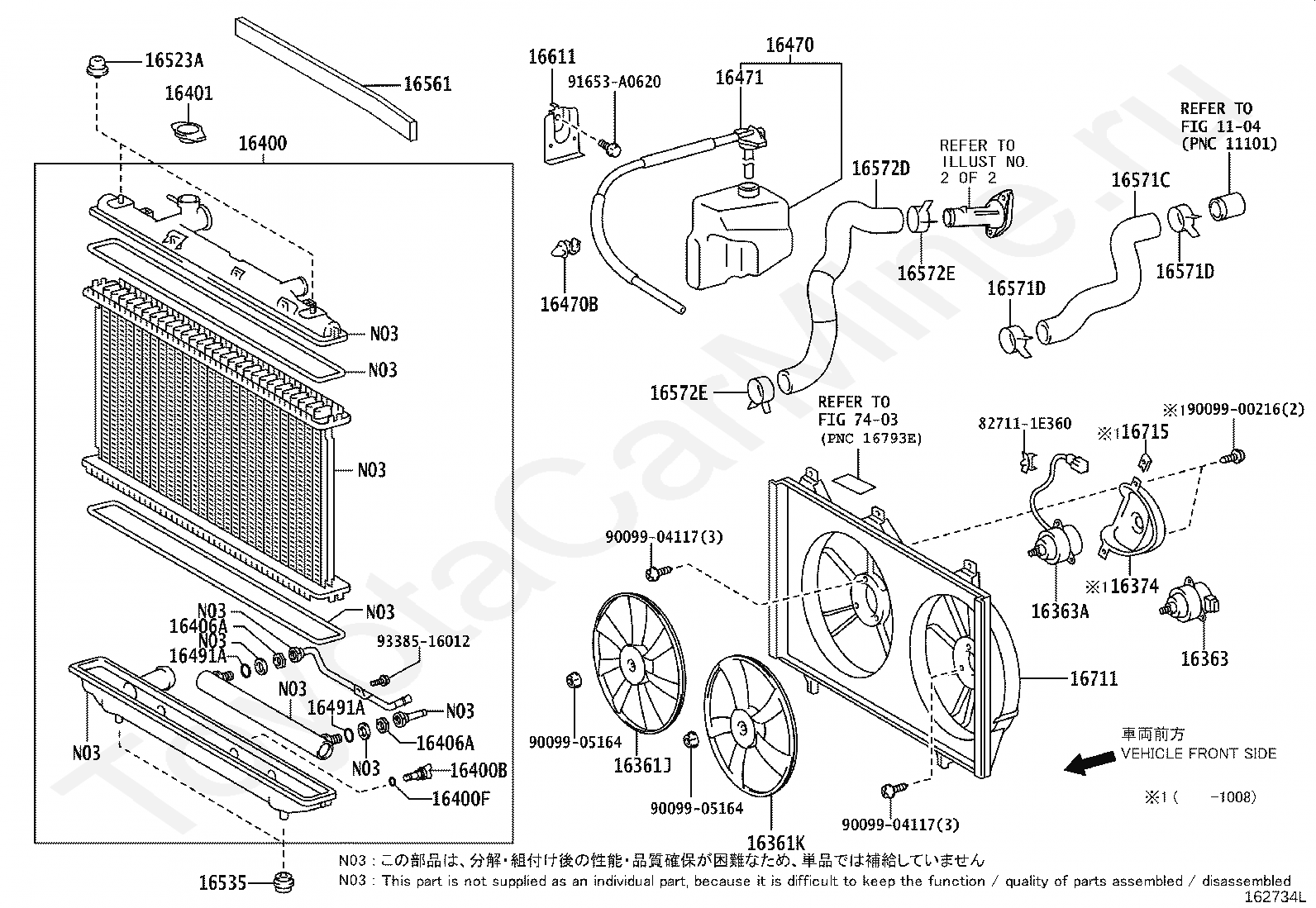

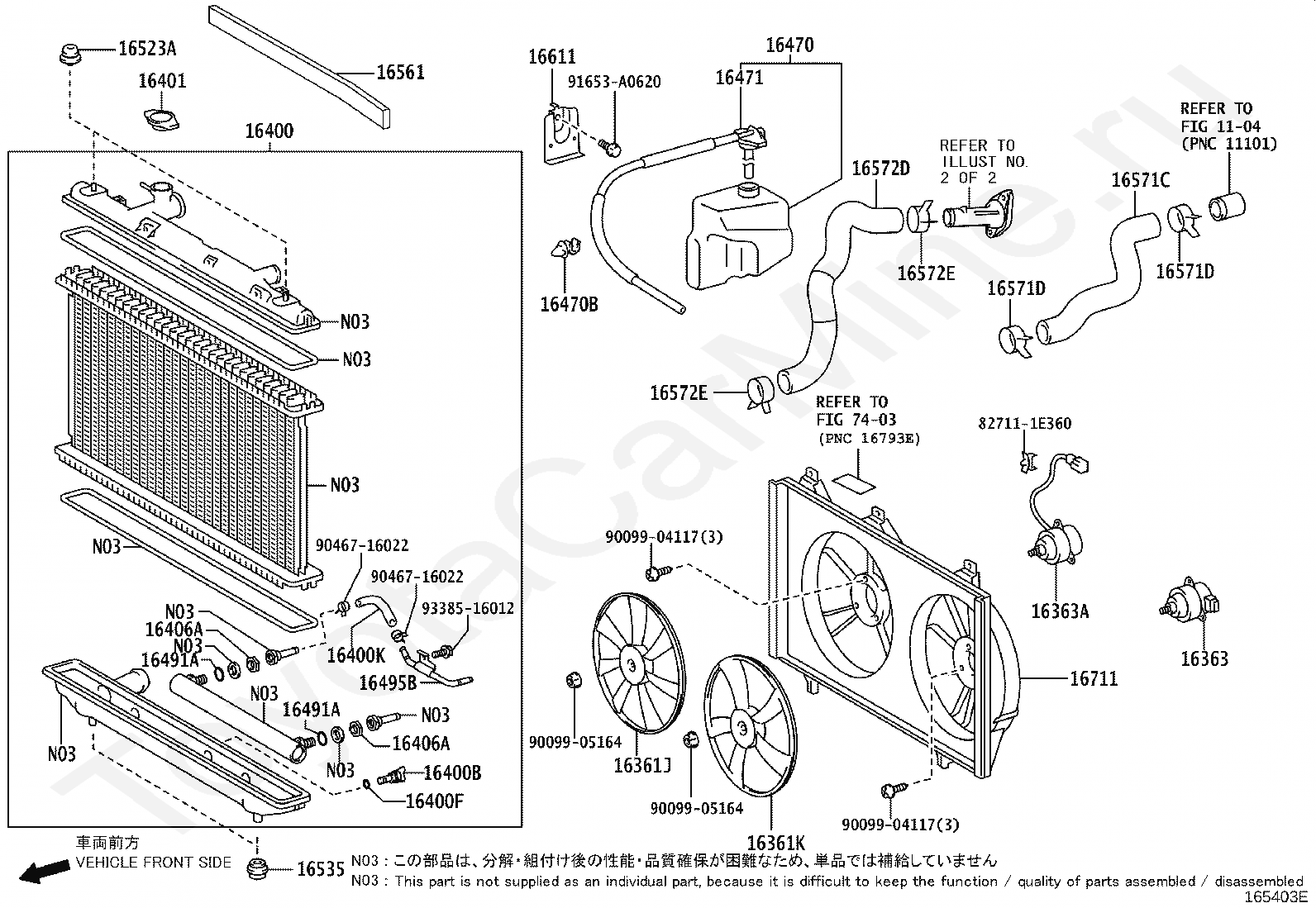

Радиатор и шланги TOYOTA CAMRY (CHINA)

Код

Описание

1104

переход к группе запчастей

16361J

FAN, RH

16361K

FAN, LH

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16406A

SUPPORT(FOR OIL COOLER)

16470

TANK ASSY, RADIATOR RESERVE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16491A

RING, O(FOR ATM OIL COOLER)

16491A

RING, O(FOR ATM OIL COOLER)

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

16715

BRACKET, FAN SHROUD

7403

переход к группе запчастей

827111E360

Крепеж

9009900216

Крепеж

9009904117

Крепеж

9009904117

Крепеж

9009905164

Крепеж

9009905164

Крепеж

91653A0620

Крепеж

9338516012

Крепеж

Код

Описание

1104

переход к группе запчастей

16361J

FAN, RH

16361K

FAN, LH

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16406A

SUPPORT(FOR OIL COOLER)

16470

TANK ASSY, RADIATOR RESERVE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16491A

RING, O(FOR ATM OIL COOLER)

16491A

RING, O(FOR ATM OIL COOLER)

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

16715

BRACKET, FAN SHROUD

7403

переход к группе запчастей

827111E360

Крепеж

9009900216

Крепеж

9009904117

Крепеж

9009904117

Крепеж

9009905164

Крепеж

9009905164

Крепеж

91653A0620

Крепеж

9338516012

Крепеж

Код

Описание

1104

переход к группе запчастей

16361J

FAN, RH

16361K

FAN, LH

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16423

HOSE, RADIATOR TANK

16470

TANK ASSY, RADIATOR RESERVE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16495B

PIPE (FOR ATM OIL COOLER)

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

16715

BRACKET, FAN SHROUD

7403

переход к группе запчастей

827111E360

Крепеж

9009900216

Крепеж

9009904117

Крепеж

9009904117

Крепеж

9009905164

Крепеж

9009905164

Крепеж

9046716022

Крепеж

9046716022

Крепеж

91653A0620

Крепеж

9338516012

Крепеж

Код

Описание

1104

переход к группе запчастей

16361J

FAN, RH

16361K

FAN, LH

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400K

HOSE, WATER, NO.1

16401

CAP SUB-ASSY, RADIATOR

16406A

SUPPORT(FOR OIL COOLER)

16406A

SUPPORT(FOR OIL COOLER)

16470

TANK ASSY, RADIATOR RESERVE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16491A

RING, O(FOR ATM OIL COOLER)

16491A

RING, O(FOR ATM OIL COOLER)

16495B

PIPE (FOR ATM OIL COOLER)

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

7403

переход к группе запчастей

827111E360

Крепеж

9009904117

Крепеж

9009904117

Крепеж

9009905164

Крепеж

9009905164

Крепеж

9046716022

Крепеж

9046716022

Крепеж

91653A0620

Крепеж

9338516012

Крепеж

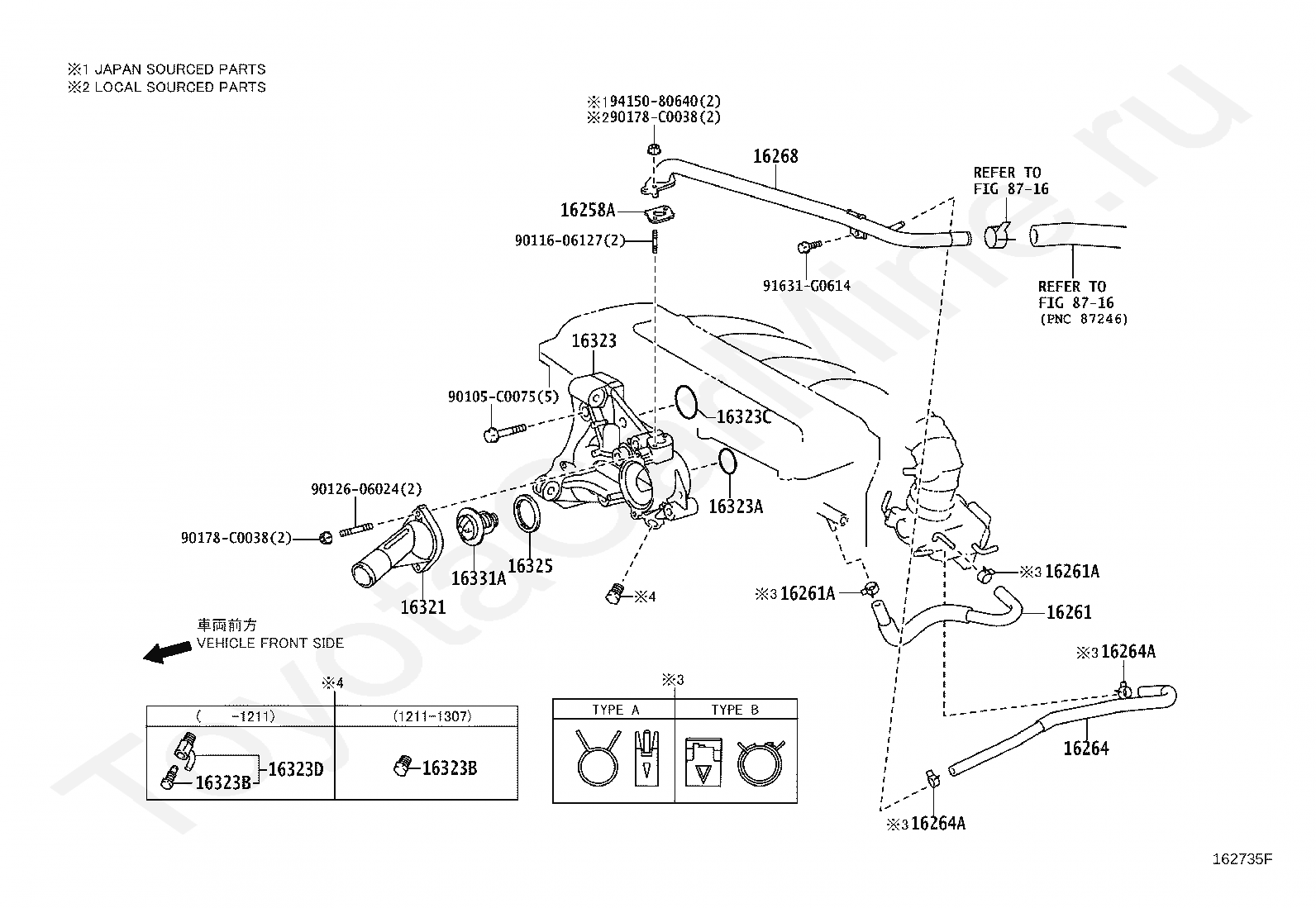

Код

Описание

16258A

GASKET(FOR HEATER RETURN)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16268

PIPE, WATER BY-PASS, NO.1

16321

INLET, WATER

16323

HOUSING, WATER INLET

16323A

GASKET(FOR WATER INLET HOUSING)

16323B

PLUG(FOR WATER INLET HOUSING)

16323B

PLUG(FOR WATER INLET HOUSING)

16323C

RING, O(FOR WATER INLET HOUSING)

16323D

COCK ASSY, DRAIN(FOR WATER INLET HOUSING)

16325

GASKET, WATER INLET HOUSING, NO.1

16331A

THERMOSTAT

8716

переход к группе запчастей

8716

переход к группе запчастей

90105C0075

Крепеж

9011606127

Крепеж

9012606024

Крепеж

90178C0038

Крепеж

90178C0038

Крепеж

91631G0614

Крепеж

9415080640

Крепеж

Радиатор и шланги TOYOTA CAMRY (CHINA)
