Ближний Восток

Модель

CAMRY/HYBRID (ASIA)

VIN

Дата

2009/07

Двигатель

2,4 литра, 16 клапанов DOHC, EFI

Класс

2.4G TYPE

Фрейм

ACV40

КПП

АКПП, 5 скоростей

Опции

правый руль FOR THAILAND 454W

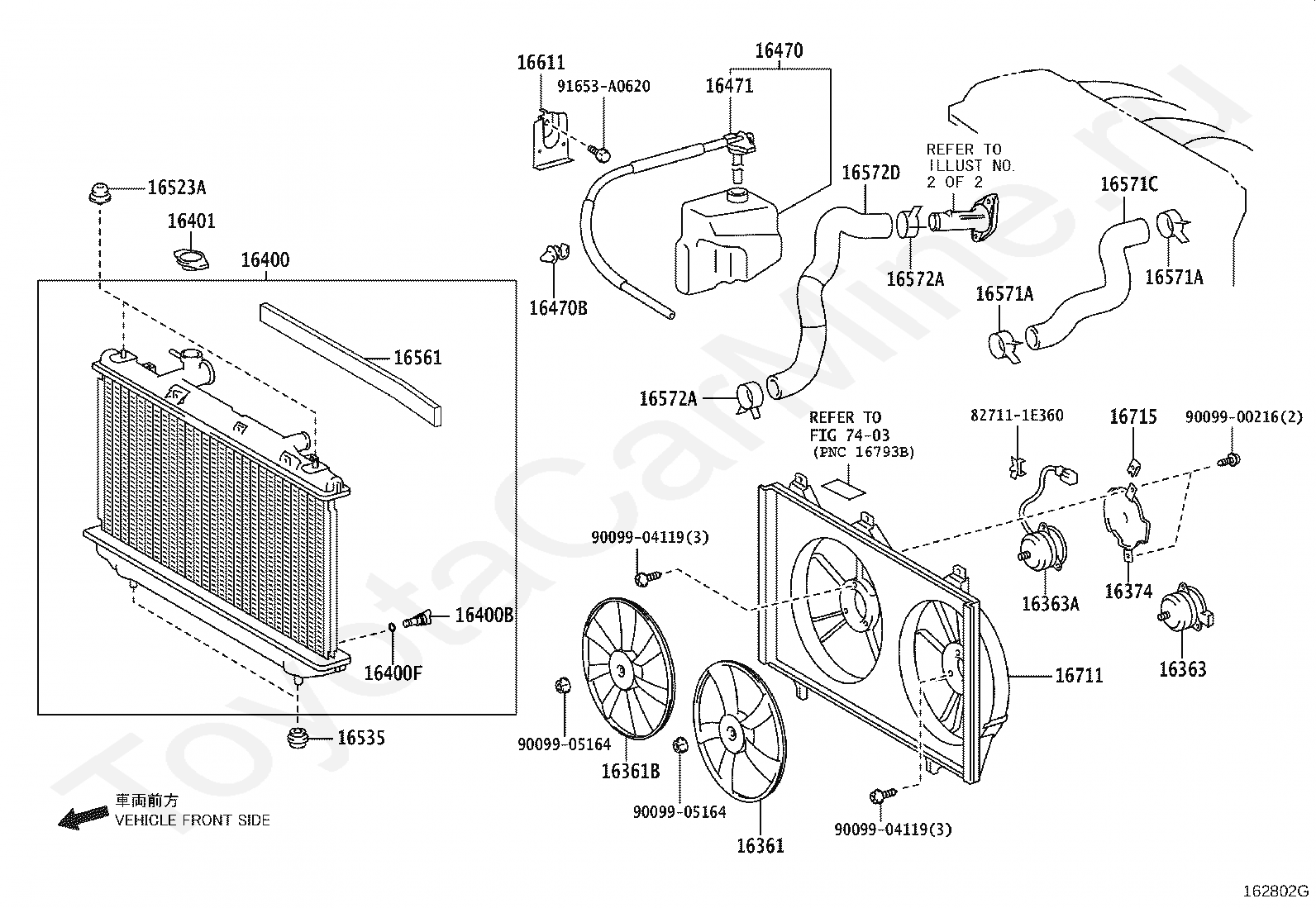

Радиатор и шланги TOYOTA CAMRY/HYBRID (ASIA)

Код

Описание

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

16715

BRACKET, FAN SHROUD

7403

переход к группе запчастей

827111E360

Крепеж

9009900216

Крепеж

9009904119

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9009905164

Крепеж

91653A0620

Крепеж

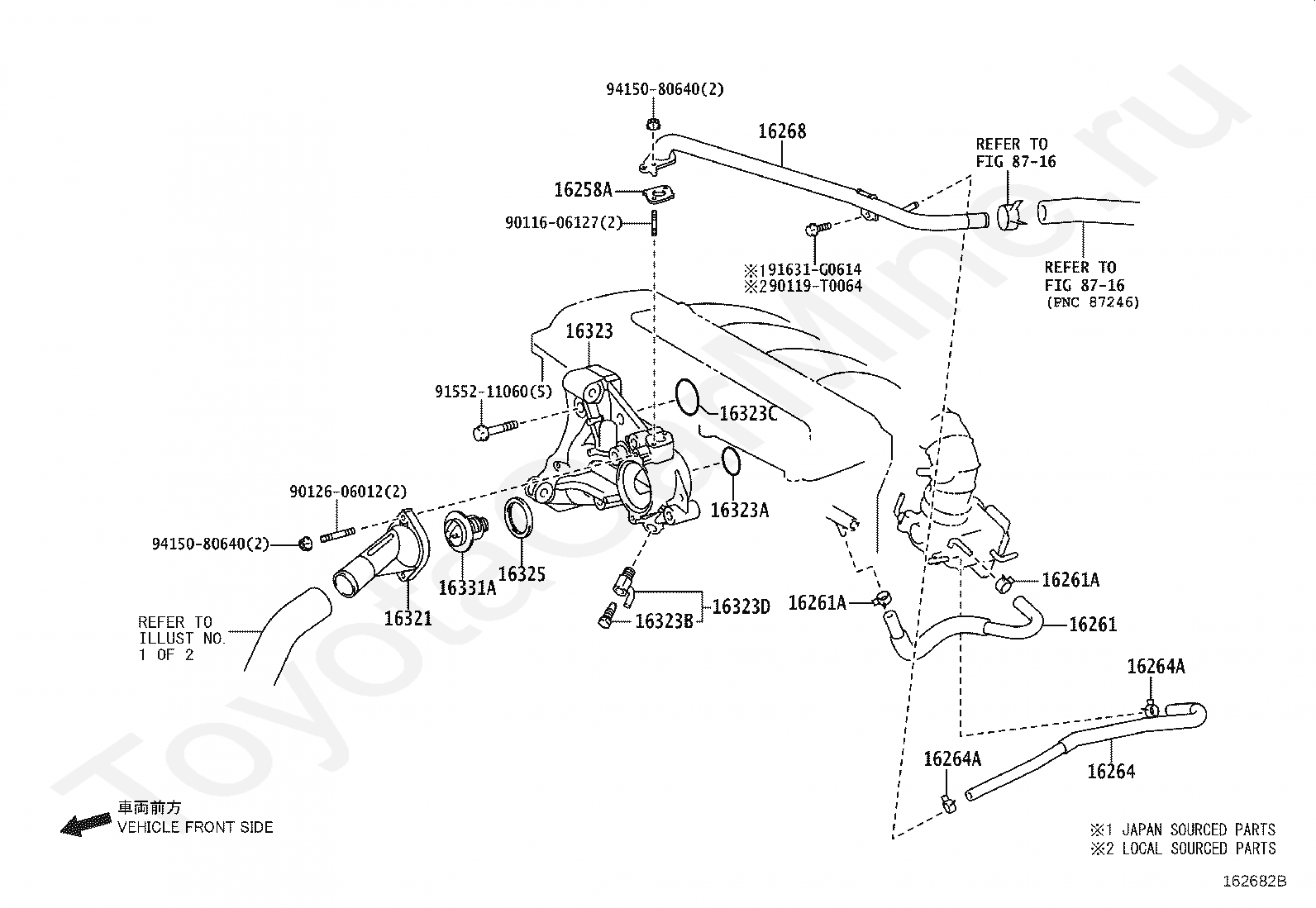

Код

Описание

16258A

GASKET(FOR HEATER RETURN)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16268

PIPE, WATER BY-PASS, NO.1

16321

INLET, WATER

16323

HOUSING, WATER INLET

16323A

GASKET(FOR WATER INLET HOUSING)

16323B

PLUG(FOR WATER INLET HOUSING)

16323C

RING, O(FOR WATER INLET HOUSING)

16323D

COCK ASSY, DRAIN(FOR WATER INLET HOUSING)

16325

GASKET, WATER INLET HOUSING, NO.1

16331A

THERMOSTAT

8716

переход к группе запчастей

8716

переход к группе запчастей

9011606127

Крепеж

90119T0064

Крепеж

9012606012

Крепеж

9155211060

Крепеж

91631G0614

Крепеж

9415080640

Крепеж

9415080640

Крепеж
