1708
переход к группе запчастей
1708
переход к группе запчастей
2211
переход к группе запчастей

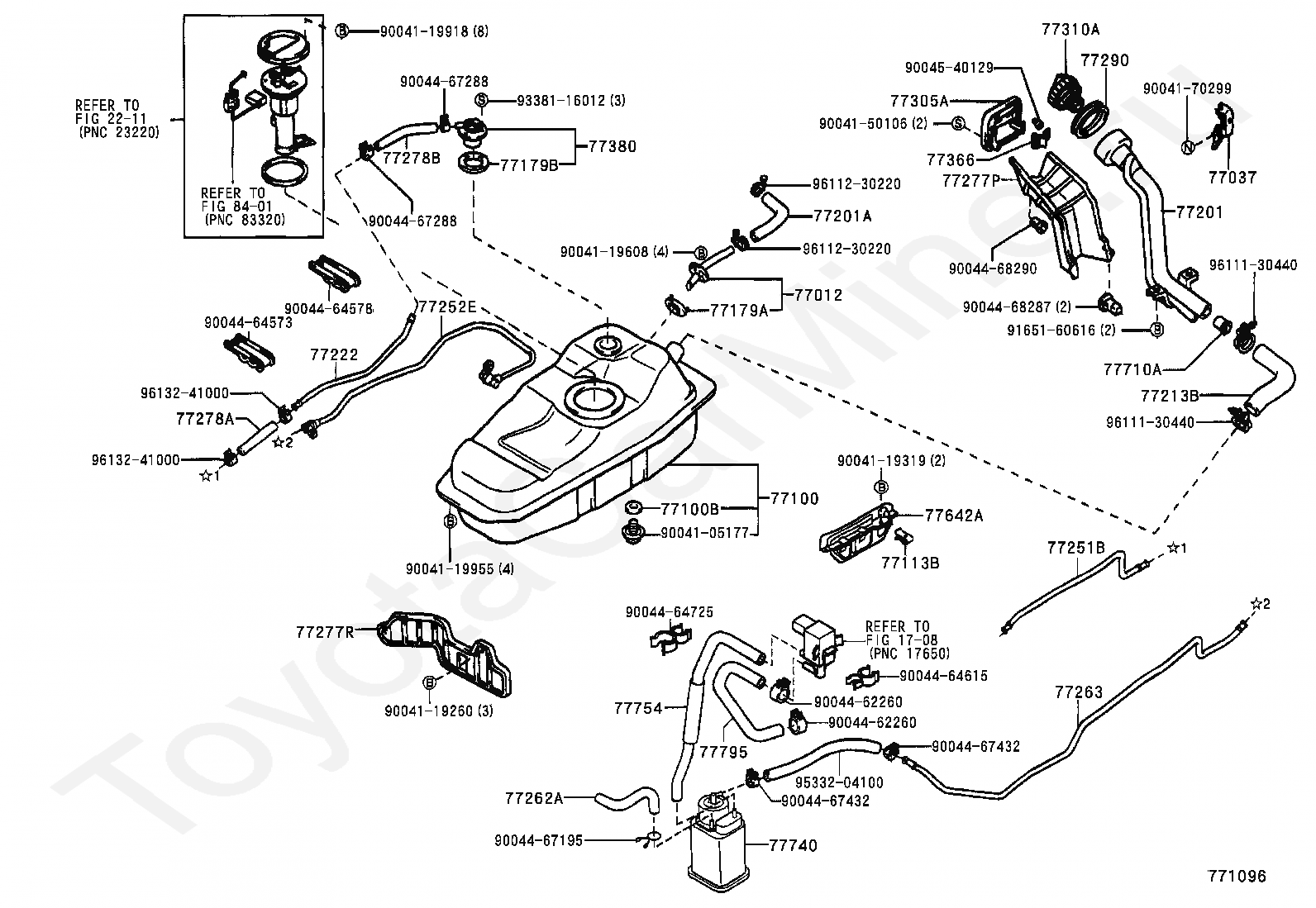

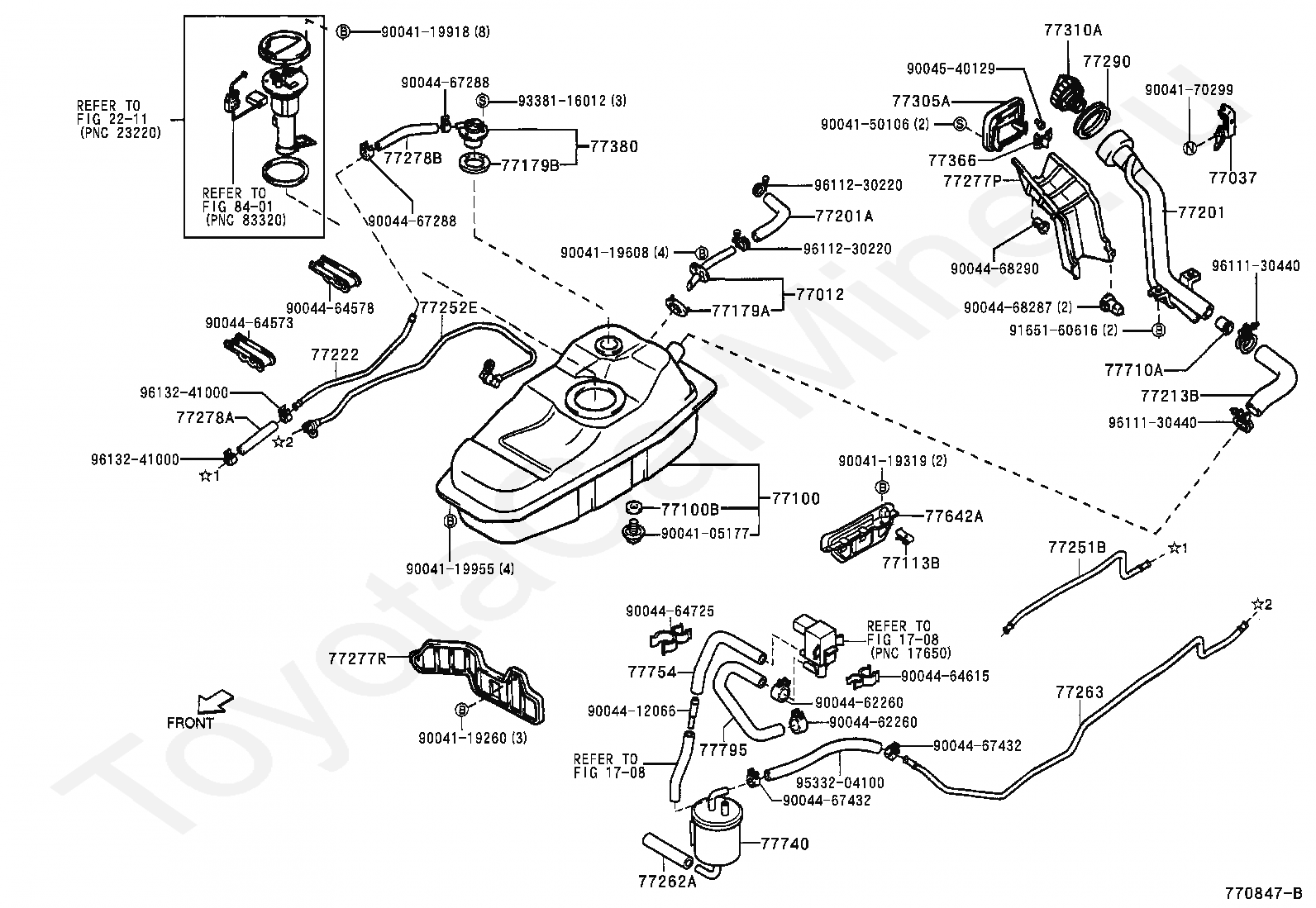

77012
TUBE SUB-ASSY, FUEL TANK BREATHER

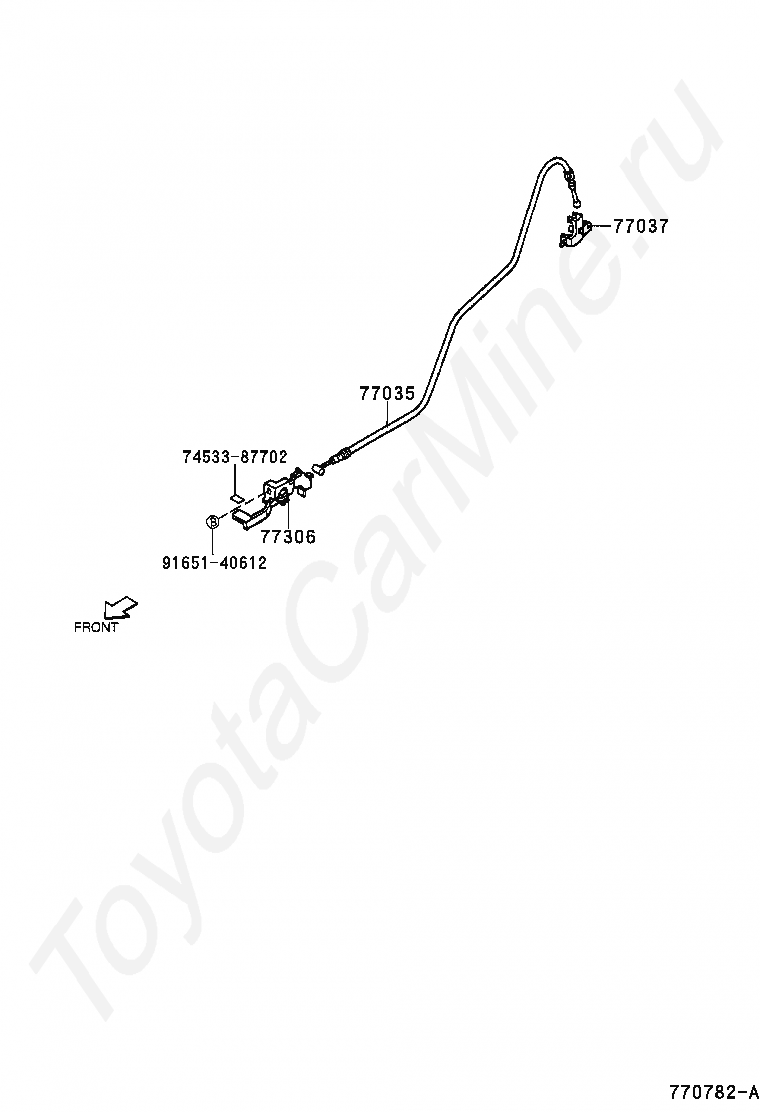

77037
LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100B
GASKET(FOR FUEL TANK)
77113B
PLATE, FUEL TANK SIDE
77179A
GASKET, FUEL TANK BREATHER TUBE
77179B
GASKET, FUEL TANK EVAPORATION VENT TUBE
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213B
HOSE, FUEL TANK TO FILLER PIPE
77222
TUBE, FUEL TANK BREATHER, NO.2
77252E
TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN)
77262A
HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77263
TUBE, FUEL TANK TO CANISTER, NO.3
77277P
PROTECTOR(FOR FUEL RETURN HOSE)
77277R
PROTECTOR, FUEL TANK FILLER PIPE
77278A
HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
77278B
HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77305A
LID SUB-ASSY, FUEL FILLER OPENING
77310A
CAP ASSY, FUEL TANK
77366
SPRING, FUEL FILLER OPENING LID HINGE
77380
VALVE ASSY, FUEL CUT OFF
77642A
PROTECTOR, FUEL TANK, NO.2
77710A
VALVE ASSY, FUEL TANK SOLENOID VALVE MAIN
77740
CANISTER ASSY, CHARCOAL
77754
HOSE, CHARCOAL CANISTER OUTLET, NO.1
77795
HOSE, CHARCOAL CANISTER OUTLET, NO.2
8401
переход к группе запчастей
