Ходовые запчасти

Каталог

Япония

Модель

CALDINA

VIN

Дата

1992/11

Двигатель

2 литра, дизель

Кузов

VAN

Класс

EMISSION REGULATION

Фрейм

CT196

КПП

механика МКПП, 5 скоростей

Опции

дизель

Кондиционер: управление и воздуховод TOYOTA CALDINA

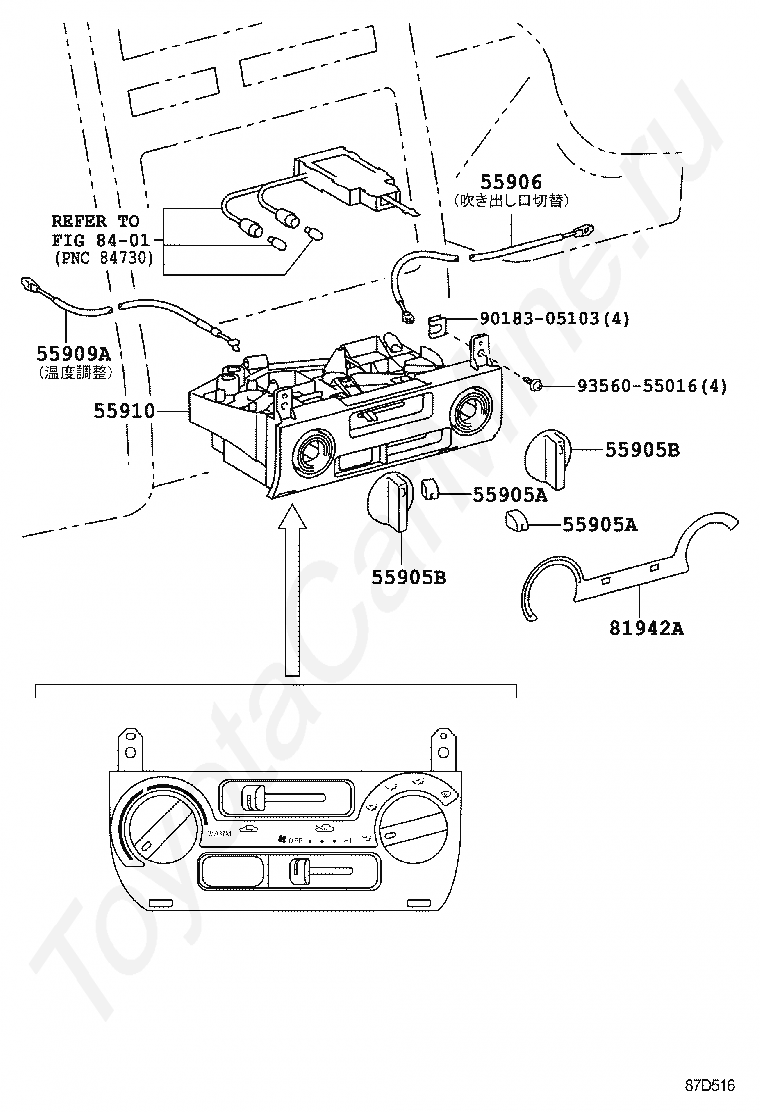

Код

Описание

55905A

KNOB, HEATER CONTROL

55905A

KNOB, HEATER CONTROL

55905B

KNOB, HEATER CONTROL, NO.2

55905B

KNOB, HEATER CONTROL, NO.2

55906

CABLE SUB-ASSY, HEATER CONTROL

55909A

CABLE SUB-ASSY, AIRMIX DAMPER CONTROL

55910

CONTROL ASSY, HEATER OR BOOST VENTILATOR

81942A

SHEET, HEATER CONTROL NAME, NO.1

8401

переход к группе запчастей

9018305103

Крепеж

9356055016

Крепеж

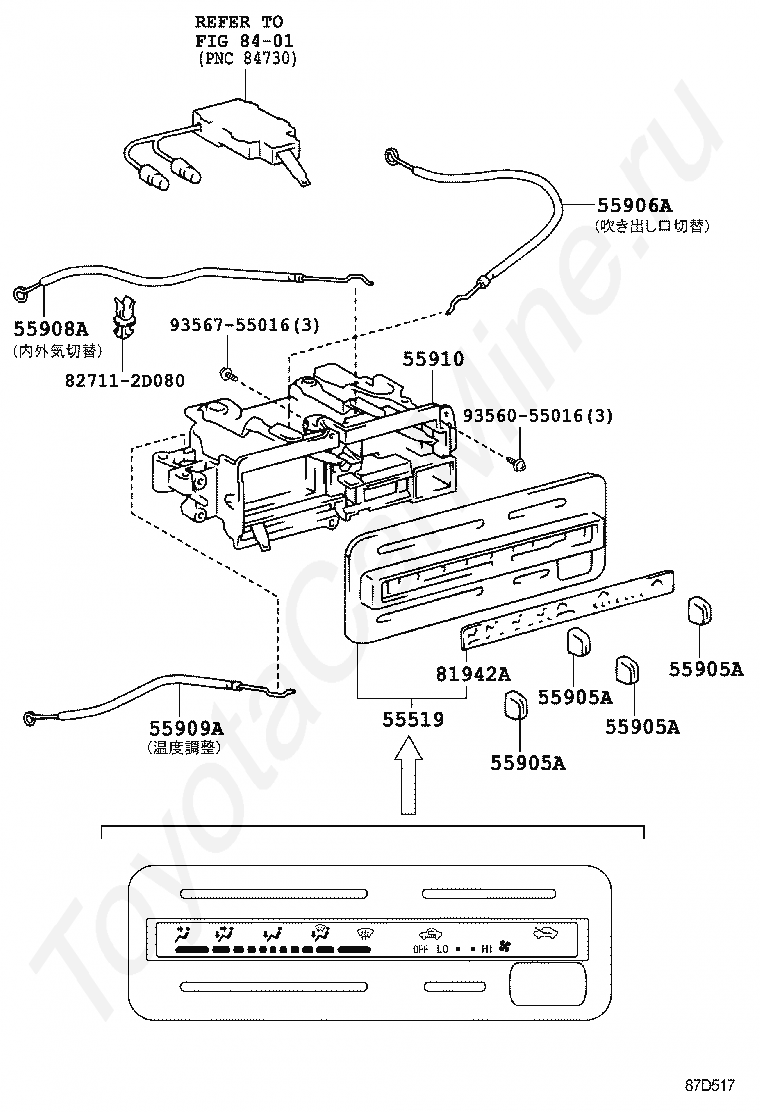

Код

Описание

55519

PLATE, HEATER CONTROL NAME

55905A

KNOB, HEATER CONTROL

55905A

KNOB, HEATER CONTROL

55905A

KNOB, HEATER CONTROL

55905A

KNOB, HEATER CONTROL

55906A

CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

55908A

CABLE SUB-ASSY, AIR INLET DAMPER CONTROL

55909A

CABLE SUB-ASSY, AIRMIX DAMPER CONTROL

55910

CONTROL ASSY, HEATER OR BOOST VENTILATOR

81942A

SHEET, HEATER CONTROL NAME, NO.1

827112D080

Крепеж

8401

переход к группе запчастей

9356055016

Крепеж

9356755016

Крепеж

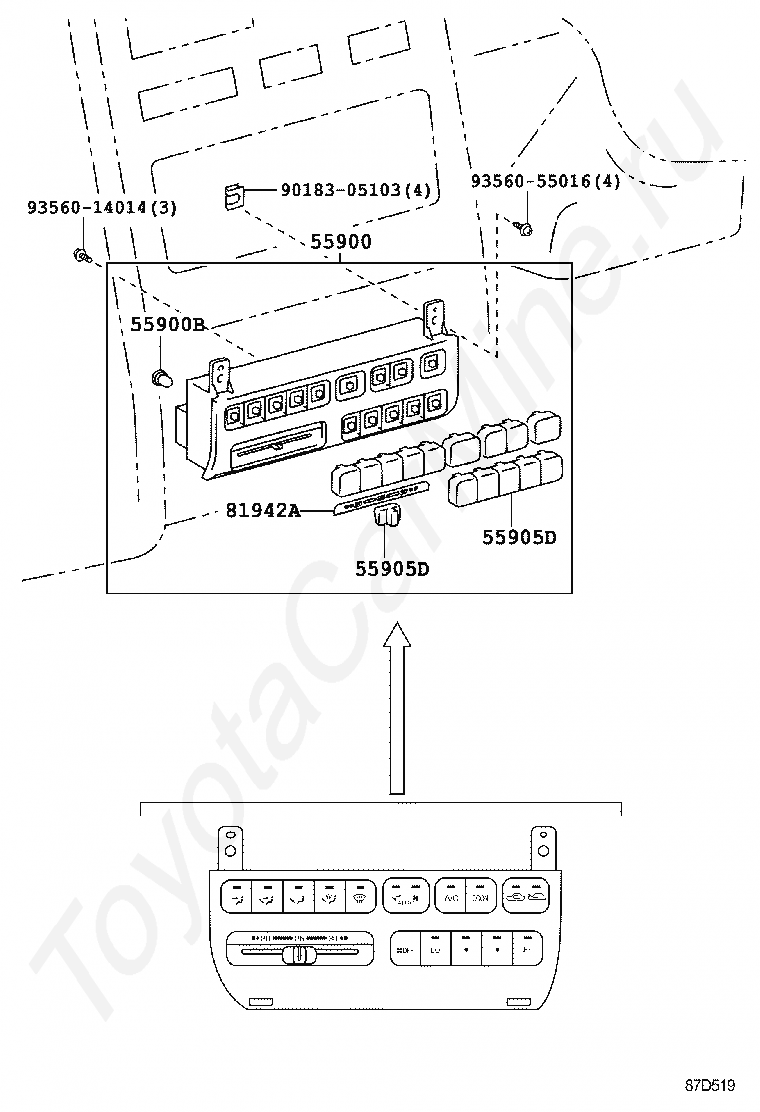

Код

Описание

55900

CONTROL ASSY, AIR CONDITIONER

55900B

BULB, AIR CONDITIONER CONTROL

55905D

KNOB SUB-ASSY, CONTROL

55905D

KNOB SUB-ASSY, CONTROL

81942A

SHEET, HEATER CONTROL NAME, NO.1

9018305103

Крепеж

9356014014

Крепеж

9356055016

Крепеж

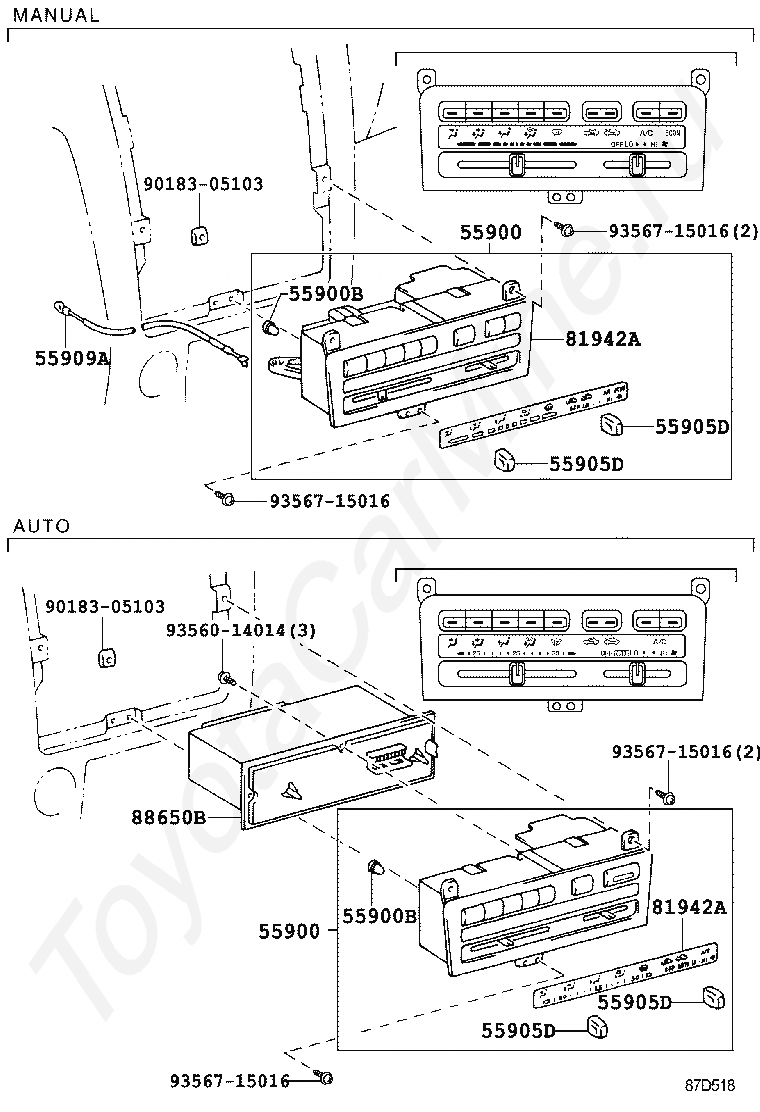

Код

Описание

55900

CONTROL ASSY, AIR CONDITIONER

55900

CONTROL ASSY, AIR CONDITIONER

55900B

BULB, AIR CONDITIONER CONTROL

55900B

BULB, AIR CONDITIONER CONTROL

55905D

KNOB SUB-ASSY, CONTROL

55905D

KNOB SUB-ASSY, CONTROL

55905D

KNOB SUB-ASSY, CONTROL

55905D

KNOB SUB-ASSY, CONTROL

55909A

CABLE SUB-ASSY, AIRMIX DAMPER CONTROL

81942A

SHEET, HEATER CONTROL NAME, NO.1

81942A

SHEET, HEATER CONTROL NAME, NO.1

88650B

AMPLIFIER ASSY, AIRCONDITIONER

9018305103

Крепеж

9018305103

Крепеж

9356014014

Крепеж

9356715016

Крепеж

9356715016

Крепеж

9356715016

Крепеж

9356715016

Крепеж

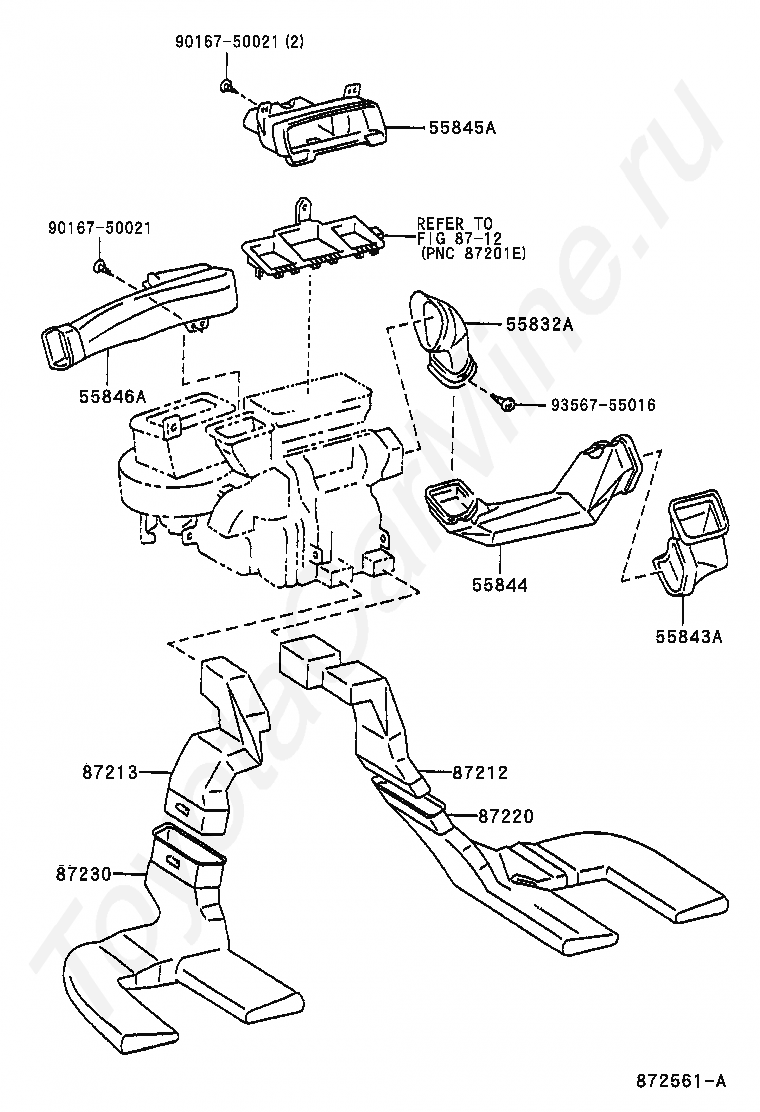

Код

Описание

55832A

CONNECTOR, INSTRUMENT PANEL REGISTER, NO.2

55843A

DUCT, HEATER TO REGISTER, NO.1

55844

DUCT, HEATER TO REGISTER, NO.2

55845A

DUCT, HEATER TO REGISTER, NO.3

55846A

DUCT, HEATER TO REGISTER, NO.4

8712

переход к группе запчастей

87212

DUCT, AIR, REAR NO.1

87213

DUCT, AIR, REAR NO.2

87220

DUCT ASSY, AIR

87230

DUCT ASSY, AIR, HEATER

9016750021

Крепеж

9016750021

Крепеж

9356755016

Крепеж

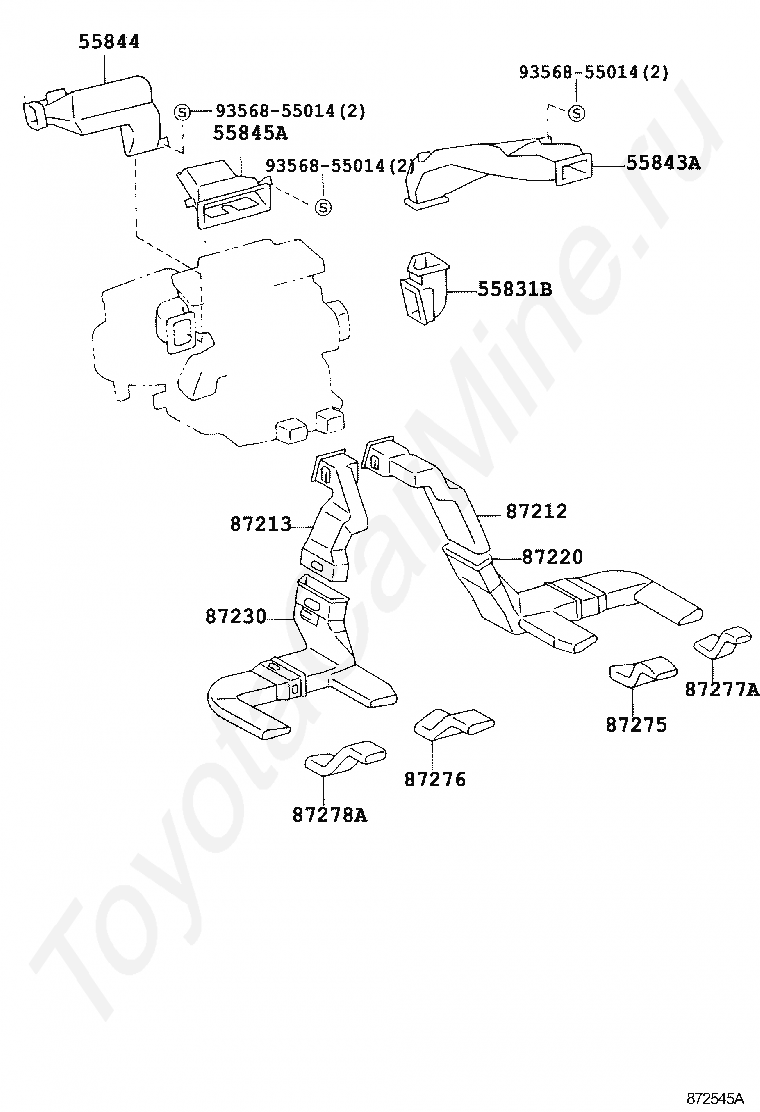

Код

Описание

55831B

CONNECTOR, INSTRUMENT PANEL REGISTER, RH

55843A

DUCT, HEATER TO REGISTER, NO.1

55844

DUCT, HEATER TO REGISTER, NO.2

55845A

DUCT, HEATER TO REGISTER, NO.3

87212

DUCT, AIR, REAR NO.1

87213

DUCT, AIR, REAR NO.2

87220

DUCT ASSY, AIR

87230

DUCT ASSY, AIR, HEATER

87275

DUCT, FLOOR HEATER AIR, NO.1 RH

87276

DUCT, FLOOR HEATER AIR, NO.1 LH

87277A

DUCT, FLOOR HEATER AIR, NO.2 RH

87278A

DUCT, FLOOR HEATER AIR, NO.2 LH

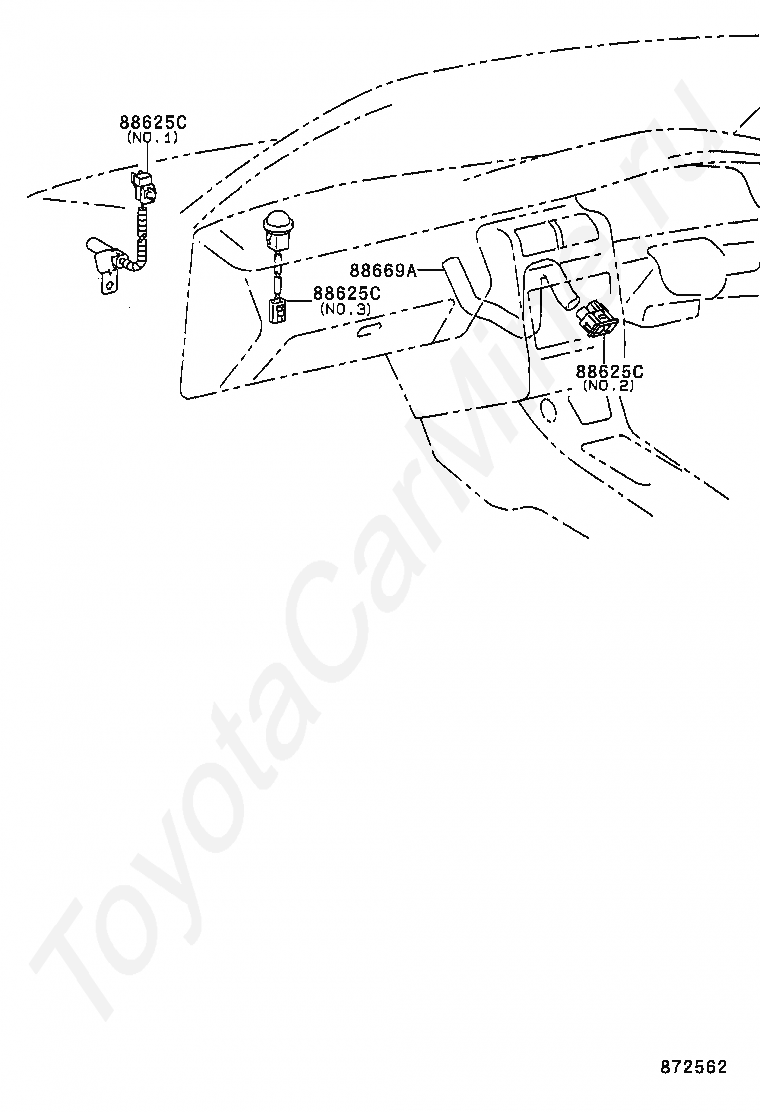

Код

Описание

88625C

THERMISTOR, COOLER

88625C

THERMISTOR, COOLER

88625C

THERMISTOR, COOLER

88669A

HOSE (FOR COOLER THERMISTOR)

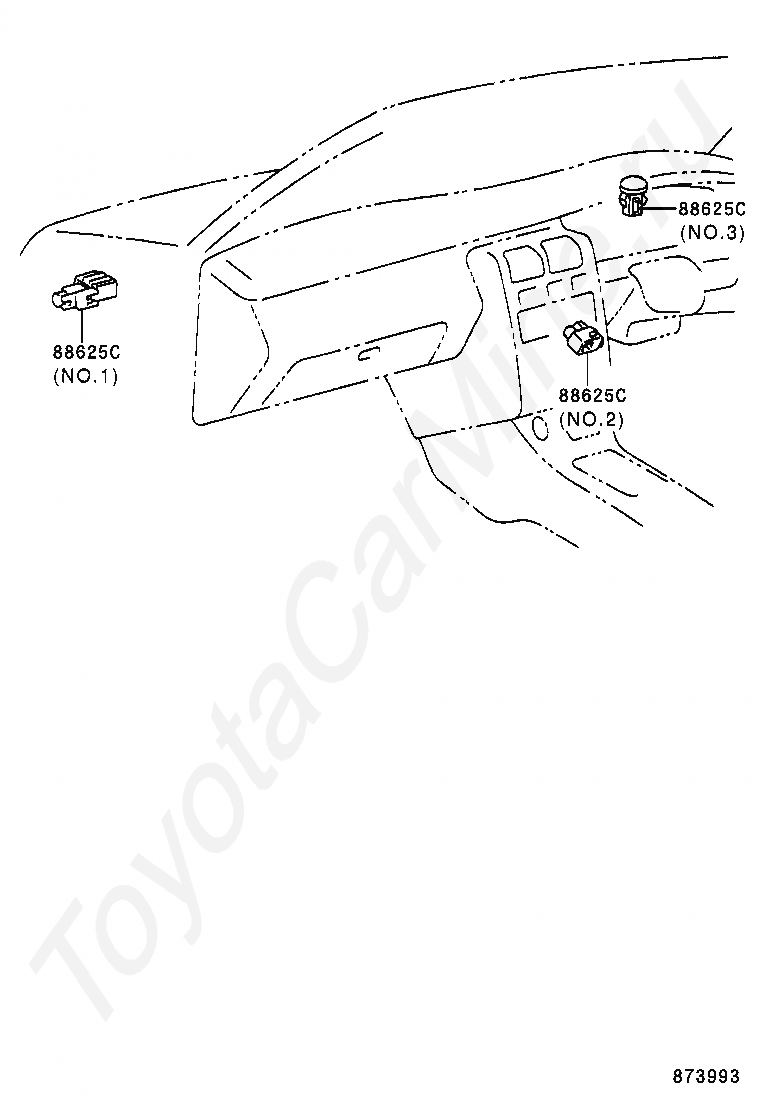

Код

Описание

88625C

THERMISTOR, COOLER

88625C

THERMISTOR, COOLER

88625C

THERMISTOR, COOLER
