Ходовые запчасти

Каталог

Япония

Модель

CALDINA

VIN

Дата

1992/11

Двигатель

2 литра, дизель

Кузов

VAN

Класс

EMISSION REGULATION

Фрейм

CT196

КПП

механика МКПП, 5 скоростей

Опции

дизель

Руль TOYOTA CALDINA

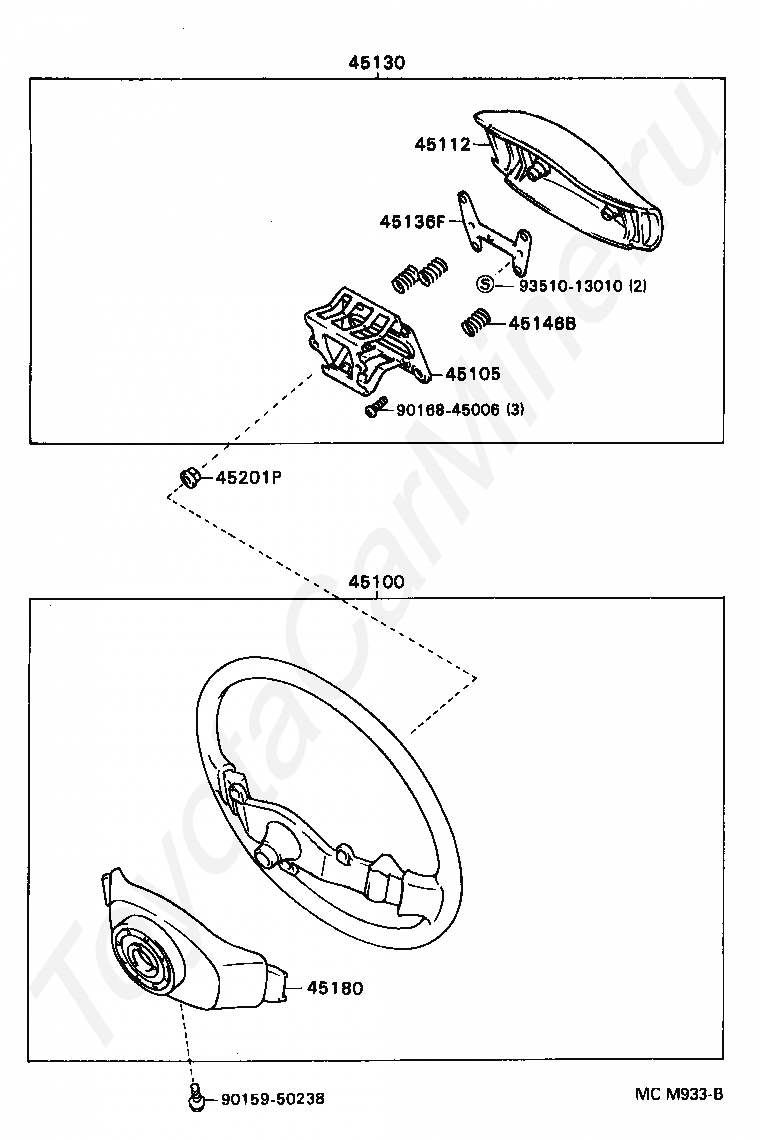

Код

Описание

45100

WHEEL ASSY, STEERING

45105

PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

45112

PAD, STEERING WHEEL

45130

BUTTON ASSY, HORN

45136F

PLATE, HORN BUTTON CONTACT, NO.1

45146B

SPRING, HORN BUTTON CONTACT, NO.1

45180

COVER SUB-ASSY, STEERING WHEEL

45201P

NUT, STEERING WHEEL SET

9015950238

Крепеж

9016845006

Крепеж

9351013010

Крепеж

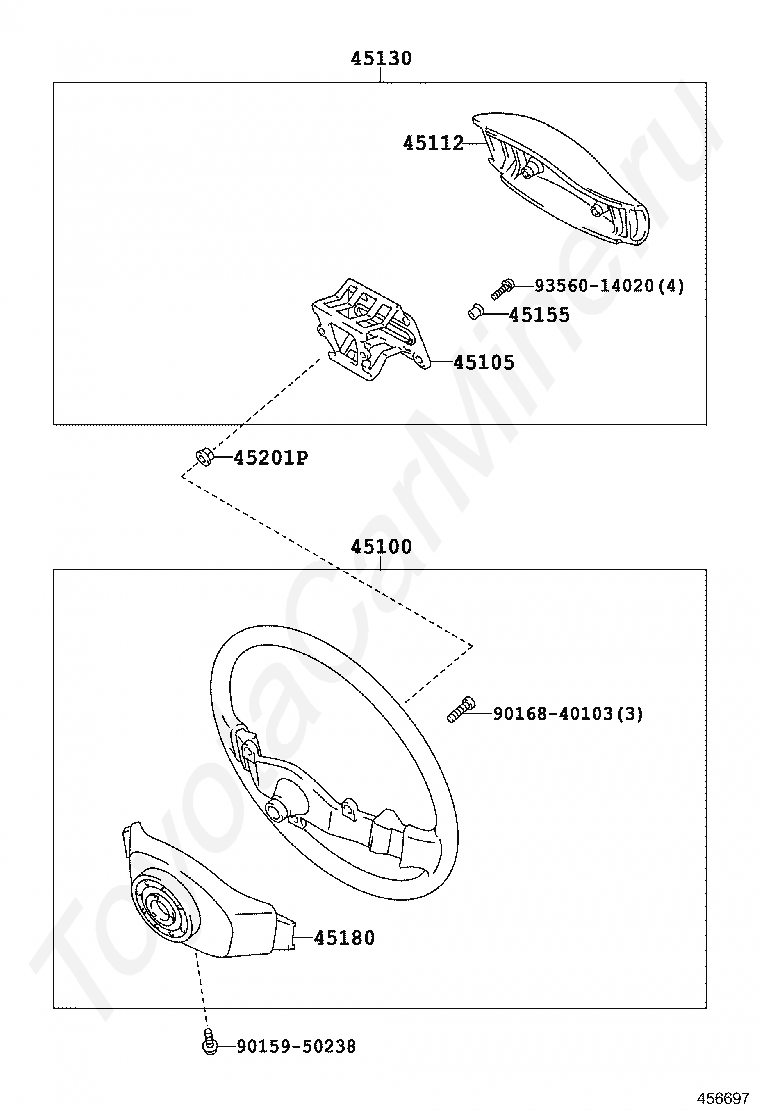

Код

Описание

45100

WHEEL ASSY, STEERING

45105

PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

45112

PAD, STEERING WHEEL

45130

BUTTON ASSY, HORN

45155

SPACER, HORN BUTTON CONTACT PLATE

45180

COVER SUB-ASSY, STEERING WHEEL

45201P

NUT, STEERING WHEEL SET

9015950238

Крепеж

9016840103

Крепеж

9356014020

Крепеж

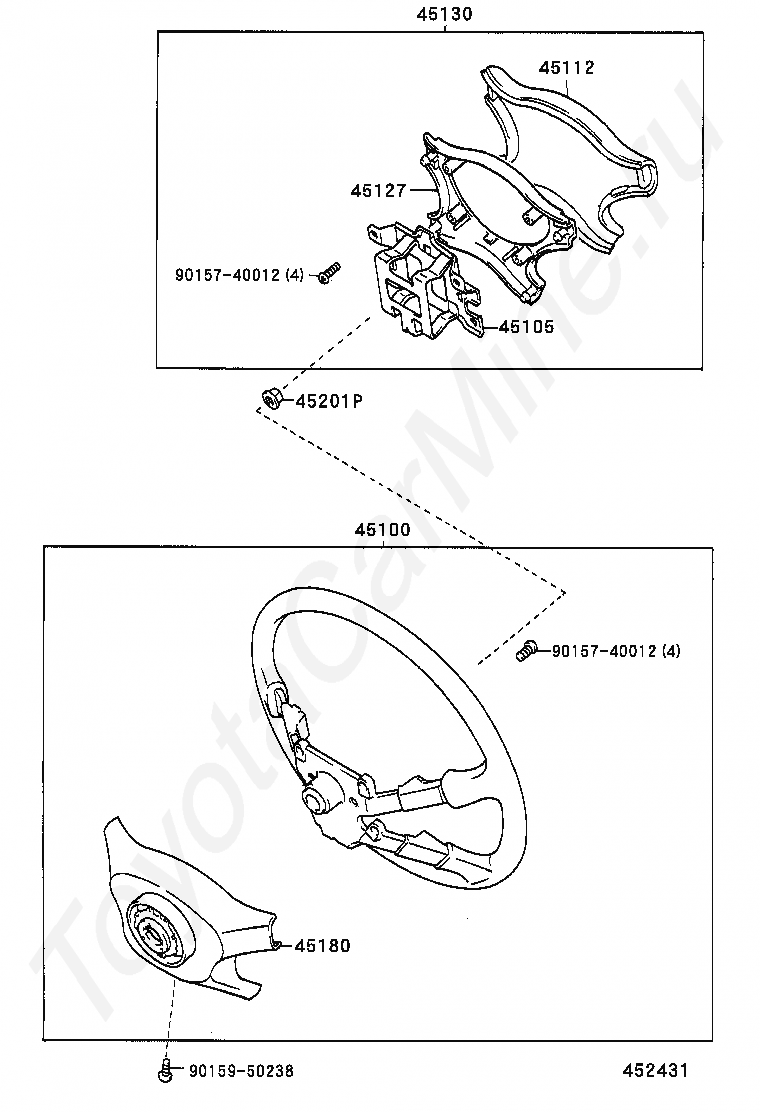

Код

Описание

45100

WHEEL ASSY, STEERING

45105

PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

45112

PAD, STEERING WHEEL

45127

INSERT, HORN BUTTON, UPPER NO.1

45130

BUTTON ASSY, HORN

45180

COVER SUB-ASSY, STEERING WHEEL

45201P

NUT, STEERING WHEEL SET

9015740012

Крепеж

9015950238

Крепеж

9016840114

Крепеж

Код

Описание

45100

WHEEL ASSY, STEERING

45105

PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

45112

PAD, STEERING WHEEL

45127

INSERT, HORN BUTTON, UPPER NO.1

45130

BUTTON ASSY, HORN

45180

COVER SUB-ASSY, STEERING WHEEL

45201P

NUT, STEERING WHEEL SET

9015740012

Крепеж

9015740012

Крепеж

9015950238

Крепеж

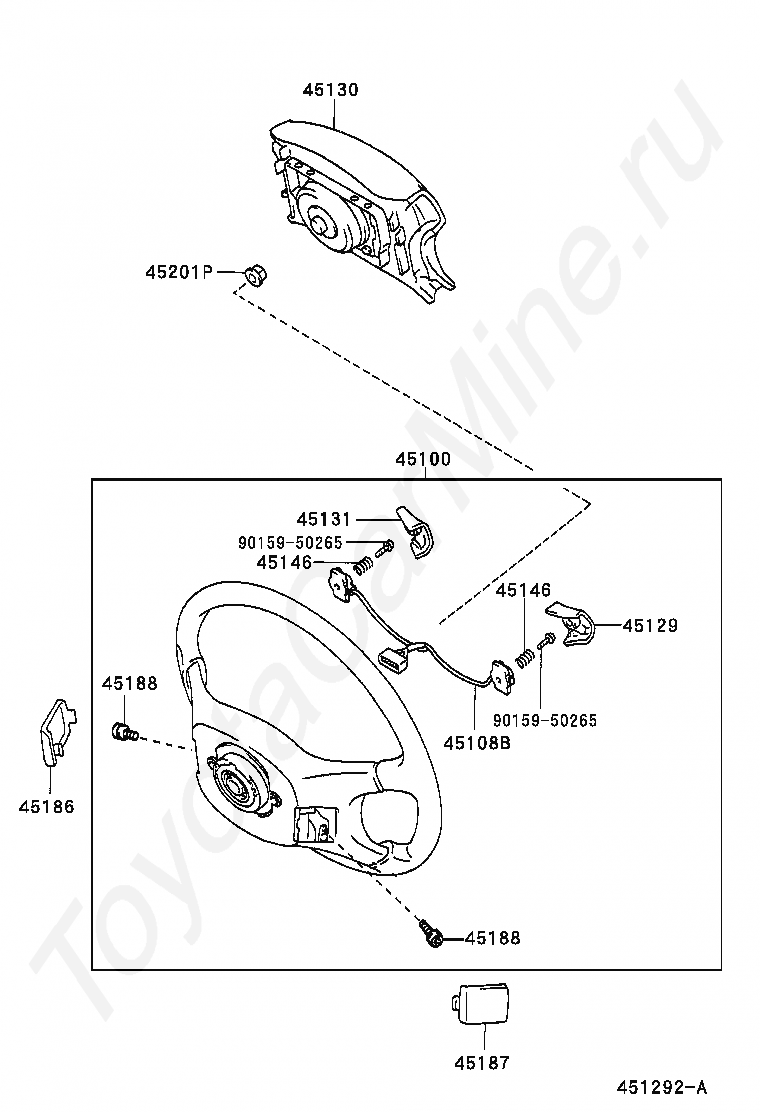

Код

Описание

45100

WHEEL ASSY, STEERING

45129

BUTTON, HORN, NO.2

45130

BUTTON ASSY, HORN

45131

BUTTON, HORN, NO.1

45146

SPRING, HORN BUTTON CONTACT

45146

SPRING, HORN BUTTON CONTACT

45186

COVER, STEERING WHEEL, LOWER NO.2

45187

COVER, STEERING WHEEL, LOWER NO.3

45188

SCREW, STEERING WHEEL PAD ATTACHING

45188

SCREW, STEERING WHEEL PAD ATTACHING

45201P

NUT, STEERING WHEEL SET

Код

Описание

45015B

PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2

45100

WHEEL ASSY, STEERING

45105

PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

45105A

CUSHION(FOR HORN BUTTON CONTACT PLATE)

45105B

SPACER(FOR HORN BUTTON CONTACT PLATE)

45130

BUTTON ASSY, HORN

45130A

SPRING, COMPRESSION(FOR HORN BUTTON)

45180

COVER SUB-ASSY, STEERING WHEEL

45201P

NUT, STEERING WHEEL SET

9015950238

Крепеж

9016740051

Крепеж

9016741001

Крепеж

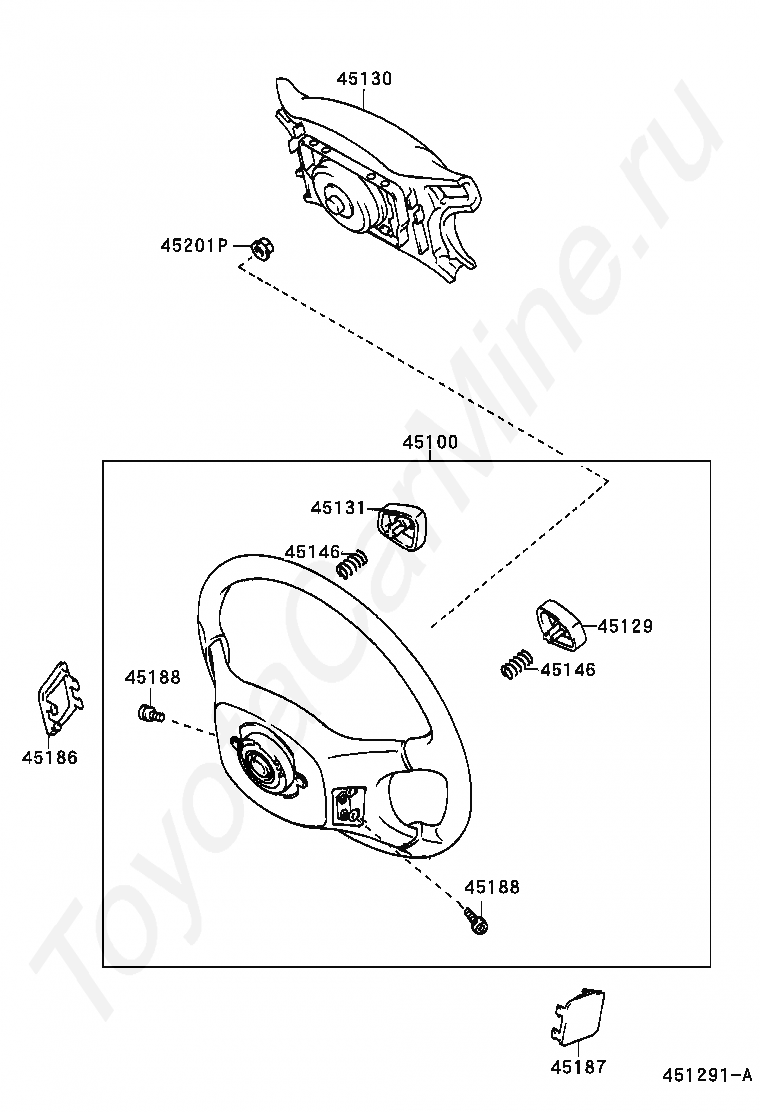

Код

Описание

45100

WHEEL ASSY, STEERING

45108B

BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY)

45129

BUTTON, HORN, NO.2

45130

BUTTON ASSY, HORN

45131

BUTTON, HORN, NO.1

45146

SPRING, HORN BUTTON CONTACT

45146

SPRING, HORN BUTTON CONTACT

45186

COVER, STEERING WHEEL, LOWER NO.2

45187

COVER, STEERING WHEEL, LOWER NO.3

45188

SCREW, STEERING WHEEL PAD ATTACHING

45188

SCREW, STEERING WHEEL PAD ATTACHING

45201P

NUT, STEERING WHEEL SET

9015950265

Крепеж

9015950265

Крепеж

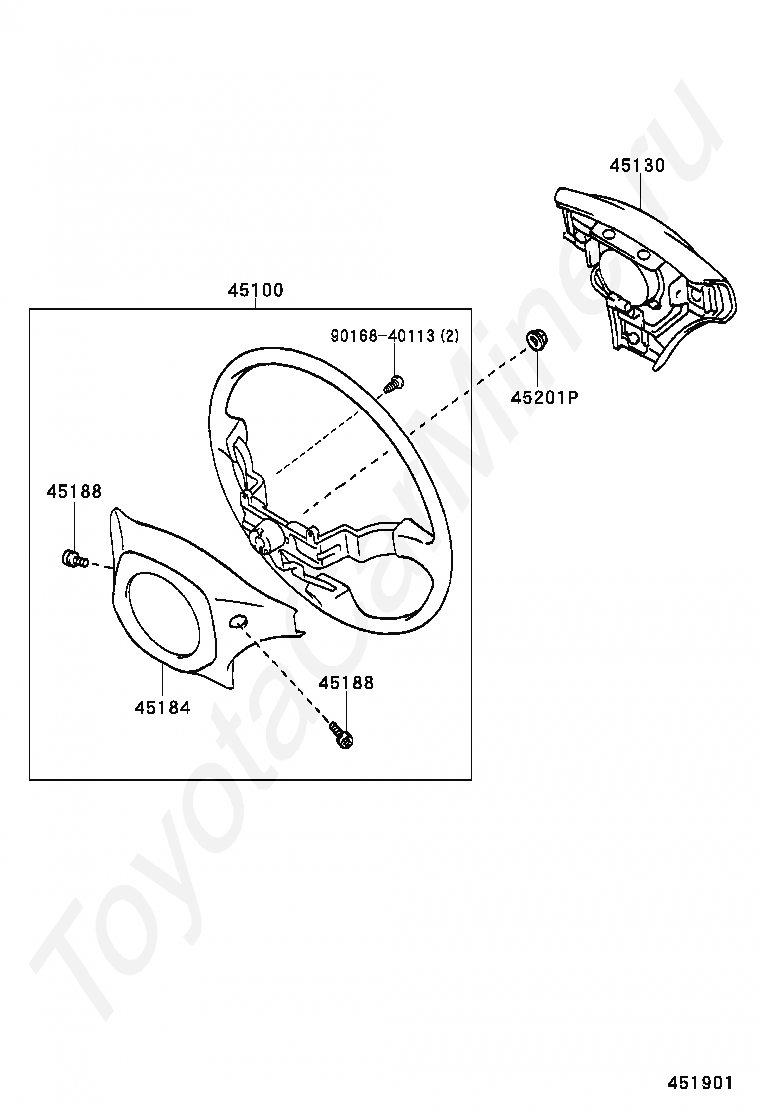

Код

Описание

45100

WHEEL ASSY, STEERING

45130

BUTTON ASSY, HORN

45184

COVER, STEERING WHEEL BOSS, LOWER

45188

SCREW, STEERING WHEEL PAD ATTACHING

45188

SCREW, STEERING WHEEL PAD ATTACHING

45201P

NUT, STEERING WHEEL SET

9016840113

Крепеж

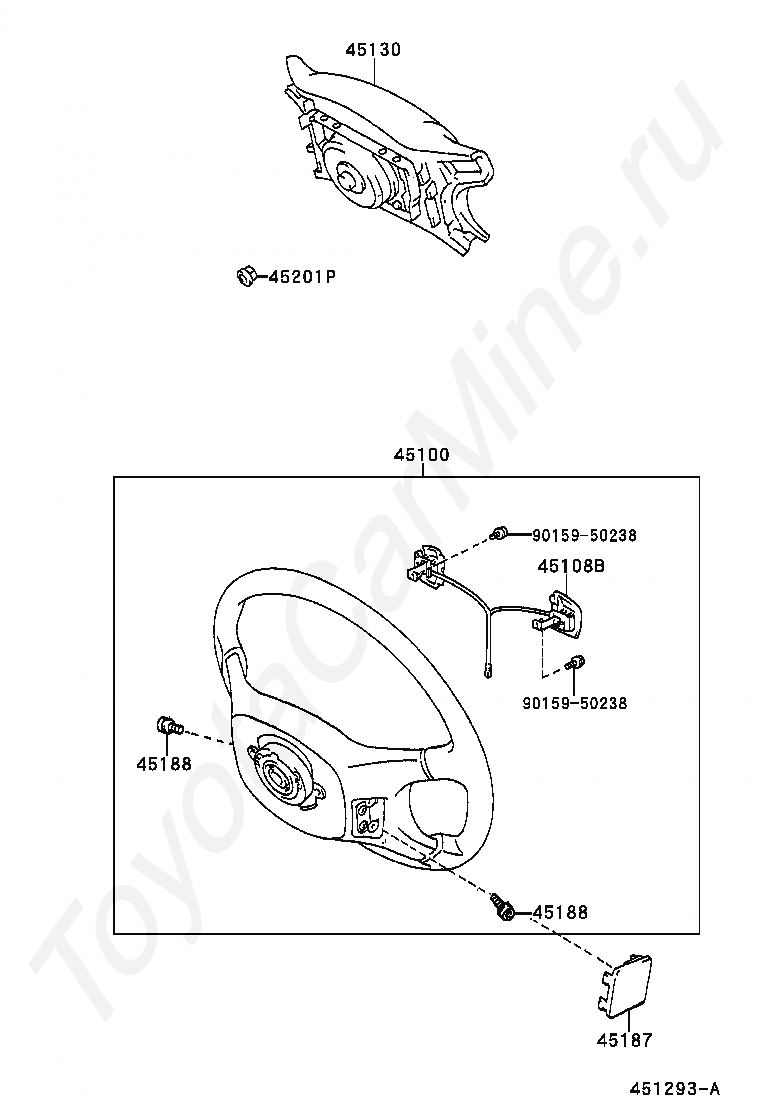

Код

Описание

45100

WHEEL ASSY, STEERING

45108B

BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY)

45130

BUTTON ASSY, HORN

45187

COVER, STEERING WHEEL, LOWER NO.3

45188

SCREW, STEERING WHEEL PAD ATTACHING

45188

SCREW, STEERING WHEEL PAD ATTACHING

45201P

NUT, STEERING WHEEL SET

9015950238

Крепеж

9015950238

Крепеж
