Ближний Восток

Модель

C-HR (JPP)

VIN

Дата

2016/12

Двигатель

1,2 литра, 16 клапанов, DOHC, D4

Класс

ACTIVE TYPE

Фрейм

NGX50

КПП

вариатор

Опции

правый руль 5 дверей Австралия 689W

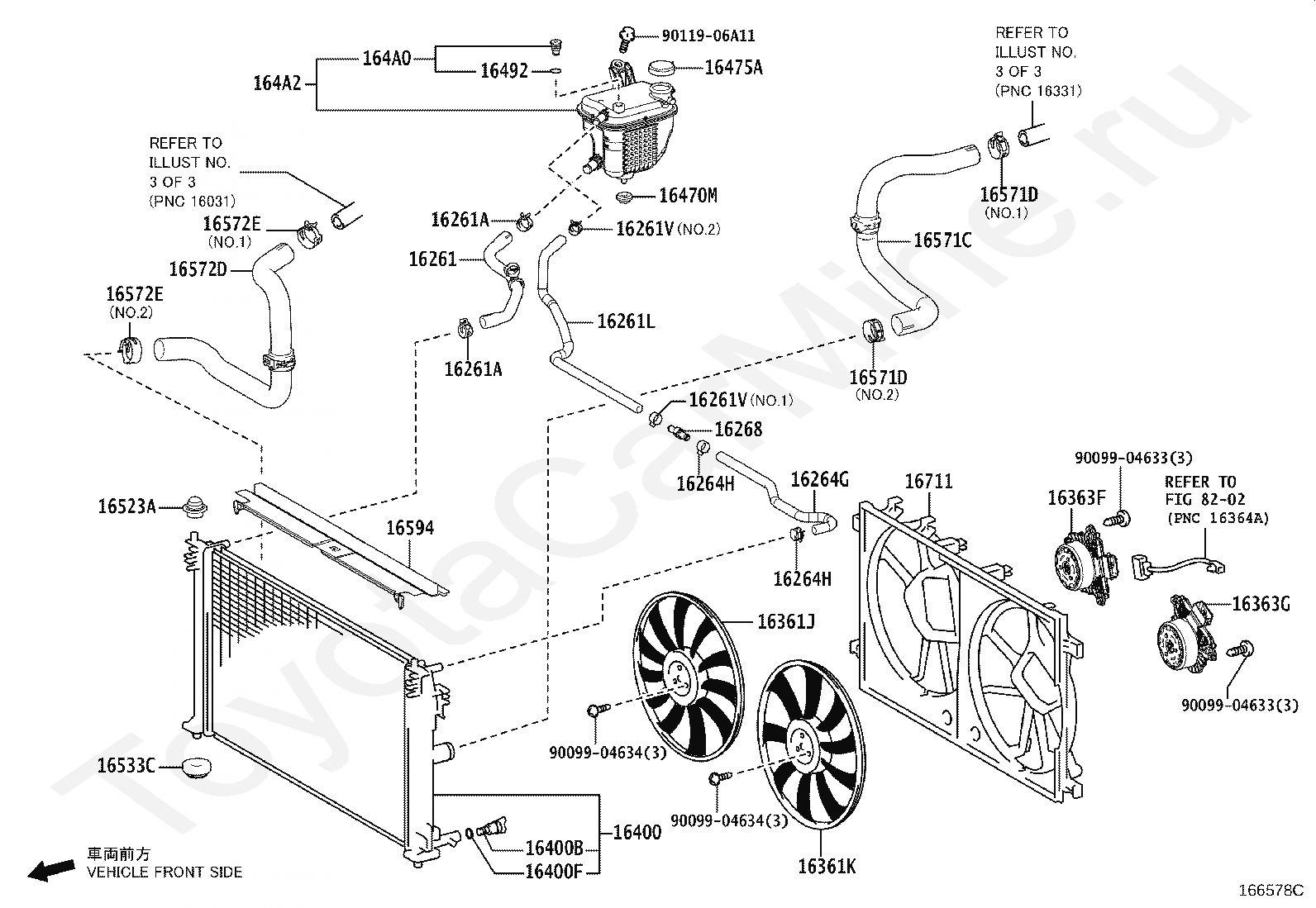

Радиатор и шланги TOYOTA C-HR (JPP)







Код

Описание

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261L

HOSE, WATER BY-PASS

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16264G

HOSE, WATER BY-PASS, NO.3

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16361J

FAN, RH

16361K

FAN, LH

16363F

MOTOR, COOLING FAN, RH

16363G

MOTOR, COOLING FAN, LH

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470M

GROMMET

16475A

CAP, RESERVE TANK

16492

RING, O(FOR RADIATOR RESERVE TANK COCK)

164A0

COCK ASSY, RESERVE TANK

164A2

TANK, RESERVE SEALED W/O CAP

16523A

CUSHION, RADIATOR SUPPORT

16533C

GROMMET(FOR RADIATOR SUPPORT)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16594

GUIDE, RADIATOR AIR, NO.2

16711

SHROUD, FAN

8202

переход к группе запчастей

9009904633

Крепеж

9009904633

Крепеж

9009904634

Крепеж

9009904634

Крепеж

9011906A11

Крепеж

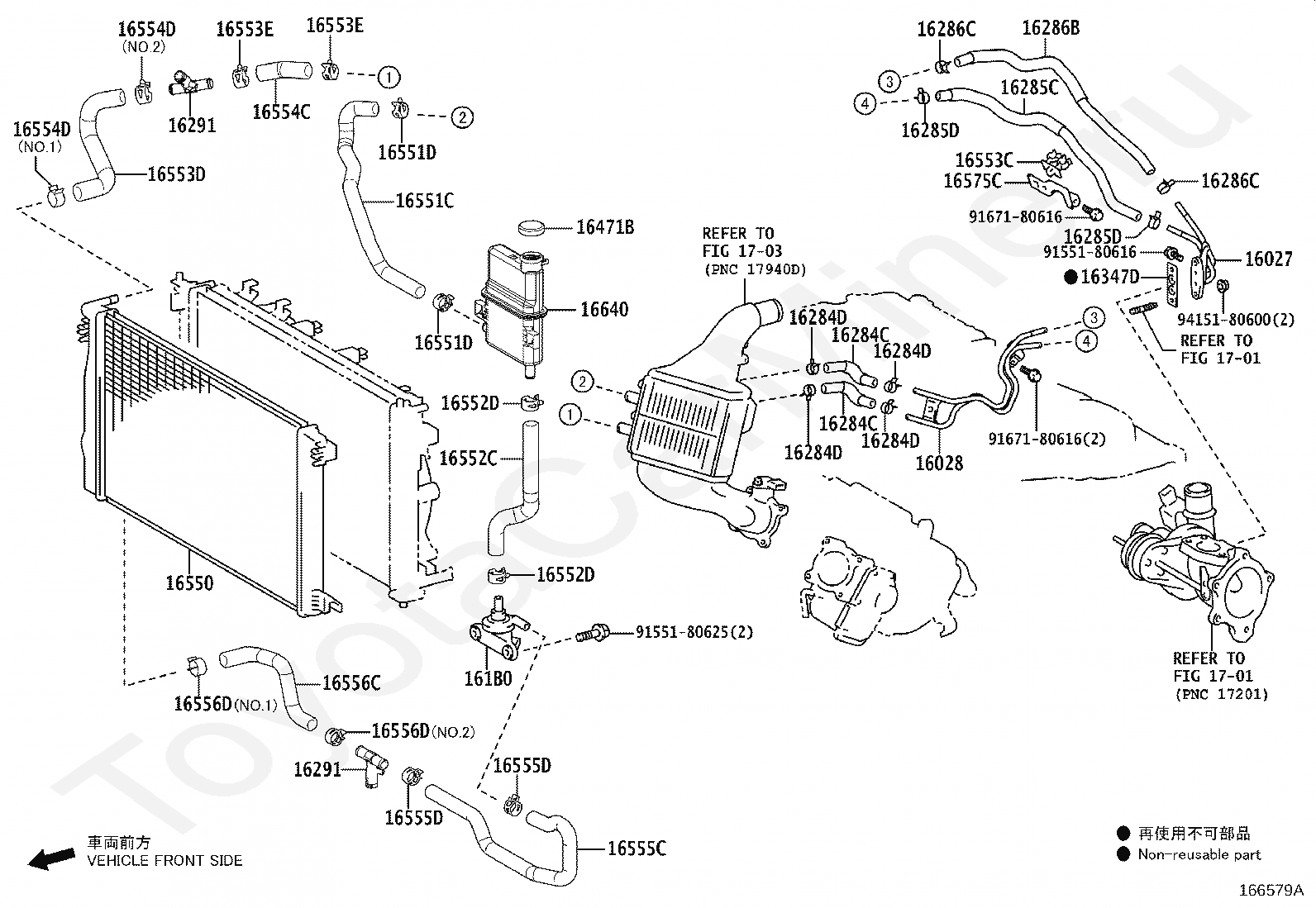

Код

Описание

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

161B0

PUMP ASSY, ELECTRIC WATER

16284C

HOSE, INTERCOOLER WATER, NO.1

16284C

HOSE, INTERCOOLER WATER, NO.1

16284D

CLIP(FOR INTERCOOLER WATER HOSE NO.1)

16284D

CLIP(FOR INTERCOOLER WATER HOSE NO.1)

16284D

CLIP(FOR INTERCOOLER WATER HOSE NO.1)

16284D

CLIP(FOR INTERCOOLER WATER HOSE NO.1)

16285C

HOSE, INTERCOOLER WATER, NO.2

16285D

CLIP(FOR INTERCOOLER WATER HOSE NO.2)

16285D

CLIP(FOR INTERCOOLER WATER HOSE NO.2)

16286B

HOSE, INTERCOOLER WATER, NO.3

16286C

CLIP(FOR INTERCOOLER WATER HOSE NO.3)

16286C

CLIP(FOR INTERCOOLER WATER HOSE NO.3)

16291

JOINT, WATER HOSE

16291

JOINT, WATER HOSE

16347D

GASKET, WATER BY-PASS

16471B

CAP, RESERVE TANK

16550

RADIATOR ASSY, INTERCOOLER COOLING

16551C

HOSE, INTERCOOLER COOLING WATER, NO.1

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16551D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1)

16552C

HOSE, INTERCOOLER COOLING WATER, NO.2

16552D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)

16552D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2)

16553C

CLAMP, HOSE

16553D

HOSE, INTERCOOLER COOLING WATER, NO.3

16553E

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)

16553E

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3)

16554C

HOSE, INTERCOOLER COOLING WATER, NO.4

16554D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)

16554D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4)

16555C

HOSE, INTERCOOLER COOLING WATER, NO.5

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

16555D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5)

16556C

HOSE, INTERCOOLER COOLING WATER, NO.6

16556D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)

16556D

CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6)

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16640

TANK ASSY, INTERCOOLER RESERVE

1701

переход к группе запчастей

1701

переход к группе запчастей

1703

переход к группе запчастей

9155180616

Крепеж

9155180625

Крепеж

9167180616

Крепеж

9167180616

Крепеж

9415180600

Крепеж

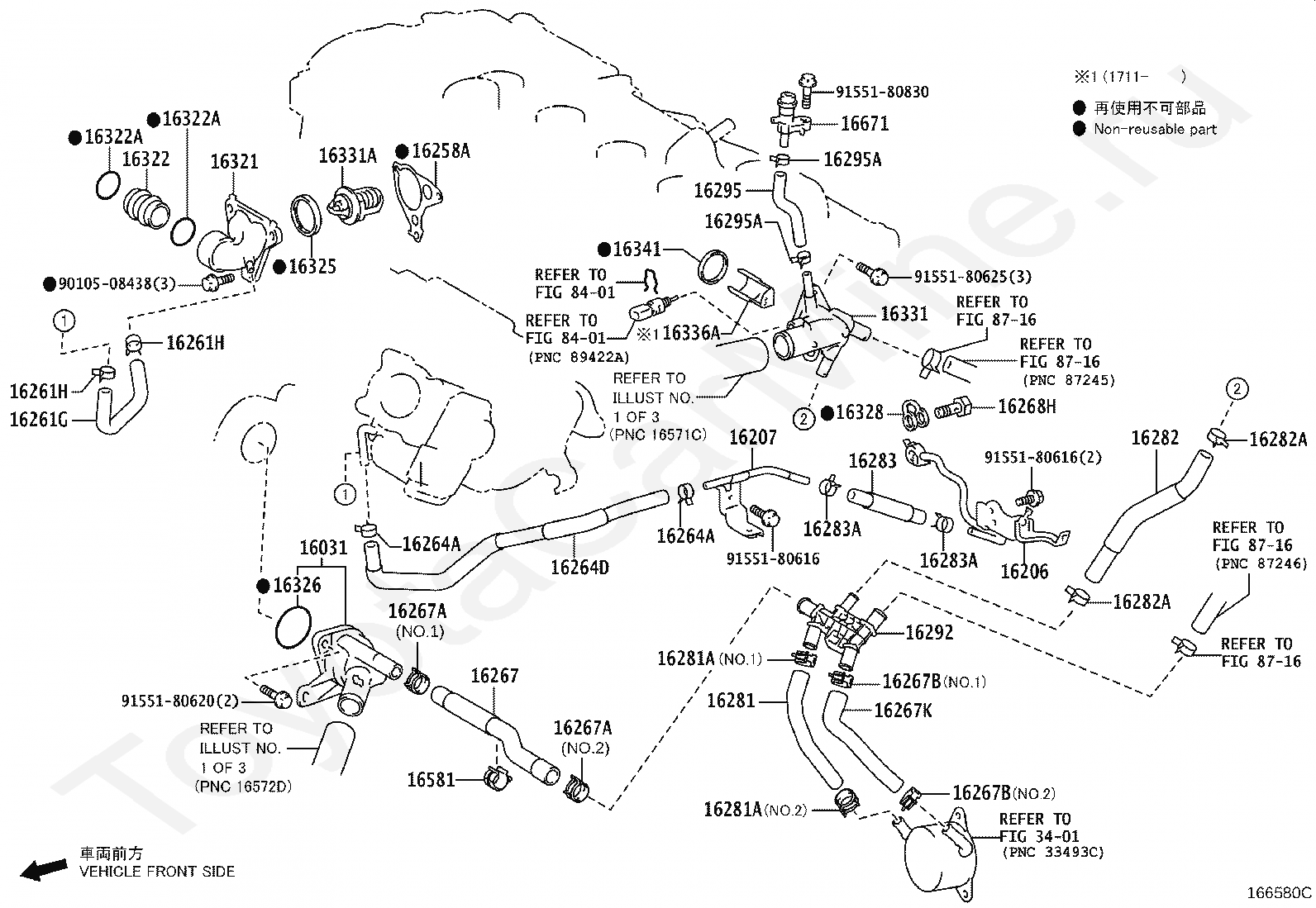

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16206

PIPE SUB-ASSY, WATER BY-PASS

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16258A

GASKET(FOR HEATER RETURN)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267K

HOSE, WATER BY-PASS, NO.3

16268H

BOLT, UNION(FOR WATER BY-PASS PIPE)

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16292

JOINT, WATER HOSE, NO.2

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16321

INLET, WATER

16322

PIPE, WATER INLET

16322A

RING, O(FOR WATER INLET)

16322A

RING, O(FOR WATER INLET)

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16328

GASKET, WATER INLET PIPE

16331

OUTLET, WATER

16331A

THERMOSTAT

16336A

INSERT, WATER OUTLET

16341

GASKET, WATER OUTLET

16581

CLAMP, HOSE(FOR WATER HOSE)

16671

VALVE, WATER

3401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9010508438

Крепеж

9155180616

Крепеж

9155180616

Крепеж

9155180620

Крепеж

9155180625

Крепеж

9155180830

Крепеж
