44730W
WAY, 2(FOR FRONT BRAKE TUBE)
4702
переход к группе запчастей

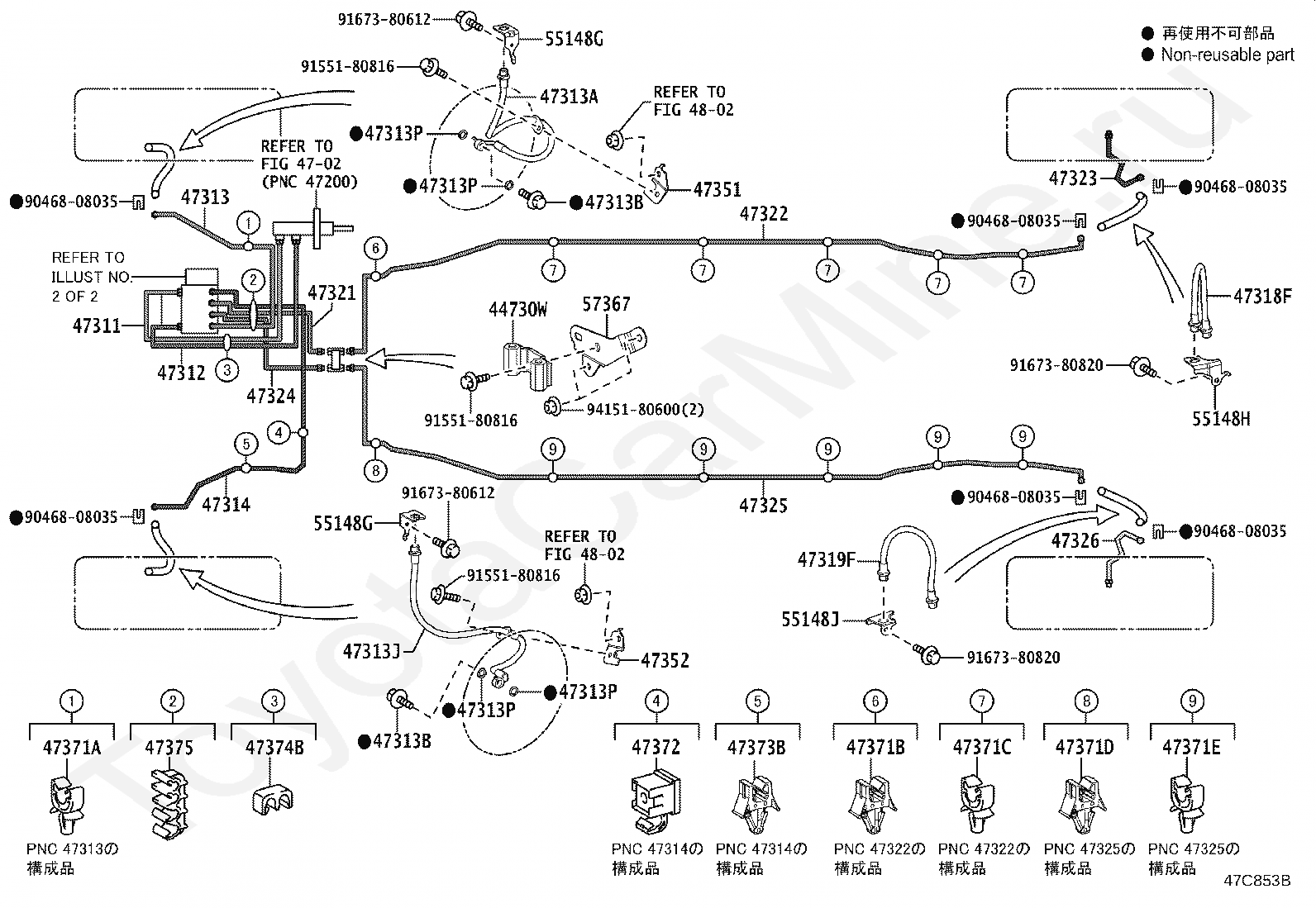

47311
TUBE, FRONT BRAKE, NO.1
47312
TUBE, FRONT BRAKE, NO.2
47313
TUBE, FRONT BRAKE, NO.3
47313A
HOSE, FLEXIBLE, NO.1(FOR FRONT)
47313B
BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313B
BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313J
HOSE, FLEXIBLE, NO.2(FOR FRONT)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47313P
GASKET(FOR FRONT FLEXIBLE HOSE)
47314
TUBE, FRONT BRAKE, NO.4
47318F
HOSE, FLEXIBLE(FOR REAR RH)
47319F
HOSE, FLEXIBLE(FOR REAR LH)
47321
TUBE, REAR BRAKE, NO.1
47322
TUBE, REAR BRAKE, NO.2
47323
TUBE, REAR BRAKE, NO.3
47324
TUBE, REAR BRAKE, NO.4
47325
TUBE, REAR BRAKE, NO.5
47326
TUBE, REAR BRAKE, NO.6
47351
BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352
BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47371A
CLAMP, BRAKE TUBE, NO.1
47371B
CLAMP, BRAKE TUBE, NO.6
47371C
CLAMP, BRAKE TUBE, NO.7
47371D
CLAMP, BRAKE TUBE, NO.8
47371E
CLAMP, BRAKE TUBE, NO.9
47372
CLAMP, BRAKE TUBE, NO.2
47373B
CLAMP, BRAKE TUBE, NO.3
47374B
CLAMP, BRAKE TUBE, NO.4
47375
CLAMP, BRAKE TUBE, NO.5
4802
переход к группе запчастей
4802
переход к группе запчастей
55148G
BRACKET, BRAKE TUBE, NO.1
55148G
BRACKET, BRAKE TUBE, NO.1
55148H
BRACKET, BRAKE TUBE, NO.2
55148J
BRACKET, BRAKE TUBE, NO.3
57367
BRACKET, 2 WAY SUPPORT
