Япония

Модель

BLIZZARD

VIN

Дата

1984/05

Двигатель

2,4 литра, дизель

Кузов

DECELERATION CONTROL SYSTEM

Класс

DELUX SPECIFICATION

Фрейм

LD20

КПП

МКПП, 5 скоростей

Опции

4-местный дизель

WINCH TOYOTA BLIZZARD

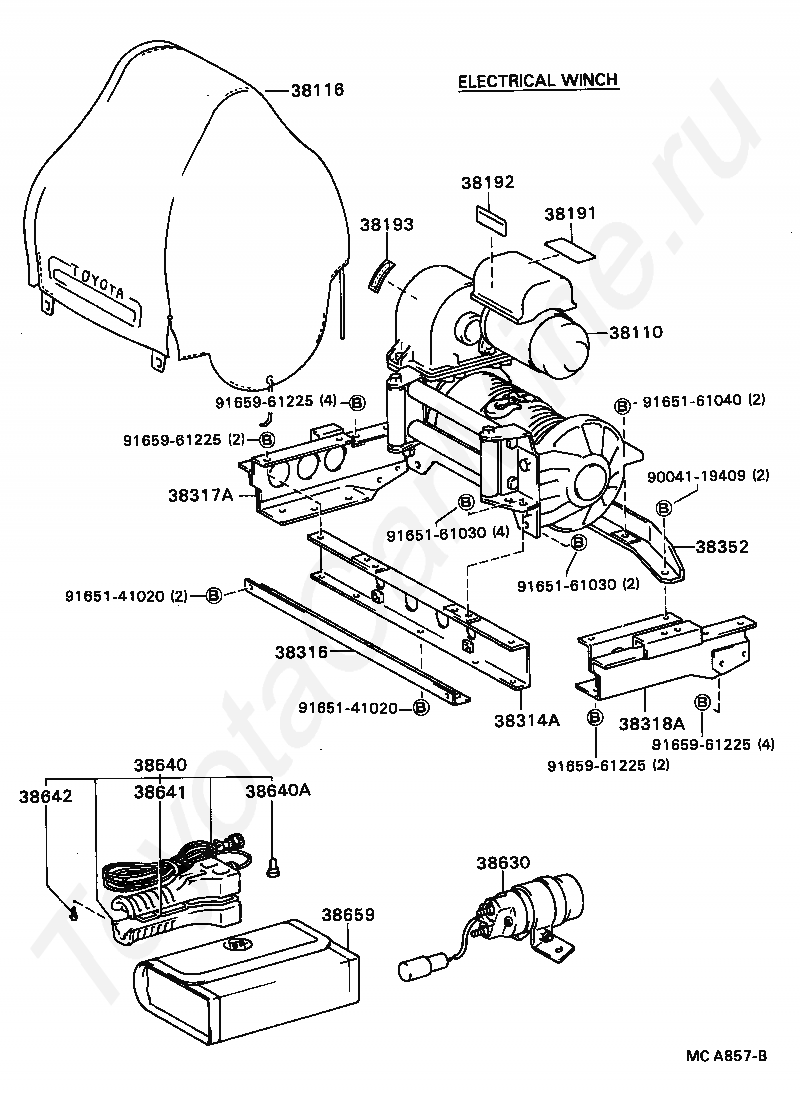

Код

Описание

38110

WINCH ASSY

38116

COVER, WINCH

38191

PLATE, WINCH CAUTION, NO.1

38192

PLATE, WINCH CAUTION, NO.2

38193

PLATE, WINCH CAUTION, NO.3

38314A

CROSSMEMBER, WINCH SUPPORT, FRONT

38316

REINFORCEMENT, WINCH SUPPORT, FRONT

38317A

EXTENSION, WINCH SUPPORT, RH

38318A

EXTENSION, WINCH SUPPORT, LH

38352

SUPPORT, WINCH BASE

38630

SWITCH ASSY, MAGNET, NO.1

38640

SWITCH ASSY, WINCH CONTROL

38640A

BULB (FOR WINCH CONTROL SWITCH)

38641

GASKET (FOR WINCH CONTROL SWITCH)

38642

SCREW (FOR WINCH CONTROL SWITCH)

38659

COVER, WINCH CONTROL SWITCH

9004119409

Крепеж

9165141020

Крепеж

9165141020

Крепеж

9165161030

Крепеж

9165161030

Крепеж

9165161040

Крепеж

9165961225

Крепеж

9165961225

Крепеж

9165961225

Крепеж

9165961225

Крепеж

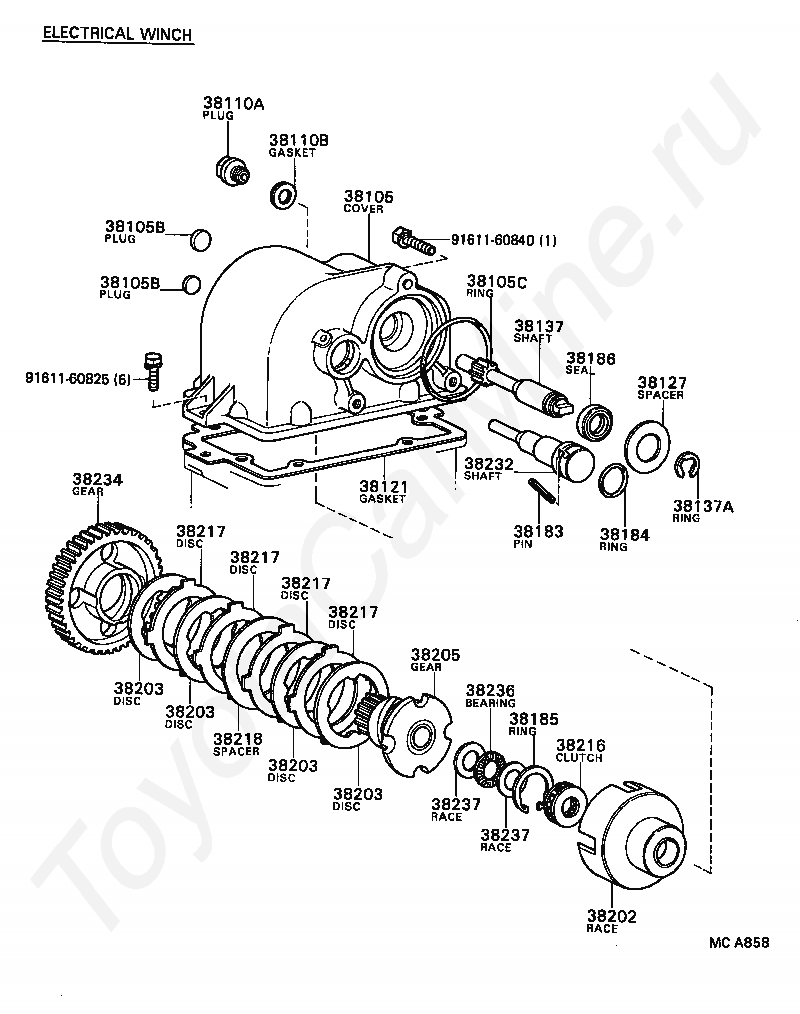

Код

Описание

38105

COVER SUB-ASSY, WINCH GEAR CASE

38105B

PLUG, TIGHT (FOR WINCH GEAR CASE COVER)

38105B

PLUG, TIGHT (FOR WINCH GEAR CASE COVER)

38105C

RING, O (FOR WINCH GEAR CASE COVER)

38110A

PLUG, FILLER

38110B

GASKET (FOR FILLER PLUG)

38121

GASKET, WINCH GEAR CASE COVER

38127

SPACER, INPUT SHAFT

38137

SHAFT, WINCH INPUT

38137A

RING, E (FOR WINCH INPUT SHAFT)

38183

PIN, BRAKE SHAFT LOCK

38184

RING, BRAKE SHAFT, O

38185

RING, CLUTCH OUTER RACE SNAP

38186

SEAL, GEAR CASE COVER OIL

38202

RACE SUB-ASSY, CLUTCH, OUTER

38203

DISC SUB-ASSY, WINCH CLUTCH, INNER

38203

DISC SUB-ASSY, WINCH CLUTCH, INNER

38203

DISC SUB-ASSY, WINCH CLUTCH, INNER

38203

DISC SUB-ASSY, WINCH CLUTCH, INNER

38205

GEAR SUB-ASSY, BRAKE SHAFT DRIVEN

38216

CLUTCH, WINCH 1 WAY

38217

DISC, WINCH CLUTCH, OUTER

38217

DISC, WINCH CLUTCH, OUTER

38217

DISC, WINCH CLUTCH, OUTER

38217

DISC, WINCH CLUTCH, OUTER

38218

SPACER, CLUTCH DISC

38232

SHAFT, WINCH BRAKE

38234

GEAR, BRAKE SHAFT DRIVE

38236

BEARING, GEAR THRUST

38237

RACE, GEAR THRUST BEARING

38237

RACE, GEAR THRUST BEARING

9161160825

Крепеж

9161160840

Крепеж

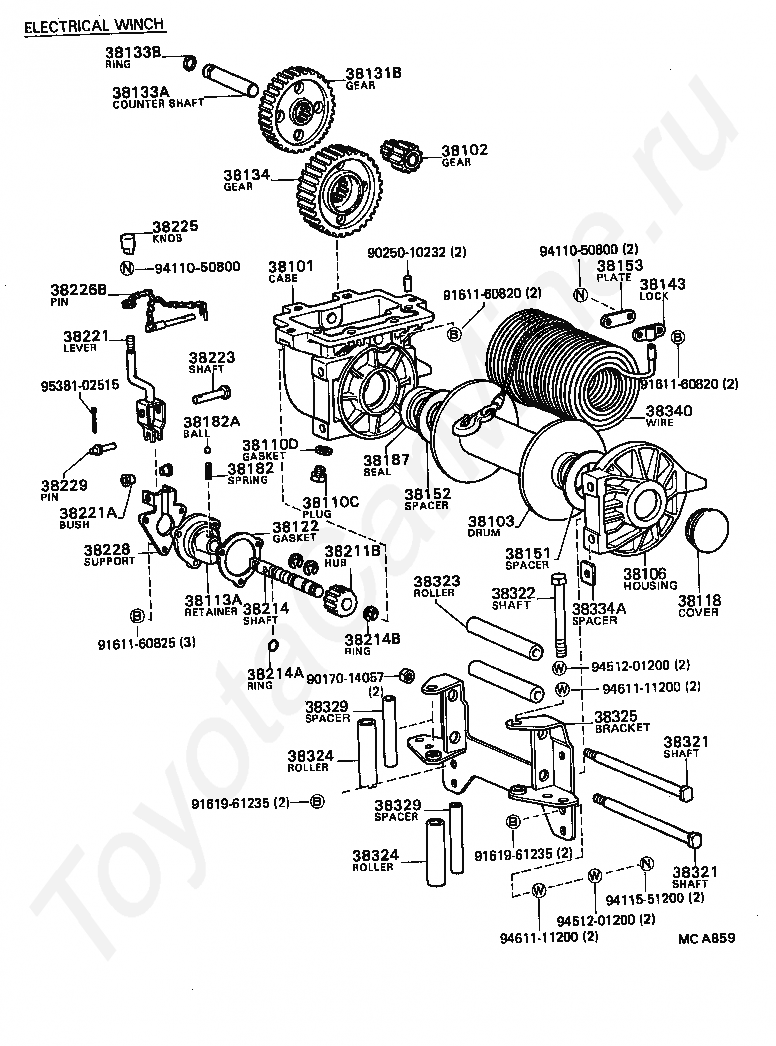

Код

Описание

38101

CASE SUB-ASSY, WINCH GEAR

38102

GEAR SUB-ASSY, COUNTERSHAFT

38103

DRUM SUB-ASSY, WINCH

38106

HOUSING SUB-ASSY, WINCH DRUM

38110C

PLUG, DRAIN

38110D

GASKET (FOR DRAIN PLUG)

38113A

RETAINER, SHIFT SHAFT

38118

COVER, WINCH DRUM HOUSING

38122

GASKET, SHIFT SHAFT RETAINER

38131B

GEAR, COUNTER, NO.1

38133A

COUNTER SHAFT

38133B

RING, O (FOR COUNTER SHAFT)

38134

GEAR, WINCH OUTPUT

38143

LOCK, WIRE

38151

SPACER, WINCH DRUM, NO.1

38152

SPACER, WINCH DRUM, NO.2

38153

PLATE, WIRE LOCK

38182

SPRING, SHIFT LOCK

38182A

BALL (FOR SHIFT LOCK SPRING)

38187

SEAL, GEAR CASE OIL

38211B

HUB, WINCH CLUTCH

38214

SHIM, WINCH WORM ADJUST, NO.2

38214A

RING, O (FOR CLUTCH HUB SHIFT SHAFT)

38214B

RING, E (FOR CLUTCH HUB SHIFT SHAFT)

38221

LEVER, CLUTCH HUB SHIFT

38221A

BUSH (FOR CLUTCH HUB SHIFT LEVER)

38223

SHAFT, CLUTCH SHIFT LEVER

38225

KNOB, WINCH CLUTCH LEVER

38226B

PIN, CLUTCH SHIFT LEVER LOCK

38228

SUPPORT, CLUTCH SHIFT LEVER

38229

PIN, CLUTCH SHIFT LEVER

38321

SHAFT, WINCH ROLLER

38321

SHAFT, WINCH ROLLER

38322

SHAFT, WINCH ROLLER, NO.2

38323

ROLLER, WINCH WIRE GUIDE, NO.1

38324

ROLLER, WINCH WIRE GUIDE, NO.2

38324

ROLLER, WINCH WIRE GUIDE, NO.2

38325

BRACKET, WINCH ROLLER, NO.1

38329

SPACER, WINCH WIRE GUIDE ROLLER

38329

SPACER, WINCH WIRE GUIDE ROLLER

38334A

SPACER, REAR MEMBER

38340

WIRE ASSY, WINCH CHAIN

9017014057

Крепеж

9025010232

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160825

Крепеж

9161961235

Крепеж

9161961235

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9411551200

Крепеж

9451201200

Крепеж

9451201200

Крепеж

9461111200

Крепеж

9461111200

Крепеж

9538102515

Крепеж

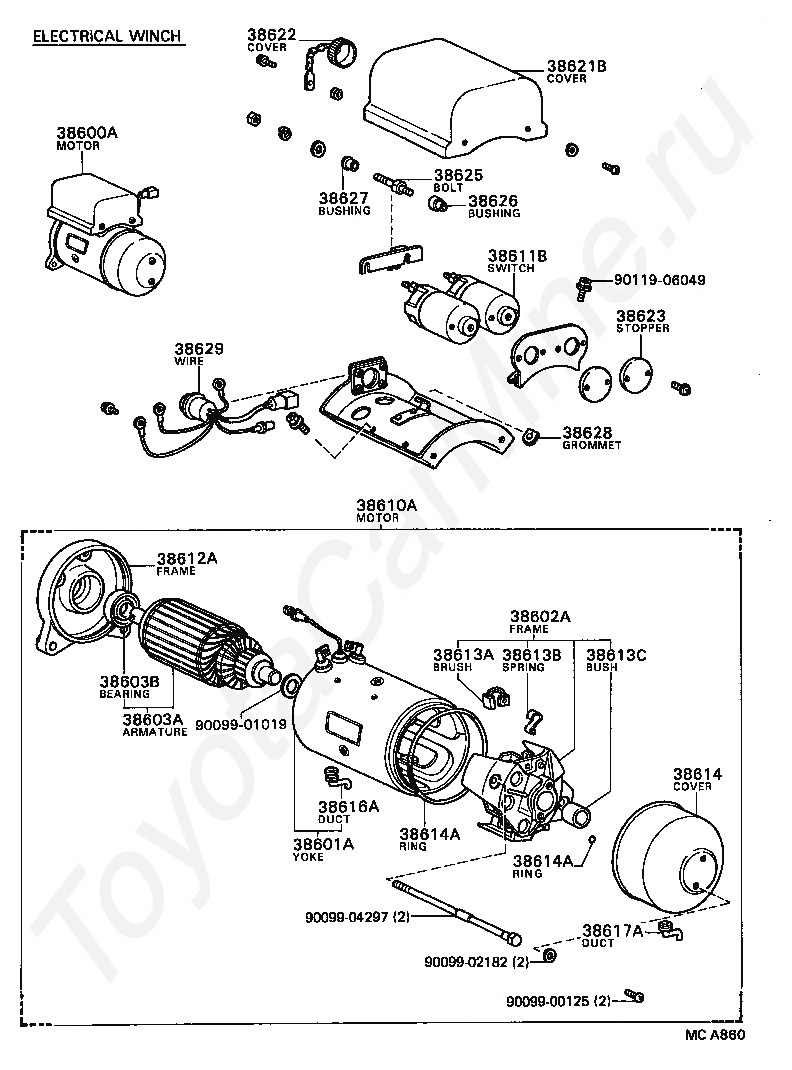

Код

Описание

38600A

MOTOR ASSY, W/MAGNET SWITCH, WINCH

38601A

YOKE SUB-ASSY, WINCH MOTOR

38602A

FRAME SUB-ASSY, CUMMUTATOR END (FOR WINCH MOTER)

38603A

ARMATURE SUB-ASSY, WINCH MOTOR

38603B

BEARING, NO.1 (FOR WINCH MOTOR ARMATURE)

38610A

MOTOR ASSY, WINCH

38611B

SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR)

38612A

FRAME, WINCH MOTOR END

38613A

BRUSH, WINCH MOTOR

38613B

SPRING, WINCH MOTOR BRUSH

38613C

BUSH (FOR WINCH MOTOR)

38614

COVER, COMMUTATOR WINCH

38614A

RING, O(FOR WINCH MOTOR)

38614A

RING, O(FOR WINCH MOTOR)

38616A

DUCT, YOKE WINCH

38617A

DUCT, COVER WINCH

38621B

COVER, MAGNET SWITCH WINCH

38622

COVER, CONNECTOR WINCH

38623

STOPPER, WINCH MOTOR

38625

BOLT, STUD WINCH MOTOR

38626

BUSHING, STEPPED FEMALE WINCH MOTOR

38627

BUSHING, STEPPED MALE WINCH MOTOR

38628

GROMET, WINCH

38629

WIRE, WINCH MOTOR

9009900125

Крепеж

9009901019

Крепеж

9009902182

Крепеж

9009904297

Крепеж

9011906049

Крепеж

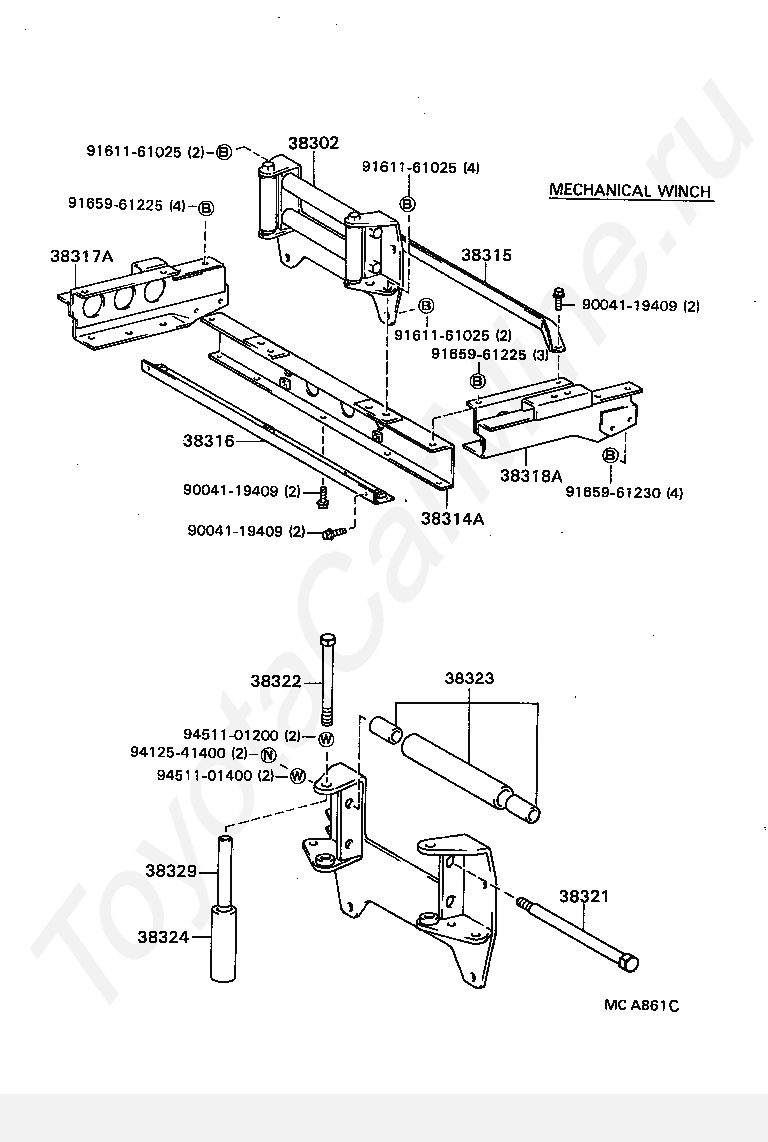

Код

Описание

38302

ROLLER SUB-ASSY, WINCH WIRE GUIDE

38314A

CROSSMEMBER, WINCH SUPPORT, FRONT

38315

CROSSMEMBER, WINCH SUPPORT, REAR

38316

REINFORCEMENT, WINCH SUPPORT, FRONT

38317A

EXTENSION, WINCH SUPPORT, RH

38318A

EXTENSION, WINCH SUPPORT, LH

38321

SHAFT, WINCH ROLLER

38322

SHAFT, WINCH ROLLER, NO.2

38323

ROLLER, WINCH WIRE GUIDE, NO.1

38324

ROLLER, WINCH WIRE GUIDE, NO.2

38329

SPACER, WINCH WIRE GUIDE ROLLER

9004119409

Крепеж

9004119409

Крепеж

9004119409

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9161161025

Крепеж

9165961225

Крепеж

9165961225

Крепеж

9165961230

Крепеж

9412541400

Крепеж

9451101200

Крепеж

9451101400

Крепеж

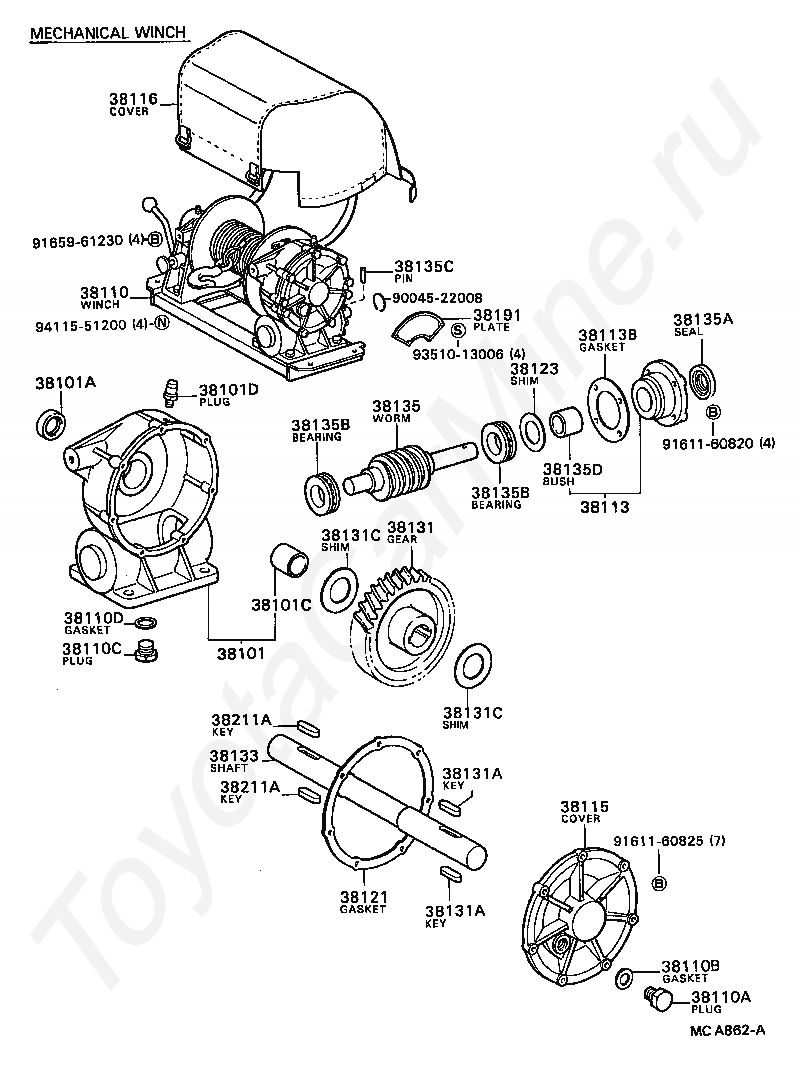

Код

Описание

38101

CASE SUB-ASSY, WINCH GEAR

38101A

SEAL, TYPE T OIL (FOR WINCH GEAR CASE)

38101C

BUSH, SOLID (FOR WINCH GEAR CASE)

38101D

PLUG, BREATHER (FOR WINCH GEAR CASE)

38110

WINCH ASSY

38110A

PLUG, FILLER

38110B

GASKET (FOR FILLER PLUG)

38110C

PLUG, DRAIN

38110D

GASKET (FOR DRAIN PLUG)

38113

RETAINER, WORM BEARING

38113B

GASKET, WORM BEARING REATAINER

38115

COVER, WINCH GEAR CASE

38116

COVER, WINCH

38121

GASKET, WINCH GEAR CASE COVER

38123

SHIM, ADJUST

38131

GEAR, WORM

38131A

KEY, SLIDING (FOR WINCH WORM GEAR)

38131A

KEY, SLIDING (FOR WINCH WORM GEAR)

38131C

SHIM, WORM GEAR

38131C

SHIM, WORM GEAR

38133

SHAFT, WORM GEAR

38135

WORM, WINCH

38135A

SEAL, TYPE T OIL (FOR WINCH WORM)

38135B

BEARING (FOR WINCH WORM)

38135B

BEARING (FOR WINCH WORM)

38135C

PIN, SAFETY LOCK

38135D

BUSH (FOR WINCH WORM)

38191

PLATE, WINCH CAUTION, NO.1

38211A

KEY, WINCH CLUTCH

38211A

KEY, WINCH CLUTCH

9004522008

Крепеж

9161160820

Крепеж

9161160825

Крепеж

9165961230

Крепеж

9351013006

Крепеж

9411551200

Крепеж

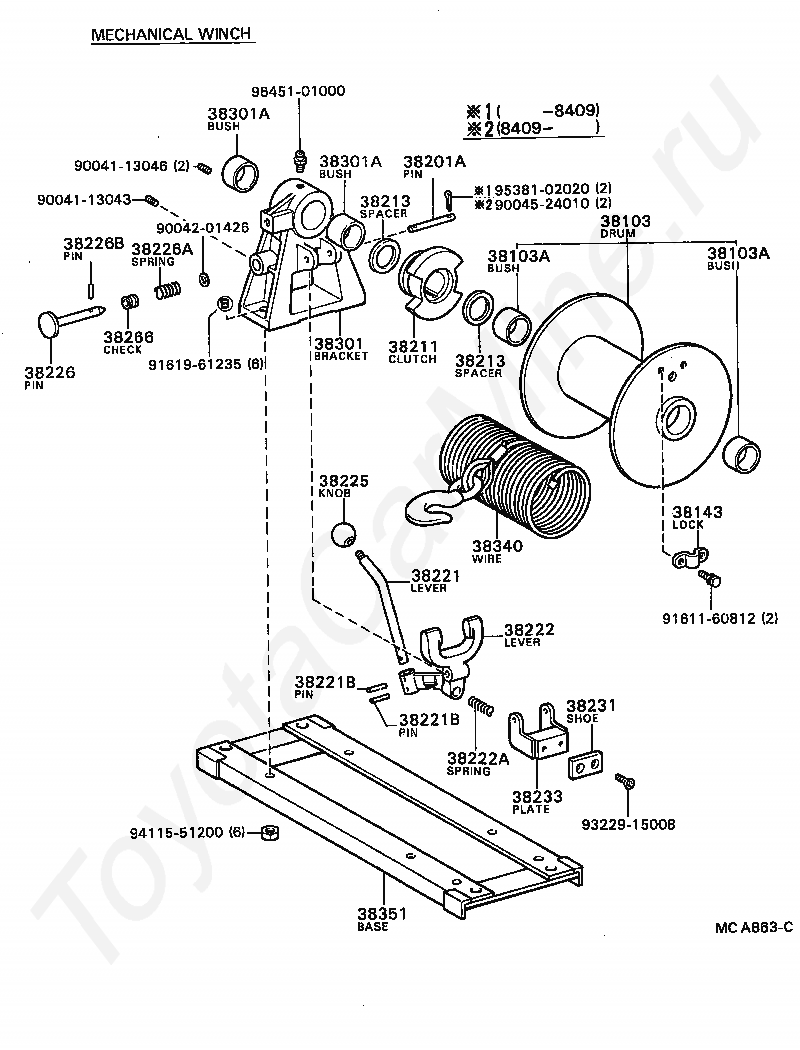

Код

Описание

38103

DRUM SUB-ASSY, WINCH

38103A

BUSH (FOR WINCH DRUM)

38103A

BUSH (FOR WINCH DRUM)

38143

LOCK, WIRE

38201A

PIN, WINCH CLUTCH LEVER

38211

CLUTCH, WINCH

38213

SPACER, CLUTCH FEATHER KEY

38213

SPACER, CLUTCH FEATHER KEY

38221

LEVER, CLUTCH HUB SHIFT

38221B

PIN, SLOTTED SPRING (FOR CLUTCH HUB SHIFT LEVER)

38221B

PIN, SLOTTED SPRING (FOR CLUTCH HUB SHIFT LEVER)

38222

LEVER, WINCH CLUTCH, LOWER

38222A

SPRING (FOR WINCH CLUTCH LOWER LEVER)

38225

KNOB, WINCH CLUTCH LEVER

38226

PIN, LEVER SHIFT LOCK

38226A

SPRING, LEVER SHIFT LOCK PIN

38226B

PIN, CLUTCH SHIFT LEVER LOCK

38231

SHOE, BRAKE

38233

PLATE, BRAKE

38266

CHECK, LEVER SHIFT LOCK

38301

BRACKET SUB-ASSY, WINCH END

38301A

BUSH (FOR WINCH END BRACKET)

38301A

BUSH (FOR WINCH END BRACKET)

38340

WIRE ASSY, WINCH CHAIN

38351

BASE, WINCH

9004113043

Крепеж

9004113046

Крепеж

9004201426

Крепеж

9004524010

Крепеж

9161160812

Крепеж

9161961235

Крепеж

9322915008

Крепеж

9411551200

Крепеж

9538102020

Крепеж

9645101000

Крепеж
