Каталог

Япония

Модель

BB/OPEN DECK

VIN

Дата

2000/01

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Класс

Z TYPE

Фрейм

NCP35

Опции

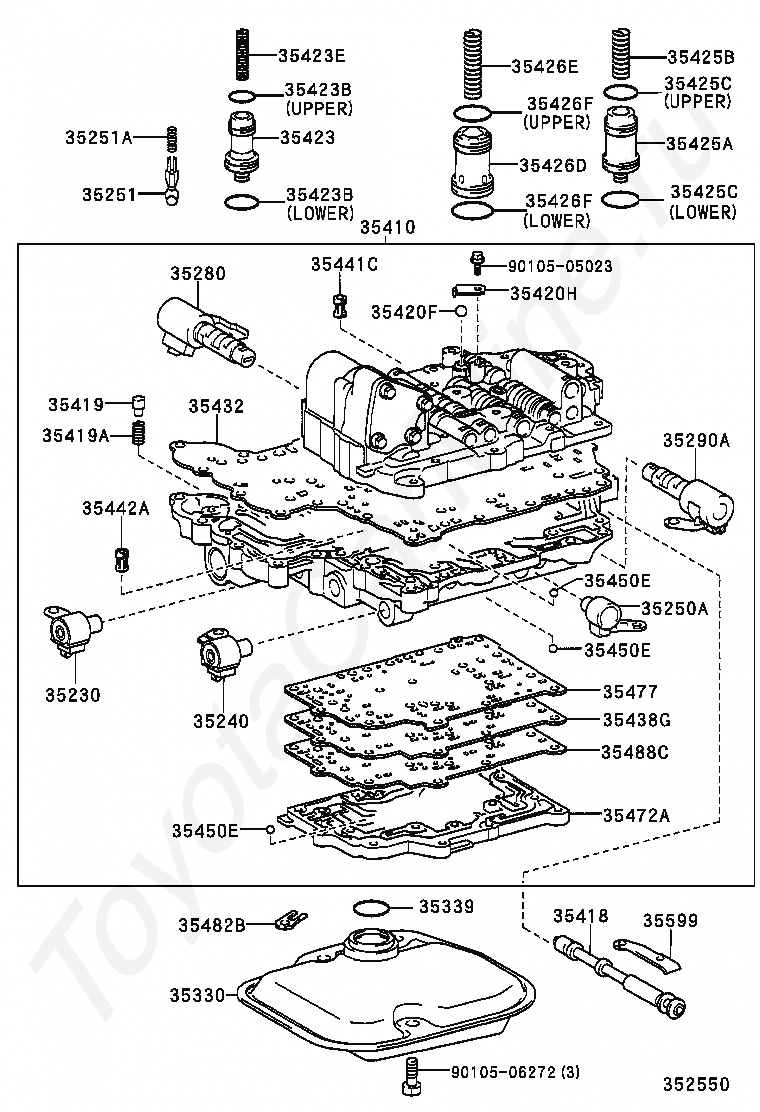

VALVE BODY & OIL STRAINER (ATM) TOYOTA BB/OPEN DECK







Код

Описание

35230

SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

35240

SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

35250A

SOLENOID ASSY, TRANSMISSION, NO.3

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35280

SOLENOID ASSY, LOCK UP CONTROL

35290A

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420F

BALL, CHECK, NO.1

35420H

COVER, CHECK BALL

35423

PISTON, B-2 ACCUMULATOR

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423E

SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426D

PISTON, C-3 ACCUMULATOR

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35438G

PLATE, VALVE BODY, NO.2

35441C

STRAINER, SOLENOID OIL

35442A

STRAINER, SOLENOID OIL, NO.2

35450E

BALL (FOR UPPER VALVE BODY)

35450E

BALL (FOR UPPER VALVE BODY)

35450E

BALL (FOR UPPER VALVE BODY)

35472A

COVER, LOWER VALVE BODY

35477

GASKET, VALVE BODY COVER

35482B

CLAMP, TEMPERATURE SENSOR

35488C

GASKET, VALVE BODY COVER, NO.2

35599

COVER, MANUAL DETENT SPRING

9010505023

Крепеж

9010506272

Крепеж

Код

Описание

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213

VALVE, LOCK UP RELAY CONTROL

35213B

KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE)

35213C

PLUG (FOR LOCK UP CONTROL VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224B

PLUG (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35275

VALVE, SOLENOID MODULATOR

35275A

SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)

35275C

KEY, STRAIGHT

35284

VALVE, SOLENOID RELAY

35284A

KEY, STRAIGHT (FOR SOLENOID RELAY VALVE)

35284B

SPRING, COMPRESSION (FOR SOLENOID RELAY VALVE)

35421

PISTON, ACCUMULATOR, NO.1

35421A

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

35421W

PLUG, C-1 ACCUMULATOR VALVE

35427

COVER, ACCUMULATOR

35427P

SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)

35427R

PISTON B-1 ACCUMULATOR

35427S

RING, O(FOR B-1 ACCUMULATOR PISTON)

35427S

RING, O(FOR B-1 ACCUMULATOR PISTON)

35445F

KEY, STRAIGHT (FOR LOW MODULATOR VALVE)

35445Q

VALVE, LOW COAST MODULATOR

35445R

SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456F

KEY, STRAIGHT (FOR 2-3 SHIFT VALVE)

35466C

VALVE, 3-4 SHIFT TIMING

35466G

KEY, STRAIGHT (FOR 2ND LOCK VALVE)

35466W

SPRING, COMPRESSION(FOR 3-4 SHIFT TIMING VALVE)

35467V

PLUNGER, 3-4 SHIFT TIMING VALVE

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35476J

VALVE, COAST RELAY

35476K

KEY, STRAIGHT(FOR COAST RELAY VALVE)

35476L

PLUG(FOR COAST RELAY VALVE)

35476M

SPRING, COMPRESSION(FOR COAST RELAY VALVE)

35478B

KEY, VALVE SPRING, NO.2

35483H

VALVE, 4-3 SHIFT TIMING, NO.1

35483J

SPRING, COMPRESSION(FOR 4-3 SHIFT TIMING VALVE)

9010506069

Крепеж

Код

Описание

35211D

SLEEVE, LOCK UP CONTROL VALVE

35214

VALVE, LOCK UP CONTROL

35214C

SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)

35219D

PLUNGER, LOCK UP CONTROL VALVE

35415

VALVE, PRESSURE REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35415Q

SPACER (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417

SLEEVE, PRESSURE REGULATOR VALVE

35417B

PIN, STRAIGHT (FOR PRIMARY REGULATOR VALVE SLEEVE)

35417C

PLUG(FOR PRIMARY REGULATOR VALVE)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464D

KEY, STRAIGHT (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35474A

COVER, ACCUMULATOR

35479G

KEY, VALVE SPRING, NO.1

35479H

PLUG(FOR VALVE SPRING KEY)

35479J

BALL(FOR VALVE SPRING KEY)

35479K

SPRING, COMPRESSION(FOR VALVE SPRING KEY)

35484F

VALVE, 4-3 SHIFT TIMING, NO.2

35484H

PLUG(FOR 4-3 SHIFT TIMING VALVE)

35484J

KEY, STRAIGHT(FOR 4-3 SHIFT VALVE)

35491A

VALVE, ACCUMULATOR CONTROL, NO.1

35491B

SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1)

35491C

KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1)

35492E

SLEEVE, ACCUMULATOR CONTROL VALVE

35496A

PLUNGER, 4-3 SHIFT TIMING VALVE, NO.2

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35497F

KEY, STRAIGHT (FOR 3-4 SHIFT VALVE)

9010506069

Крепеж

9028203002

Крепеж

Код

Описание

9010505008

Крепеж

9010506026

Крепеж

9010506028

Крепеж

9010506030

Крепеж

9010506069

Крепеж

9010506072

Крепеж

9010506111

Крепеж

9010506273

Крепеж

Код

Описание

35230

SOLENOID ASSY, TRANSMISSION 3WAY, NO.2

35240

SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

35250A

SOLENOID ASSY, TRANSMISSION, NO.3

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35280

SOLENOID ASSY, LOCK UP CONTROL

35290A

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35423

PISTON, B-2 ACCUMULATOR

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423E

SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426D

PISTON, C-3 ACCUMULATOR

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35482B

CLAMP, TEMPERATURE SENSOR

35599

COVER, MANUAL DETENT SPRING

9010506028

Крепеж

9010506069

Крепеж

9010506072

Крепеж

9010506272

Крепеж

9010506273

Крепеж

9010506273

Крепеж

9010506273

Крепеж

9010506273

Крепеж

9010506273

Крепеж

9151180614

Крепеж

9151180614

Крепеж
