Ходовые запчасти

Каталог

Европа

Модель

AYGO

VIN

Дата

2018/05

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

LEVEL 1 TYPE

Фрейм

KGB40

КПП

механика МКПП, 5 скоростей

Опции

левый руль 3 двери 731W

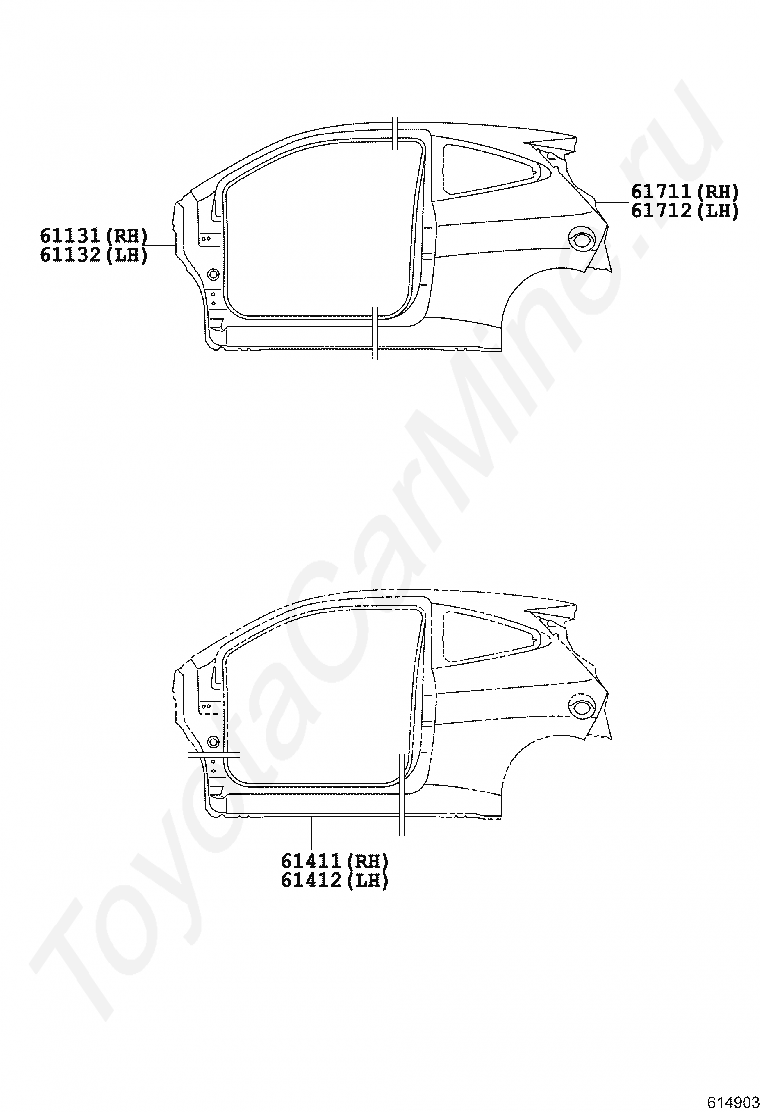

Боковая панель кузова TOYOTA AYGO

Код

Описание

61131

PILLAR, FRONT BODY, UPPER OUTER RH

61132

PILLAR, FRONT BODY, UPPER OUTER LH

61411

PANEL, ROCKER, OUTER RH

61412

PANEL, ROCKER, OUTER LH

61711

PANEL, ROOF SIDE, OUTER RH

61712

PANEL, ROOF SIDE, OUTER LH

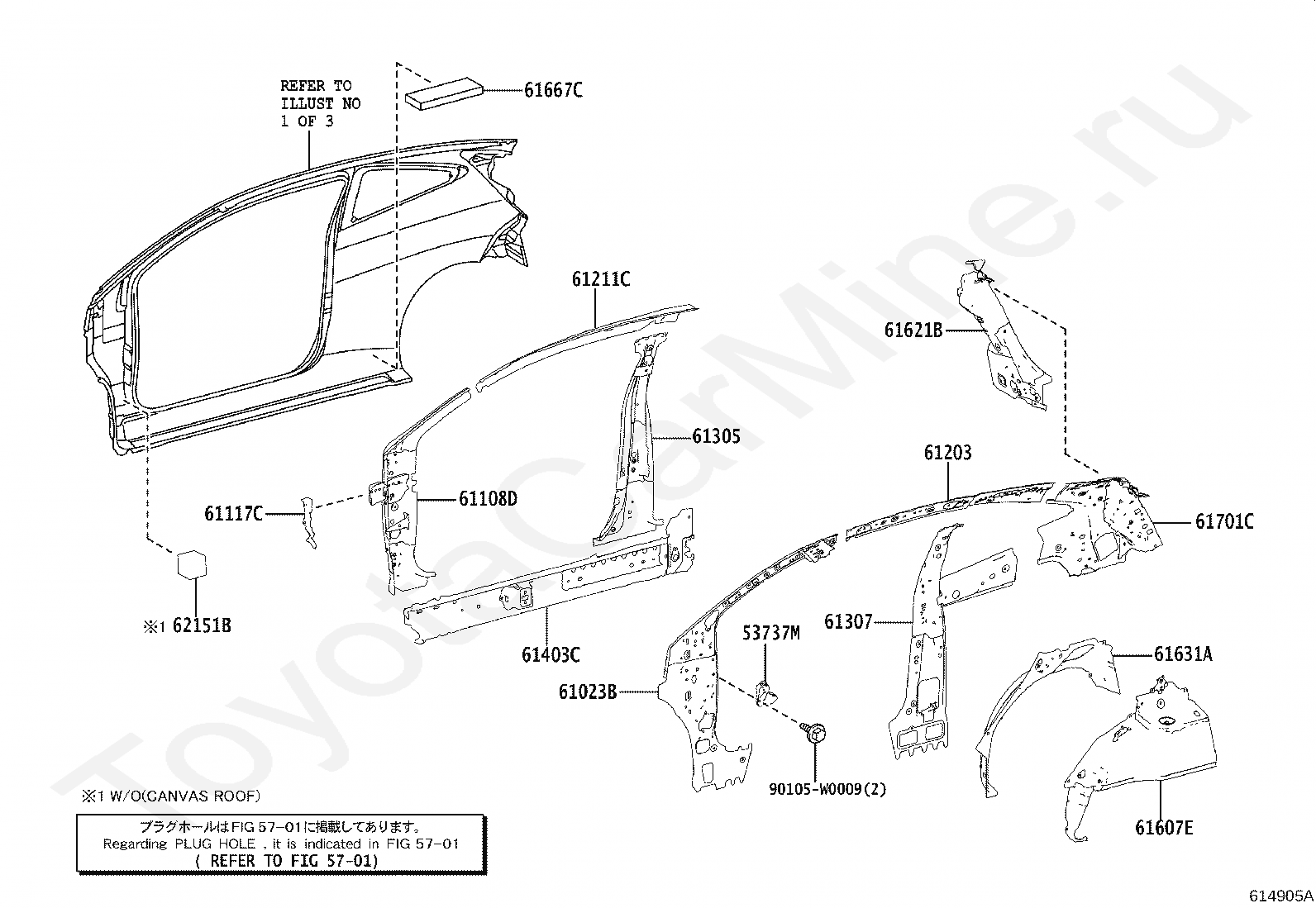

Код

Описание

53737M

PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

5701

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61117C

GUSSET, SIDE PANEL TO COWL, RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61211C

RAIL, ROOF SIDE, RH

61305

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

61307

PILLAR SUB-ASSY, CENTER BODY, INNER RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61607E

PANEL, QUARTER WHEEL HOUSE, INNER RH

61621B

TROUGH, BACK DOOR OPENING, FRONT RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61667C

SEAL, QAURTER PANEL, NO.1

61701C

PANEL SUB-ASSY, ROOF SIDE, OUTER RH

62151B

PAD, COWL SIDE SILENCER

90105W0009

Крепеж

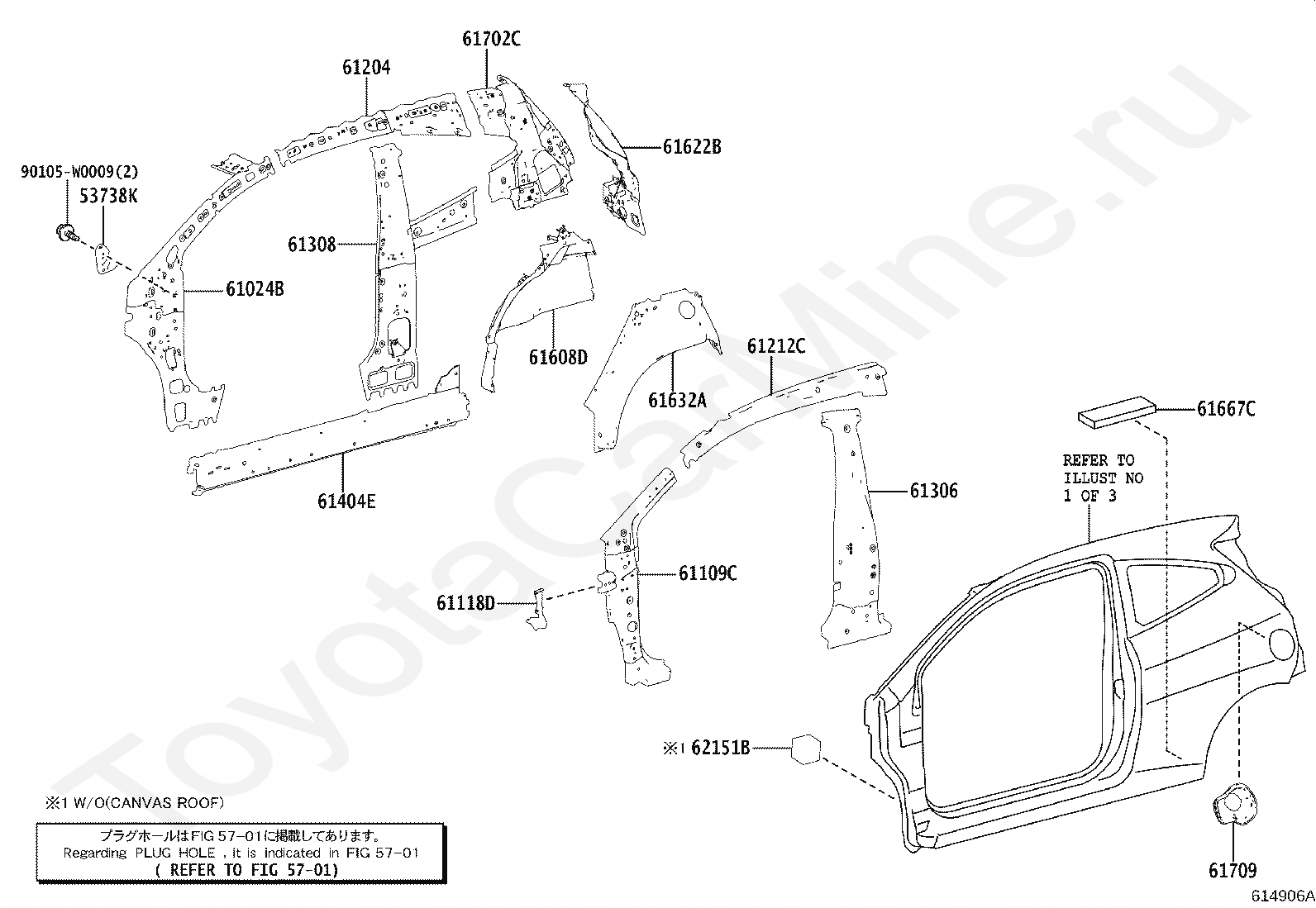

Код

Описание

53738K

PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

5701

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61118D

GUSSET, SIDE PANEL TO COWL, LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61212C

RAIL, ROOF SIDE, LH

61306

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

61308

PILLAR SUB-ASSY, CENTER BODY, INNER LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61608D

PANEL, QUARTER WHEEL HOUSE, INNER LH

61622B

TROUGH, BACK DOOR OPENING, FRONT LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61667C

SEAL, QAURTER PANEL, NO.1

61702C

PANEL SUB-ASSY, ROOF SIDE, OUTER LH

61709

BOX SUB-ASSY, FUEL INLET

62151B

PAD, COWL SIDE SILENCER

90105W0009

Крепеж
