2211
переход к группе запчастей
2211
переход к группе запчастей

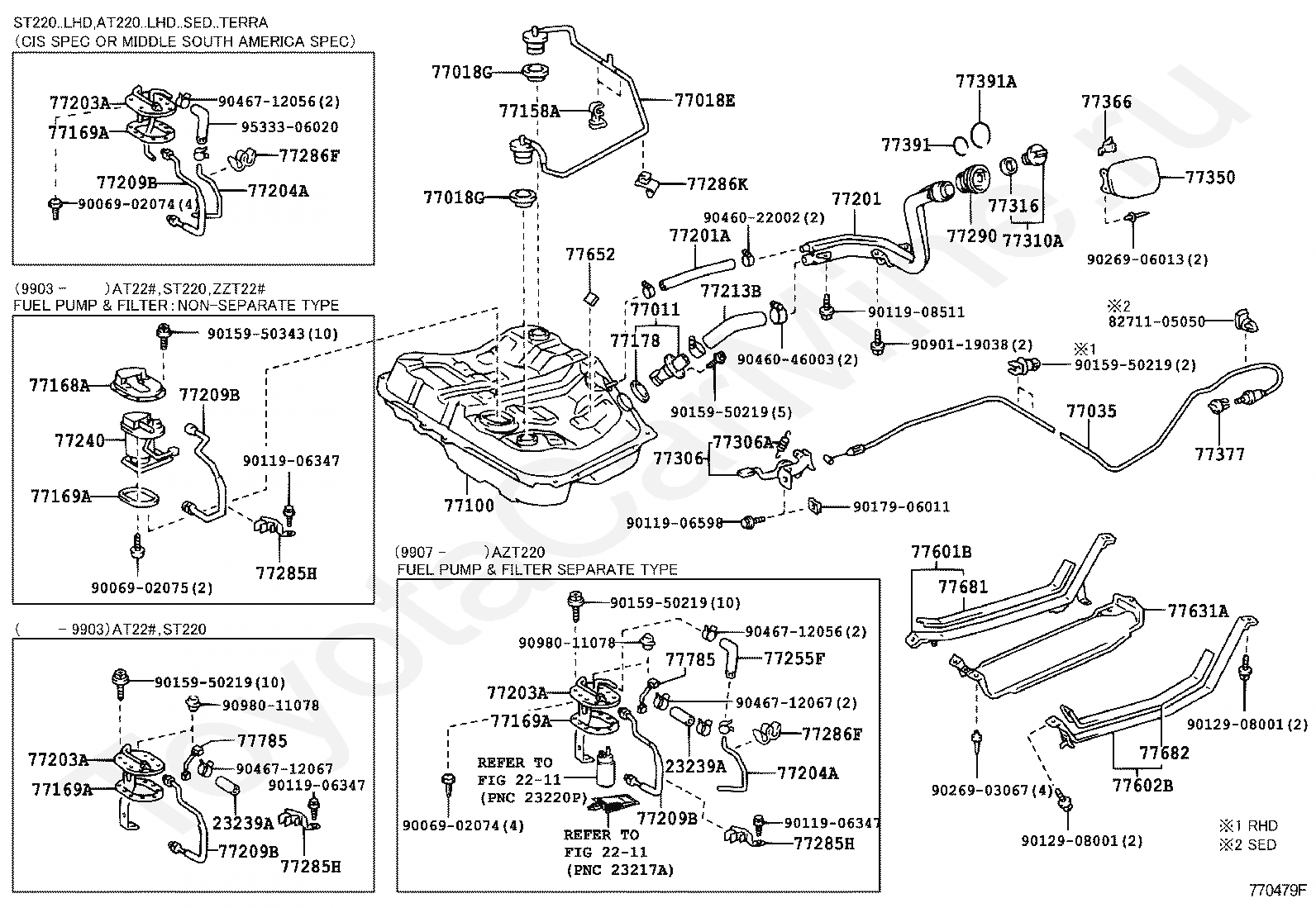

77011
PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018E
TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018G
GASKET, FUEL TANK EVAP/VENT TUBE
77018G
GASKET, FUEL TANK EVAP/VENT TUBE
77035
CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77158A
SUPPORT, TANK SUCTION TUBE
77168A
PLATE, FUEL TANK VENT TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77169A
GASKET, FUEL SUCTION TUBE SET
77178
GASKET, FUEL TANK FILLER PIPE, LOWER
77201
PIPE SUB-ASSY, FUEL TANK INLET
77201A
HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77203A
TUBE SUB-ASSY, FUEL SUCTION
77203A
TUBE SUB-ASSY, FUEL SUCTION
77203A
TUBE SUB-ASSY, FUEL SUCTION
77204A
TUBE, FUEL TANK RETURN
77204A
TUBE, FUEL TANK RETURN
77209B
TUBE SUB-ASSY, FUEL PUMP
77209B
TUBE SUB-ASSY, FUEL PUMP
77209B
TUBE SUB-ASSY, FUEL PUMP
77209B
TUBE SUB-ASSY, FUEL PUMP
77213B
HOSE, FUEL TANK TO FILLER PIPE
77240
TUBE ASSY, FUEL SUCTION
77255F
HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77285H
CLAMP, FUEL TUBE, NO.1
77285H
CLAMP, FUEL TUBE, NO.1
77285H
CLAMP, FUEL TUBE, NO.1
77286F
CLAMP, FUEL TUBE, NO.2
77286F
CLAMP, FUEL TUBE, NO.2
77286K
CLAMP, FUEL TUBE, NO.2
77290
SHIELD ASSY, FUEL TANK FILLER PIPE
77306
LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306A
SPRING, FUEL LID OPEN LEVER
77310A
CAP ASSY, FUEL TANK
77316
GASKET, FUEL TANK CAP
77350
LID ASSY, FUEL FILLER OPENING
77366
SPRING, FUEL FILLER OPENING LID HINGE
77377
RETAINER, FUEL FILLER OPENING LID LOCK
77391
RING, FUEL INLET BOX
77391A
RING, FUEL INLET BOX
77601B
BAND SUB-ASSY, FUEL TANK, NO.1 RH
77602B
BAND SUB-ASSY, FUEL TANK, NO.1 LH
77631A
PROTECTOR, FUEL TANK, LOWER CENTER
77652
CUSHION, FUEL TANK, NO.1
77681
SEAT, FUEL TANK BAND, RH
77682
SEAT, FUEL TANK BAND, LH
