Каталог

Ближний Восток

Модель

AVANZA

VIN

Дата

2021/11

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Класс

METERS

Фрейм

W101

КПП

вариатор

Опции

правый руль Индонезия D33H

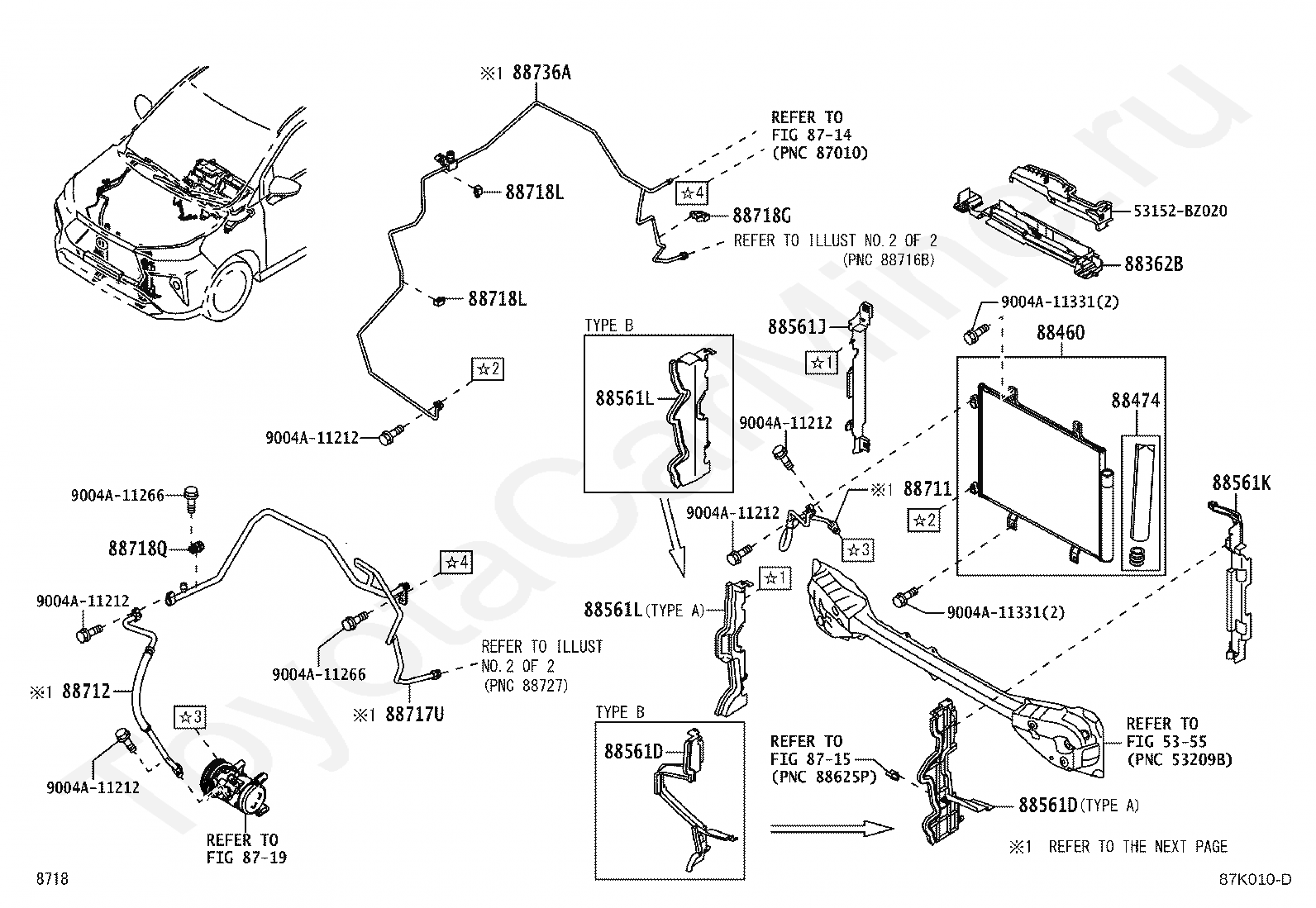

Кондиционер: охлаждающие трубки TOYOTA AVANZA

Код

Описание

53152BZ020

Крепеж

5355

переход к группе запчастей

8714

переход к группе запчастей

8715

переход к группе запчастей

8719

переход к группе запчастей

88362B

PLATE, SEAL

88460

CONDENSER ASSY, COOLER

88474

DRYER, COOLER

88561D

GRILLE, AIR INLET NO.3

88561D

GRILLE, AIR INLET NO.3

88561J

GRILLE, AIR INLET NO.1

88561K

GRILLE, AIR INLET NO.2

88561L

GRILLE, AIR INLET NO.4

88561L

GRILLE, AIR INLET NO.4

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88717U

TUBE, SUCTION, NO.1

88718G

CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)

88718L

CLAMP, PIPING

88718L

CLAMP, PIPING

88718Q

CLAMP, PIPING

88736A

TUBE, LIQUID, A(FOR COOL BOX)

9004A11212

Крепеж

9004A11212

Крепеж

9004A11212

Крепеж

9004A11212

Крепеж

9004A11212

Крепеж

9004A11266

Крепеж

9004A11266

Крепеж

9004A11331

Крепеж

9004A11331

Крепеж

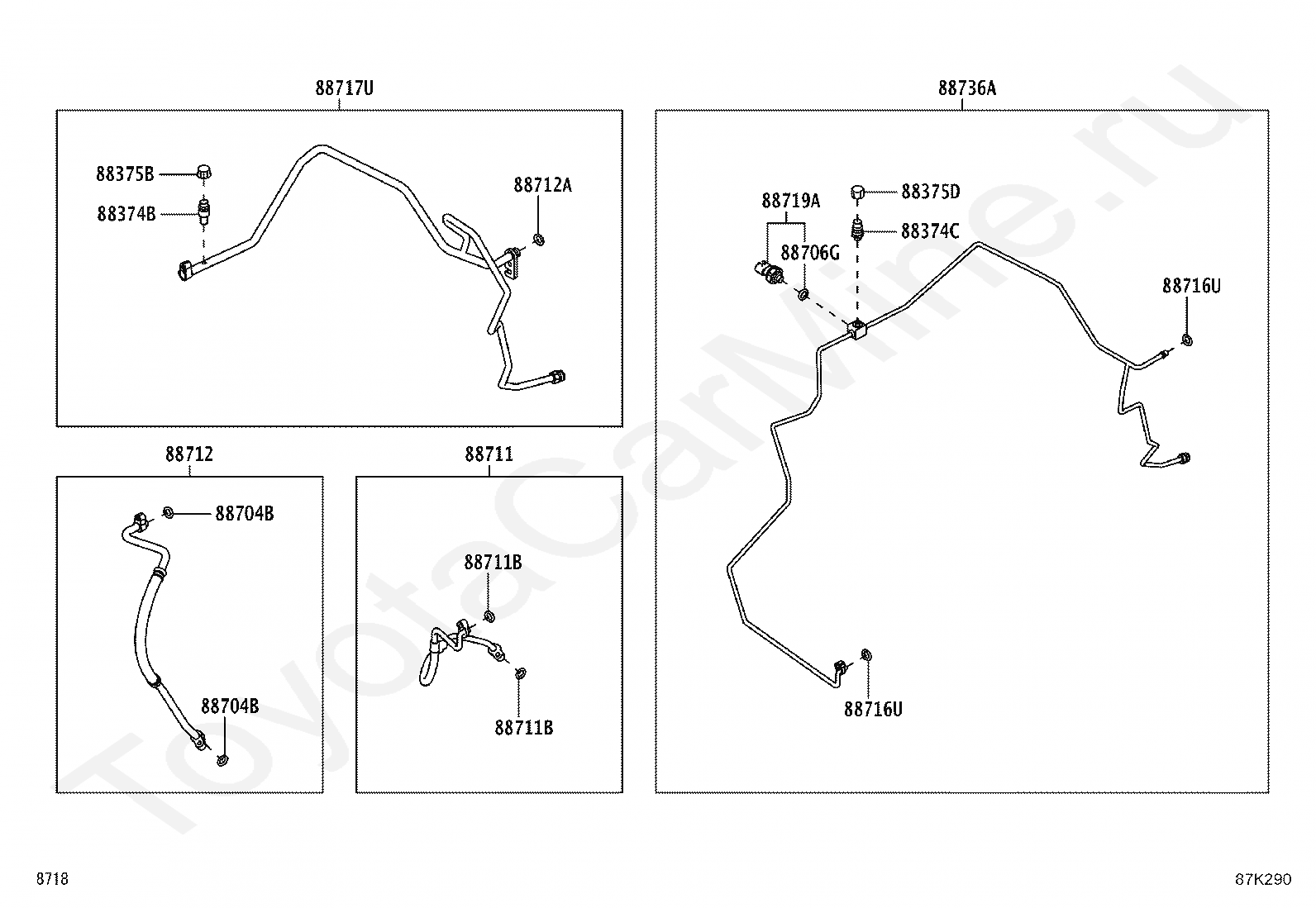

Код

Описание

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88704B

RING, O(FOR SUCTION HOSE)

88704B

RING, O(FOR SUCTION HOSE)

88706G

RING, O(FOR LIQUID TUBE)

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88711B

RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)

88712

HOSE, COOLER REFRIGERANT SUCTION, NO.1

88712A

RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88717U

TUBE, SUCTION, NO.1

88719A

SENSOR, AIR CONDITIONER PRESSURE

88736A

TUBE, LIQUID, A(FOR COOL BOX)

Код

Описание

8714

переход к группе запчастей

88706H

RING, O, NO.2(FOR LIQUID TUBE)

88706J

RING, O, NO.3(FOR LIQUID TUBE)

88706J

RING, O, NO.3(FOR LIQUID TUBE)

88707D

RING, O(FOR SUCTION TUBE)

88707D

RING, O(FOR SUCTION TUBE)

88707F

RING, O, NO.3(FOR SUCTION TUBE)

88714C

INSULATOR, COOLER REFRIGERANT HOSE, NO.1

88716B

PIPE, COOLER REFRIGERANT LIQUID, B

88717U

TUBE, SUCTION, NO.1

88718F

CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

88718F

CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)

88718N

CLAMP, PIPING

88718N

CLAMP, PIPING

88726C

PIPE, COOLER REFRIGERANT LIQUID, C

88727

TUBE, SUCTION, NO.2

88736A

TUBE, LIQUID, A(FOR COOL BOX)

88737A

TUBE, SUCTION, A(FOR COOL BOX)

88897T

GROMMET, COOLER

90105T0051

Крепеж

90105T0283

Крепеж

90105T0283

Крепеж
