Каталог

Ближний Восток

Модель

AVANZA

VIN

Дата

2022/01

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Класс

S TYPE

Фрейм

W101

КПП

вариатор

Опции

левый руль Филиппины D33H

Боковая панель кузова TOYOTA AVANZA

Код

Описание

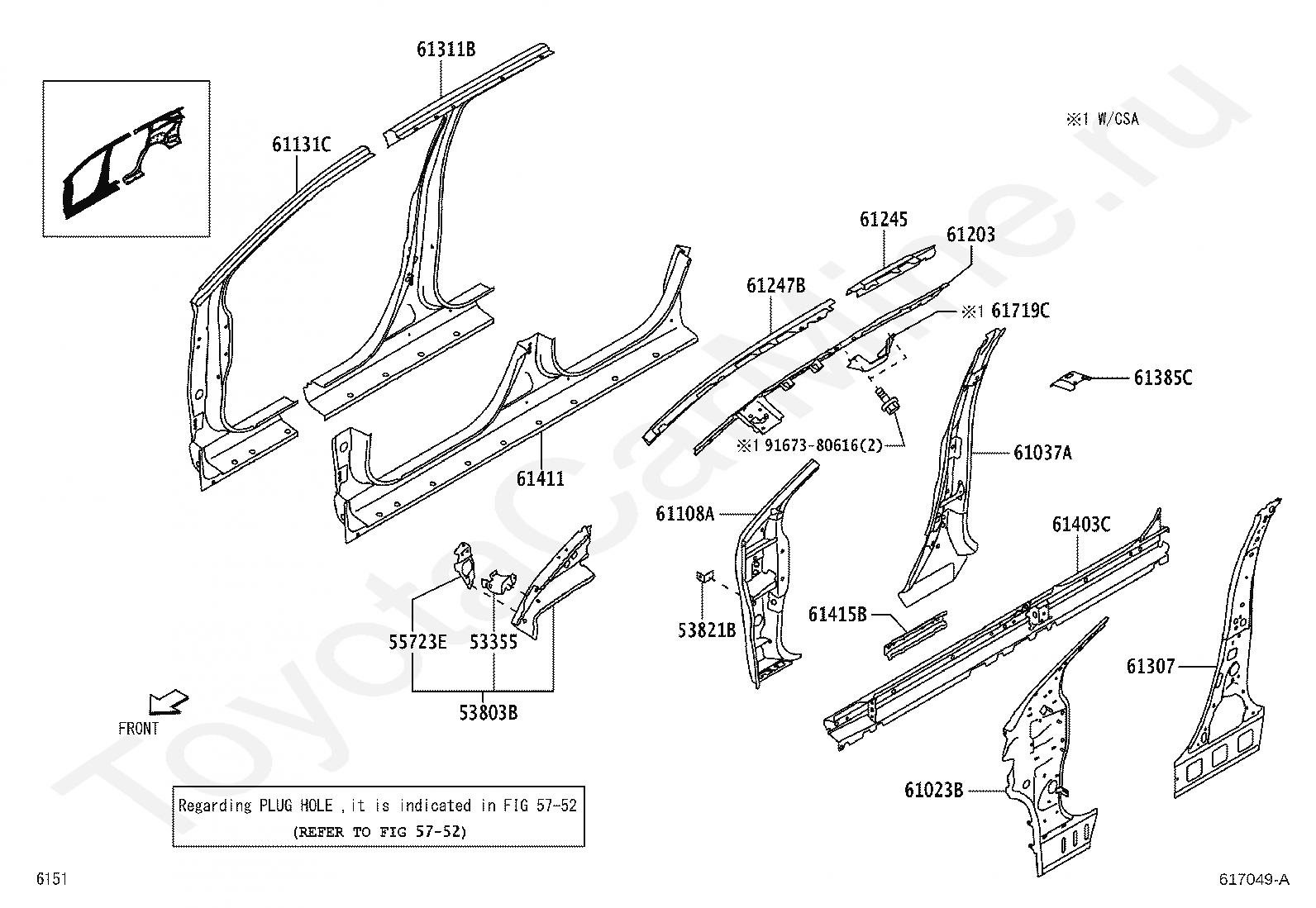

53355

GUSSET, HOOD REINFORCEMENT, RH

53803B

BRACKET SUB-ASSY, FRONT SIDE PANEL, RH

53821B

BRACKET, FRONT FENDER, REAR RH

55723E

GUSSET, FRONT PANEL, RH

5752

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61131C

PILLAR, FRONT BODY, OUTER RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61245

REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

61247B

REINFORCEMENT, ROOF SIDE RAIL, INNER RH

61307

PILLAR SUB-ASSY, CENTER BODY, INNER RH

61311B

PILLAR, CENTER BODY, OUTER RH

61385C

EXTENSION, CENTER BODY PILLAR, UPPER RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61411

PANEL, ROCKER, OUTER RH

61415B

EXTENSION, ROCKER, OUTER RH

61719C

BRACKET, ROOF SIDE RAIL, RH

9167380616

Крепеж

Код

Описание

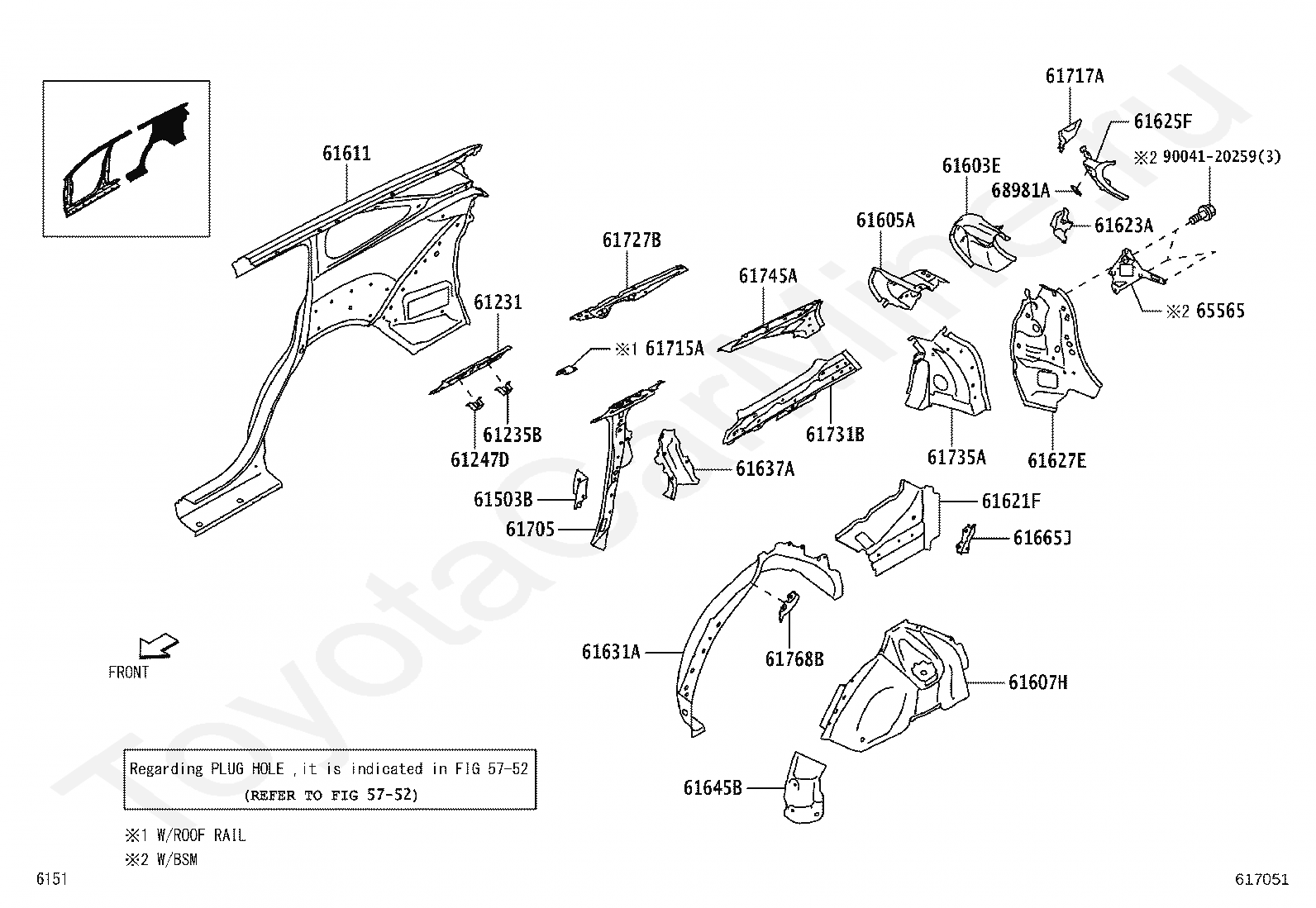

5752

переход к группе запчастей

61231

RAIL, ROOF SIDE, INNER RH

61235B

BRACKET, ASSIST GRIP

61247D

BRACKET, ASSIST GRIP, RH

61503B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

61603E

REINFORCEMENT SUB-ASSY, QUATER PANEL, INNER RH

61605A

REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH

61607H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

61611

PANEL, QUARTER, RH

61621F

EXTENSION, QUARTER PANEL, LOWER RH

61623A

EXTENSION, QUARTER PANEL, OUTER RH

61625F

EXTENSION, QUARTER PANEL, UPPER RH

61627E

EXTENSION, QUARTER PANEL, REAR LOWER RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61637A

BRACE, QUARTER PANEL, RH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61665J

PLATE, SEAT BELT ANCHORAGE, RH

61705

PANEL SUB-ASSY, ROOF SIDE, INNER RH

61715A

EXTENSION, ROOF SIDE, INNER UPPER RH

61717A

REINFORCEMENT, QUARTER PANEL EXTENSION, RH

61727B

EXTENSION, QUARTER PANEL REINFORCEMENT, RH

61731B

PANEL, ROOF SIDE, INNER RH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61745A

REINFORCEMENT, BACK DOOR OPENING, LOWER RH

61768B

REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

65565

PATCH, SIDE PANEL REAR END, RH

68981A

RETAINER, BACK DOOR STAY, RH

9004120259

Крепеж

Код

Описание

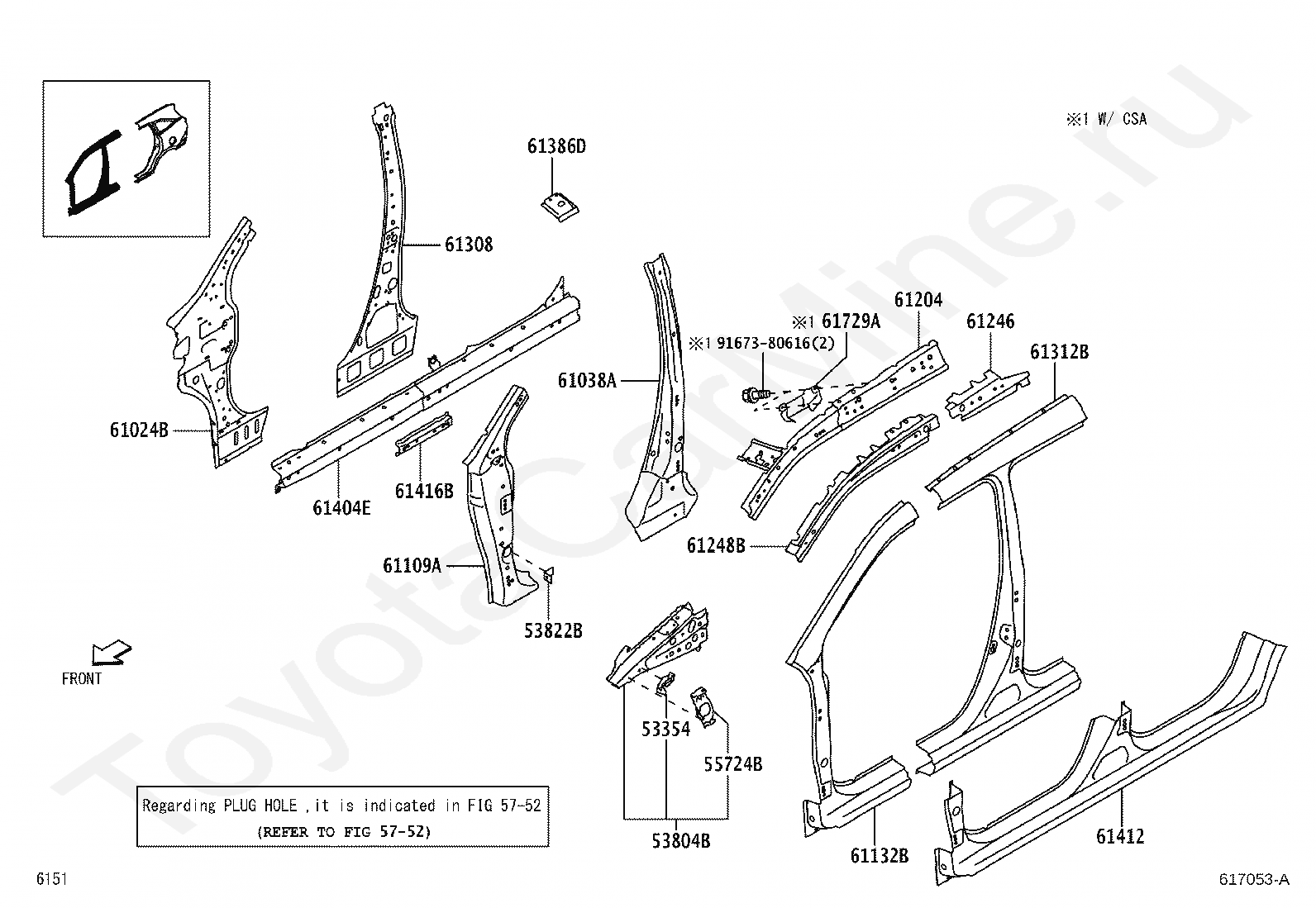

53354

GUSSET, HOOD REINFORCEMENT, LH

53804B

BRACKET SUB-ASSY, FRONT SIDE PANEL, LH

53822B

BRACKET, FRONT FENDER, REAR LH

55724B

GUSSET, FRONT PANEL, LH

5752

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61132B

PILLAR, FRONT BODY, OUTER LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61246

REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

61248B

REINFORCEMENT, ROOF SIDE RAIL, INNER LH

61308

PILLAR SUB-ASSY, CENTER BODY, INNER LH

61312B

PILLAR, CENTER BODY, OUTER LH

61386D

EXTENSION, CENTER BODY PILLAR, UPPER LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61412

PANEL, ROCKER, OUTER LH

61416B

EXTENSION, ROCKER, OUTER LH

61729A

BRACKET, ROOF SIDE RAIL, LH

9167380616

Крепеж

Код

Описание

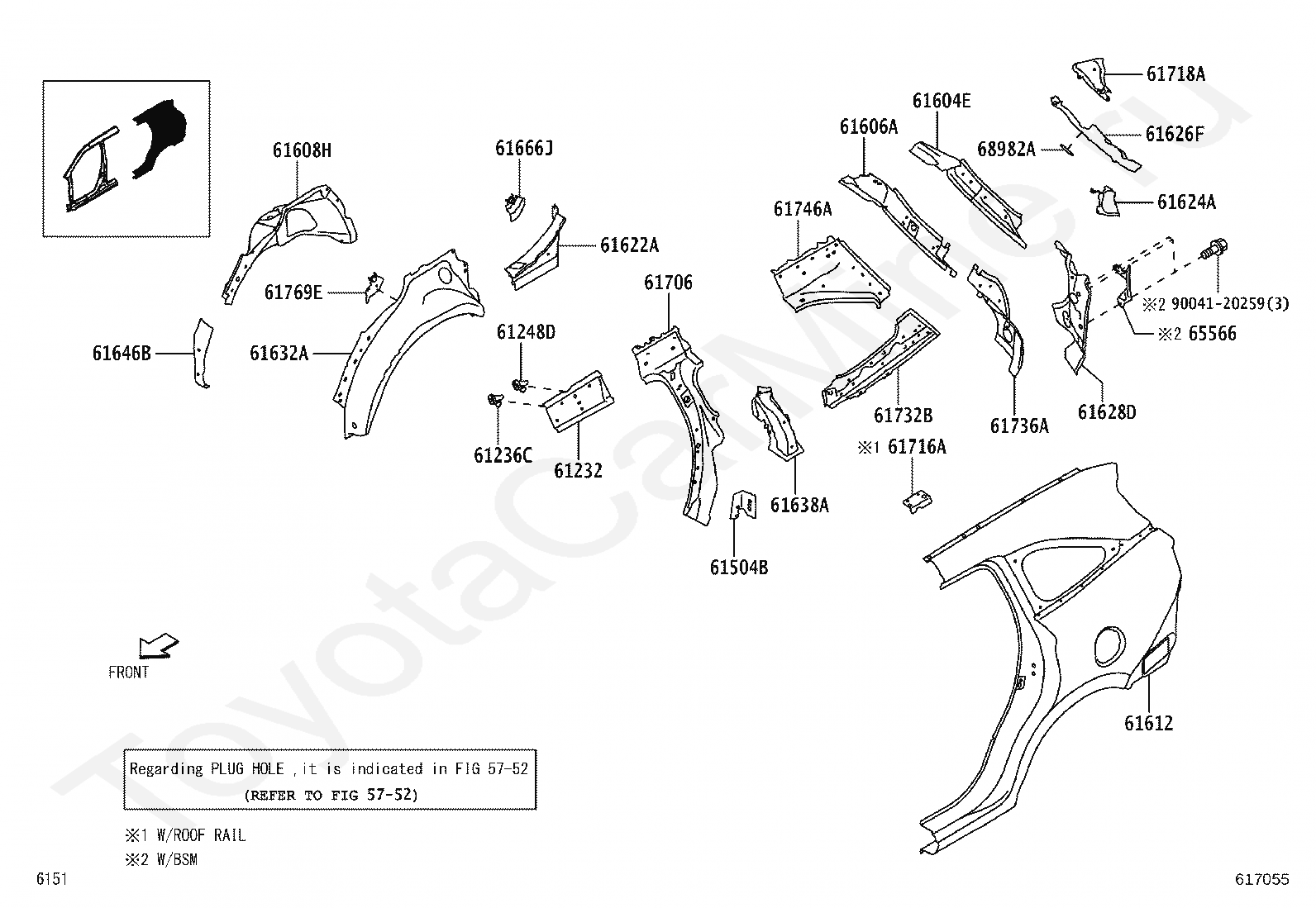

5752

переход к группе запчастей

61232

RAIL, ROOF SIDE, INNER LH

61236C

BRACKET, ASSIST GRIP

61248D

BRACKET, ASSIST GRIP, LH

61504B

REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

61604E

REINFORCEMENT SUB-ASSY, QUATER PANEL, INNER LH

61606A

REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH

61608H

PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH

61612

PANEL, QUARTER, LH

61622A

EXTENSION, QUARTER PANEL, LOWER LH

61624A

EXTENSION, QUARTER PANEL, OUTER LH

61626F

EXTENSION, QUARTER PANEL, UPPER LH

61628D

EXTENSION, QUARTER PANEL, REAR LOWER LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61638A

BRACE, QUARTER PANEL, LH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61666J

PLATE, SEAT BELT ANCHORAGE, LH

61706

PANEL SUB-ASSY, ROOF SIDE, INNER LH

61716A

EXTENSION, ROOF SIDE, INNER UPPER LH

61718A

REINFORCEMENT, QUARTER PANEL EXTENSION, LH

61732B

PANEL, ROOF SIDE, INNER LH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61746A

REINFORCEMENT, BACK DOOR OPENING, LOWER LH

61769E

REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH

65566

PATCH, SIDE PANEL REAR END, LH

68982A

RETAINER, BACK DOOR STAY, LH

9004120259

Крепеж

Боковая панель кузова TOYOTA AVANZA
