Каталог

Ближний Восток

Модель

AVANZA

VIN

Дата

2011/12

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

VAN

Класс

MULTI INFORMATION DISPLAY

Фрейм

F652

КПП

МКПП, 5 скоростей

Опции

левый руль WITH VVT MEXICO 484W

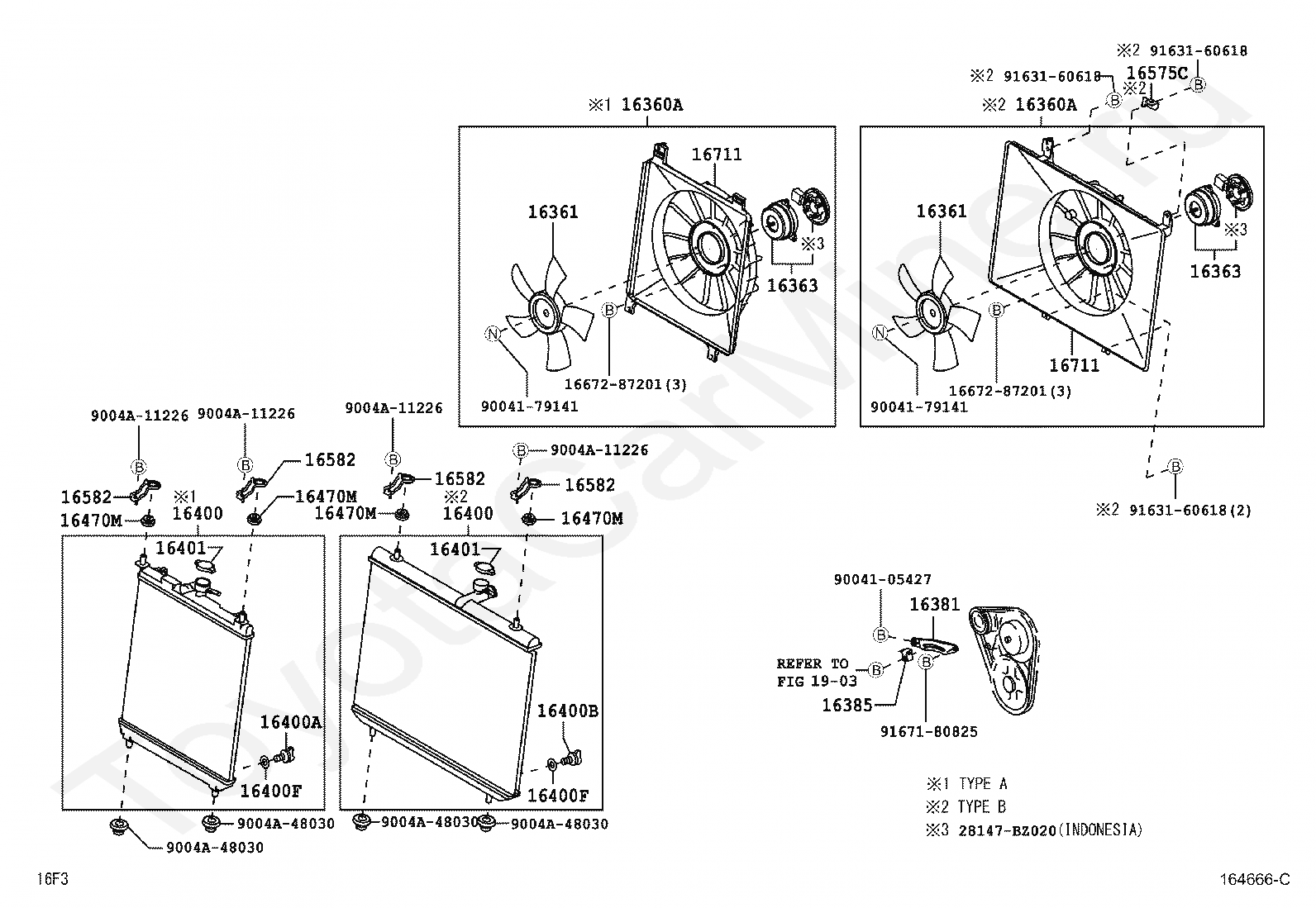

Радиатор и шланги TOYOTA AVANZA

Код

Описание

16360A

FAN ASSY, W/MOTOR

16360A

FAN ASSY, W/MOTOR

16361

FAN

16361

FAN

16363

MOTOR, COOLING FAN

16363

MOTOR, COOLING FAN

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16400

RADIATOR ASSY

16400A

COCK SUB-ASSY, RADIATOR DRAIN

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16401

CAP SUB-ASSY, RADIATOR

16470M

GROMMET

16470M

GROMMET

16470M

GROMMET

16470M

GROMMET

16575C

BRACKET, WATER HOSE CLAMP, NO.1

16582

BRACKET, RADIATOR, NO.1

16582

BRACKET, RADIATOR, NO.1

16582

BRACKET, RADIATOR, NO.1

16582

BRACKET, RADIATOR, NO.1

1667287201

Крепеж

1667287201

Крепеж

16711

SHROUD, FAN

16711

SHROUD, FAN

1903

переход к группе запчастей

28147BZ020

Крепеж

9004105427

Крепеж

9004179141

Крепеж

9004179141

Крепеж

9004A11226

Крепеж

9004A11226

Крепеж

9004A11226

Крепеж

9004A11226

Крепеж

9004A48030

Крепеж

9004A48030

Крепеж

9004A48030

Крепеж

9004A48030

Крепеж

9163160618

Крепеж

9163160618

Крепеж

9163160618

Крепеж

9167180825

Крепеж

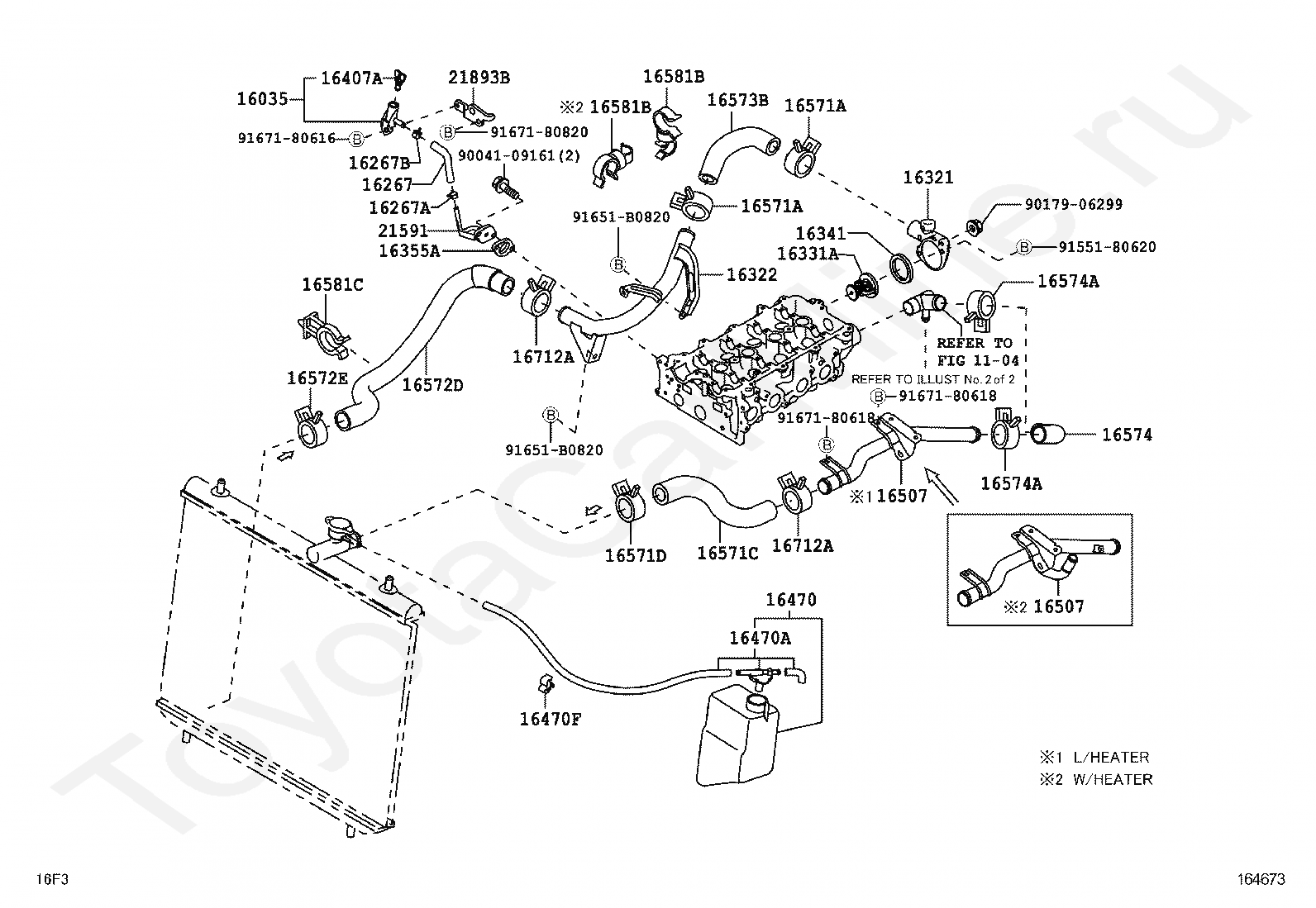

Код

Описание

1104

переход к группе запчастей

16035

JOINT, WATER HOSE

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16321

INLET, WATER

16322

PIPE, WATER INLET

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16355A

GASKET(FOR WATER BY-PASS JOINT FRONT)

16407A

COCK SUB-ASSY, RADIATOR DRAIN

16470

TANK ASSY, RADIATOR RESERVE

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470F

CLAMP, RADIATOR RESERVE TANK HOSE

16507

PIPE SUB-ASSY, RADIATOR

16507

PIPE SUB-ASSY, RADIATOR

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16573B

HOSE, RADIATOR, NO.3

16574

HOSE, RADIATOR, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16574A

CLIP, RADIATOR HOSE, NO.4

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16581B

CLAMP, HOSE(FOR RADIATOR HOSE)

16581C

CLAMP, HOSE(FOR RADIATOR HOSE NO.2)

16712A

CLIP

16712A

CLIP

21591

PLATE, WATER BY-PASS

21893B

BRACKET

9004109161

Крепеж

9017906299

Крепеж

9155180620

Крепеж

91651B0820

Крепеж

91651B0820

Крепеж

9167180616

Крепеж

9167180618

Крепеж

9167180618

Крепеж

9167180820

Крепеж

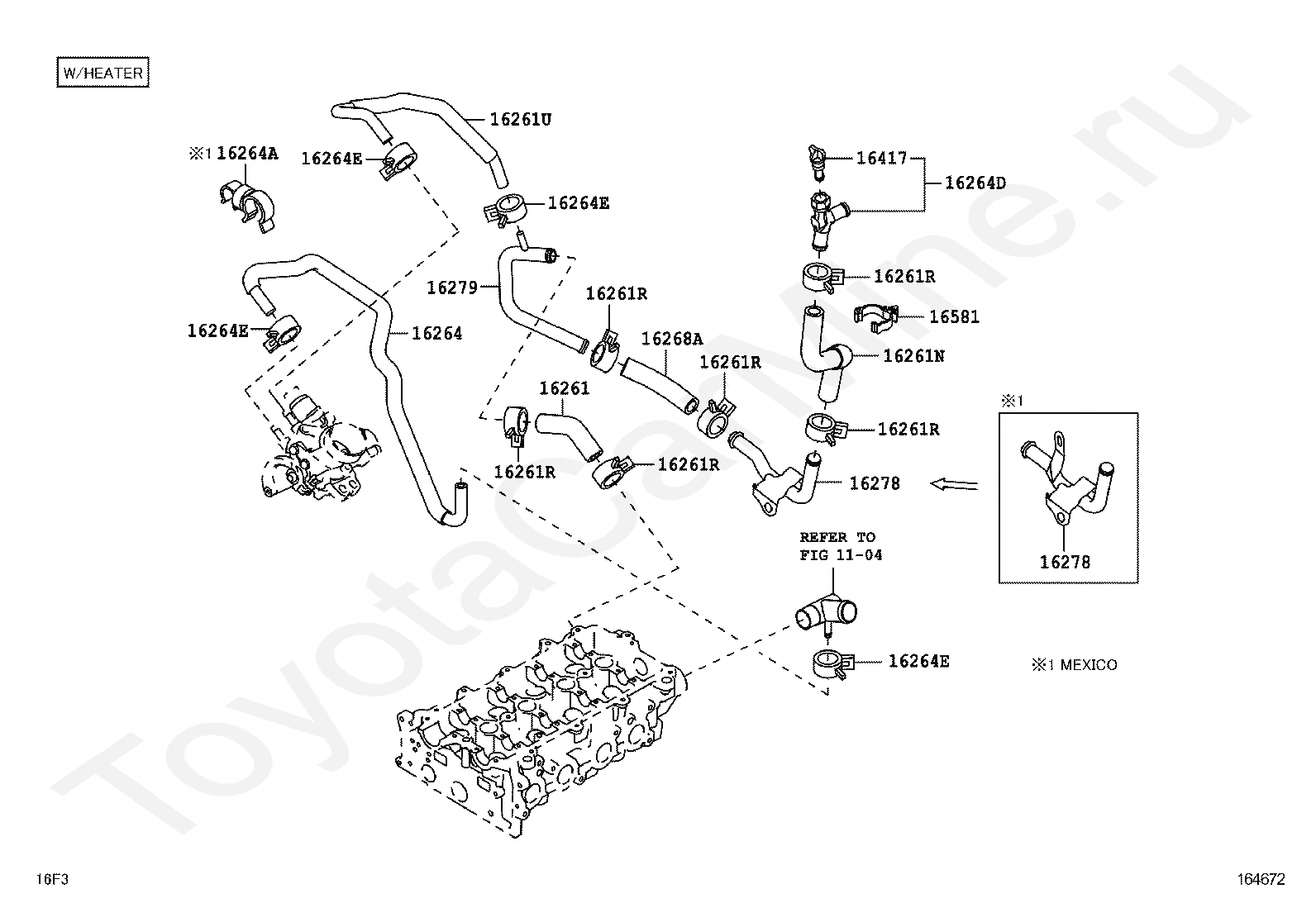

Код

Описание

1104

переход к группе запчастей

16261

HOSE, WATER BY-PASS

16261N

HOSE, WATER BY-PASS, NO.2

16261R
